Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

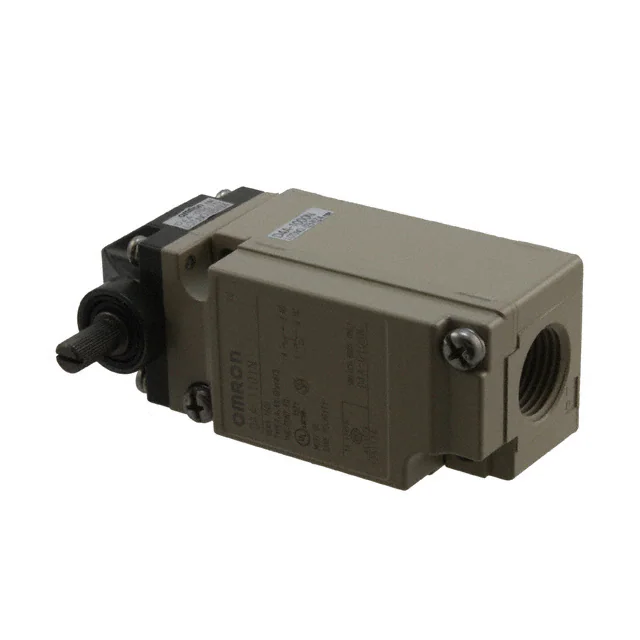

D4A-1101-NSWITCH SNAP ACTION SPDT 10A 125V |
134 | 147.62 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 40gfm | 5.103gfm | - | 15° | 5° | 70° | -40°C ~ 100°C |
|

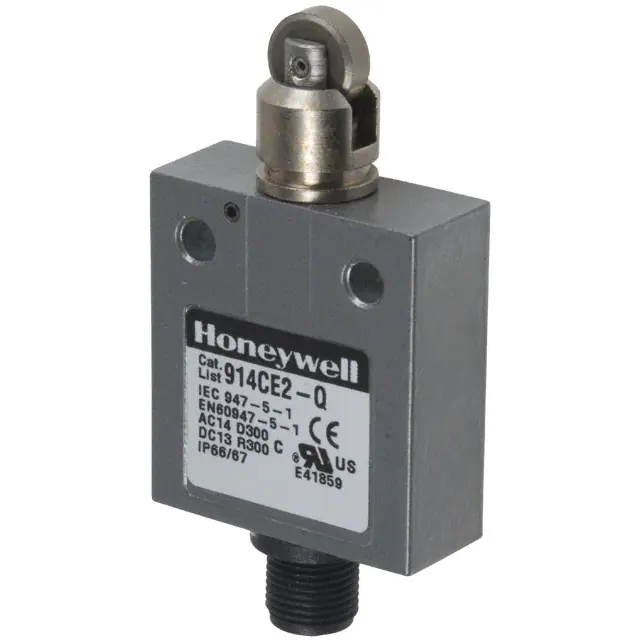

914CE2-QSWITCH SNAP ACTION SPDT 3A 125V |
2,399 | 157.43 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Roller Plunger | Chassis Mount | Connector | IP66 - Dust Tight, Water Resistant | - | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|

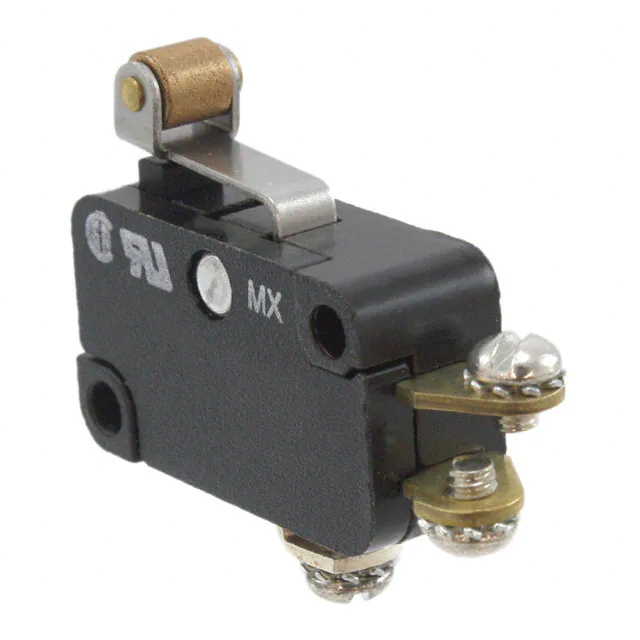

V3L-3SWITCH SNAP ACTION SPDT 15A 125V |
186 | 169.90 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 397gf | 85gf | 0.812" (20.6mm) | 0.060" (1.5mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|
D4C-1202SWITCH SNAP ACTION SPDT 5A 250V |
4,925 | 141.95 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|

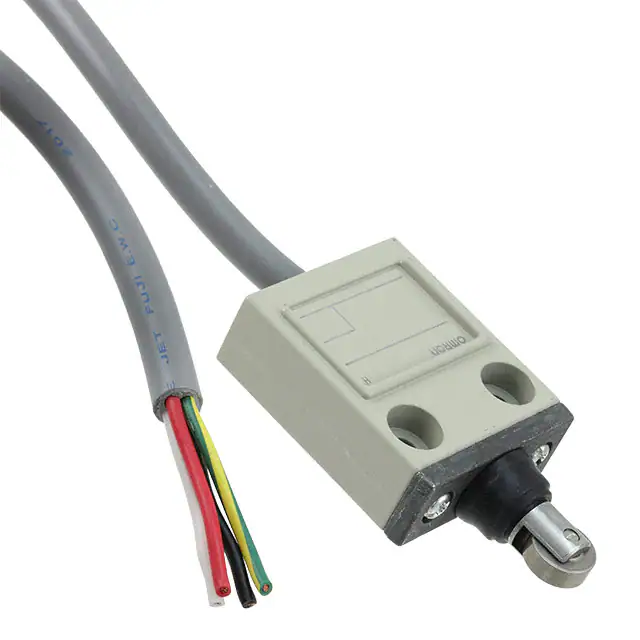

D4C-1232SWITCH SNAP ACTION SPDT 5A 250V |
1,526 | 147.62 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m | 1800gf | 450gf | 1.350" (34.3mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|

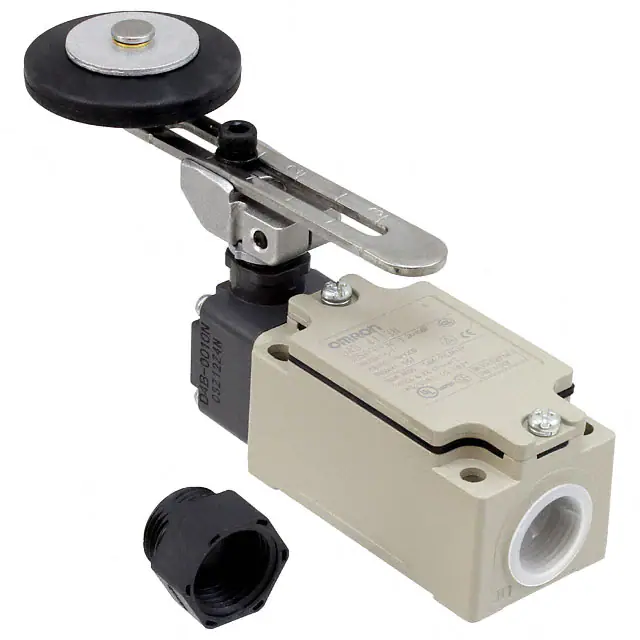

D4B-4113N-NPTSWITCH SNAP ACTION SPDT 10A 120V |
3,783 | 149.25 |
|
Datasheet |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Rubber Roller | - | - | - | - | - | - | -40°C ~ 80°C |
|

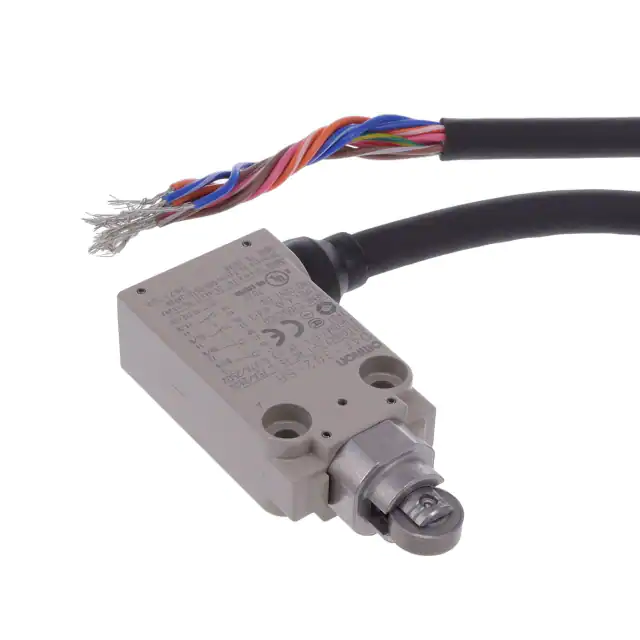

D4F-302-5RSWITCH SNAP ACTION 4PST 15A 120V |
3,469 | 226.93 |
|
Datasheet |
D4F | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|

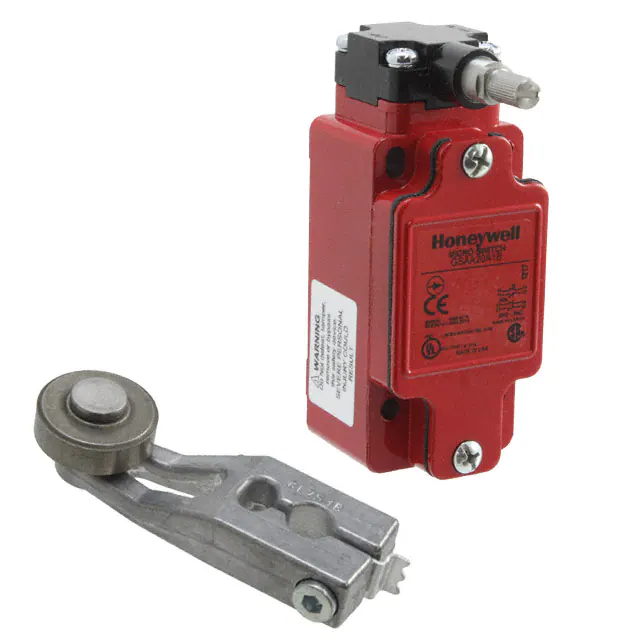

GSAA20A1BSWITCH SNAP ACTION 4PST 6A 120V |
3,708 | 182.20 |
|
Datasheet |
GSA | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Roller | 33gfm | 40gfm | 2.638" (67.0mm) | - | 12° | 85° | -40°C ~ 85°C |
|

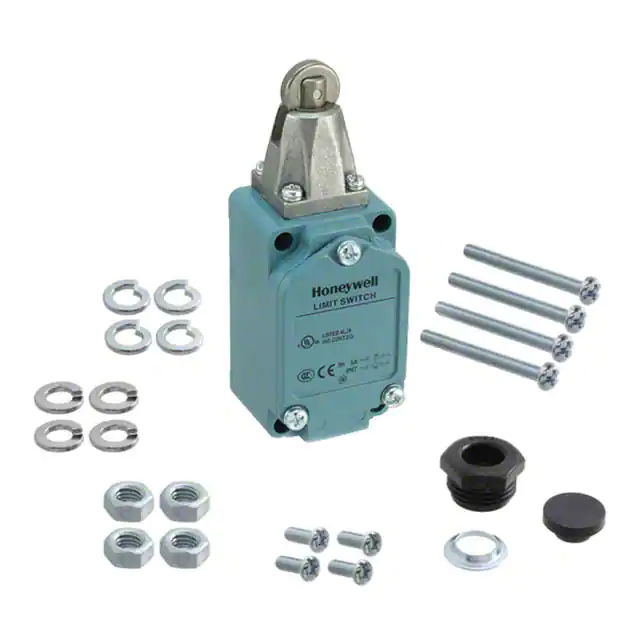

SZL-WL-E-NSWITCH SNAP ACTION SPDT 10A 125V |
1,576 | 190.57 |
|
Datasheet |
SZL-WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2720gf | - | 0.067" (1.70mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -10°C ~ 80°C |
|

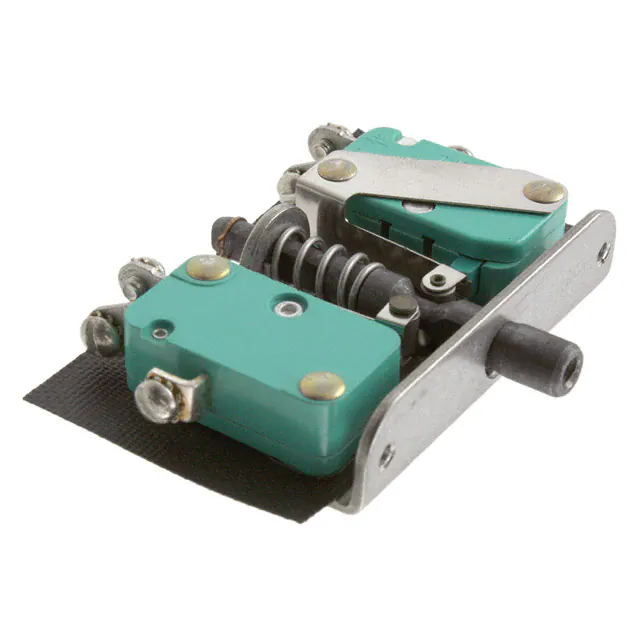

4AC54SWITCH SNAP ACT SPDTX2 15A 125V |
263 | 949.67 |
|
Datasheet |
AC | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | 0.188" (4.8mm) | - | 0.125" (3.2mm) | -55°C ~ 85°C |
|

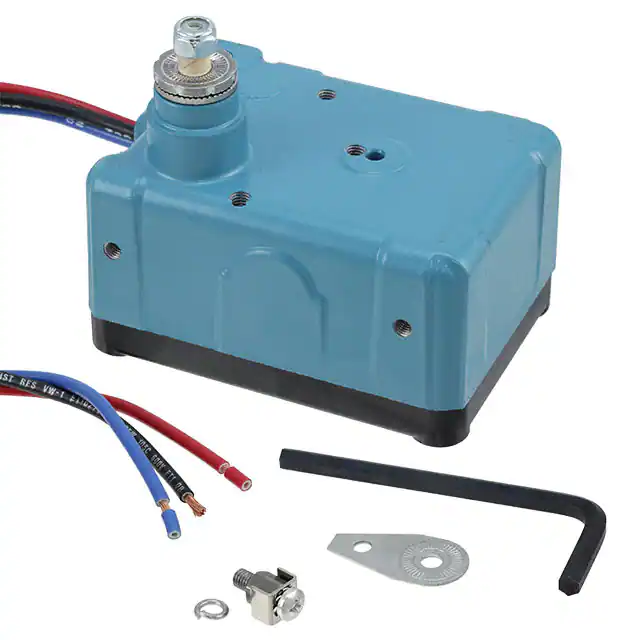

EX-XR9SWITCH SNAP ACTION SPDT 15A 125V |
3,554 | 861.54 |
|
Datasheet |
EX | Bulk | Active | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Wire Leads | - | CCW Rotation to Reset, Explosion Proof | 793gf | - | - | 8° | - | 90° | -40°C ~ 71°C |
|

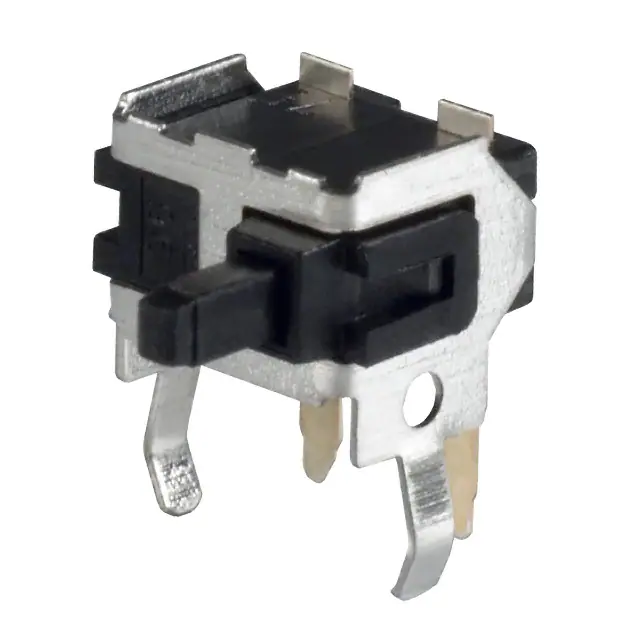

ESE-11SH1CSWITCH DETECTOR SPST-NO 0.01A 5V |
2,062 | 0.48 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.183" (4.65mm) | - | - | - | -10°C ~ 70°C |
|
ESE-22MH52SWITCH DETECTOR SPST-NO 0.01A 5V |
11,037 | 0.50 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.055" (1.4mm) | - | - | - | -10°C ~ 70°C |
|
ESE-18L11ASWITCH DETECTOR SPST-NO 0.01A 5V |
5,190 | 0.65 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-18L11CSWITCH DETECTOR SPST-NO 0.01A 5V |
6,563 | 0.64 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-18R11CSWITCH DETECTOR SPST-NO 0.01A 5V |
4,575 | 0.65 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-13V01CSWITCH DETECTOR SPST-NO 0.01A 5V |
6,934 | 0.69 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-11MH2SWITCH DETECTOR SPST-NO 0.01A 5V |
1,900 | 0.57 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 36gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|
ESE-13H01CSWITCH DETECTOR SPST-NO 0.01A 5V |
8,365 | 0.70 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-13H01BSWITCH DETECTOR SPST-NO 0.01A 5V |
7,075 | 0.70 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
