Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

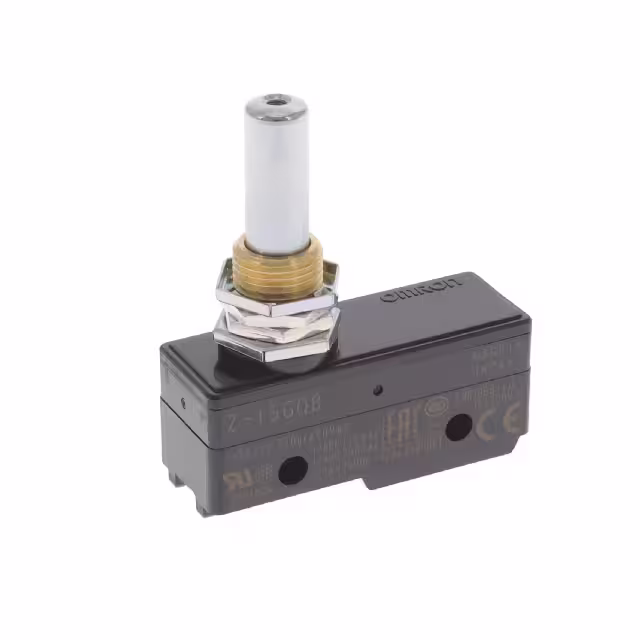

Z-15GQ8SWITCH SNAP ACTION SPDT 15A 125V |
2,559 | 30.05 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Overtravel Plunger | Panel Mount | Solder Lug | IP00 | - | 250 ~ 350gf | 114gf | 1.281" (32.5mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|

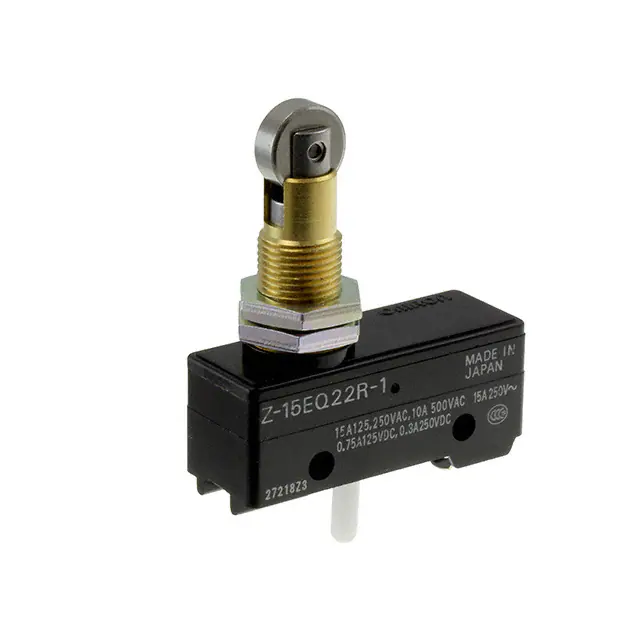

Z-15EQ22R-1SWITCH SNAP ACTION SPDT 15A 125V |
3,369 | 45.88 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Solder Lug | IP40 | - | 625 ~ 800gf | 114gf | 1.313" (33.4mm) | 0.030" (0.8mm) | 0.005" (0.13mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|

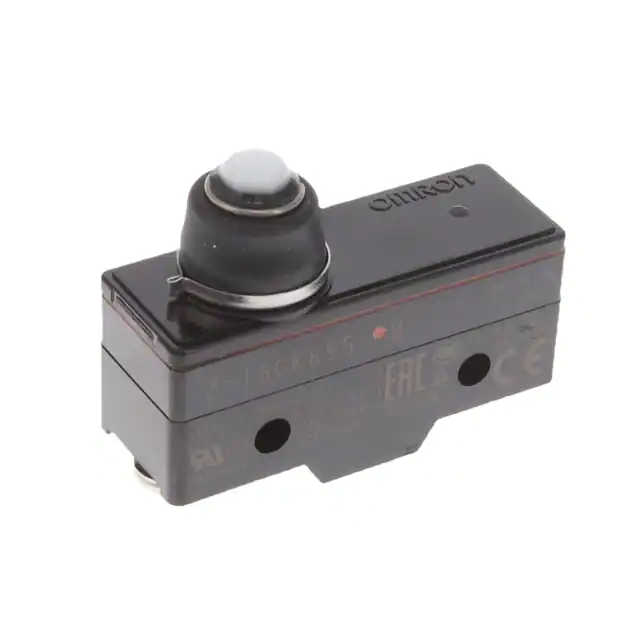

Z-15GK655-BSWITCH SNAP ACTION SPDT 15A 125V |
3,753 | 31.47 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -25°C ~ 80°C |
|
X-10GM-BSWITCH SNAP ACTION SPDT 10A 30V |
4,073 | 34.37 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 220gf | 25gf | 0.831" (21.1mm) | - | 0.083" (2.1mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|

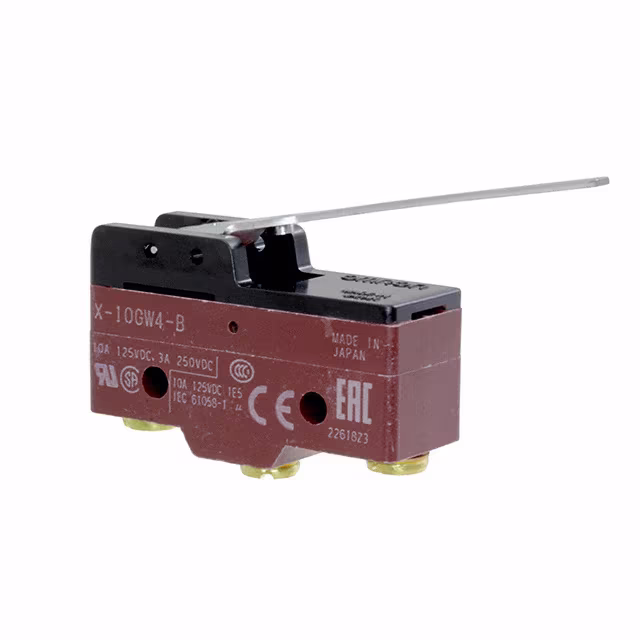

X-10GW4-BSWITCH SNAP ACTION SPDT 10A 30V |
4,309 | 41.58 |
|
Datasheet |
X | Bulk | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 25gf | 5.099gf | 0.831" (21.1mm) | 0.562" (14.3mm) | 0.154" (3.9mm) | 0.190" (4.8mm) | -25°C ~ 80°C |
|

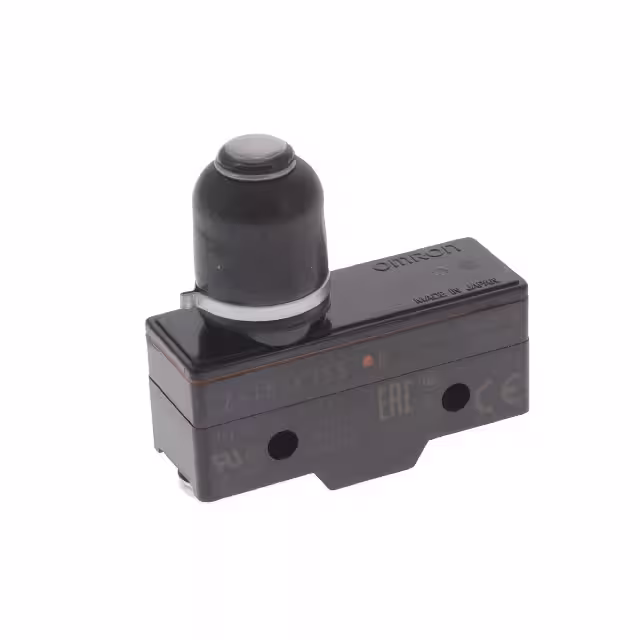

Z-15GK355-BSWITCH SNAP ACTION SPDT 15A 125V |
2,766 | 37.28 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP62 | - | 540gf | 114gf | 1.488" (37.8mm) | 0.094" (2.4mm) | 0.002" (0.05mm) | 0.138" (3.5mm) | -15°C ~ 80°C |
|
Z-01HQ21-BSWITCH SNAP ACT SPDT 0.1A 125V |
1,153 | 40.15 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Cross Roller Plunger | Chassis Mount | Screw Terminal | IP00 | - | 200 ~ 285gf | 114gf | - | 0.012" (0.3mm) | 0.001" (0.025mm) | 0.141" (3.58mm) | -25°C ~ 80°C |
|

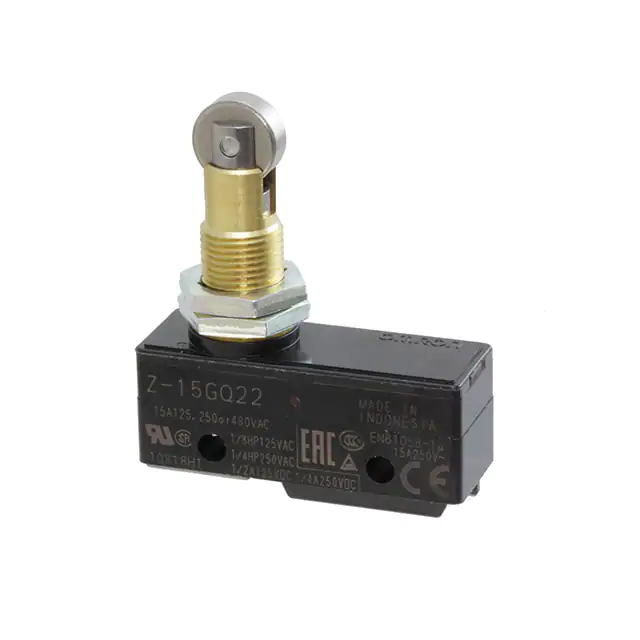

Z-15GQ22SWITCH SNAP ACTION SPDT 15A 125V |
2,654 | 32.99 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Solder Lug | IP00 | - | 250 ~ 350gf | 114gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|

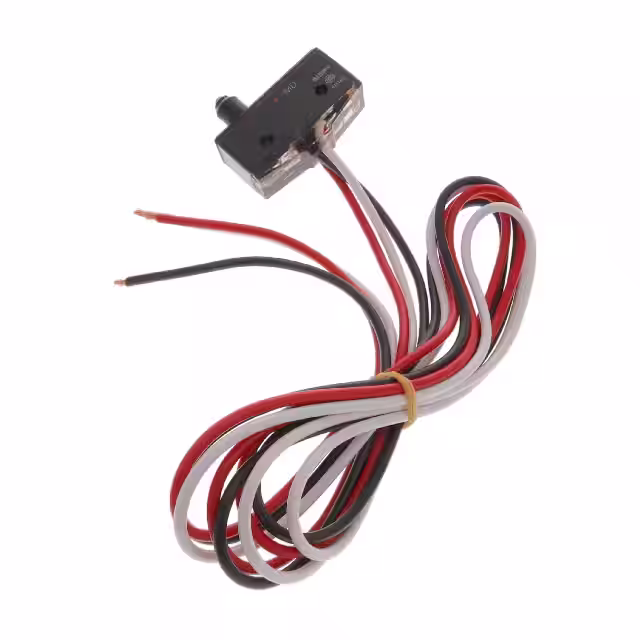

Z-15GS55-MD 1MSWITCH SNAP ACTION SPDT 15A 125V |
1,259 | 58.55 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP62 | Cable Length 1m | 250 ~ 350gf | 114gf | 1.110" (28.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.062" (1.6mm) | -15°C ~ 80°C |
|
D4N-4262SWITCH SNAP ACT DPST-NC 3A 240V |
3,057 | 33.59 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
Z-15HQ21-BSWITCH SNAP ACTION SPDT 15A 125V |
1,771 | 35.04 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 30 V | Cross Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 200 ~ 285gf | 114gf | 1.313" (33.4mm) | 0.012" (0.3mm) | 0.001" (0.025mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|
D4N-2131SWITCH SNAP ACTION DPST 3A 240V |
2,386 | 33.11 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.715" (18.2mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|

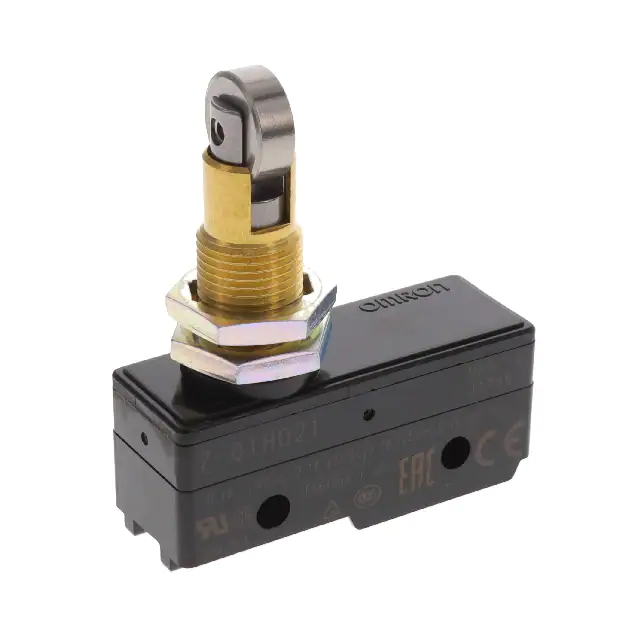

Z-01HQ21SWITCH PNL MNT CRSS RLR PLUNGR |
1,447 | 37.28 |
|
Datasheet |
Z | - | Active | - | - | 100mA (AC/DC) | 125 V | 30 V | Cross Roller Plunger | - | - | - | - | - | - | - | - | - | - | - |
|
X-10GD-BSWITCH SNAP ACTION SPDT 10A 30V |
4,470 | 37.28 |
|
Datasheet |
X | Bulk | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP00 | - | 510gf | 114gf | 0.835" (21.2mm) | 0.035" (0.9mm) | 0.007" (0.18mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
D4N-2162SWITCH SNAP ACTION DPST 3A 240V |
1,066 | 33.59 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|

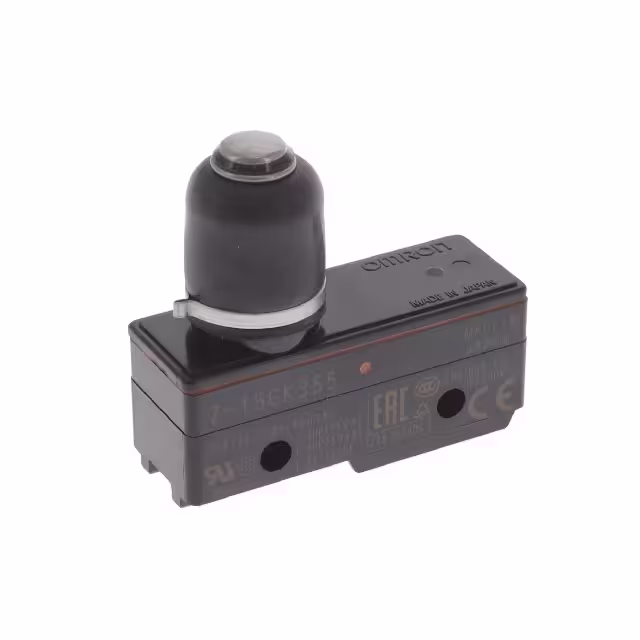

Z-15GK355SWITCH SNAP ACTION SPDT 15A 125V |
3,989 | 37.28 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP62 | - | 540gf | 114gf | 1.488" (37.8mm) | 0.094" (2.4mm) | 0.002" (0.05mm) | 0.138" (3.5mm) | -15°C ~ 80°C |
|
1DM79SWITCH SNAP ACTION SPDT 10A 125V |
4,596 | 29.19 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | 85gf | 0.750" (19.1mm) | - | 0.045" (1.1mm) | 0.375" (9.5mm) | -37°C ~ 82°C |
|

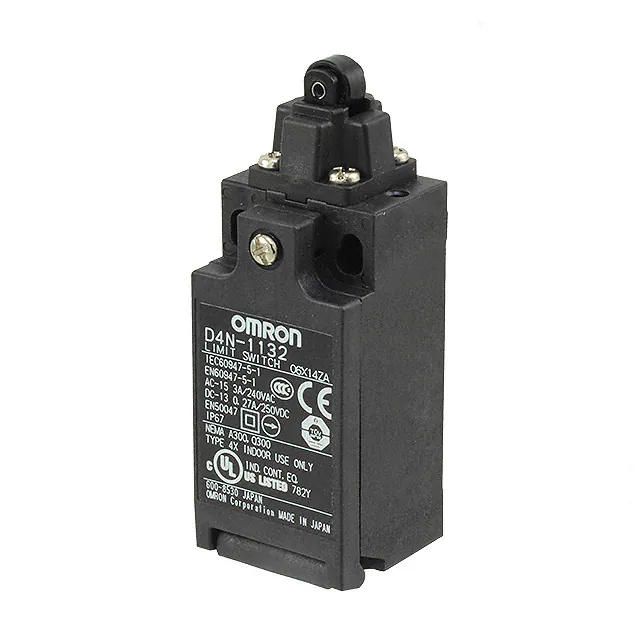

D4N-1132SWITCH SNAP ACTION DPST 3A 240V |
1,889 | 37.50 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|
D4N-1A32SWITCH SNAP ACTION DPST 3A 240V |
3,745 | 35.57 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
D4N-4162SWITCH SNAP ACTION DPST 3A 240V |
3,035 | 33.59 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
