Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS-01GPDSWITCH SNAP ACT SPDT 0.1A 125V |
1,612 | 1.31 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 153gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
D3V-162-3C5SWITCH SNAP ACT SPST-NO 16A 250V |
3,040 | 3.04 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
D3SK-A0R-6SWITCH DETECT SPST-NO 0.001A 5V |
2,278 | 1.43 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Right Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
D3SK-B0L-6SWITCH DETECT SPST-NC 0.001A 5V |
1,554 | 1.43 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Left Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
AVT3224613SWITCH SNAP ACT SPDT 0.1A 125V |
2,943 | 1.75 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 35gf | 3.059gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
D3SK-B1L-6SWITCH DETECT SPST-NC 0.001A 5V |
2,464 | 1.43 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide, Left Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
|
D3SK-A0L-6SWITCH DETECT SPST-NO 0.001A 5V |
2,648 | 1.43 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Left Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
|
D3SK-B0R-6SWITCH DETECT SPST-NC 0.001A 5V |
4,003 | 1.43 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Right Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
|
D3SK-A1R-6SWITCH DETECT SPST-NO 0.001A 5V |
3,939 | 1.43 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide, Right Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
|
D3SK-B1R-6SWITCH DETECT SPST-NC 0.001A 5V |
2,035 | 1.43 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide, Right Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|

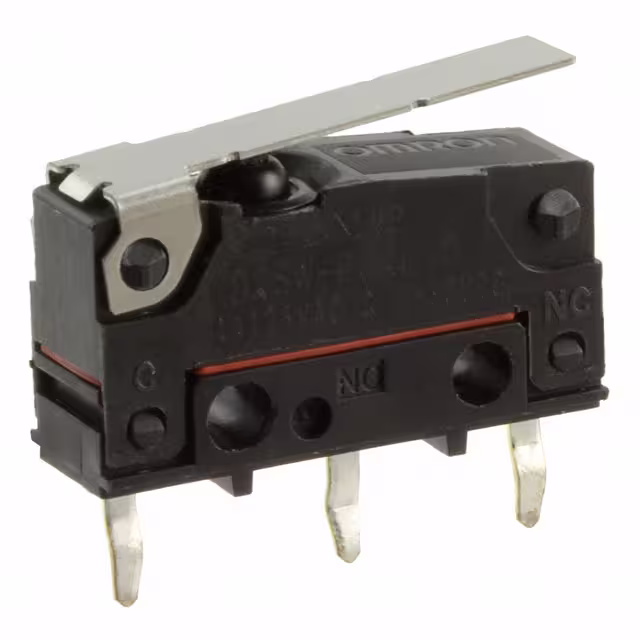

D2SW-P01L1BSWITCH SNAP ACT SPDT 0.1A 125V |
1,355 | 2.71 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
AH15629-ASWITCH SNAP ACTION SPDT 3A 125V |
3,211 | 1.89 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 5.099gf | 0.268" (6.8mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
SS-5-F-3TSWITCH SNAP ACT SPST-NO 5A 125V |
3,671 | 2.80 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|

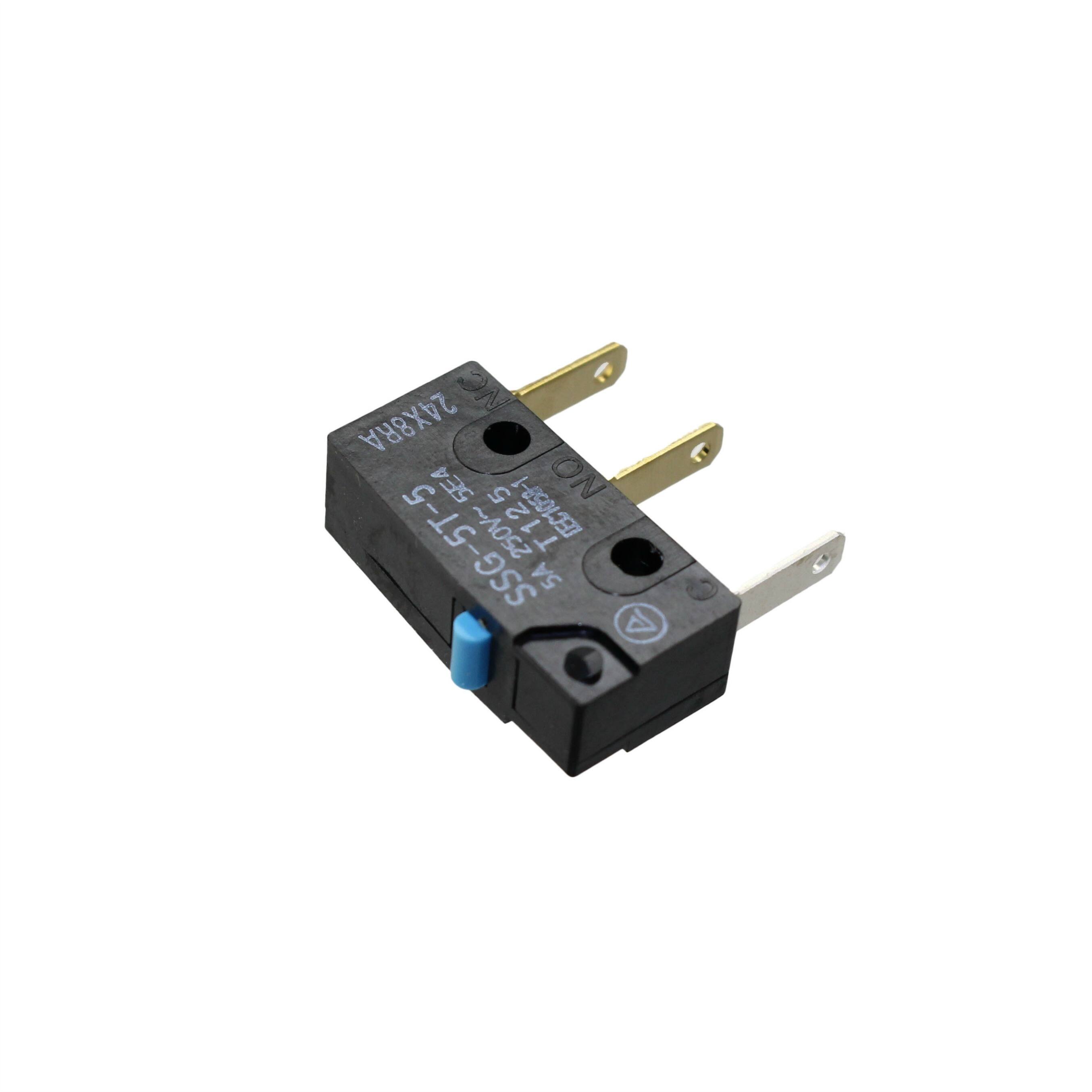

SSG5T5SWITCH SNAP ACTION SPDT 5A 125V |
1,290 | 2.87 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 51gf | 4.079gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 125°C |
|
D3V-01-3A3SWITCH SNP ACT SPST-NO 0.1A 125V |
2,437 | 2.56 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 5.099gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
DS1D6AQ3SWITCH SNAP ACTION SPDT 10A 125V |
3,315 | 7.03 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|
D3SH-A0L1SWITCH DETECT SPST-NO 0.001A 5V |
4,265 | 1.98 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Left Operating Lever | 24gf | - | 0.213" (5.4mm) | - | - | - | -25°C ~ 85°C |
|
DS1F5CQ3SWITCH SNAP ACT SPDT 100MA 125V |
2,383 | 10.74 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | Pull On Lock | 385gf | - | 0.660" (16.76mm) | - | - | 0.520" (13.2mm) | -40°C ~ 85°C |
|
D3V-164M-1A5SWITCH SNAP ACTION SPDT 16A 250V |
3,047 | 2.87 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
SS-01-E-2SWITCH SNP ACT SPST-NC 0.1A 125V |
2,806 | 2.03 |
|
Datasheet |
SS | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 25gf | 2.039gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
