Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JJFV0UG380NOPPRTRSWITCH DETECT SPST-NO 0.001A 5V |
4,454 | 1.10 |
|
Datasheet |
JJF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 40gf | - | 0.138" (3.5mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
.jpg)
|

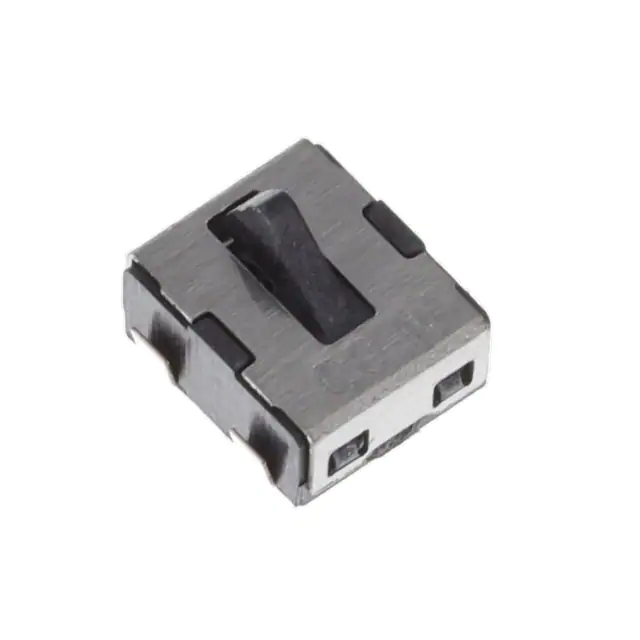

JJAV0UJ253NOPMRTRSWITCH DETECT SPST-NO 0.001A 5V |
3,473 | 1.10 |
|
Datasheet |
JJA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | Board Guide | 50gf | - | 0.087" (2.2mm) | 0.013" (0.33mm) | - | - | -10°C ~ 60°C |
|

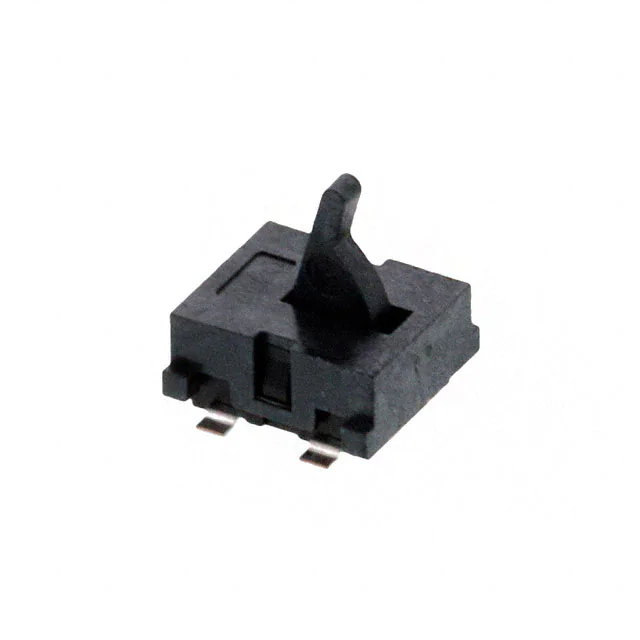

JJFV0UG530NOPPRTRSWITCH DETECT SPST-NO 0.001A 5V |
2,389 | 1.10 |
|
Datasheet |
JJF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 40gf | - | 0.197" (5.0mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|

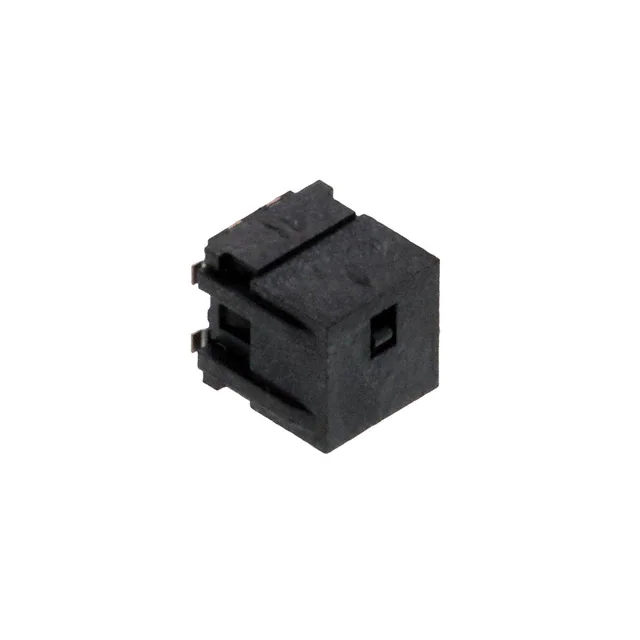

JJFV0UG530NONMRTRSWITCH DETECT SPST-NO 0.001A 5V |
1,800 | 1.10 |
|
Datasheet |
JJF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 40gf | - | 0.197" (5.0mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|

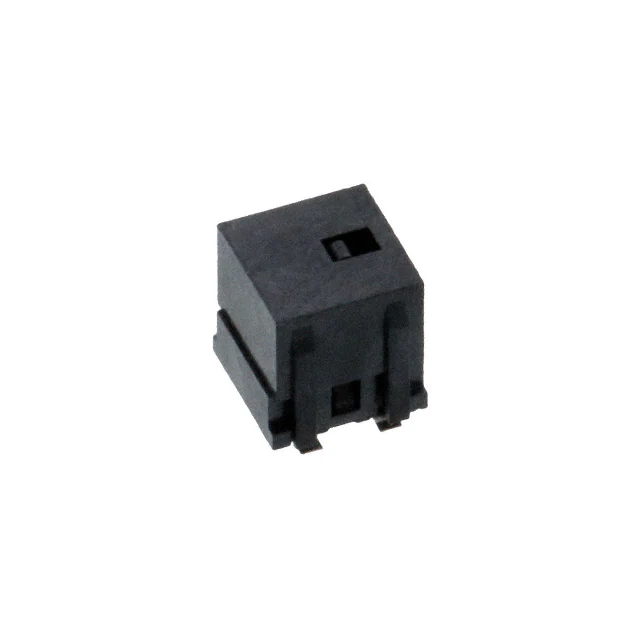

JJFV0UG530NOPMRTRSWITCH DETECT SPST-NO 0.001A 5V |
485 | 1.10 |
|
Datasheet |
JJF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 40gf | - | 0.197" (5.0mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|

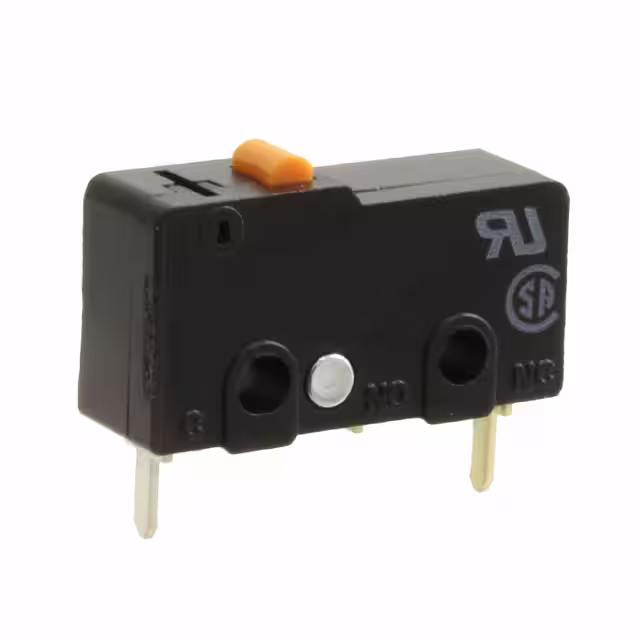

SS-5-2DSWITCH SNAP ACT SPST-NC 5A 125V |
500 | 1.83 |
|
Datasheet |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
SS-01GLPTSWITCH SNAP ACT SPDT 0.1A 125V |
448 | 1.49 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 51gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
AH1662SWITCH SNAP ACTION SPDT 3A 125V |
384 | 1.40 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 50gf | 5.099gf | 0.268" (6.8mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|

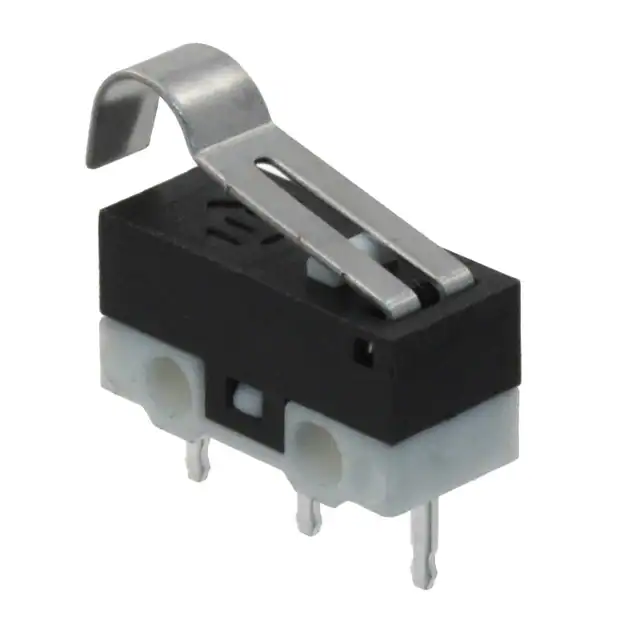

SS075Q103F050P1ASWITCH SNAP ACT SPDT 0.1A 125V |
4,079 | 1.32 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 50gf | 15gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
|
SAJ25YXPP0147SDTSEQSWITCH SNAP ACTION SPDT 5A 125V |
644 | 1.40 |
|
Datasheet |
SAJ2 | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 25gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 75°C |
|

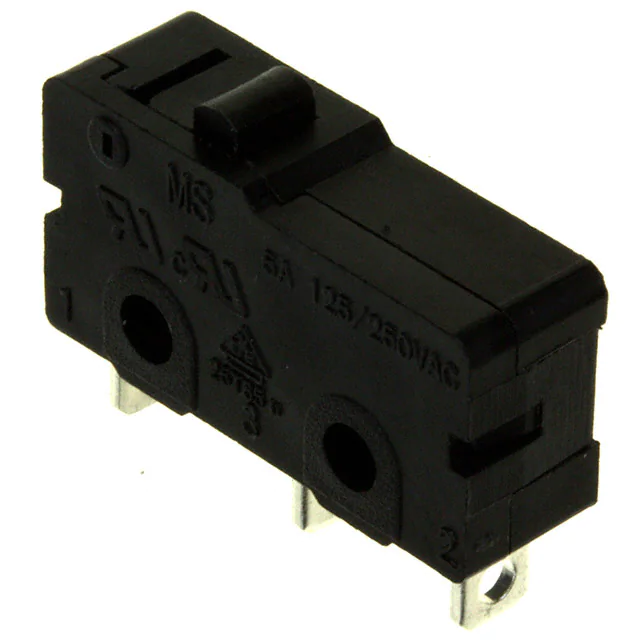

MS0850500F250S1ASWITCH SNAP ACTION SPDT 5A 125V |
700 | 1.36 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 250gf | 50gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|

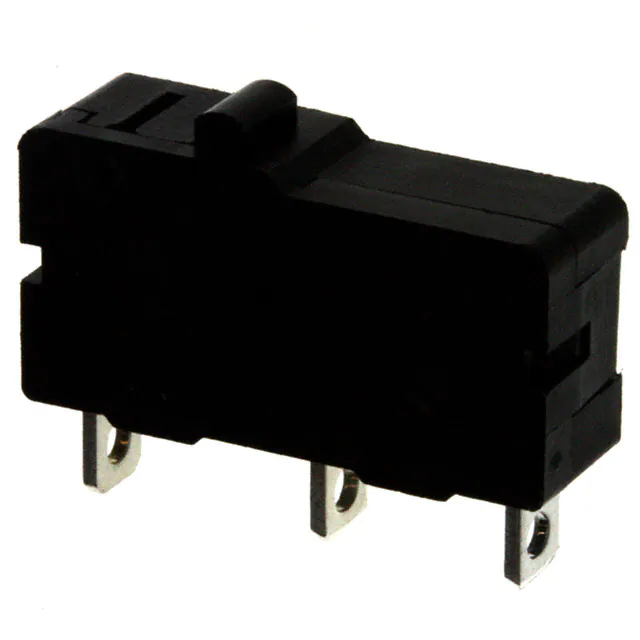

MS0850500F060S1ASWITCH SNAP ACTION SPDT 5A 125V |
134 | 1.40 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 60gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
D3SH-A0R1SWITCH DETECT SPST-NO 0.001A 5V |
3,640 | 1.98 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Right Operating Lever | 24gf | - | 0.213" (5.4mm) | - | - | - | -25°C ~ 85°C |
|
|
D3SH-B0R1SWITCH DETECT SPST-NC 0.001A 5V |
978 | 1.98 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Right Operating Lever | 24gf | - | 0.213" (5.4mm) | - | - | - | -25°C ~ 85°C |
|
|
SM3CQF3503L01SWITCH LIMIT SPDT 5A 125V |
200 | 1.36 |
|
Datasheet |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 90gf | 45gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
ESE-18R61DSWITCH DETECTOR SPST-NC 0.01A 5V |
49,152 | 1.32 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

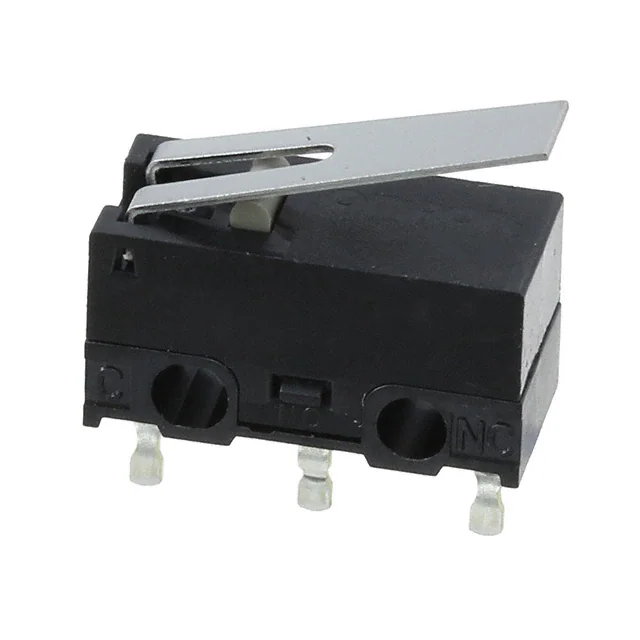

D2F-L-TSWITCH SNAP ACTION SPDT 3A 125V |
1,307 | 2.03 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
D3C-2220SWITCH DETECTOR SPDT 0.1A 30V |
607 | 1.82 |
|
Datasheet |
D3C | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | IP00 | - | 40gf | 3.059gf | 0.134" (3.4mm) | - | - | - | -20°C ~ 80°C |
|

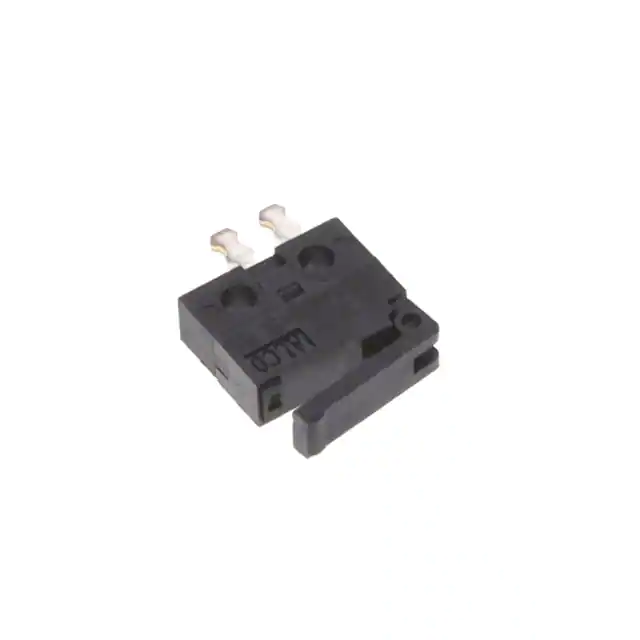

SAJ405XHL0N30SNOUPQSWITCH SNAP ACT SPST-NO 0.5A 30V |
378 | 1.56 |
|
Datasheet |
SAJ4 | Bulk | Active | SPST-NO | Off-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|

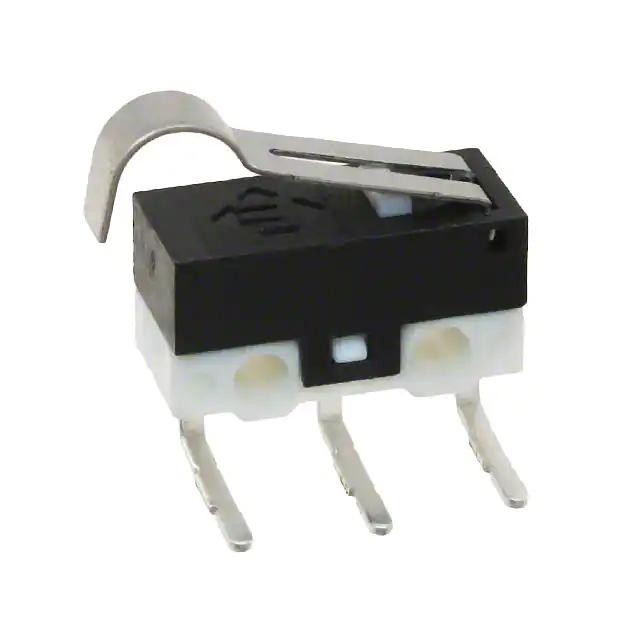

SS075Q103F030V2ASWITCH SNAP ACT SPDT 0.1A 125V |
1,068 | 1.41 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 30gf | 10gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
