Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2VW-5L3-1HSSWITCH SNAP ACTION SPDT 5A 125V |
1,154 | 7.82 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

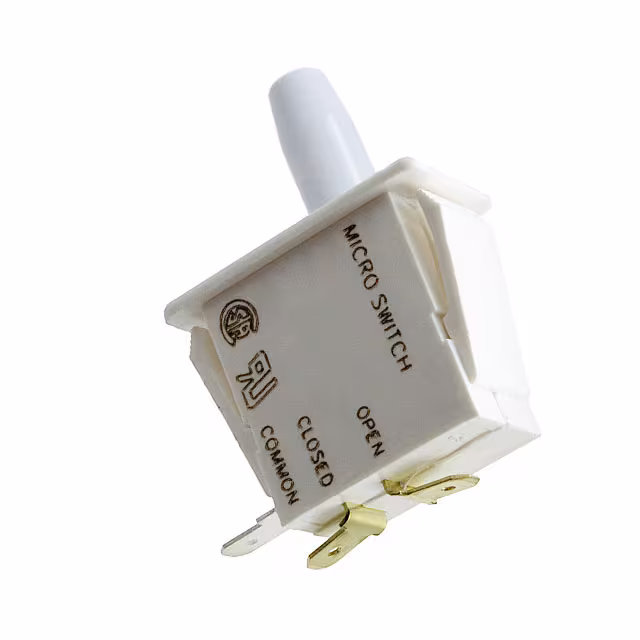

1DM1SWITCH SNAP ACTION SPDT 10A 125V |
1,426 | 15.95 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | 85gf | 0.750" (19.1mm) | - | 0.045" (1.1mm) | 0.375" (9.5mm) | -37°C ~ 82°C |
|

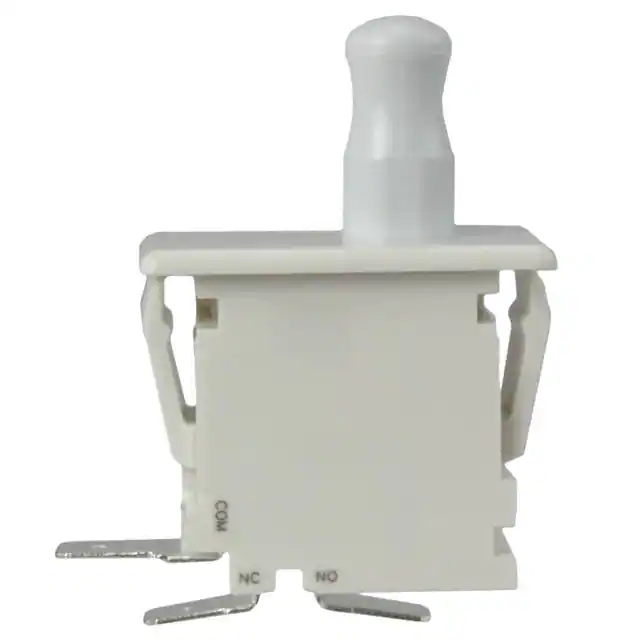

E68-30ASWITCH SNAP ACT SPDT 0.1A 125V |
1,399 | 9.58 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 425gf | - | 0.610" (15.5mm) | 0.125" (3.2mm) | 0.045" (1.1mm) | 0.100" (2.54mm) | -40°C ~ 85°C |
|

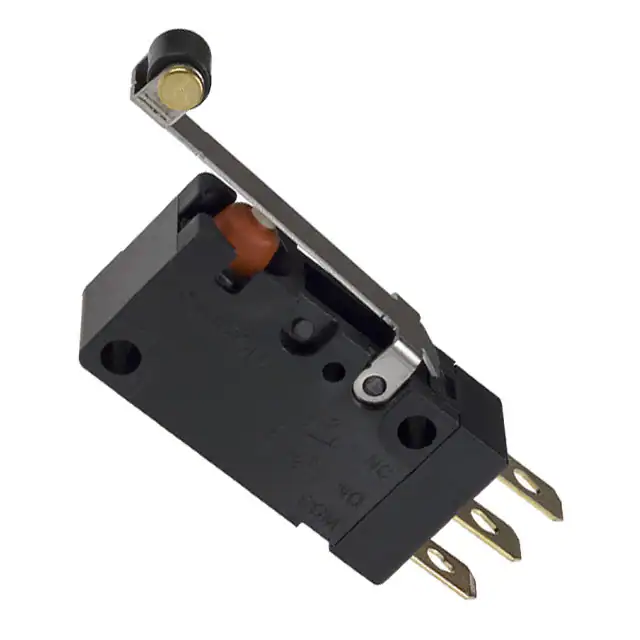

D2VW-01L2-1HSSWITCH SNAP ACT SPDT 0.1A 125V |
1,615 | 12.37 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

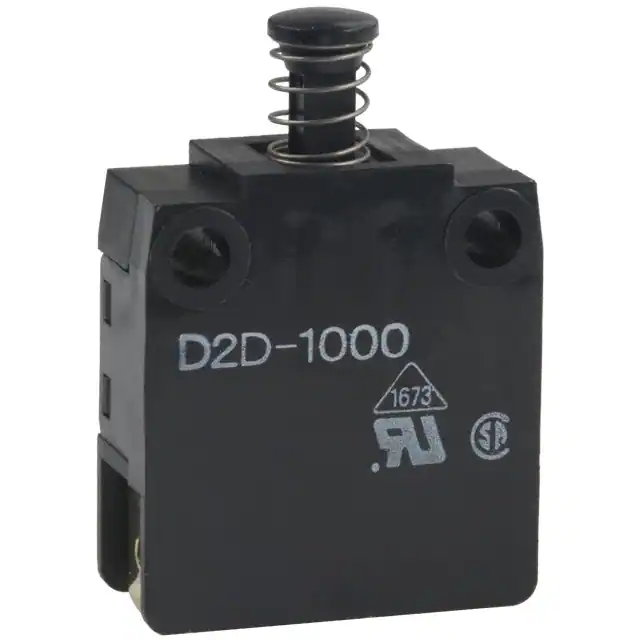

D2D-1000SWITCH SNAP ACTION SPDT 16A 250V |
1,532 | 10.90 |
|
Datasheet |
D2D | Tray | Active | SPDT (DB/DM) | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 300gf | - | 0.625" (15.9mm) | - | - | 0.090" (2.3mm) | -25°C ~ 85°C |
|

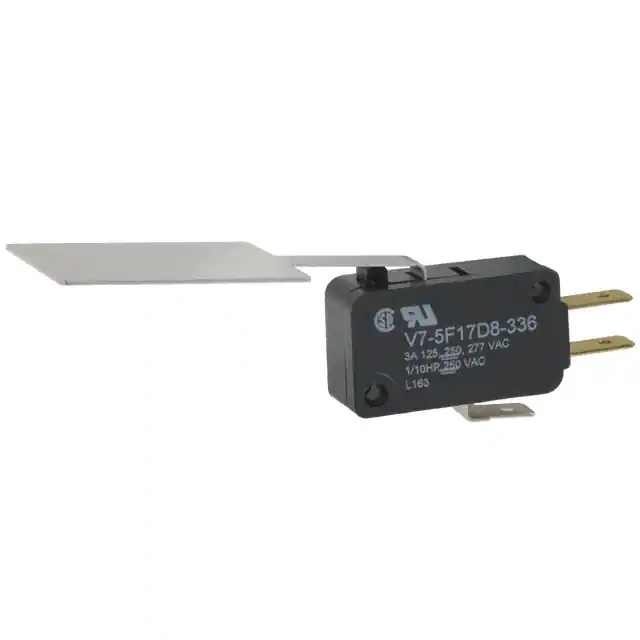

V7-5F17D8-336SWITCH SNAP ACTION SPDT 3A 125V |
1,857 | 9.55 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 2.000gf | - | 0.600" (15.2mm) | 0.470" (11.9mm) | 0.100" (2.54mm) | 0.300" (7.6mm) | -40°C ~ 85°C |
|
311SM2-TSWITCH SNAP ACTION SPDT 5A 250V |
9,043 | 13.98 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 30gf | 5.099gf | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|

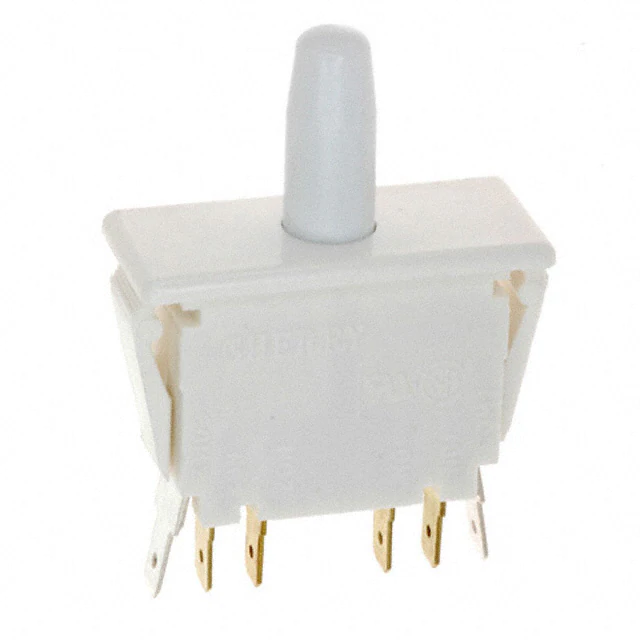

E79-00ASWITCH SNAP ACTION DPDT 10A 125V |
18,343 | 13.12 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.720" (18.3mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.375" (9.5mm) | -40°C ~ 85°C |
|

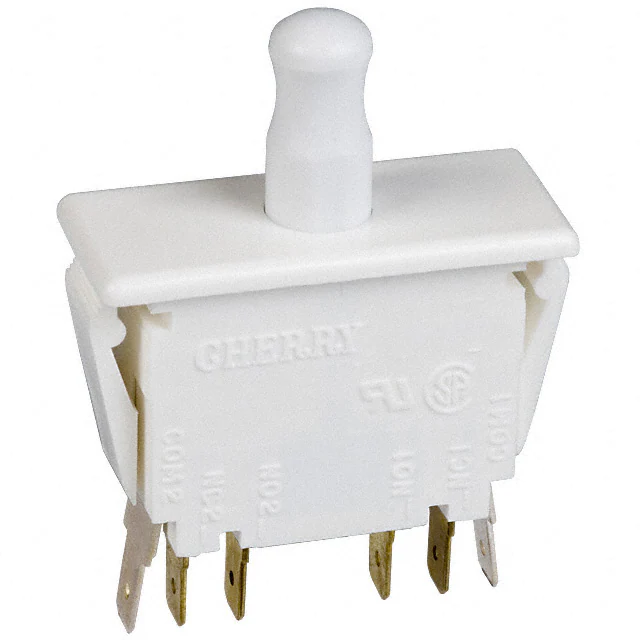

E79-30ASWITCH SNAP ACTION DPDT 10A 125V |
14,672 | 9.50 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 757gf | - | 0.610" (15.5mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.100" (2.54mm) | -40°C ~ 85°C |
|

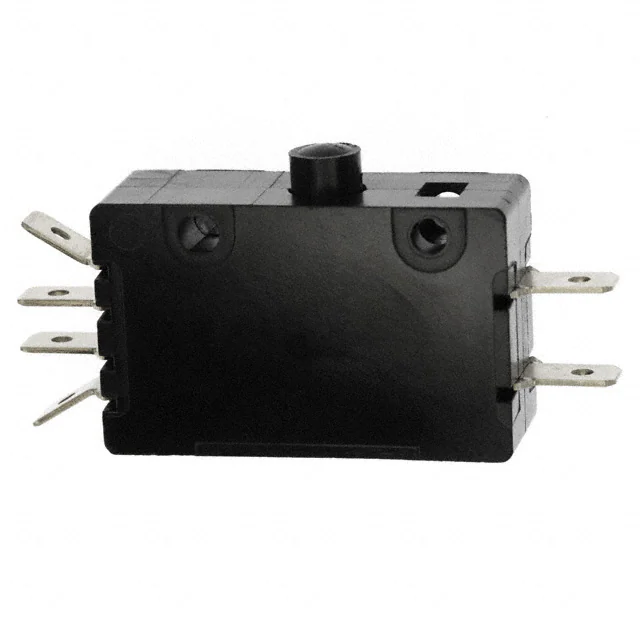

E19-00ASWITCH SNAP ACTION DPDT 15A 125V |
382 | 11.03 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | - | 0.285" (7.24mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.079" (2.0mm) | -40°C ~ 105°C |
|

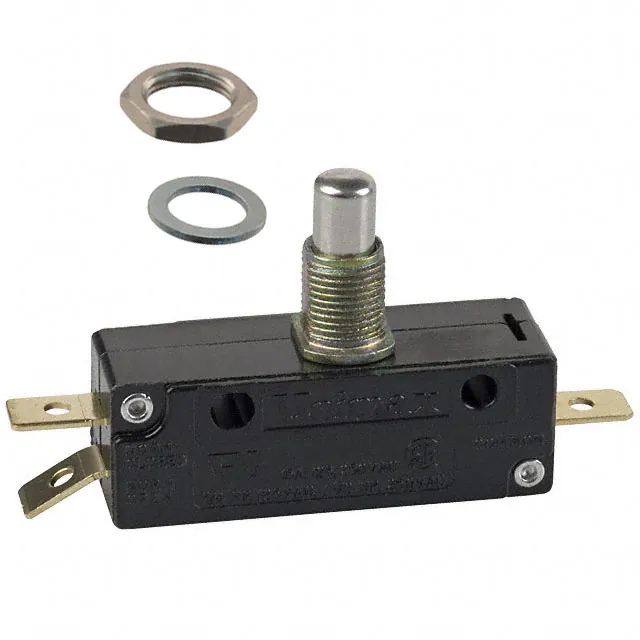

ASKHC2J04ACSWITCH SNAP ACTION SPDT 15A 125V |
498 | 8.45 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
L1-1MS.jpg)
|

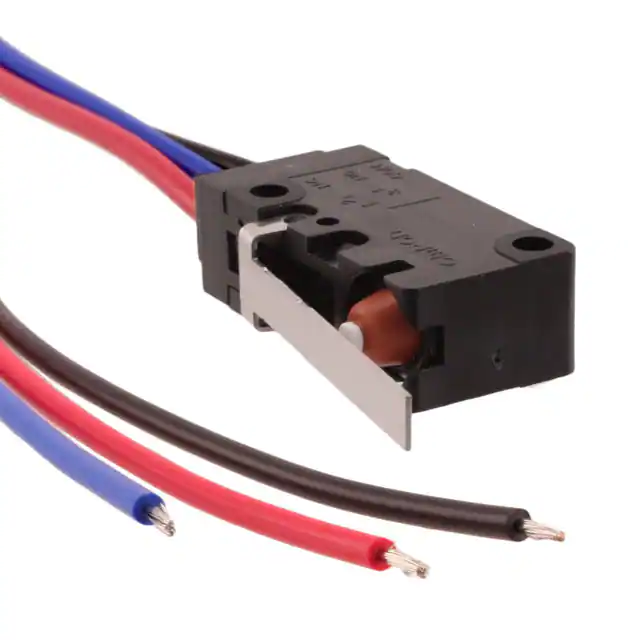

D2VW-5L1-1MSSWITCH SNAP ACTION SPDT 5A 125V |
3,474 | 20.73 |
|
Datasheet |
D2VW | Bag | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

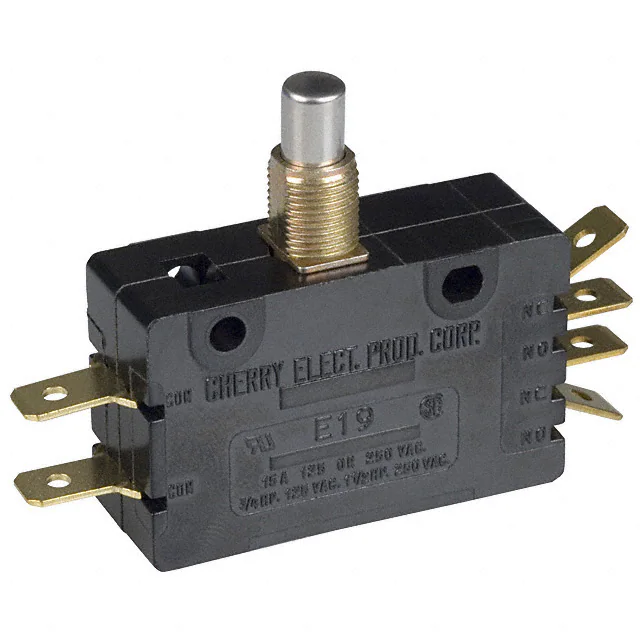

E19-00MSWITCH SNAP ACTION DPDT 15A 125V |
814 | 9.91 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | - | 0.812" (20.6mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.219" (5.6mm) | -40°C ~ 105°C |
|

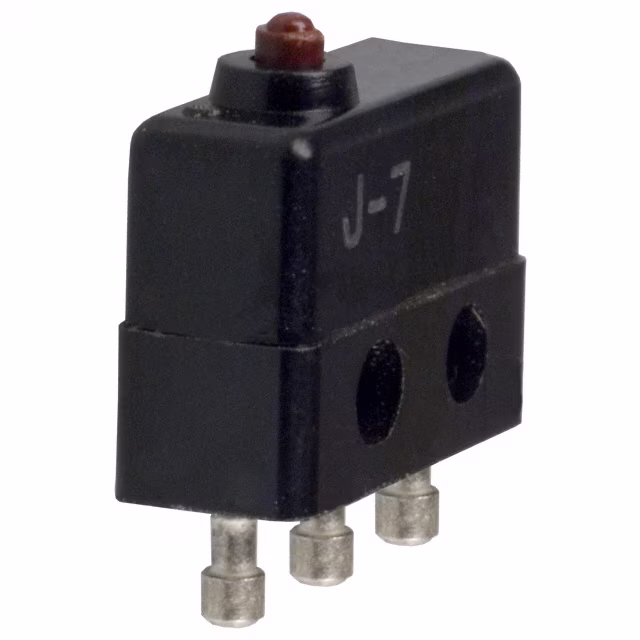

J-7SWITCH SNAP ACTION SPDT 7A 250V |
335 | 12.72 |
|
Datasheet |
J | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Turret | IP40 | - | 140gf | 28gf | 0.319" (8.1mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.004" (0.1mm) | -10°C ~ 80°C |
|

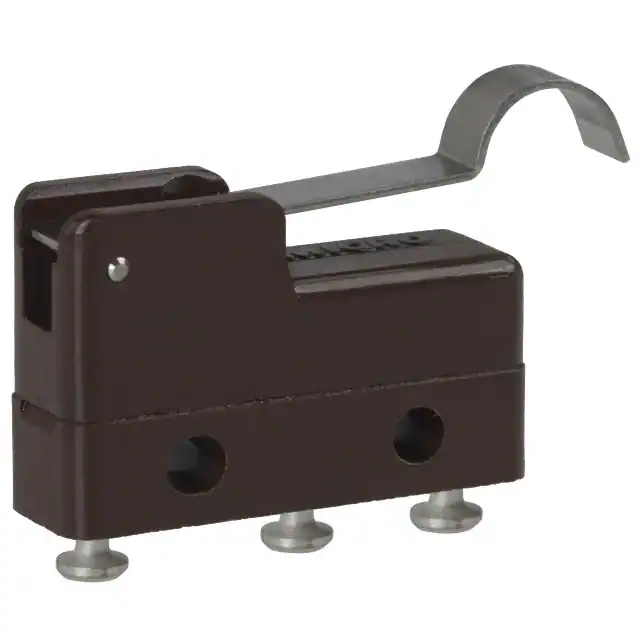

311SM4-TSWITCH SNAP ACTION SPDT 5A 250V |
1,604 | 14.21 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 40gf | 7.138gf | 0.460" (11.7mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
ADPDC2T04ACSWITCH SNAP ACTION DPDT 15A 125V |
175 | 14.06 |
|
Datasheet |
A | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | 28gf | 0.312" (7.9mm) | 0.312" (7.9mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|

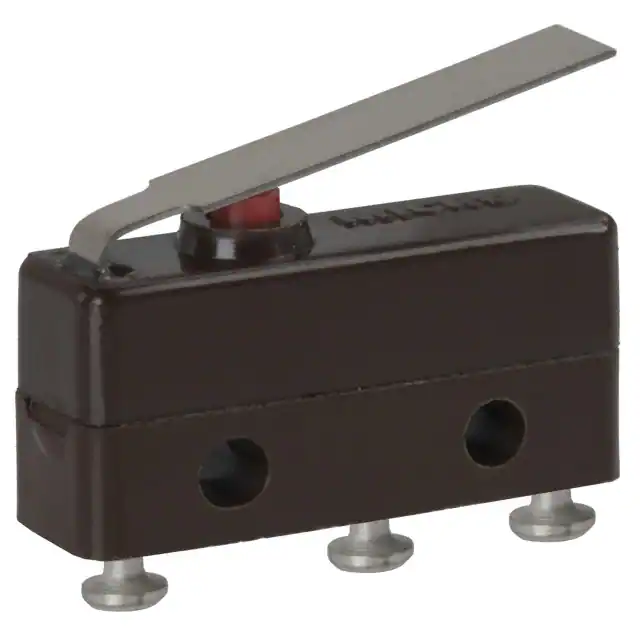

111SM1-TSWITCH SNAP ACTION SPDT 5A 250V |
368 | 16.88 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 198gf | 57gf | 0.350" (8.9mm) | 0.218" (5.5mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|
21SX39-TSWITCH SNAP ACTION SPDT 7A 115V |
235 | 16.88 |
|
Datasheet |
SX | Tray | Active | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|

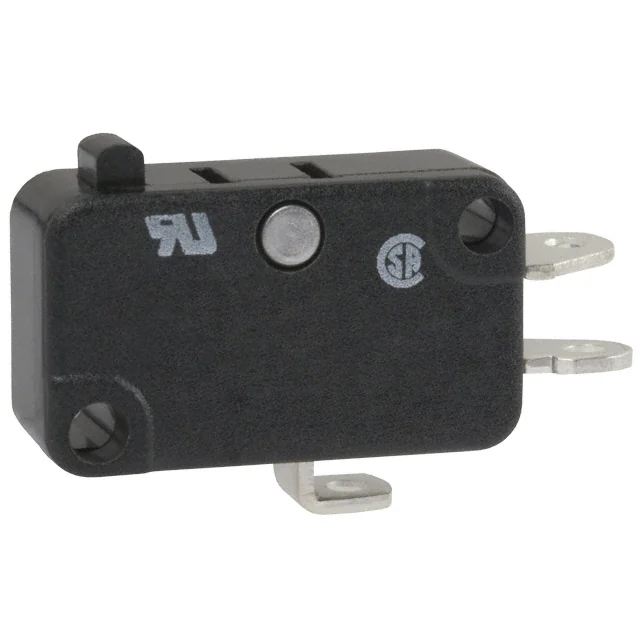

V3-119SWITCH SNAP ACTION SPDT 11A 125V |
603 | 11.62 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 227gf | 57gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
-1MS SERIES.jpg)
|

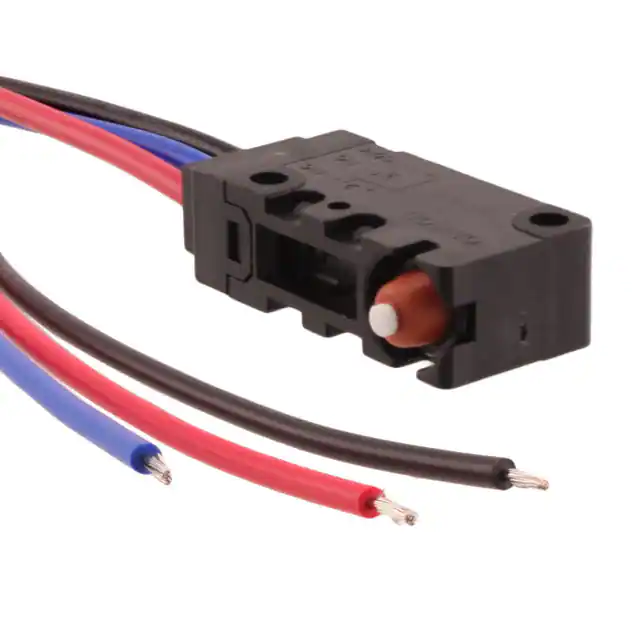

D2VW-5-1MSSWITCH SNAP ACTION SPDT 5A 125V |
2,717 | 21.29 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
