Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZ-2RW80283-PC2SWITCH SNAP ACTION SPDT 15A 125V |
1,016 | 14.42 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 56gf | 7.087gf | 0.750" (19.1mm) | 0.157" (4.0mm) | 0.026" (0.65mm) | 0.050" (1.27mm) | -55°C ~ 85°C |
|
|
BE-2R2425SWITCH SNAP ACTION SPDT 25A 125V |
3,212 | 14.82 |
|
Datasheet |
BE | Bulk | Obsolete | SPDT | On-Mom | 25A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 709gf | 283gf | 0.640" (16.3mm) | 0.050" (1.27mm) | 0.001" (0.025mm) | 0.010" (0.25mm) | -55°C ~ 121°C |
|

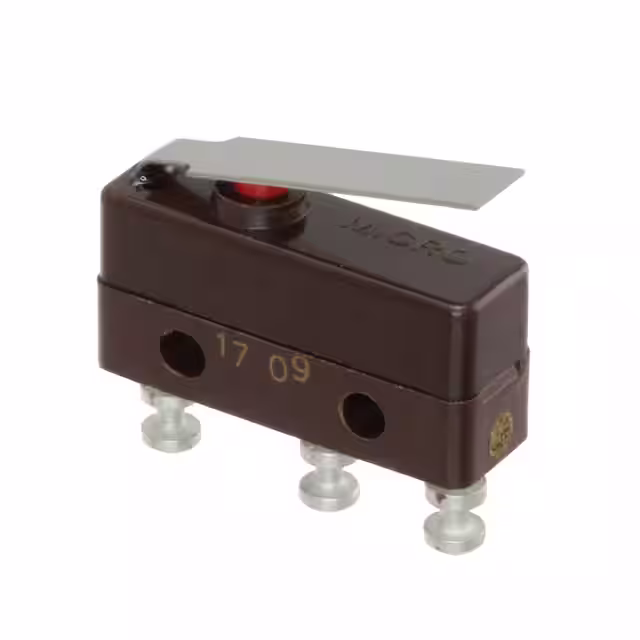

111SM1-T2SWITCH SNAP ACTION SPDT 5A 250V |
4,016 | 13.98 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 198gf | 57gf | 0.350" (8.9mm) | 0.218" (5.5mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|
|
WZ-R141SWITCH SNAP ACT SPST-NC 15A 125V |
1,444 | 11.64 |
|
Datasheet |
WZ | Bulk | Obsolete | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198 ~ 255gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0006" (0.015mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
83160065SWITCH SNAP ACTION SPDT 16A 250V |
2,174 | 10.56 |
|
Datasheet |
83160 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 204gf | 41gf | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.051" (1.3mm) | -20°C ~ 125°C |
|
|
83186014SWITCH SNAP ACTION SPDT 6A 250V |
1,537 | 6.40 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | 255gf | 82gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|

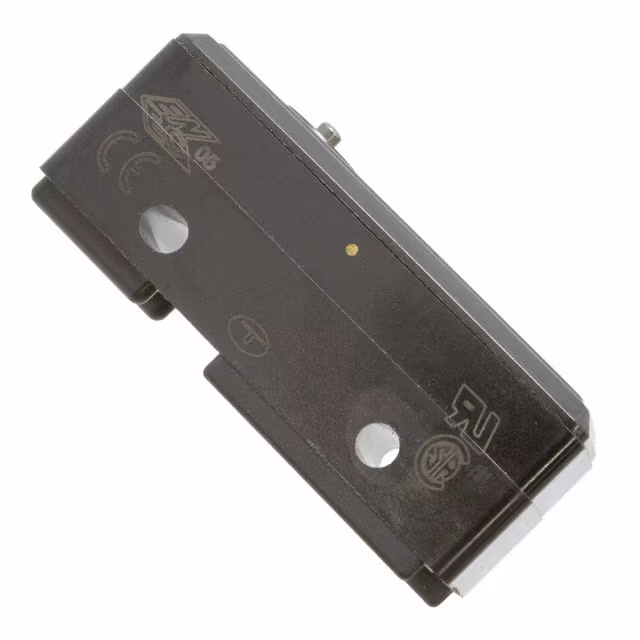

BM-1R2420SWITCH SNAP ACTION SPDT 22A 125V |
4,164 | 0.00 |
|
Datasheet |
BM | Bulk | Obsolete | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198 ~ 283gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 121°C |
|
LCGHX1T10HCUSWITCH SNAP ACTION SPDT 1A 125V |
3,211 | 14.88 |
|
Datasheet |
LC | Bulk | Not For New Designs | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 60gf | 11gf | 0.340" (8.6mm) | 0.140" (3.6mm) | 0.035" (0.9mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|
D2VW-5L2-2MS-0SWITCH SNAP ACT SPST-NC 5A 125V |
2,561 | 13.41 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NC | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

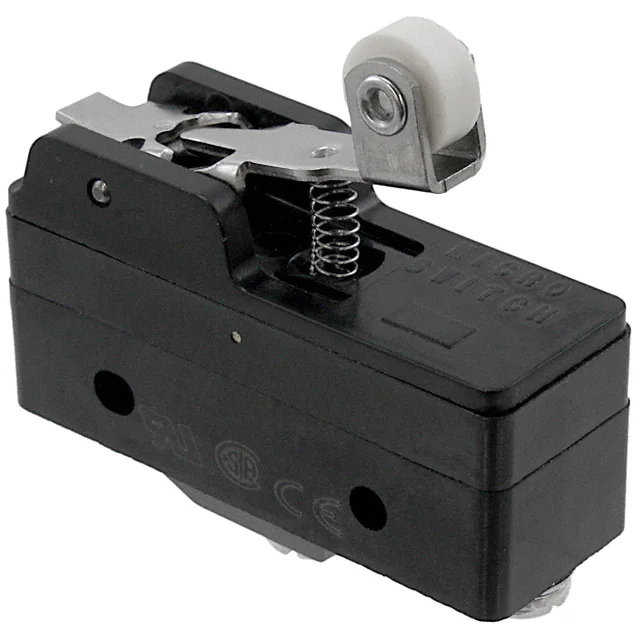

BZ-3RW822158-A46SWITCH SNAP ACTION SPDT 10A 125V |
2,174 | 16.44 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 184gf | 43gf | 1.188" (30.2mm) | - | 0.030" (0.76mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
BA-2R281-A2SWITCH SNAP ACTION SPDT 20A 125V |
2,189 | 0.00 |
|
Datasheet |
BA | Bulk | Obsolete | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 0.640" (16.3mm) | 0.050" (1.27mm) | 0.002" (0.05mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
|
41SM28-H2SWITCH SNAP ACTION SPDT 11A 250V |
3,423 | 12.89 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.003" (0.075mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
BZ-RW843515SWITCH SNAP ACTION SPDT 10A 125V |
1,547 | 17.15 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 7.000gf | - | 0.750" (19.1mm) | 0.266" (6.75mm) | 0.015" (0.38mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
D2VW-5L3-3MSSWITCH SNAP ACTION MINI BASIC |
4,469 | 0.00 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NO | Off-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.736" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.80mm) | 0.063" (1.6mm) | -40°C ~ 85°C |
|

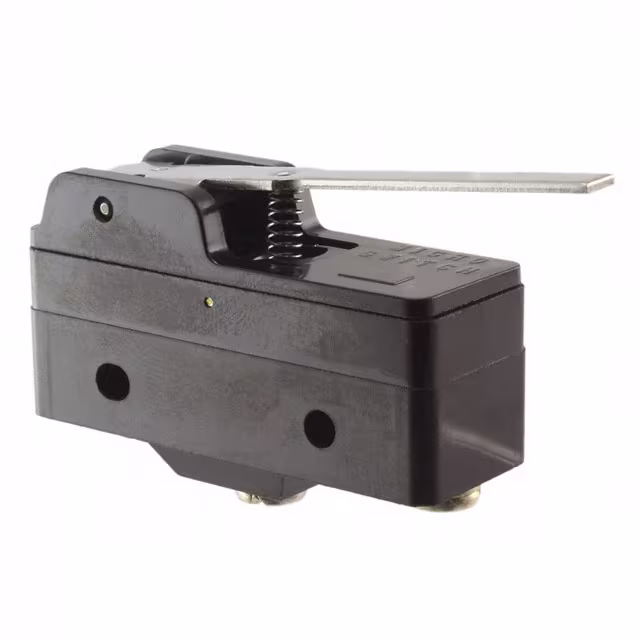

BZ-2RW8225551-A2SWITCH SNAP ACTION SPDT 15A 125V |
4,703 | 14.71 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
DS2D6CQ3SWITCH SNAP ACTION DPDT 10A 125V |
3,579 | 20.05 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | Pull On Lock | 560gf | - | 0.660" (16.76mm) | - | - | 0.520" (13.2mm) | -40°C ~ 85°C |
|

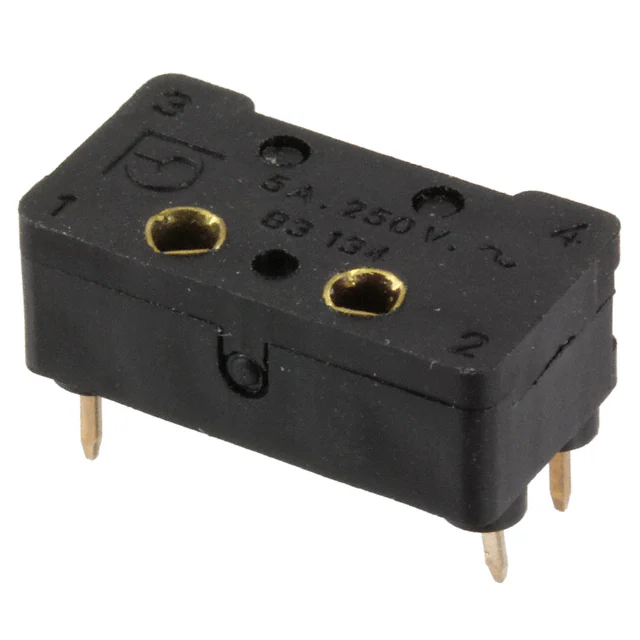

83134001SWITCH SNAP ACTION SPDT 5A 125V |
1,109 | 11.10 |
|
Datasheet |
83134 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 163gf | 41gf | 0.291" (7.4mm) | - | 0.018" (0.45mm) | 0.011" (0.3mm) | -20°C ~ 125°C |
|
|
111SM244SWITCH SNAP ACTION SPDT 5A 250V |
2,436 | 13.06 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 198gf | 57gf | 0.350" (8.9mm) | 0.218" (5.5mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|
|
BZ-2RW8761-A2SWITCH SNAP ACTION SPDT 15A 125V |
3,856 | 14.83 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 0.750" (19.1mm) | - | 0.025" (0.6mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
1DM38SWITCH SNAP ACTION SPDT 10A 125V |
2,970 | 13.80 |
|
- |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | 85gf | 0.355" (9.0mm) | - | 0.045" (1.1mm) | 0.235" (6.0mm) | -37°C ~ 82°C |
