Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YM-1R-A2SWITCH SNAP ACTION SPST-NO 22A |
4,842 | 0.00 |
|
- |
YM | Bulk | Obsolete | SPST-NO | Off-Mom | 22A | - | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|

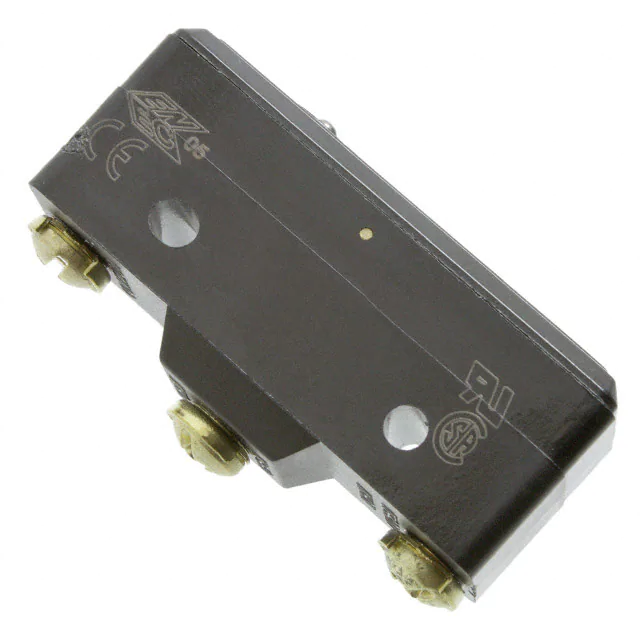

BM-1R-A2SWITCH SNAP ACTION SPDT 22A 125V |
1,419 | 0.00 |
|
Datasheet |
BM | Bulk | Obsolete | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
D2VW-5L1B-3MSSWITCH SNAP ACT SPST-NO 5A 125V |
3,570 | 0.00 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NO | Off-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 5.099gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|
|
BZ-7R35-A4SWITCH SNAP ACTION SPDT 10A 125V |
4,594 | 15.38 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
AZH1032SWITCH SNAP ACTION SPDT 5A 125V |
3,259 | 16.00 |
|
Datasheet |
AZH | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 600gf | 100gf | 0.922" (23.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
22SM426-T2SWITCH SNAP ACTION SPDT 5A 250V |
1,513 | 0.00 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 99gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.003" (0.076mm) | -55°C ~ 125°C |
|
|
311SM768-T2SWITCH SNAP ACTION SPDT 1A 125V |
4,789 | 0.00 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Turret | - | - | 16gf | 3.059gf | 0.560" (14.2mm) | 0.085" (2.16mm) | 0.013" (0.33mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
|
WZ-RSWITCH SNAP ACT SPST-NC 15A 125V |
2,405 | 0.00 |
|
Datasheet |
WZ | Bulk | Obsolete | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 198 ~ 255gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0003" (0.008mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
83160710SWITCH SNAP ACTION SPDT 6A 250V |
4,662 | 9.97 |
|
Datasheet |
83160 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
|
YM-1R2450SWITCH SNAP ACT SPST-NO 22A 125V |
3,092 | 0.00 |
|
Datasheet |
YM | Bulk | Obsolete | SPST-NO | Off-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 312 ~ 624gf | 255gf | 0.625" (15.9mm) | 0.030" (0.8mm) | 0.0008" (0.020mm) | 0.010" (0.25mm) | -55°C ~ 121°C |
|
|
BA-2RV336-A2SWITCH SNAP ACTION SPDT 20A 125V |
4,475 | 15.67 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 42 ~ 71gf | 28gf | 0.750" (19.1mm) | 0.470" (11.9mm) | 0.045" (1.1mm) | 0.100" (2.54mm) | -55°C ~ 85°C |
|
|
BZ-2RLTSWITCH SNAP ACTION SPDT 15A 125V |
4,100 | 15.68 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Leaf | Chassis Mount | Screw Terminal | - | - | 141gf | 14gf | 0.689" (17.5mm) | - | 0.050" (1.3mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
BZ-R88SWITCH SNAP ACTION SPDT 10A 125V |
2,078 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 255gf | 85gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0007" (0.018mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
MN-5100SWITCH SNAP ACTION SPDT 10A 250V |
1,087 | 24.53 |
|
Datasheet |
MN | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 600gf | 100gf | - | 0.079" (2.00mm) | 0.031" (0.8mm) | 0.031" (0.8mm) | -10°C ~ 80°C | |
|
|
21SX39-H58SWITCH SNAP ACTION SPDT 7A 115V |
2,202 | 14.42 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
|
BZ-RW8435161-A2SWITCH SNAP ACTION SPDT 10A 125V |
2,751 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 7.000gf | - | 0.750" (19.1mm) | 0.250" (6.35mm) | 0.012" (0.3mm) | 0.203" (5.15mm) | -55°C ~ 85°C |
|
|
Z-15GW22S-B7-KSWITCH SNAP ACTION SPDT 15A 125V |
2,559 | 20.42 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | - | - | - | - | - | - | -25°C ~ 80°C |
|
BZ-2RW80SWITCH SNAP ACTION SPDT 15A 125V |
2,148 | 15.92 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 71gf | 14gf | 0.750" (19.1mm) | - | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
V7-1H15D8-000-5SWITCH PIN PLUNGER SPDT QC |
1,486 | 0.00 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
YE-2RV22-D5SWITCH SNAP ACT SPST-NO 25A 125V |
3,990 | 0.00 |
|
Datasheet |
YE | Bulk | Obsolete | SPST-NO | Off-Mom | 25A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | 43gf | 1.172" (29.8mm) | 0.250" (6.35mm) | 0.045" (1.1mm) | 0.030" (0.76mm) | -55°C ~ 85°C |
