Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZ-2RD-D6SWITCH SNAP ACTION SPDT 15A 125V |
2,219 | 17.76 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.835" (21.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
BE-2RL-A4SWITCH SNAP ACTION SPDT 25A 125V |
4,137 | 0.00 |
|
Datasheet |
BE | Bulk | Obsolete | SPDT | On-Mom | 25A (AC) | 125 V | - | Lever, Leaf | Chassis Mount | Screw Terminal | - | - | 255gf | 28gf | 0.689" (17.5mm) | - | 0.062" (1.6mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
BZ-2RQ1017-A2SWITCH LARGE BASIC |
1,028 | 7.61 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WA-1RX12-A41SWITCH SNAP ACT SPST-NC 20A 125V |
3,729 | 0.00 |
|
Datasheet |
WA | Bulk | Obsolete | SPST-NC | On-Off | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | 113 ~ 454gf | - | 0.660" (16.76mm) | - | - | 0.010" (0.25mm) | -55°C ~ 85°C |
|
|
8486-05SWITCH STOPLAMP |
2,564 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | SPST-NC | - | - | - | - | Arm Lever | - | Solder Turret | - | - | - | - | - | - | - | - | - |
|
|
BZ-2RW881TSWITCH SNAP ACTION SPDT 15A 125V |
4,632 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 99gf | 14gf | 0.750" (19.1mm) | - | 0.040" (1.0mm) | 0.172" (4.4mm) | -55°C ~ 85°C |
|
|
MS24547-4SWITCH |
2,468 | 0.00 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-On | 7A (AC/DC) | 115 V | 24 V | Round (Pin Plunger) | Chassis Mount | PC Pin | - | - | 142gf | 29gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -54°C ~ 82°C |
|
|
D2VW-5L2-3MSSWITCH SNAP ACT SPST-NO 5A 125V |
1,443 | 0.00 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NO | Off-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

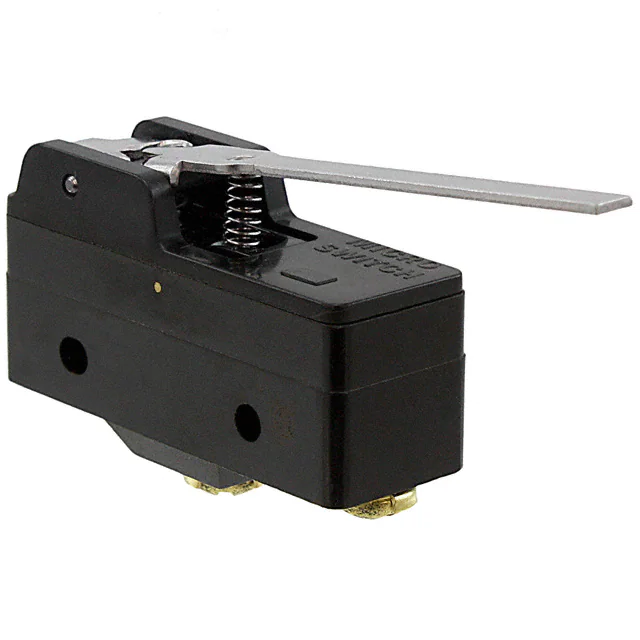

BZ-2RW8244-A2SWITCH SNAP ACTION SPDT 5A 125V |
2,815 | 17.97 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 14gf | 0.750" (19.1mm) | - | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 204°C |
|
|
311SM718-H58SWITCH SNAP ACTION SPDT 1A 125V |
4,744 | 0.00 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Formed | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 8.000gf | 2.000gf | 0.720" (18.3mm) | 0.170" (4.3mm) | 0.023" (0.58mm) | 0.039" (1.0mm) | -55°C ~ 125°C |
|
|
311SM781-H58SWITCH SNAP ACTION SPDT 1A 125V |
2,275 | 0.00 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Formed | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 8.000gf | 2.000gf | 0.720" (18.3mm) | 0.183" (4.6mm) | 0.025" (0.6mm) | 0.040" (1.0mm) | -55°C ~ 125°C |
|
|
1SM46-TSWITCH SNAP ACTION SPDT 1A 30V |
4,144 | 17.40 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
BZ-2RD44-PC2SWITCH SNAP ACTION SPDT 15A 125V |
4,895 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.835" (21.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
21SX83-H340SWITCH SNAP ACTION SPDT 7A 115V |
3,044 | 17.52 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
|
10BS212SWITCH SNAP ACTION SPDT 20A 125V |
3,537 | 0.00 |
|
Datasheet |
BS | Bulk | Obsolete | SPDT | On-Mom | 20A (AC) | 125 V | - | Adjustable Plunger | Chassis Mount | Screw Terminal | - | - | 907gf | 283gf | 0.640" (16.3mm) | - | 0.007" (0.18mm) | 0.010" (0.25mm) | - |
|
|
91SX39-T2SWITCH SNAP ACTION SPDT 7A 115V |
3,551 | 19.20 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
|
BZ-7R396-P5SWITCH LARGE BASIC |
2,147 | 18.16 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831115C3.0SWITCH SNAP ACTION SPDT 10A 250V |
3,082 | 0.00 |
|
- |
83111 | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 408gf | 102gf | 0.451" (11.45mm) | - | 0.020" (0.5mm) | 0.026" (0.7mm) | -20°C ~ 85°C |
|
|
BA-2RB35-A2SWITCH SNAP ACTION SPDT 15A 125V |
3,968 | 0.00 |
|
Datasheet |
BA | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 340gf | 113gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.002" (0.05mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
BZ-2RW80172-A2SWITCH SNAP ACTION SPDT 5A 125V |
1,596 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 5A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 14gf | 0.750" (19.1mm) | - | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
