Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23SX78-T2SWITCH SNAP ACTION SPDT 1A 125V |
3,184 | 0.00 |
|
Datasheet |
SX | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
|
SCN-2414SCSWITCH SNAP ACTION SPDT 1A 125V |
3,363 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 1A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | Splash Proof | - | 170gf | 43gf | 1.180" (30.0mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 121°C |
|
|
BZ-R214SWITCH SNAP ACTION SPDT 10A 125V |
2,263 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 100gf | 71gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0003" (0.008mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|

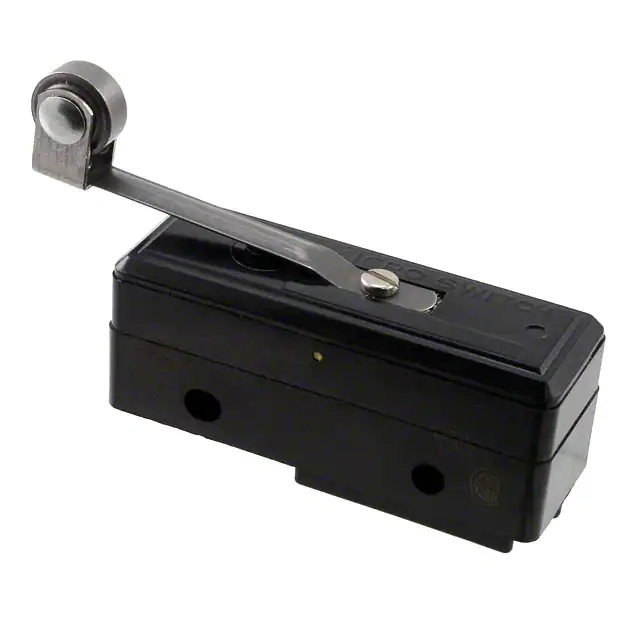

BZ-2RL2SWITCH SNAP ACTION SPDT 15A 125V |
4,227 | 22.65 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 141gf | 14gf | 1.125" (28.6mm) | - | 0.050" (1.3mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
BZ-R55511-A4SWITCH LARGE BASIC |
1,346 | 20.43 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SX88-TSWITCH SNAP ACTION SPDT 7A 250V |
1,048 | 23.80 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | - | - | 0.320" (8.13mm) | - | - | - | -55°C ~ 125°C |
|
|
GLLC01A2YSWITCH SNAP ACTION SPDT 10A 300V |
4,205 | 19.14 |
|
Datasheet |
GLL | Bulk | Obsolete | SPDT | On-Mom | 10A (AC/DC) | 300 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Rubber Roller | 12gfm | 2.039gfm | 30° | 30° | 18° | 40° | -10°C ~ 80°C |
|
A-20G-B7-KSWITCH SNAP ACTION SPDT 20A 125V |
4,882 | 24.08 |
|
Datasheet |
A | Tray | Obsolete | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP00 | - | 400 ~ 625gf | 285gf | 0.640" (16.3mm) | 0.051" (1.3mm) | 0.008" (0.2mm) | 0.010" (0.25mm) | -25°C ~ 80°C |
|
|
BZ-RW8422-A2SWITCH SNAP ACTION SPDT 15A 125V |
2,792 | 20.52 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 56gf | 7.087gf | 1.188" (30.2mm) | 0.094" (2.4mm) | 0.006" (0.15mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
BZ-2RQ24-D5SWITCH SNAP ACTION SPDT 15A 125V |
2,318 | 23.17 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 255 ~ 368gf | 113gf | 1.500" (38.1mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 121°C |
|

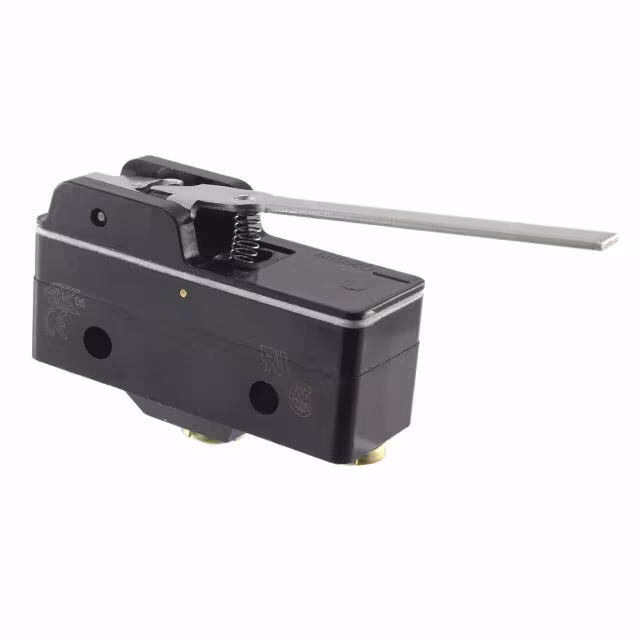

BZ-3RW8055-A2-SSWITCH SNAP ACTION SPDT 15A 125V |
2,213 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | Splash Proof | - | 85gf | 14gf | 0.750" (19.1mm) | - | 0.075" (1.9mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-7RW8225551-D6SWITCH SNAP ACTION SPDT 15A 125V |
3,112 | 23.40 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP64 - Dust Tight, Water Resistant | - | 198gf | 43gf | 1.188" (30.2mm) | - | 0.050" (1.3mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
BZ-2R725551-A2SWITCH SNAP ACTION SPDT 1A 125V |
3,920 | 20.55 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 255 ~ 425gf | 113gf | 0.625" (15.9mm) | - | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
D2VW-01L3-3MSSWITCH SNP ACT SPST-NO 0.1A 125V |
1,266 | 0.00 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
BZ-2RW82272-A2SWITCH SNAP ACTION SPDT 1A 125V |
1,570 | 24.87 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
91SX46-H58SWITCH SNAP ACTION SPDT 7A 115V |
3,053 | 0.00 |
|
Datasheet |
SX | Bulk | Obsolete | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 85gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|

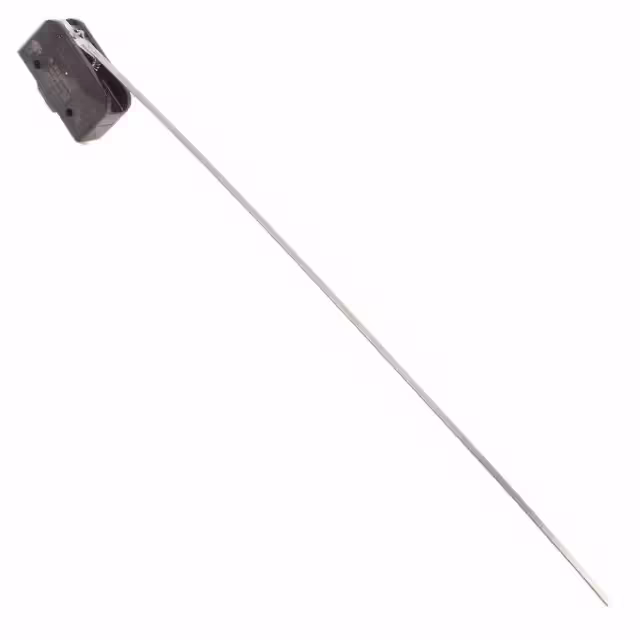

BZ-2RW896-A2SWITCH SNAP ACTION SPDT 15A 125V |
1,557 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | - | - | - | - | 0.475" (12.1mm) | 1.000" (25.4mm) | -55°C ~ 85°C |
|
|
AZH2012SWITCH SNAP ACTION SPDT 5A 125V |
1,626 | 23.00 |
|
Datasheet |
AZH | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.625" (41.3mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
AZH2212SWITCH SNAP ACT SPDT 0.1A 125V |
2,457 | 23.00 |
|
Datasheet |
AZH | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.625" (41.3mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
AZH2213SWITCH SNAP ACT SPDT 0.1A 125V |
2,408 | 23.00 |
|
Datasheet |
AZH | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Cross Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.625" (41.3mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
