Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2FD-2L0-1HSWITCH SNAP ACTION SPDT 2A 125V |
734 | 4.27 |
|
Datasheet |
D2FD | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP60 - Dust Tight | - | 204gf | 25gf | 0.276" (7.0mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -20°C ~ 70°C |
|
SAJSX2XPP0180SDTSEQSWITCH SNAP ACTION SPDT 2A 250V |
963 | 3.50 |
|
Datasheet |
SAJS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|

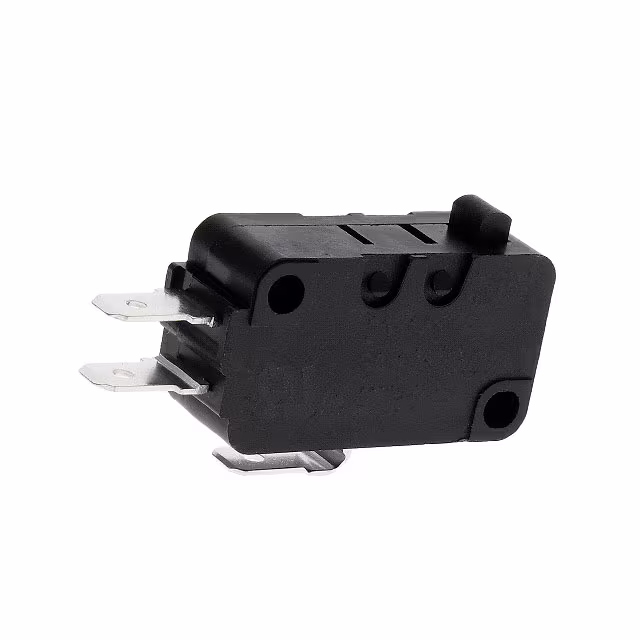

SAJ35XXPP0N49SDTFAQSWITCH SNAP ACTION SPDT 5A 125V |
962 | 3.50 |
|
Datasheet |
SAJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | 5.000gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
SAJ35XXHL0N49SDTSEQSWITCH SNAP ACTION SPDT 5A 125V |
881 | 3.50 |
|
Datasheet |
SAJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 30gf | - | 0.598" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

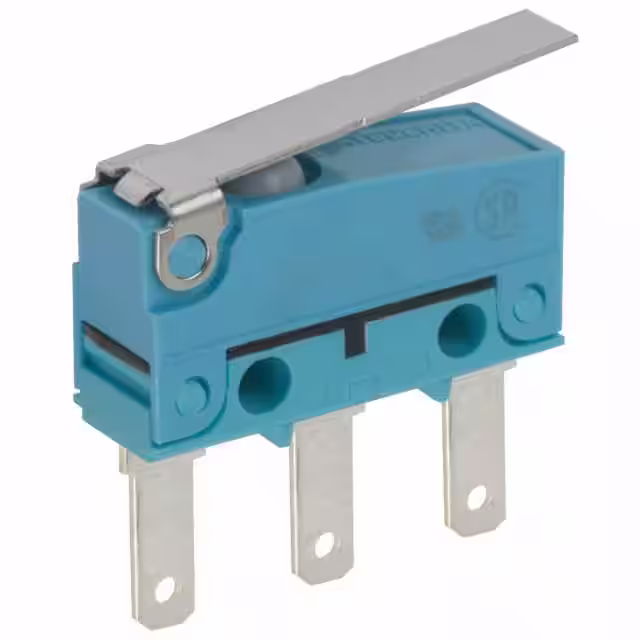

ABS1112509SWITCH SNAP ACTION SPDT 2A 125V |
1,014 | 3.29 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|

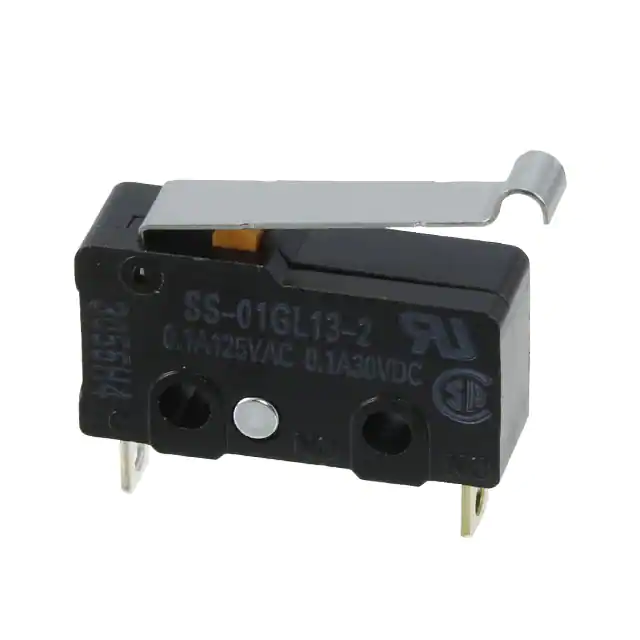

SS-01GL13-2SWITCH SNP ACT SPST-NC 0.1A 125V |
141 | 3.91 |
|
Datasheet |
SS | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

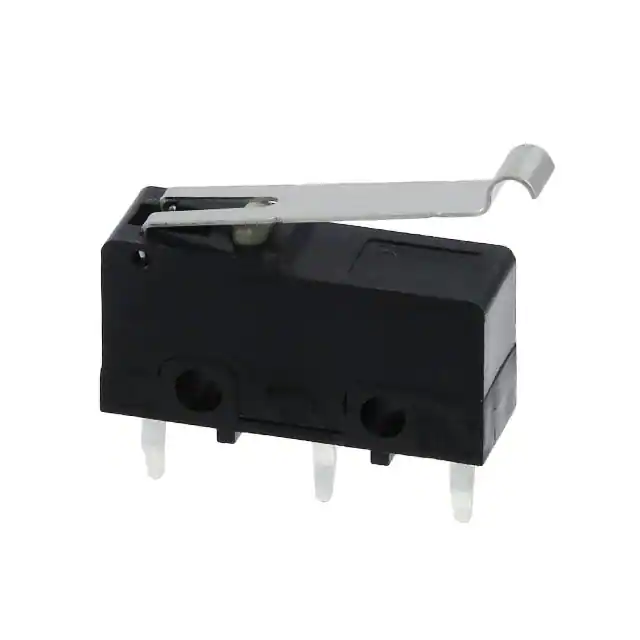

D2S-10L13DSWITCH SNAP ACTION SPDT 10A 250V |
1,282 | 4.22 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | Sealed - Flux Protection | 50gf | 6.118gf | 0.449" (11.4mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
V-154-2A5SWITCH SNAP ACT SPST-NC 15A 250V |
199 | 4.42 |
|
Datasheet |
V | Bulk | Active | SPST-NC | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
D3V-11G3-1C4-KSWITCH SNAP ACTION SPDT 11A 250V |
189 | 3.10 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 35gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -25°C ~ 105°C |
|

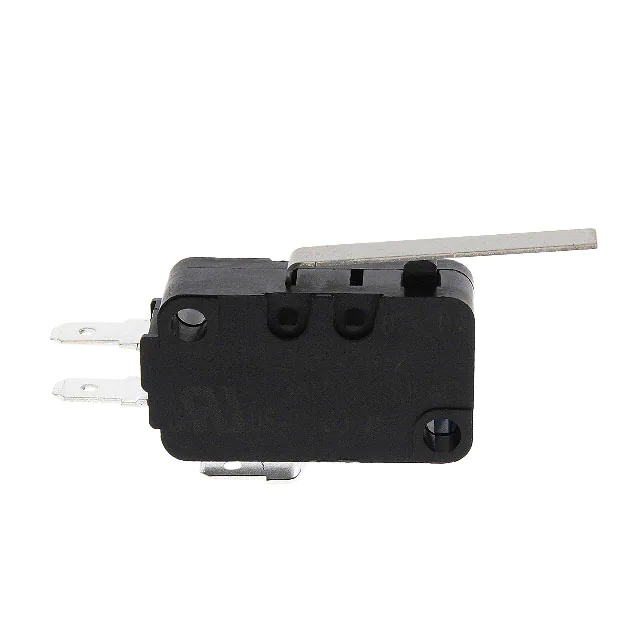

SAJ35XXHL0N49SDTFAQSWITCH SNAP ACTION SPDT 5A 125V |
845 | 3.70 |
|
Datasheet |
SAJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 30gf | - | 0.598" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

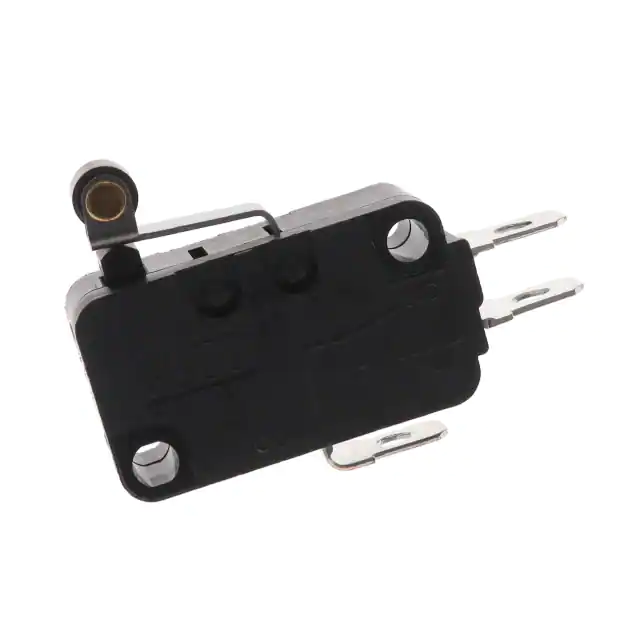

SAJ35XXSRLN49SDTSEQSWITCH SNAP ACTION SPDT 5A 125V |
796 | 3.63 |
|
Datasheet |
SAJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 60gf | 4.000gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|

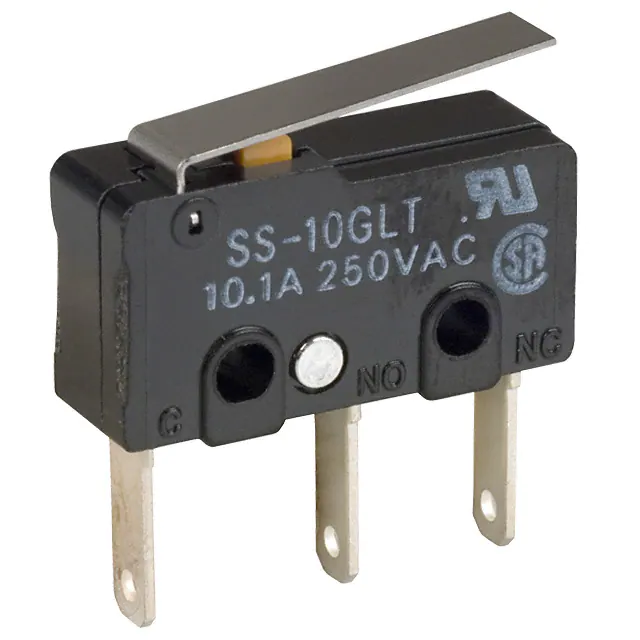

SS-10GLTSWITCH SNAP ACTION SPDT 10A 250V |
1,137 | 4.11 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.040" (1.0mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
AV3402619-ASWITCH SNAP ACT SPDT 0.1A 125V |
480 | 2.53 |
|
Datasheet |
AV3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
ABJ141261SWITCH SNAP ACT SPDT 0.1A 125V |
146 | 3.59 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 65gf | 5.099gf | 0.268" (6.8mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
SAJ35XXSRLN49SDTFAQSWITCH SNAP ACTION SPDT 5A 125V |
907 | 3.77 |
|
Datasheet |
SAJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 60gf | 4.000gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|
|
D3V-163-3A5SWITCH SNAP ACT SPST-NO 16A 250V |
172 | 3.27 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 70gf | 6.118gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 105°C |
.jpg)
|
D3V-16G-3C5-KSWITCH SNAP ACT SPST-NO 16A 250V |
168 | 3.39 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
D2S-10LDSWITCH SNAP ACTION SPDT 10A 250V |
329 | 3.66 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | IP40 | Sealed - Flux Protection | 50gf | 6.118gf | 0.370" (9.4mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
D3V-166-3C4SWITCH SNAP ACT SPST-NO 16A 250V |
1,293 | 5.80 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 60gf | 6.118gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|

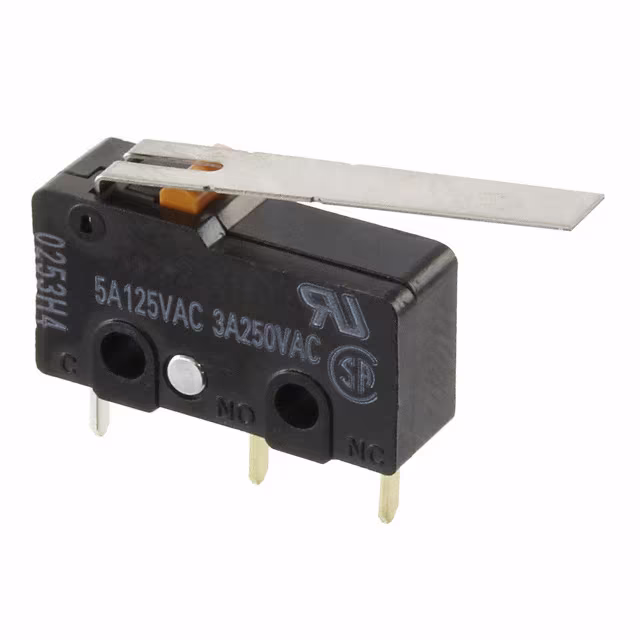

SS-5GL111DSWITCH SNAP ACTION SPDT 5A 125V |
396 | 3.47 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
