Switches (Solid State)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Technology | Polarization | Sensing Range | Test Condition | Voltage - Supply | Current - Supply (Max) | Current - Output (Max) | Output Type | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLX92292LUA-AAA-000-CAMAGNETIC SWITCH LATCH TO92UA |
1,568 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 Short Body | Cut Tape (CT) | Active | Latch, Unipolar Switch | Hall Effect | North Pole, South Pole | 9mT Trip, -9mT Release | 25°C | 3.3V ~ 18V | 11.7µA | 20mA | Open Drain | Programmable | -40°C ~ 150°C | - | - | Through Hole | TO-92-3 |
|
|
MLX92292LUA-AAA-000-CRMAGNETIC SWITCH LATCH TO92UA |
4,381 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 Short Body | Tape & Reel (TR) | Active | Latch, Unipolar Switch | Hall Effect | North Pole, South Pole | 9mT Trip, -9mT Release | 25°C | 3.3V ~ 18V | 11.7µA | 20mA | Open Drain | Programmable | -40°C ~ 150°C | - | - | Through Hole | TO-92-3 |
|
A1193LUBTN-F-TMAGNETIC SWITCH UNIPOLAR 2DIP |
4,201 | 0.78 |
|
Datasheet |
- | 2-SIP | Tape & Reel (TR) | Last Time Buy | Unipolar Switch | Hall Effect | South Pole | 1mT Trip, -1mT Release | 25°C | 3V ~ 24V | 5mA | 17mA | Current Source | Programmable Trip Point | -40°C ~ 150°C (TA) | - | - | Through Hole | - |
|
A1158LLHLX-TMAGNETIC SWITCH UNIPOLAR SOT23W |
2,862 | 0.62 |
|
Datasheet |
- | SOT-23W | Tape & Reel (TR) | Active | Unipolar Switch | Hall Effect | South Pole | 8mT Trip, 1mT Release | -40°C ~ 150°C | 3V ~ 24V | 17mA | - | Current Source | - | -40°C ~ 150°C (TA) | - | - | Surface Mount | SOT-23W |
|
|
TSH188CTULTRA HIGH SENSITIVITY HALL EFFE |
4,709 | 0.00 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Box (TB) | Active | Latch | Hall Effect | North Pole, South Pole | 2.5mT Trip, -2.5mT Release | 25°C | 2.5V ~ 24V | 5mA | 50mA | Analog Voltage | Temperature Compensated | -40°C ~ 125°C | - | - | Through Hole | TO-92 |
|

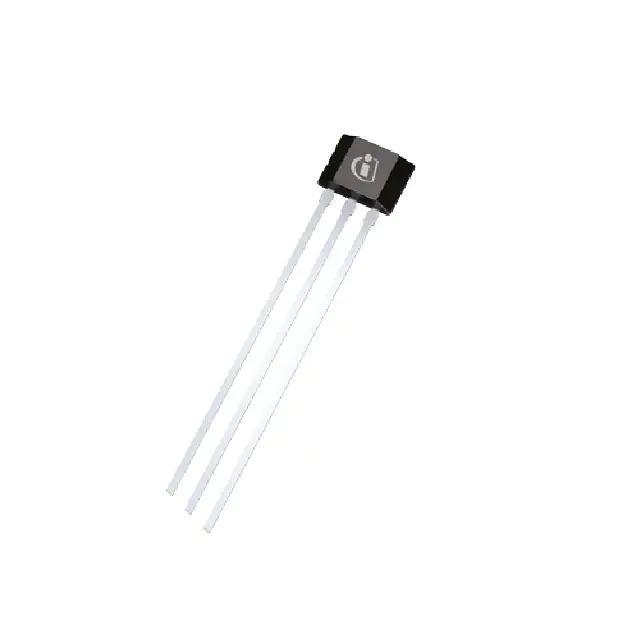

TLE49452LHALA1MAGNETIC SWITCH BIPOLAR 3SSO |
1,957 | 1.59 |
|
Datasheet |
- | - | Cut Tape (CT) | Last Time Buy | Bipolar Switch | Hall Effect | North Pole, South Pole | ±3mT Trip, ±6mT Release | 25°C | 3.8V ~ 24V | 8mA | 100mA | Open Collector | Temperature Compensated | -40°C ~ 150°C | - | - | - | - |
|
|
MLX92352LVA-BAC-000-SPPROGRAMMABLE 4 -WIRE GEN IV L&S |
2,661 | 0.00 |
|
- |
- | 4-SSIP Module | Bulk | Active | Latch | Hall Effect | North Pole, South Pole | Programmable | - | 2.7V ~ 60V | 2.4mA | 30mA | Open Drain | Temperature Compensated | -40°C ~ 150°C (TA) | - | - | Through Hole | 4-SIP |
|
|
MLX92352LVA-BAA-000-SPPROGRAMMABLE 4 -WIRE GEN IV L&S |
2,435 | 0.00 |
|
Datasheet |
- | 4-SSIP Module | Bulk | Active | Latch | Hall Effect | North Pole, South Pole | ±2.9mT Trip, ±1.1mT Release | 25°C | 2.7V ~ 60V | 2.4mA | 30mA | Open Drain | Temperature Compensated | -40°C ~ 150°C (TA) | - | - | Through Hole | 4-SIP |
|
|
A3230LLHLT-TMAGNETIC SWITCH BIPOLAR SOT23W |
3,190 | 0.00 |
|
Datasheet |
- | SOT-23W | Tape & Reel (TR) | Obsolete | Bipolar Switch | Hall Effect | North Pole, South Pole | 2.5mT Trip, -2.5mT Release | -40°C ~ 150°C | 3.6V ~ 24V | 3.5mA | 60mA | Open Drain | - | -40°C ~ 150°C (TA) | - | - | Surface Mount | SOT-23W |
.jpg)
|
S-5732NSL1B-Y3Z2UMAGNETIC SWITCH UNIPOLAR TO92S |
3,647 | 0.64 |
|
Datasheet |
S-5732B | TO-226-3, TO-92-3 Short Body | Cut Tape (CT) | Obsolete | Unipolar Switch | Hall Effect | South Pole | 4.8mT Trip, 0.8mT Release | 25°C | 3.5V ~ 26V | 4mA | 20mA | Open Drain | - | -40°C ~ 125°C | - | - | Through Hole | TO-92S |
|
|
S-5742RBH1B-Y3Z2UMAGNETIC SWITCH BIPOLAR TO92S |
3,665 | 0.64 |
|
Datasheet |
S-5742B | TO-226-3, TO-92-3 Short Body | Cut Tape (CT) | Obsolete | Bipolar Switch | Hall Effect | North Pole, South Pole | 4.5mT Trip, -4.5mT Release | 25°C | 3.5V ~ 26V | 4mA | 20mA | Open Drain | - | -40°C ~ 125°C | - | - | Through Hole | TO-92S |
|
KMI15/2/V3PXMAGNETIC SWITCH SPEC PURP 2SIP |
2,386 | 1.66 |
|
Datasheet |
- | SOT-453B | Tape & Reel (TR) | Not For New Designs | Special Purpose | Magnetoresistive | - | - | - | 0.5V ~ 16V | - | 14mA (Typ) | Current Source | Amplified Output, Temperature Compensated | -40°C ~ 85°C (TA) | - | - | Through Hole | 2-SIP |
|
AH337-WL-7IC HALL SWITCH 1PH 25MA SC59-3 |
3,936 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SC-59-3 |
|
BU52013HFV-TRMAGNETIC SWITCH UNIPOLAR HVSOF5 |
3,522 | 1.83 |
|
Datasheet |
- | SOT-665 | Tape & Reel (TR) | Active | Unipolar Switch | Hall Effect | North Pole | -5mT Trip, -0.6mT Release | 25°C | 1.65V ~ 3.3V | 5.5µA | 500µA | Push-Pull | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-HVSOF |
|
|
A1192LLHLT-TMAGNETIC SWITCH UNIPOLAR SOT23W |
4,804 | 0.73 |
|
Datasheet |
- | SOT-23W | Tape & Reel (TR) | Active | Unipolar Switch | Hall Effect | South Pole | Programmable | - | 3V ~ 24V | 6.9mA | - | Current Source | Programmable Trip Point | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23W |
|
|
A1158LLHLT-TMAGNETIC SWITCH UNIPOLAR SOT23W |
4,451 | 0.73 |
|
Datasheet |
- | SOT-23W | Tape & Reel (TR) | Active | Unipolar Switch | Hall Effect | South Pole | 8mT Trip, 1mT Release | -40°C ~ 150°C | 3V ~ 24V | 17mA | - | Current Source | - | -40°C ~ 150°C (TA) | - | - | Surface Mount | SOT-23W |
|
|
KMI15/4/V3PXMAGNETIC SWITCH SPEC PURP 2SIP |
2,846 | 1.66 |
|
- |
- | SOT-453B | Tape & Reel (TR) | Not For New Designs | Special Purpose | Magnetoresistive | - | - | - | 0.5V ~ 16V | - | 14mA (Typ) | Current Source | Amplified Output, Temperature Compensated | -40°C ~ 85°C (TA) | - | - | Through Hole | 2-SIP |
|
|
MLX92242LUA-AAA-300-REMAGNETIC SWITCH LATCH TO92UA |
3,878 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 Short Body | Tape & Reel (TR) | Active | Latch, Unipolar Switch | Hall Effect | North Pole, South Pole | 15mT Trip, -15mT Release | 25°C | 2.7V ~ 24V | 17mA | - | Current Source | Programmable, Temperature Compensated | -40°C ~ 150°C | - | - | Through Hole | TO-92-3 |
|
|
TSH481CTRATIO-METRIC LINEAR HALL EFFECT |
1,851 | 0.00 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) | Tape & Box (TB) | Active | Unipolar Switch | Hall Effect | North Pole, South Pole | - | 25°C | 3V ~ 6.5V | 5mA | 10mA | Analog Voltage | - | -40°C ~ 85°C | - | - | Through Hole | TO-92 |
|
A1422LK-TMAGNETIC SWITCH SPEC PURP 4SIP |
4,621 | 1.77 |
|
Datasheet |
- | 4-SSIP | Bulk | Active | Special Purpose | Hall Effect | South Pole | 3.5mT Trip, -3.5mT Release | -40°C ~ 150°C | 4V ~ 26.5V | 7mA | 25mA | Open Drain | Temperature Compensated | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Through Hole | 4-SIP |
