Microphones
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMM-4038-BANALOG MICROPHONE -38DB 2VDC |
1,199 | 0.00 |
|
Datasheet |
AMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±1dB @ 94dB SPL | 69dB | 400 Ohms | 2.75 V | 2.4 V ~ 3.3 V | 110 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.051" (1.30mm) | Rectangular | - | - |
|
|
AMM-3738-TANALOG MICROPHONE -38DB 1.6VDC |
1,134 | 0.00 |
|
Datasheet |
AMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±1dB @ 94dB SPL | 65dB | 300 Ohms | 2 V | 1.6 V ~ 3.6 V | 112 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
|
IM72D128VV01XTMA1MIC SDM DIGITAL |
353 | 0.00 |
|
Datasheet |
XENSIV™ | Cut Tape (CT) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 10 Hz ~ 15 kHz | -36dB ±1dB @ 94dB SPL | 71.5dB | - | 1.8 V | 1.62 V ~ 3.6 V | 525 µA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.051" (1.30mm) | Rectangular | - | - |
|
|
PUM-5250L-C3310-LWC50-RMIC COND ANLG UNI -50DB 0.236"D |
887 | 2.56 |
|
Datasheet |
PUM | Bulk | Active | Electret Condenser | Analog | Unidirectional | 20 Hz ~ 20 kHz | -50dB ±4dB | 55dB | 680 Ohms | 2 V | 1 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.205" (5.20mm) | Circular | - | - |
|
|
IA610SHAPIRO SMART MICROPHONE |
11,655 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AUMM-3842MEMS MICROPHONE UNI 3.8MM -42DB |
1,188 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Unidirectional | 20 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 59dB | 400 Ohms | 2 V | 4.6 V ~ 3.6 V | 150 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.073" (1.85mm) | Rectangular | - | - |
|
|
TO-30047-D60MIC COND MATCH ANALOG OMNI |
2,834 | 44.90 |
|
Datasheet |
TO | Tray | Active | Electret Condenser, Matched Set | Analog | Omnidirectional | 200 Hz ~ 1 kHz | -56.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | - | - | - | - | - | - |
|
|
FB-FO-25383-000MIC BOOM 0.340"DIA |
4,562 | 51.69 |
|
Datasheet |
FB-FO | Bulk | Active | Boom | - | - | - | - | - | - | - | - | - | - | - | Wire Leads | 0.340" Dia (8.64mm) | - | Circular | - | - |
|

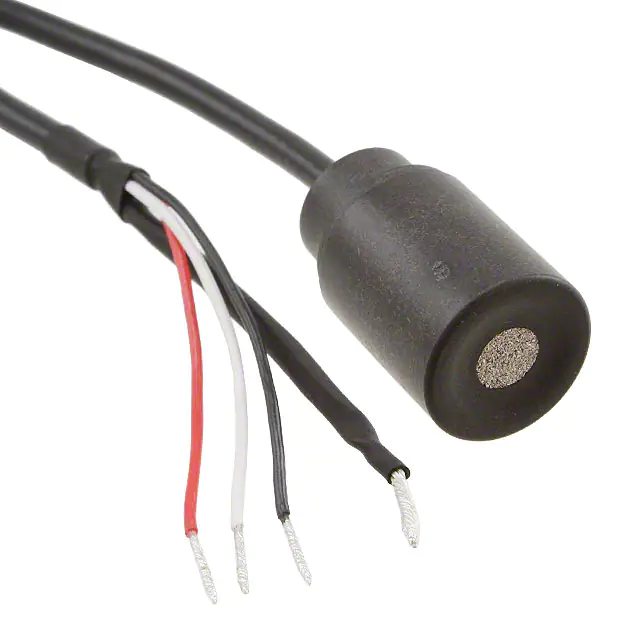

VEK-H-30108-000MIC COND ANLG -72DB 0.500"DIA |
2,148 | 67.66 |
|
Datasheet |
VEK-H | Bulk | Active | Electret Condenser | Analog | - | 100 Hz ~ 10 kHz | -72dB ±3dB @ 74dB SPL | - | - | 9 V | 9 V ~ 10 V | - | Top | - | Wire Leads | 0.500" Dia (12.70mm) | - | Circular | - | - |
|
|
FB-BU-34023-000BOOM MICROPHONE |
3,150 | 0.00 |
|
Datasheet |
- | Bulk | Active | Boom | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FB-DL-32509-000BOOM MICROPHONE |
1,314 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
S08OB381-045MIC MEMS ANALOG -38dB OMNI |
4,904 | 0.45 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 8 kHz | -38dB ±1dB @ 94dB SPL | 63dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 150 µA | Top | - | Solder Pads | 0.148" L x 0.118" W (3.76mm x 3.00mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
|
OWMO-4013SA-42-RC101MIC COND ANLG OMNI -42DB |
1,262 | 0.00 |
|
Datasheet |
- | Cut Tape (CT) | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 400 µA | Top | - | Solder Pads | 0.157" Dia (4.00mm) | 0.055" (1.40mm) | Circular | - | - |
|
|
OWMMOA-372911A-S38-BPMIC MEMS ANALOG OMNI -38DB |
2,500 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 62dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 200 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
|

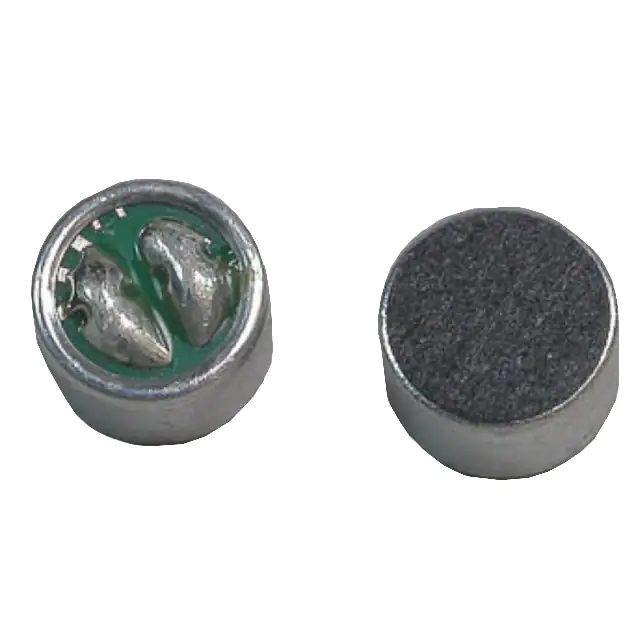

MEO-96PD-01-603MIC COND ANLG OMNI -60DB 0.382"D |
2,200 | 0.52 |
|
Datasheet |
- | Box | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 16 kHz | -60dB ±3dB | 40dB | 2.2 kOhms | 1.5 V | - | 0.3 mA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.264" (6.70mm) | Circular | - | - |
|
|
3SM222FMB1VADIGITAL MIC/BOTTOM PORT/SEN-26DB |
5,000 | 0.00 |
|
Datasheet |
3S MEMS | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±1dB @ 94dB SPL | 60dB | - | - | 1.6 V ~ 3.6 V | 850 µA | Bottom | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.039" (1.00mm) | Rectangular | - | - |
|
|
OWMMOA-271811A-S421QAMIC MEMS ANALOG OMNI -42DB |
2,381 | 0.00 |
|
Datasheet |
- | Bulk | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±1dB @ 94dB SPL | 63dB | 400 Ohms | 2 V | 1.6 V ~ 3.6 V | 150 µA | Top | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
|
CM02M-03S38-MA-5ANALOG OMNI MEMS MIC |
4,998 | 0.00 |
|
Datasheet |
- | Cut Tape (CT) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -38dB ±1dB @ 94dB SPL | 59dB | 450 Ohms | 2 V | 1.6 V ~ 3.6 V | 150 µA | Bottom | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.038" (0.97mm) | Rectangular | - | - |
|
|
OWMMOA-271809A-S381FANC-BPMIC MEMS ANALOG OMNI -38DB |
2,475 | 0.00 |
|
Datasheet |
- | Bulk | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±1dB @ 94dB SPL | 63dB | 400 Ohms | 2 V | 1.6 V ~ 3.6 V | 150 µA | Top | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.041" (1.05mm) | Rectangular | - | - |
|
|
OWMMOD-403010A-S261FMIC MEMS DIGITAL PDM OMNI -26DB |
1,287 | 0.00 |
|
Datasheet |
- | Bulk | Active | MEMS (Silicon) | Digital | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±1dB @ 94dB SPL | 63dB | - | - | 1.64 V ~ 3.6 V | 1.4 mA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.047" (1.20mm) | Rectangular | - | - |
