Microphones
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BT-21755-000MICROPHONE COND ANALOG -59.5DB |
2,022 | 14.96 |
|
- |
BT | Bulk | Active | Electret Condenser | Analog | - | 100 Hz ~ 4.2 kHz | -59.5dB ±3dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | 0.9 V ~ 10 V | 40 µA | Side | - | Solder Pads | 0.310" L x 0.218" W (7.87mm x 5.54mm) | 0.090" (2.29mm) | Rectangular | - | - |
|
|
NR-25994-000MIC COND ANALOG NC -49DB |
1,663 | 0.00 |
|
Datasheet |
NR | Bulk | Obsolete | Electret Condenser | Analog | Noise Cancelling | 100 Hz ~ 4 kHz | -49dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 10 V | 50 µA | Bottom, Top | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
|
EA-21843-C36MIC ELECTRET PORT ON END |
1,249 | 15.45 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EK-23024-C37MIC OMNI .9-10VDC -33DB SENS |
4,257 | 15.67 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EK-23027-C37MIC OMNI .9-10VDC -33DB SENS |
4,541 | 15.67 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EK-23032-C37MIC OMNI .9-10VDC -33DB SENS |
4,932 | 15.67 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EK-23032-C36MIC COND ANALOG OMNI -53DB |
2,040 | 15.67 |
|
Datasheet |
EK | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±2dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
|
EK-23977-C36MIC COND ANALOG OMNI -53DB |
2,402 | 15.67 |
|
- |
EK | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±2dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
|
EK-26899-P03MIC COND ANALOG OMNI -71DB |
4,892 | 15.67 |
|
- |
EK | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -71dB ±2dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 10 V | 50 µA | Top | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
|
EK-26899-P58MIC COND ANALOG OMNI -71DB |
4,255 | 15.67 |
|
- |
EK | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -71dB ±2dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Top | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
|
EM-23069-000MIC COND ANALOG OMNI -56DB |
1,601 | 16.96 |
|
Datasheet |
EM | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 7.4 kHz | -56dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 10 V | 50 µA | Bottom | - | Screw Terminals | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-24047-C36MIC COND ANALOG OMNI -58.5DB |
2,238 | 16.96 |
|
- |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -58.5dB ±4dB @ 74dB SPL | - | 4.4 kOhms | - | 1.3 V ~ 10 V | 50 µA | Side | - | Screw Terminals | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-23068-000MIC COND ANALOG OMNI -56DB |
1,388 | 16.96 |
|
Datasheet |
EM | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4.8 kHz | -56dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 10 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-23369-C36MIC COND ANALOG OMNI -52DB |
3,227 | 16.96 |
|
Datasheet |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -52dB ±3dB @ 74dB SPL | - | 5.5 kOhms | 1.3 V | - | 50 µA | Bottom | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-23456-C36MIC COND ANALOG OMNI -56DB |
2,970 | 16.96 |
|
Datasheet |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5.4 kHz | -56dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 10 V | 50 µA | Bottom | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|

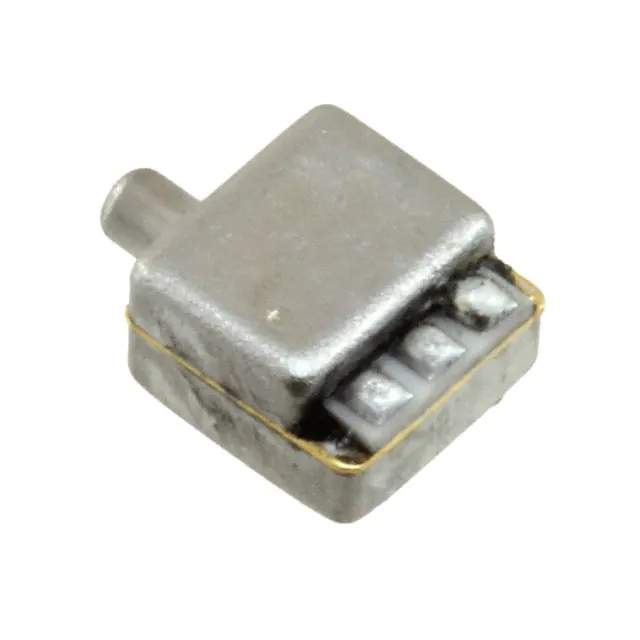

EM-23800-C36MIC COND ANALOG OMNI -52DB |
4,172 | 16.96 |
|
- |
EM | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Bottom | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|

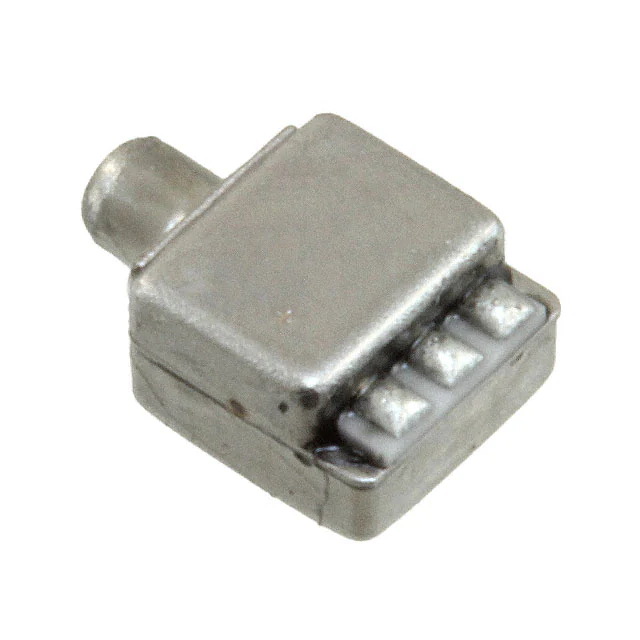

EM-24046-000MIC COND ANALOG OMNI -56DB |
2,948 | 16.96 |
|
Datasheet |
EM | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5.5 kHz | -56dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 10 V | 50 µA | Bottom | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-24368-C54MIC COND ANALOG OMNI -52DB |
1,225 | 16.96 |
|
Datasheet |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-24447-C36MIC COND ANALOG OMNI -58.5DB |
4,283 | 16.96 |
|
Datasheet |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 300 Hz ~ 5.8 kHz | -58.5dB ±4dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-24468-C36MIC COND ANALOG OMNI -56DB |
4,739 | 16.96 |
|
Datasheet |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4.8 kHz | -56dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
