Microphones
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADMP803JCEZ-RLMIC MEMS ANALOG OMNI -35DB |
3,852 | 0.00 |
|
- |
ADMP803 | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | - | -35dB ±3dB @ 94dB SPL | - | 4.5 kOhms | - | 0.9 V ~ 1.3 V | 17 µA | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
BL-23958-000MIC PIEZO ANALOG OMNI -69DB |
1,914 | 0.00 |
|
- |
BL | Tray | Obsolete | Piezo | Analog | Omnidirectional | 20 Hz ~ 10 kHz | -69dB ±3dB @ 74dB SPL | - | 4 kOhms | 1.3 V | - | 160 µA | Side | - | Solder Pads | 0.310" L x 0.218" W (7.87mm x 5.54mm) | 0.090" (2.29mm) | Rectangular | - | - |
|

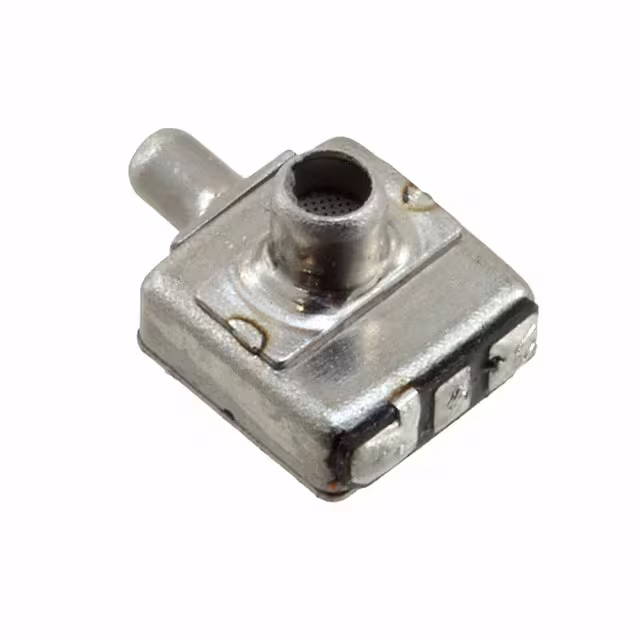

TD-24610-000MIC COND ANALOG UNI -57.5DB |
1,016 | 0.00 |
|
Datasheet |
TD | Tray | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 9.5 kHz | -57.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Bottom, Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.053" (1.35mm) | Square | - | - |
|

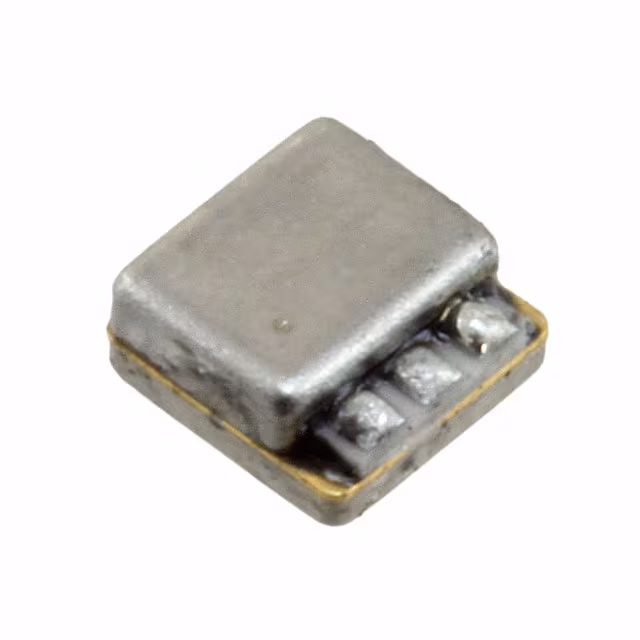

TM-26613-D20MIC COND ANALOG UNI -55DB |
2,339 | 0.00 |
|
- |
TM | Tray | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 5.8 kHz | -55dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.068" (1.73mm) | Square | - | - |
|

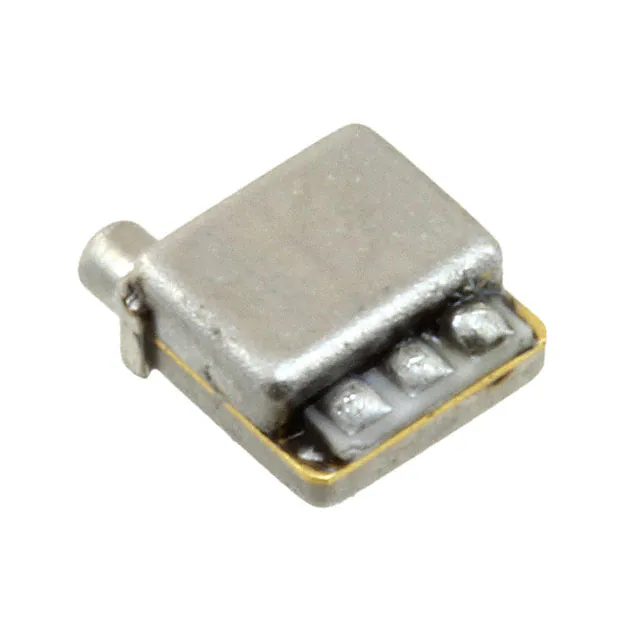

TM-26652-D25MIC COND ANALOG UNI |
3,645 | 0.00 |
|
- |
TM | Tray | Obsolete | Electret Condenser | Analog | Unidirectional | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

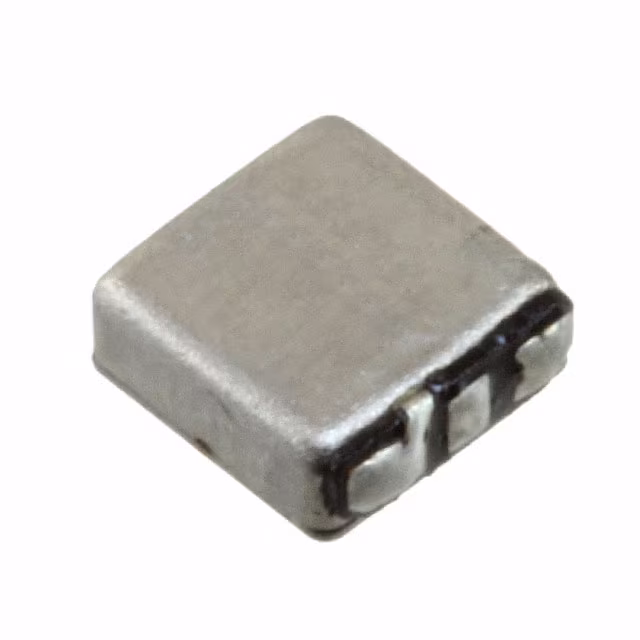

TO-24603-B63MIC COND ANALOG OMNI -56.5DB |
2,212 | 0.00 |
|
Datasheet |
TO | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 9.5 kHz | -56.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.053" (1.35mm) | Square | - | - |
|

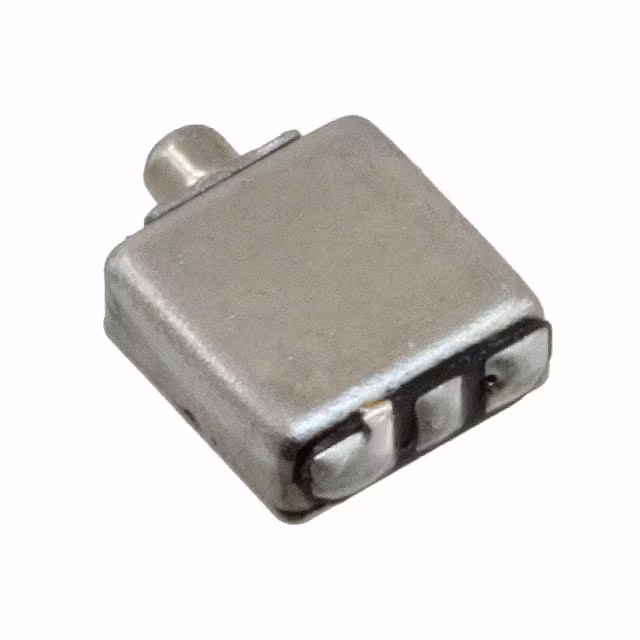

TO-30031-000MIC COND ANALOG OMNI -56.5DB |
3,122 | 0.00 |
|
Datasheet |
TO | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 7.2 kHz | -56.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.053" (1.35mm) | Square | - | - |
|
MR-28406-146MICROPHONE COND ANALOG OMNI |
3,977 | 0.00 |
|
Datasheet |
MR | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4.7 kHz | -61dB +3dB, -4dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | - | 50 µA | Top | Waterproof | Wire Leads | 0.871" Dia (22.12mm) | 0.299" (7.60mm) | Circular | - | - |
|
|
BL-27242-000MIC PIEZO ANALOG |
1,517 | 0.00 |
|
- |
BL | Tray | Obsolete | Piezo | Analog | - | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FG-26163-D65MICROPHONE COND ANALOG OMNI |
2,655 | 0.00 |
|
- |
FG | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 3 V | 50 µA | Top | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|
|
FG-26163-P07MIC COND ANALOG OMNI 0.101"DIA |
3,725 | 0.00 |
|
- |
FG | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|
|
GA38-30870-000MIC COND ANALOG UNI -53DB |
1,660 | 0.00 |
|
- |
GA | Tray | Obsolete | Electret Condenser | Analog | Unidirectional | - | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 900 mV | 1.3 V ~ 1.6 V | 29 µA | Top | - | - | - | - | - | - | - |
|
|
EM-23368-C56MICROPHONE COND ANALOG OMNI |
4,124 | 0.00 |
|
- |
EM | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | - | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | - | - | - |
|
|
EM-23897-S05MICROPHONE COND ANALOG OMNI |
2,641 | 0.00 |
|
Datasheet |
EM | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 1 kHz ~ 6 kHz | - | - | - | - | - | - | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
TO-30022-000MIC COND MATCH ANALOG OMNI |
3,834 | 0.00 |
|
Datasheet |
TO | Tray | Obsolete | Electret Condenser, Matched Set | Analog | Omnidirectional | 500 Hz ~ 2 kHz | -54dB ±3dB @ 74dB SPL | - | 3.75 kOhms | 1.3 V | - | 75 µA | Side | - | Solder Pads | 0.172" L x 0.141" W (4.37mm x 3.58mm) | 0.106" (2.70mm) | Rectangular | - | - |
|
|
WP-23898-C36MICROPHONE |
2,249 | 0.00 |
|
- |
WP | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BTM-23546-D47MIC COND ANALOG OMNI -55.5DB |
2,744 | 0.00 |
|
Datasheet |
BTM | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5.5 kHz | -55.5dB ±3dB @ 74dB SPL | - | 5.25 kOhms | 1.3 V | - | 75 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.070" (1.77mm) | Square | - | - |
|
|
TM-24568-000MIC COND ANALOG OMNI -56DB |
1,971 | 0.00 |
|
Datasheet |
TM | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5.8 kHz | -56dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.070" (1.77mm) | Square | - | - |
|
|
8200-153864MICROPHONE |
4,625 | 0.00 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8200-253934MICROPHONE |
4,214 | 0.00 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
