Relay Output Monitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Trip Status | Trip Range | Delay Time | Voltage - Supply | Output Type | Circuit | Contact Rating @ Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBA-120-ALE-40AC OVER AND UNDER CURRENT BAND M |
3,873 | 306.56 |
|
Datasheet |
CBA | Box | Discontinued at Digi-Key | Current Sensing AC | Energized High/Low | 8 ~ 40A AC | 1 Sec ~ 30 Sec | 120VAC | Relay | DPDT (2 Form C) | 10A @ 120VAC | Chassis Mount |
|
|
RM1XA006RELAY |
3,003 | 0.00 |
|
Datasheet |
TeSys | Box | Obsolete | Current Sensing AC/DC | Energized High/Low | 5 ~ 16A AC/DC | No Delay | - | Relay | SPDT (1 Form C) | 6.3A @ 600VAC/600VDC | Chassis Mount |
|
|
3UG48162AA40MON.RELAY,IO-LINK,3-PH+N VOLT.,1 |
2,394 | 0.00 |
|
Datasheet |
SIRIUS | Box | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss, Phase Sequence | Energized High/Low | 90 ~ 400V AC | 0 Sec ~ 999.9 Sec | 24VDC | Relay | SPDT (1 Form C) | 3A @ 400VAC | DIN Rail |
|
|
DPC02DM48RLY MONITOR 3PH VOLT/FREQ |
1,964 | 684.00 |
|
Datasheet |
DPC02 | Box | Active | Frequency, Phase Loss, Phase Sequence, Voltage Sensing AC | Energized High/Low | 323 ~ 475V AC | 0.1 Sec ~ 30 Sec | 380 ~ 415VAC | Relay | SPDT (1 Form C) x 2 | 8A @ 250VAC | DIN Rail |
|
|
AIMR5306LOOP POWERED |
1,636 | 0.00 |
|
- |
AIMR | Box | Obsolete | Process Sensing | - | - | No Delay | Loop Power | Relay | SPDT (1 Form C) | 1A @ 125VAC/150VDC | DIN Rail |
|
|
7760054352ACT20P-TMR-RTI-P |
1,291 | 0.00 |
|
Datasheet |
ACT20P | Box | Active | Process Sensing | Energized High/Low | - | 0 Sec ~ 10 Sec | 20 ~ 264VAC/DC | Relay | SPDT (1 Form C) x 2 | 5A @ 250VAC/30VDC | DIN Rail |
|
|
SAO-R5NMOTOR PROTECTIVE RELAY |
4,545 | 267.25 |
|
Datasheet |
SAO | Bulk | Active | Current Sensing AC | - | - | No Delay | 24VDC | Relay | SPDT (1 Form C) | 3A @ 240VAC | Socketable |
|
|
SAO-QS5NSENSOR CURRENT SOLID STATE 24VDC |
1,854 | 335.97 |
|
Datasheet |
SAO | Bulk | Active | Current Sensing AC | - | - | No Delay | 24VDC | Relay | SPDT (1 Form C) | 3A @ 240VAC | Socketable |
|
|
SAO-SU1NSENSOR CURRENT 100/110/120VAC |
2,636 | 335.97 |
|
Datasheet |
SAO | Bulk | Active | Current Sensing AC | - | - | No Delay | 100 ~ 120VAC | Relay | SPDT (1 Form C) | 3A @ 240VAC | Socketable |
|
V4PF480Y/277VSYTK02VOLT, CURRENT, COSINE PHI, TEMP |
3,669 | 302.46 |
|
Datasheet |
Veo | Box | Active | Voltage Asymmetry, Phase Loss, Phase Sequence, Temperature Monitoring | - | - | Fixed, 0.20 Sec | 208 ~ 480VAC | Relay | DPDT (2 Form C) | 8A @ 250VAC/24VDC | DIN Rail |
|
8705630000VOLTAGE MONITORING |
2,617 | 0.00 |
|
- |
WAS | Bulk | Obsolete | Voltage Sensing AC/DC | - | 80 ~ 400V AC/DC | No Delay | - | Relay | SPDT (1 Form C) x 2 | - | DIN Rail |
|
SLA-440-ALERPHASE MONITOR/RELAY |
4,177 | 321.97 |
|
Datasheet |
SLA | Box | Discontinued at Digi-Key | Phase Loss, Phase Sequence, Voltage Sensing AC | Energized High/Low | 430 ~ 480V AC | 1 Sec ~ 2 Sec | 440VAC | Relay | SPDT (1 Form C) | 3A @ 600VAC | Chassis Mount |
|
FB230ARELAY TIME DELAY FLSH FAIL ALARM |
4,035 | 365.82 |
|
Datasheet |
FB | Bulk | Active | Current Sensing AC | Energized High/Low | - | Fixed, 6 Sec, 10 Sec | 230VAC | Solid State | SPDT (1 Form C) | - | Chassis Mount |
|
|
PPC71DM483-PHASE MONITORING RELAY |
2,644 | 326.00 |
|
Datasheet |
PPC71 | Box | Active | Voltage Asymmetry, Phase Loss, Phase Sequence | Energized High/Low | 323 ~ 475V AC | 0.1 Sec ~ 30 Sec | 380 ~ 415VAC | Relay | SPDT (1 Form C) x 2 | 5A @ 250VAC | Socketable |
|
|
3UG46161CR20REVERSIBLE PHASE SEQUENCE |
4,114 | 0.00 |
|
Datasheet |
SIRIUS | Box | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss, Phase Sequence | - | 90 ~ 400V AC | 0.1 Sec ~ 20 Sec | 400VAC | Relay | SPDT (1 Form C) | 3A @ 400VAC | DIN Rail |
|
|
3UG48411CA40MON. RELAY, IO-LINK, COS-PHI, 2C |
3,640 | 0.00 |
|
Datasheet |
SIRIUS | Box | Active | Current Sensing AC | Energized High/Low | 0.2 ~ 10A (AC) | 0 Sec ~ 999.9 Sec | 24VDC | Relay | DPDT (2 Form C) | 3A @ 400VAC | DIN Rail |
|
WVM911AN3 PHASE VOLTAGE MONITOR |
4,857 | 0.00 |
|
Datasheet |
WVM | Bulk | Obsolete | Voltage Sensing AC, Phase Loss | Energized High/Low | 400 ~ 480V AC | 0.25 Sec ~ 30 Sec | 400 ~ 480VAC | Relay | SPDT (1 Form C) | 10A @ 250VAC | Chassis Mount |
|
|
3UG56162CR20PHAS.AUSF,-FOLGE,- AUSFALL,UEBER |
4,368 | 0.00 |
|
Datasheet |
SIRIUS | Box | Active | Frequency, Phase Loss, Phase Sequence, Voltage Asymmetry, Voltage Sensing AC | Energized High/Low | 90 ~ 760V AC | 0.1 Sec ~ 30 Sec | 120 ~ 690VAC | Relay | DPDT (2 Form C) | 3A @ 250VAC | DIN Rail |
|
|
3UG56161CR20PHAS.AUSF,-FOLGE,- AUSFALL,UEBER |
2,267 | 0.00 |
|
Datasheet |
SIRIUS | Box | Active | Frequency, Phase Loss, Phase Sequence, Voltage Asymmetry, Voltage Sensing AC | Energized High/Low | 90 ~ 760V AC | 0.1 Sec ~ 30 Sec | 120 ~ 690VAC | Relay | DPDT (2 Form C) | 3A @ 250VAC | DIN Rail |
|

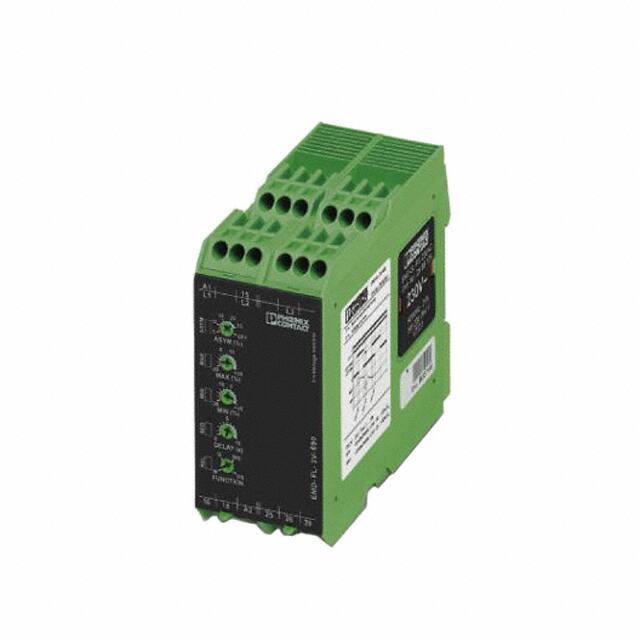

2885249MON RELAY 3PHASE 2X2PDT 690VAC |
1,231 | 317.93 |
|
Datasheet |
EMD | Bulk | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss | Energized High | 483 ~ 897V AC | 0.1 Sec ~ 10 Sec | 110 ~ 500VAC | Relay | DPDT (2 Form C) | 5A @ 250VAC | DIN Rail |
