Motors - AC, DC
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Motor Type | Voltage - Rated | RPM | Torque - Rated (oz-in / mNm) | Power - Rated | Encoder Type | Size / Dimension | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Features | Gear Reduction Ratio | Torque - Max Momentary (oz-in / mNm) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SER006035KG HIGH TORQUE METAL WATERPROO |
3,953 | 0.00 |
|
- |
- | Bulk | Active | DC Motor | Servomotor, RC (Hobby) | Positional Rotation | 4.8 ~ 7.4VDC | - | 345.8 / 2442 | - | - | - | - | - | - | Wire Leads with Connector | - | - | 486.1 / 3432 | -20°C ~ 60°C |
|
MG16B-030-AB-00GEARMOTOR 380 RPM 12V PLANETARY |
3,320 | 36.66 |
|
Datasheet |
MG16B | Tray | Active | DC Motor | Gearmotor | - | 12VDC | 380 RPM | 2.83 / 20 | - | - | Round - 0.629" Dia (16.00mm) | 0.118" (3.00mm) | 0.394" (10.00mm) | 0.433" (11.00mm) | Wire Leads | - | 30 | 4.25 / 30 | - |
|
|
SER006245KG TORQUE BRUSHLESS WATERPROOF |
4,389 | 0.00 |
|
- |
- | Bulk | Active | DC Motor | Servomotor, RC (Hobby) | Positional Rotation | 6 ~ 8.4VDC | - | 486.1 / 3432 | - | - | - | - | - | - | Wire Leads with Connector | - | - | 624.93 / 4412.99 | -20°C ~ 60°C |
|

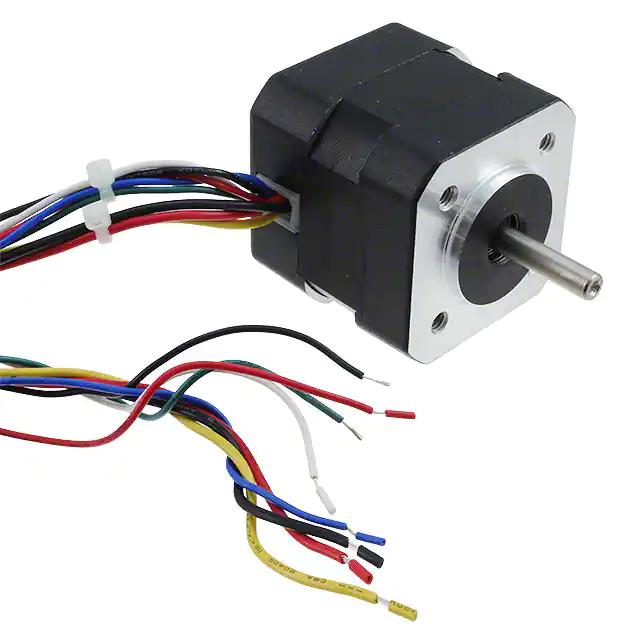

QBL4208-41-04-006STANDARD MOTOR 4000 RPM 24V |
3,455 | 84.63 |
|
Datasheet |
QMot QBL4208 | Box | Active | DC Motor | Standard | Brushless (BLDC) | 24VDC | 4000 RPM | 8.85 / 62.5 | 26.2W | - | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 0.197" (5.00mm) | 0.866" (22.00mm) | 1.417" (36.00mm) | Wire Leads | - | - | 26.91 / 190 | -20°C ~ 40°C |
|
17N78210E.1STANDARD MOTOR 10000 RPM 12V |
1,884 | 103.03 |
|
Datasheet |
17N78 | Bulk | Active | DC Motor | Standard | Brushed | 12VDC | 10000 RPM | 0.69 / 4.89 | 3.1W | - | Round - 0.669" Dia (17.00mm) | 0.059" (1.50mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | Solder Tab | - | - | - | -30°C ~ 85°C |
|

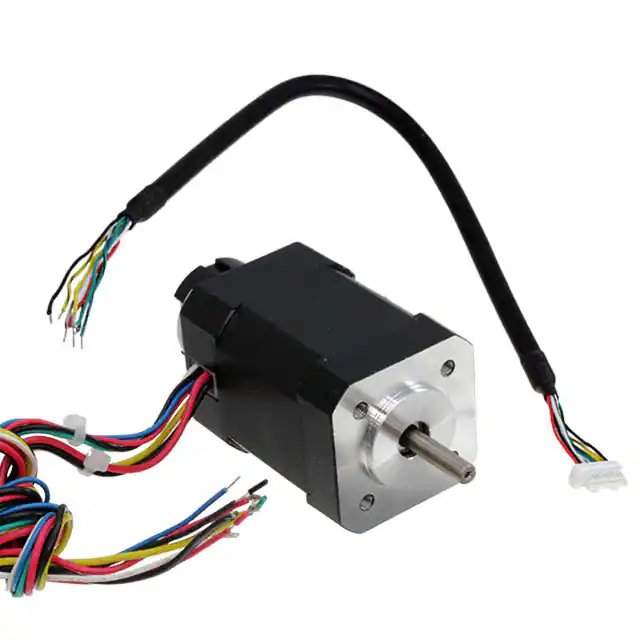

QBL4208-61-04-013-1KSTANDARD MOTOR 4000 RPM 24V |
3,161 | 230.86 |
|
Datasheet |
QMot QBL4208 | Bulk | Active | DC Motor | Standard | Brushless (BLDC) | 24VDC | 4000 RPM | 18.41 / 130 | - | Incremental | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 0.197" (5.00mm) | 0.866" (22.00mm) | 1.417" (36.00mm) | Wire Leads | - | - | 53.82 / 380 | -20°C ~ 40°C |
|
89850008STANDARD MOTOR 3000 RPM 24V |
3,940 | 211.91 |
|
Datasheet |
DCmind, 89850 | Bulk | Active | DC Motor | Standard | Brushed | 24VDC | 3000 RPM | 15.58 / 110 | 35W | - | Round - 1.654" Dia (42.00mm) | 0.236" (6.00mm) | 0.984" (25.00mm) | - | Wire Leads | - | - | - | -30°C ~ 70°C |
|
BL23E33-01D-04ROBLDC MOTOR WITH ENCODER |
2,021 | 188.92 |
|
Datasheet |
BL23 | Bulk | Active | DC Motor | Standard | Brushless (BLDC) | 24VDC | 4000 RPM | 41.07 / 290 | 120W | Incremental | Square - 2.213" x 2.213" (56.20mm x 56.20mm) | 0.315" (8.00mm) | 0.827" (21.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | - | - | 82 / 580 | -20°C ~ 50°C |
|
BL17E40-01D-05ROBLDC MOTOR WITH ENCODER |
4,998 | 170.90 |
|
Datasheet |
BL17 | Bulk | Active | DC Motor | Standard | Brushless (BLDC) | 24VDC | 4000 RPM | 30.45 / 215.02 | 90W | Incremental | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | - | - | 60.9 / 430 | -20°C ~ 50°C |
|
BL34E27-02D-03ROBLDC MOTOR WITH ENCODER |
4,336 | 278.83 |
|
Datasheet |
BL34 | Bulk | Active | DC Motor | Standard | Brushless (BLDC) | 48VDC | 4000 RPM | 67.97 / 480 | 200W | Incremental | Square - 3.146" x 3.146" (79.92mm x 79.92mm) | 0.472" (12.00mm) | 1.181" (30.00mm) | 2.739" (69.58mm) | Wire Leads with Connector | - | - | 135.9 / 960 | -20°C ~ 50°C |
|
|
BL34E34-01D-05ROBLDC MOTOR WITH ENCODER |
1,848 | 336.52 |
|
Datasheet |
BL34 | Bulk | Active | DC Motor | Standard | Brushless (BLDC) | 48VDC | 4000 RPM | 102 / 720 | 300W | Incremental | Square - 3.146" x 3.146" (79.92mm x 79.92mm) | 0.472" (12.00mm) | 1.181" (30.00mm) | 2.739" (69.58mm) | Wire Leads with Connector | - | - | 204 / 1440 | -20°C ~ 50°C |
|
ECMA-C20604RSSERVOMOTOR 3000 RPM 220V |
3,044 | 410.41 |
|
Datasheet |
ECMA | Box | Active | AC Motor | Servomotor | - | 220VAC | 3000 RPM | 179.9 / 1270 | 400W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.551" (14.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Cable with Connector | Key, Oil Seal | - | 541 / 3820 | 0°C ~ 40°C |
|
|
SBL80D3-03750 WATT BLDC SERVO MOTOR - 80 M |
4,722 | 0.00 |
|
Datasheet |
SBL80DC | Box | Active | DC Motor | Servomotor | Brushless (BLDC) | 48VDC | 3000 RPM | 339.8 / 2400 | 750W | Incremental | Square - 3.140" x 3.140" (79.76mm x 79.76mm) | 0.740" (18.80mm) | 1.570" (39.88mm) | 3.540" (89.92mm) | Wire Leads with Connector | Oil Seal | - | 849.6 / 6000 | - |
|
|
MSMF082L1S2MOTOR AC SERVO 200V LI 750W IP65 |
3,622 | 788.32 |
|
Datasheet |
MINAS A6 | Box | Active | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 338.5 / 2390 | 750W | Absolute | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.772" (19.60mm) | 1.378" (35.00mm) | 3.543" (90.00mm) | Cable with Connector | Key | - | 1014 / 7160 | 0°C ~ 55°C |
|

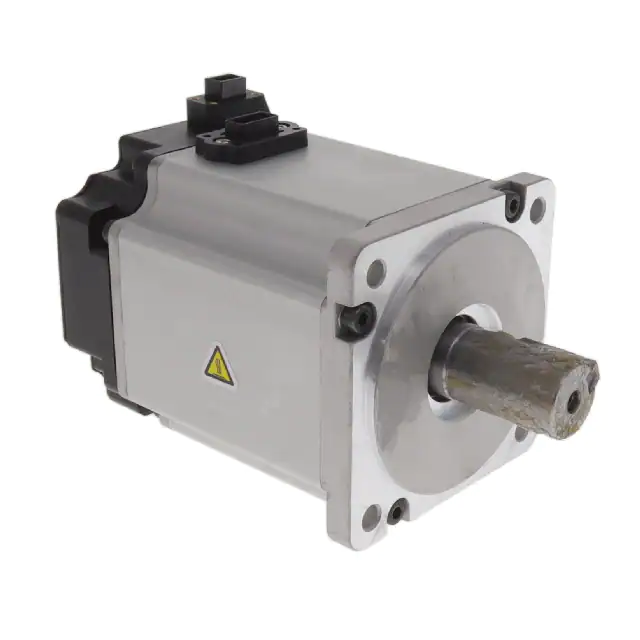

R88M-K75030T-S2SERVOMOTOR 3000 RPM 230V |
2,589 | 1742.05 |
|
Datasheet |
Accurax G5 | Bulk | Active | AC Motor | Servomotor | - | 230VAC | 3000 RPM | 339.9 / 2400 | 750W | Absolute | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.748" (19.00mm) | 1.378" (35.00mm) | 3.543" (90.00mm) | Connector | Key | - | 1005 / 7100 | 0°C ~ 40°C |
|
|
3882STANDARD MOTOR 3500 RPM 3V DVD |
3,436 | 65.00 |
|
Datasheet |
- | Bulk | Active | DC Motor | Standard | Continuous Rotation | 3VDC | 3500 RPM | 0.068 / 0.48 | 0.14W | - | Round - 0.961" Dia (24.40mm) | - | - | 0.650" (16.50mm) | Wire Leads | - | - | - | - |
|

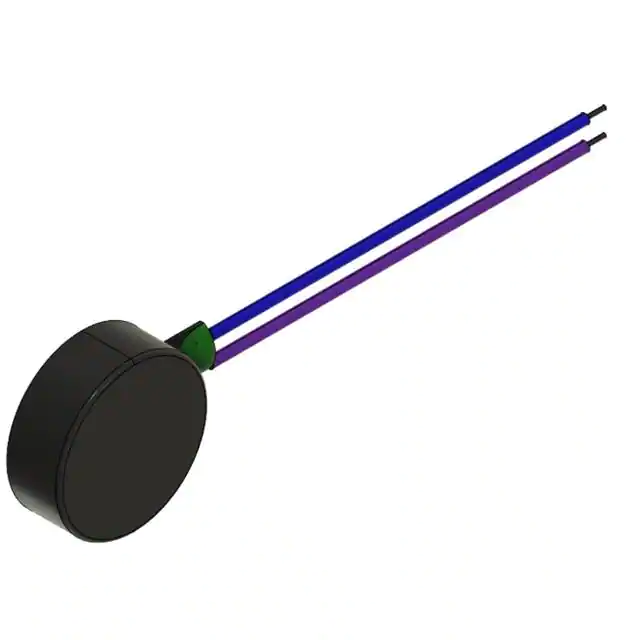

HD-EM0803-LW20-RHD MOTOR 3VDC 38OHM 12000RPM |
3,764 | 2.86 |
|
Datasheet |
Haptics | Tray | Active | DC Motor | Vibration, ERM (Haptic) | - | 3VDC | 12000 RPM | - | - | - | Round - 0.315" Dia (8.00mm) | - | - | - | Wire Leads | - | - | - | -20°C ~ 60°C |
|

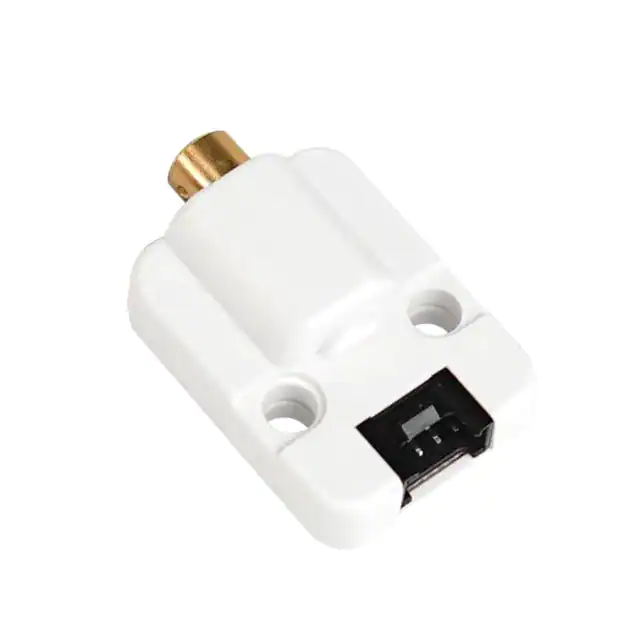

U059VIBRATION MOTOR UNIT (N20) |
1,355 | 2.95 |
|
Datasheet |
U059 | Retail Package | Active | DC Motor | Vibration, ERM (Haptic) | - | 5VDC | 8800 RPM | - | - | - | Rectangular - 1.890" x 0.945" (48.00mm x 24.00mm) | - | - | - | Connector | - | - | - | - |
|
2941STANDARD MOTOR 130 RPM 5V |
2,363 | 3.50 |
|
Datasheet |
- | Bulk | Active | DC Motor | Standard | - | 5VDC | 130 RPM | 20.86 / 147.4 | - | - | - | - | - | 1.062" (27.00mm) | Wire Leads with Connector | - | - | - | -15°C ~ 70°C |
|

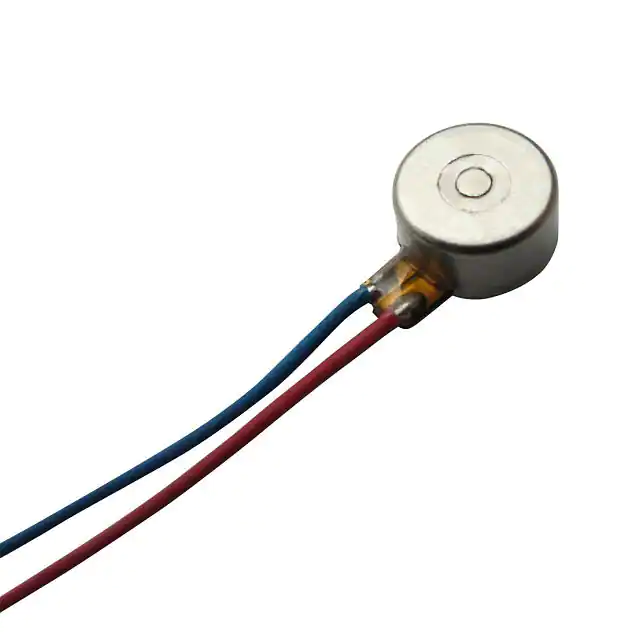

VW0525AB001DVIBRATION ERM MTR 11K RPM 0.25G |
4,717 | 5.46 |
|
Datasheet |
- | Tray | Active | DC Motor | Vibration, ERM (Haptic) | Brushless (BLDC) | 3VDC | 14000 RPM | - | - | - | Round - 0.197" Dia (5.00mm) | - | - | - | Wire Leads | - | - | - | -20°C ~ 70°C |
