Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-260L-520EOPTOISO 5KV OPEN COLL 8DIP GW |
3,252 | 1.36 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-260L-320EOPTOISO 5KV OPEN COLL 8DIP GW |
3,360 | 1.36 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
ACPL-M61M-000EOPTOCOUPLER (10MBD) |
2,045 | 1.36 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull | 10 mA | 10MBd | 90ns, 90ns | 6ns, 7ns | 1.33V | 8mA | 2.5V ~ 3.3V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
ACPL-M75N-060EIND AMBER SINGLES VDE |
3,145 | 1.39 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Open Drain | 10 mA | 15MBd | 55ns, 55ns | 6ns, 5ns | 1.5V | 20mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
PS9587L2-V-E3-AXOPTOISO 5KV OPEN COLL 8DIP GW |
4,590 | 1.70 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-M601-560EOPTOISO 3.75KV OPN COLLECTOR 5SO |
4,515 | 1.37 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
|
HCPL-M456-560EOPTOISO 3.75KV OPN COLLECTOR 5SO |
3,805 | 1.37 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
|
ACPL-M75N-560EIND AMBER SINGLES T&R VDE |
4,481 | 1.43 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Open Drain | 10 mA | 15MBd | 55ns, 55ns | 6ns, 5ns | 1.5V | 20mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
|
ACPL-M61M-060EOPTOCOUPLER (10MBD) |
1,992 | 1.39 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 200kV/µs | DC | Push-Pull | 10 mA | 10MBd | 90ns, 90ns | 6ns, 7ns | 1.33V | 8mA | 2.5V ~ 3.3V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
HCPL-2611-060EOPTOISO 3.75KV OPEN COLL 8DIP |
3,516 | 1.39 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|

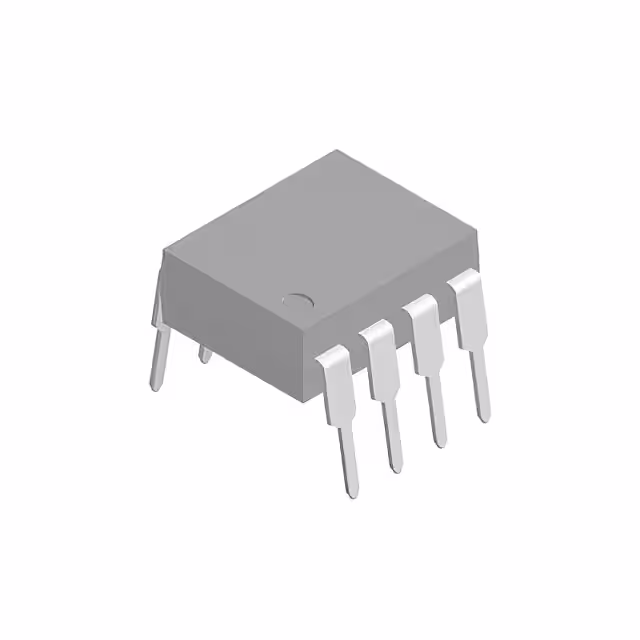

VOW2611-X001WIDEBODY, HIGH ISOLATION, HIGH S |
2,606 | 1.43 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5300Vrms | 25kV/µs | DC | Open Collector | 50 mA | 10MBd | 100ns, 100ns | 14ns, 7ns | 1.65V | 20mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
|
HCPL-2611-520EOPTOISO 5KV OPEN COLL 8DIP GW |
1,480 | 1.42 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
ACPL-W611-500EOPTOISO 5KV OPEN COLLECTOR 6SO |
2,583 | 1.42 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
|
|
HCPL-2611-320EOPTOISO 5KV OPEN COLL 8DIP GW |
3,475 | 1.42 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
ACPL-P456-020EOPTOISO 3.75KV OPN COLLECTOR 6SO |
4,625 | 1.42 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
|
EL2200OPTOISO 5KV TRI-STATE 8DIP |
3,703 | 0.70 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Tri-State | 25 mA | 5MBd | 300ns, 300ns | 45ns, 10ns | 1.4V | 50mA | 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
PS9122-L-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
3,639 | 0.00 |
|
- |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Bulk | Not For New Designs | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 20 mA | 1Mbps | 700ns, 500ns | 60ns, 70ns | 1.6V | 25mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
PS9122-N-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
2,089 | 1.75 |
|
- |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Not For New Designs | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 20 mA | 1Mbps | 700ns, 500ns | 60ns, 70ns | 1.6V | 25mA | 2.7V ~ 3.6V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
|
ACPL-P456-520EOPTOISO 3.75KV OPN COLLECTOR 6SO |
2,527 | 1.45 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
|
|
ACPL-P456-560EOPTOISO 3.75KV OPN COLLECTOR 6SO |
1,367 | 1.45 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
