Logic Output Optoisolators

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Channels	Inputs - Side 1/Side 2	Voltage - Isolation	Common Mode Transient Immunity (Min)	Input Type	Output Type	Current - Output / Channel	Data Rate	Propagation Delay tpLH / tpHL (Max)	Rise / Fall Time (Typ)	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Voltage - Supply	Grade	Qualification	Operating Temperature	Mounting Type	Supplier Device Package
PS9851-2-AX OPTOISO 2.5KV 2CH PSH PULL 8SSOP CEL	3,882	12.80	RFQ	Datasheet	NEPOC	8-SOIC (0.154", 3.90mm Width)	Bulk	Discontinued at Digi-Key	2	2/0	2500Vrms	10kV/µs	DC	Push-Pull, Totem Pole	2 mA	15Mbps	60ns, 60ns	4ns, 4ns	1.6V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 100°C	Surface Mount	8-SSOP
OPI1290-032 OPTOISO PUSH PULL TT Electronics/Optek Technology	3,156	6.77	RFQ	-	-	Nonstandard, 5 Lead	Bulk	Active	1	1/0	-	-	DC	Push-Pull, Totem Pole	-	-	5µs, 5µs (Typ)	25ns, 25ns	2.3V (Max)	-	4.5V ~ 16V	-	-	-20°C ~ 75°C	Through Hole	-
HCPL-2430-020E OPTOISO 5KV 2CH PUSH PULL 8DIP Broadcom Limited	3,133	7.71	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	2	2/0	5000Vrms	1kV/µs	DC	Push-Pull, Totem Pole	25 mA	40MBd	55ns, 55ns	20ns, 10ns	1.3V	10mA	4.75V ~ 5.25V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
HCPL-2430-060E OPTOISO 3.75KV 2CH PSH PULL 8DIP Broadcom Limited	1,199	7.71	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	2	2/0	3750Vrms	1kV/µs	DC	Push-Pull, Totem Pole	25 mA	40MBd	55ns, 55ns	20ns, 10ns	1.3V	10mA	4.75V ~ 5.25V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
HCPL-2232#500 OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	3,597	7.92	RFQ	Datasheet	-	8-SMD, Gull Wing	Tape & Reel (TR)	Active	2	2/0	3750Vrms	10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-	-	-40°C ~ 85°C	Surface Mount	8-DIP Gull Wing
OPI127 OPTOISO 15KV PUSH PULL TT Electronics/Optek Technology	1,387	0.00	RFQ	Datasheet	-	-	Bulk	Obsolete	1	1/0	15000VDC	-	DC	Push-Pull, Totem Pole	-	250kbps	5µs, 5µs (Typ)	100ns, 100ns	1.5V (Max)	25mA	4.5V ~ 5.5V	-	-	-55°C ~ 100°C	Through Hole	-
OPI128 OPTOISO 15KV OPEN COLLECTOR TT Electronics/Optek Technology	3,145	8.59	RFQ	Datasheet	-	-	Bulk	Active	1	1/0	15000VDC	-	DC	Open Collector	-	250kbps	5µs, 5µs (Typ)	100ns, 100ns	1.5V (Max)	25mA	4.5V ~ 5.5V	-	-	-55°C ~ 100°C	Through Hole	-

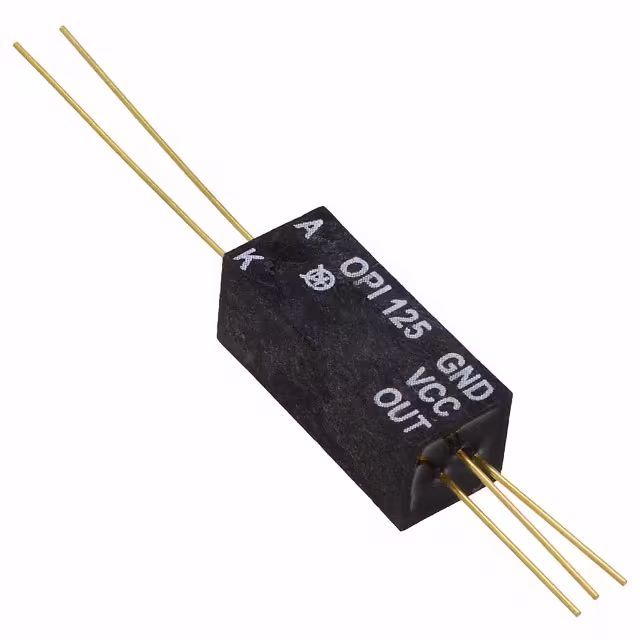

OPI125 OPTOISO 15KV PUSH PULL TT Electronics/Optek Technology	2,564	0.00	RFQ	-	-	Axial - 5 Leads	Bulk	Obsolete	1	1/0	15000VDC	-	DC	Push-Pull, Totem Pole	-	250kbps	5µs, 5µs (Typ)	100ns, 100ns	1.5V (Max)	25mA	4.5V ~ 5.5V	-	-	-55°C ~ 100°C	Through Hole	-
HCPL-2430#500 OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	2,387	10.40	RFQ	Datasheet	-	8-SMD, Gull Wing	Tape & Reel (TR)	Active	2	2/0	3750Vrms	1kV/µs	DC	Push-Pull, Totem Pole	25 mA	40MBd	55ns, 55ns	20ns, 10ns	1.3V	10mA	4.75V ~ 5.25V	-	-	-40°C ~ 85°C	Surface Mount	8-DIP Gull Wing
HCPL-2430#300 OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	3,245	11.99	RFQ	Datasheet	-	8-SMD, Gull Wing	Tube	Active	2	2/0	3750Vrms	1kV/µs	DC	Push-Pull, Totem Pole	25 mA	40MBd	55ns, 55ns	20ns, 10ns	1.3V	10mA	4.75V ~ 5.25V	-	-	-40°C ~ 85°C	Surface Mount	8-DIP Gull Wing

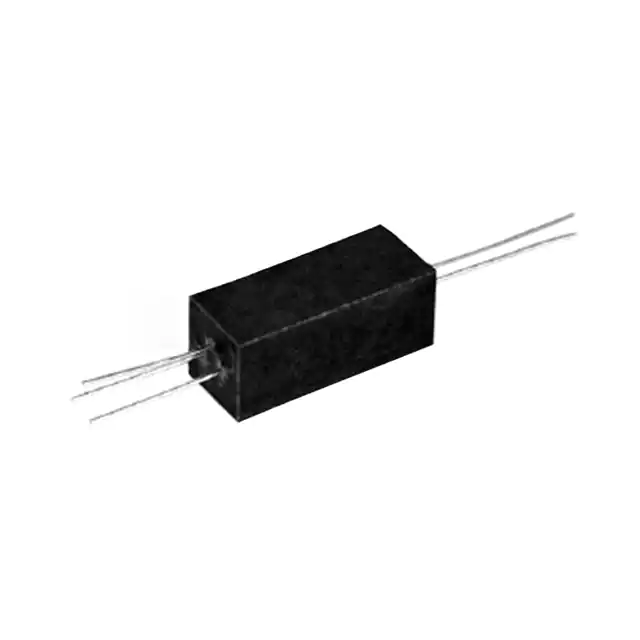

OPI127-032 OPTOISO 15KV PUSH PULL TT Electronics/Optek Technology	4,062	11.42	RFQ	-	-	Axial - 4 Leads	Bulk	Active	1	1/0	15000VDC	-	DC	Push-Pull, Totem Pole	-	250kbps	5µs, 5µs (Typ)	100ns, 100ns	1.5V (Max)	25mA	4.5V ~ 5.5V	-	-	-55°C ~ 100°C	Through Hole	Axial
HCPL-5600#100 OPTOISO 1.5KV OPEN COLL 8SMD Broadcom Limited	1,576	77.20	RFQ	Datasheet	-	8-SMD Butt Joint	Tube	Active	1	1/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	35ns, 35ns	1.5V	20mA	4.5V ~ 5.5V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Butt Joint
HCPL-5600#200 OPTOISO 1.5KV OPN COLLECTOR 8DIP Broadcom Limited	2,695	77.20	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	35ns, 35ns	1.5V	20mA	4.5V ~ 5.5V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
ACPL-5600L OPTOISO 1.5KV OPN COLLECTOR 8DIP Broadcom Limited	3,749	80.62	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
ACPL-5600L-100 OPTOISO 1.5KV OPEN COLL 8SMD Broadcom Limited	1,657	81.03	RFQ	Datasheet	-	8-SMD Butt Joint	Tube	Active	1	1/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Butt Joint
ACPL-5600L-200 OPTOISO 1.5KV OPN COLLECTOR 8DIP Broadcom Limited	4,042	81.03	RFQ	Datasheet	-	8-CDIP (0.300", 7.62mm)	Tube	Active	1	1/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
HCPL-5600#300 OPTOISO 1.5KV OPEN COLL 8DIP GW Broadcom Limited	2,237	78.42	RFQ	Datasheet	-	8-CSMD, Gull Wing	Tube	Active	1	1/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	35ns, 35ns	1.5V	20mA	4.5V ~ 5.5V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Gull Wing
ACPL-5600L-300 OPTOISO 1.5KV OPEN COLL 8DIP GW Broadcom Limited	2,061	82.25	RFQ	Datasheet	-	8-CSMD, Gull Wing	Tube	Active	1	1/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Gull Wing

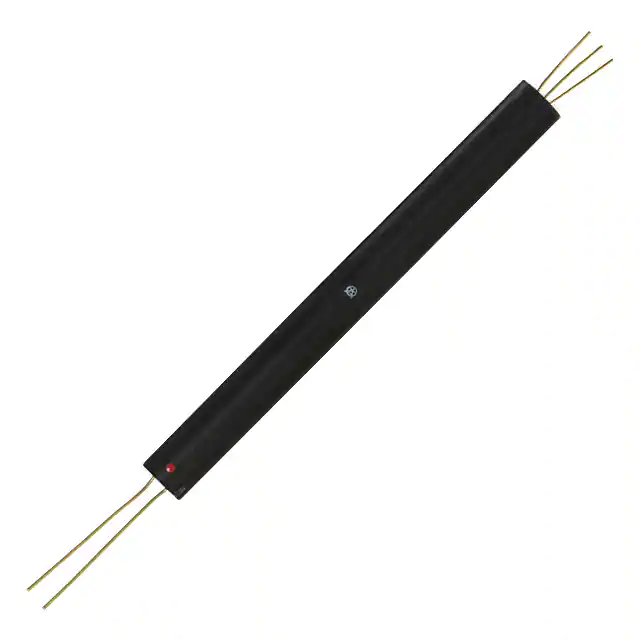

OPI155 OPTOISO 50KV OPEN COLLECTOR TT Electronics/Optek Technology	2,592	74.92	RFQ	-	-	-	Bulk	Active	1	1/0	50000VDC	-	DC	Open Collector, Schottky Clamped	25 mA	5Mbps	70ns, 120ns	-	1.2V	50mA	7V	-	-	-40°C ~ 85°C	Through Hole	-
HCPL-5601 OPTOISO 1.5KV OPN COLLECTOR 8DIP Broadcom Limited	1,780	82.66	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Bulk	Active	1	1/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	35ns, 35ns	1.5V	20mA	4.5V ~ 5.5V	-	-	-55°C ~ 125°C	Through Hole	8-DIP

Total 2459 Record«Prev 1... 81 82 83 848586 87 88...123 Next»
