Logic Output Optoisolators

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Channels	Inputs - Side 1/Side 2	Voltage - Isolation	Common Mode Transient Immunity (Min)	Input Type	Output Type	Current - Output / Channel	Data Rate	Propagation Delay tpLH / tpHL (Max)	Rise / Fall Time (Typ)	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Voltage - Supply	Grade	Qualification	Operating Temperature	Mounting Type	Supplier Device Package
ACPL-563KL-200 OPTOISO 1.5KV 2CH OPEN COLL 8DIP Broadcom Limited	3,353	565.74	RFQ	Datasheet	-	8-CDIP (0.300", 7.62mm)	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
ACPL-563KL-300 OPTOISO 1.5KV OPEN COLL 8DIP GW Broadcom Limited	2,559	565.74	RFQ	Datasheet	-	8-CSMD, Gull Wing	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Gull Wing
5962-0824202KPA OPTOISO 1.5KV 2CH OPEN COLL 8DIP Broadcom Limited	1,737	565.74	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
5962-0824202KPC OPTOISO 1.5KV 2CH OPEN COLL 8DIP Broadcom Limited	4,006	565.74	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
5962-0824202KXA OPTOISO 1.5KV OPEN COLL 8DIP GW Broadcom Limited	1,821	565.74	RFQ	Datasheet	-	8-SMD, Gull Wing	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Gull Wing
5962-0824202KYA OPTOISO 1.5KV 2CH OPEN COLL 8SMD Broadcom Limited	4,089	565.74	RFQ	Datasheet	-	8-SMD Butt Joint	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Butt Joint
5962-0824202KYC OPTOISO 1.5KV 2CH OPEN COLL 8SMD Broadcom Limited	1,980	565.74	RFQ	Datasheet	-	8-SMD Butt Joint	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	100ns, 100ns	20ns, 8ns	1.55V	20mA	3V ~ 3.6V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Butt Joint
HCPL-540K OPTOISO 1.5KV TRI-STATE 8DIP Broadcom Limited	4,636	618.94	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Bulk	Active	1	1/0	1500VDC	500V/µs	DC	Tri-State	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
HCPL-540K-100 OPTOISO 1.5KV TRI-STATE 8SMD Broadcom Limited	4,238	618.94	RFQ	Datasheet	-	8-CSMD, Gull Wing	Bulk	Active	1	1/0	1500VDC	500V/µs	DC	Tri-State	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Surface Mount	8-SMD Butt Joint
HCPL-540K-300 OPTOISO 1.5KV TRI-STATE 8DIP GW Broadcom Limited	2,282	618.94	RFQ	Datasheet	-	8-CSMD, Gull Wing	Bulk	Active	1	1/0	1500VDC	500V/µs	DC	Tri-State	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Gull Wing
HCPL-540K#200 OPTOISO 1.5KV TRI-STATE 8DIP Broadcom Limited	1,697	618.94	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Bulk	Active	1	1/0	1500VDC	500V/µs	DC	Tri-State	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
5962-8957002KPA OPTOISO 1.5KV TRI-STATE 8DIP Broadcom Limited	4,639	618.94	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	1500VDC	500V/µs	DC	Tri-State	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
5962-8957002KPC OPTOISO 1.5KV TRI-STATE 8DIP Broadcom Limited	1,105	618.94	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	1500VDC	500V/µs	DC	Tri-State	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
5962-8957002KXA OPTOISO 1.5KV TRI-STATE 8DIP GW Broadcom Limited	2,608	618.94	RFQ	Datasheet	-	8-SMD, Gull Wing	Tube	Active	1	1/0	1500VDC	500V/µs	DC	Tri-State	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Gull Wing
5962-8957002KYA OPTOISO 1.5KV TRI-STATE 8SMD Broadcom Limited	4,727	618.94	RFQ	Datasheet	-	8-SMD Butt Joint	Tube	Active	1	1/0	1500VDC	500V/µs	DC	Tri-State	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Butt Joint
5962-8957002KYC OPTOISO 1.5KV TRI-STATE 8SMD Broadcom Limited	2,812	618.94	RFQ	Datasheet	-	8-SMD Butt Joint	Tube	Active	1	1/0	1500VDC	500V/µs	DC	Tri-State	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Butt Joint

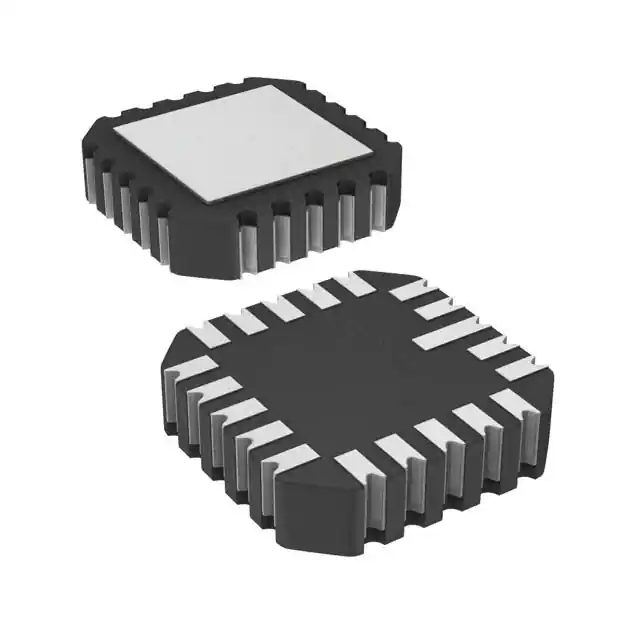

HCPL-643K OPTOISO 1.5KV PUSH PULL 20LCCC Broadcom Limited	2,880	658.29	RFQ	Datasheet	-	20-CLCC	Bulk	Active	2	2/0	1500VDC	500V/µs	DC	Push-Pull, Totem Pole	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Surface Mount	20-LCCC (8.89x8.89)
5962-8957104K2A OPTOISO 1.5KV PUSH PULL 20LCCC Broadcom Limited	4,966	658.29	RFQ	Datasheet	-	20-CLCC	Tube	Active	2	2/0	1500VDC	500V/µs	DC	Push-Pull, Totem Pole	25 mA	40Mbps	60ns, 60ns	15ns, 10ns	1.35V	10mA	4.75V ~ 5.25V	-	-	-55°C ~ 125°C	Surface Mount	20-LCCC (8.89x8.89)
HCPL-520K OPTOISO 1.5KV TRI-STATE 8DIP Broadcom Limited	3,187	657.59	RFQ	Datasheet	-	8-CDIP (0.300", 7.62mm)	Bulk	Active	1	1/0	1500VDC	1kV/µs	DC	Tri-State	15 mA	5MBd	350ns, 350ns	45ns, 10ns	1.3V	8mA	4.5V ~ 20V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
HCPL-520K-100 OPTOISO 1.5KV TRI-STATE 8SMD Broadcom Limited	4,040	657.59	RFQ	Datasheet	-	8-SMD Butt Joint	Bulk	Active	1	1/0	1500VDC	1kV/µs	DC	Tri-State	15 mA	5MBd	350ns, 350ns	45ns, 10ns	1.3V	8mA	4.5V ~ 20V	-	-	-55°C ~ 125°C	Surface Mount	8-DIP Butt Joint

Total 2459 Record«Prev 1... 92 93 94 959697 98 99...123 Next»
