Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL5X6PIN TRANSISTOR DETECTOR, HIGH D |
3,268 | 0.00 |
|
Datasheet |
IL | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 50% @ 10mA | 400% @ 10mA | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.2V | 50 mA | 400mV | - | - | -25°C ~ 100°C | Through Hole | 6-DIP |
|
|
TIL117X6PIN TRANSISTOR DETECTOR, SINGLE |
4,959 | 0.00 |
|
Datasheet |
TIL117 | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 50% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
MOC8113X6PIN NON-BASE LEAD TRANSISTOR OU |
1,880 | 0.00 |
|
Datasheet |
MOC8113 | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | - | - | - | 2µs, 2µs | DC | Transistor | 30V | - | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
TIL114X6PIN TRANSISTOR DETECTOR, SINGLE |
1,647 | 0.00 |
|
Datasheet |
TIL114 | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 20% @ 16mA | - | - | 2µs, 2µs | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
MCT272X6PIN TRANSISTOR DETECTOR, SINGLE |
4,841 | 0.00 |
|
Datasheet |
MCT27x | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 75% @ 10mA | 150% @ 10mA | 10µs, 10µs (Max) | - | DC | Transistor with Base | 30V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
MCT2106PIN TRANSISTOR DETECTOR, SINGLE |
4,744 | 0.00 |
|
- |
MCT2X | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 20% @ 10mA | - | 3µs, 3µs | 3µs, 3µs | DC | Transistor with Base | 80V | - | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Through Hole | 6-DIP |
|
4N36SR2MOPTOISO 4.17KV TRANS W/BASE 6SMD |
1,488 | 0.22 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 40% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 300mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
CNY17F4TVMOPTOISO 4.17KV TRANS 6DIP |
1,000 | 0.27 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 4170Vrms | 160% @ 10mA | 320% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
|
CNY17F2SR2MOPTOISO 4.17KV TRANS 6SMD |
980 | 0.19 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 63% @ 10mA | 125% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
4N26TVMOPTOISO 4.17KV TRANS W/BASE 6DIP |
1,000 | 0.24 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 4170Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 500mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|

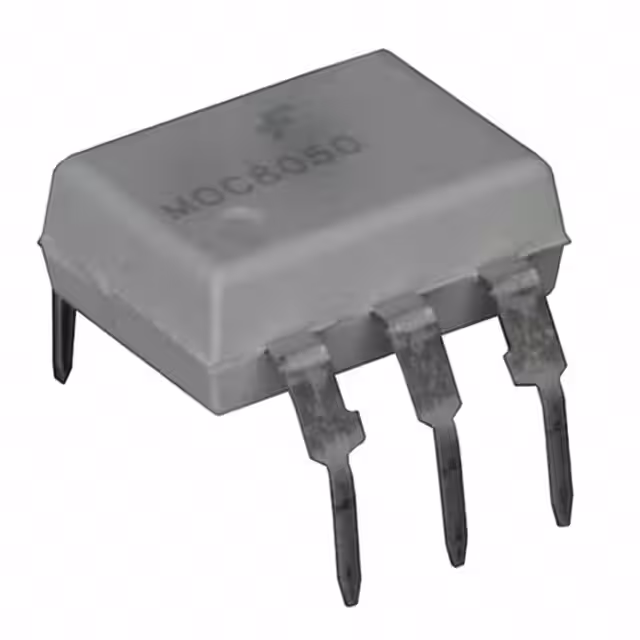

MOC8050TVMOPTOISO 4.17KV DARLINGTON 6DIP |
560 | 0.28 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | 1 | 4170Vrms | 500% @ 10mA | - | 8.5µs, 95µs | - | DC | Darlington | 80V | 150mA | 1.18V | 60 mA | - | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
|
ISP815X-24PIN DARLINGTON, SINGLE OPTOCOUP |
100 | 0.00 |
|
Datasheet |
ISP8152 | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 800% @ 1mA | - | - | 60µs, 53µs | DC | Darlington | 70V | - | 1.2V | 50 mA | 1V | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
TIL197AX4PIN DARLINGTON OUTPUT, SINGLE O |
100 | 0.00 |
|
Datasheet |
TIL197A | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 1000% @ 2mA | 7500% @ 2mA | - | 100µs, 100µs | DC | Darlington | 35V | - | 1.2V | 50 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
FODM217CVPHOTOTRANSISTOR OPTO |
4,859 | 0.37 |
|
Datasheet |
FODM217 | 4-SOIC (0.173", 4.40mm Width) | Tube | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
IS3H74PIN TRANSISTOR, SMD HALF PITCH |
992 | 0.00 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 6µs, 6µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
IS2801-14PIN TRANSISTOR, HALF PITCH COMP |
779 | 0.00 |
|
Datasheet |
IS2801-1 | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 60 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
4N35SM6PIN TRANSISTOR DETECTOR, SINGLE |
616 | 0.80 |
|
Datasheet |
4N35 | 6-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 100% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | - | - | 1.3V | - | 300mV | - | - | -55°C ~ 100°C | Surface Mount | - |
|
|
TIL194AX4PIN AC INPUT, SINGLE OPTOCOUPLE |
100 | 0.00 |
|
Datasheet |
TIL194 | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 50% @ 5mA | - | - | 4µs, 3µs | AC, DC | Transistor | 35V | - | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
TLP626X4PIN AC INPUT, SINGLE OPTOCOUPLE |
100 | 0.00 |
|
- |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TIL194BX4PIN AC INPUT, SINGLE OPTOCOUPLE |
100 | 0.00 |
|
Datasheet |
TIL194 | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 100% @ 5mA | - | - | 4µs, 3µs | AC, DC | Transistor | 35V | - | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
