Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC817X1NSZ1BOPTOISOLATOR 5KV TRANS DIP |
4,371 | 0.20 |
|
- |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | - | - | - | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
EL817(C)-FLINEAR IC |
2,831 | 0.00 |
|
Datasheet |
EL817 | 4-DIP (0.300", 7.62mm) | Bulk | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 18µs, 18µs | DC | Transistor | 35V | 50mA | 1.2V | 60 mA | 200mV | - | - | -55°C ~ 110°C | Through Hole | 4-DIP |
|

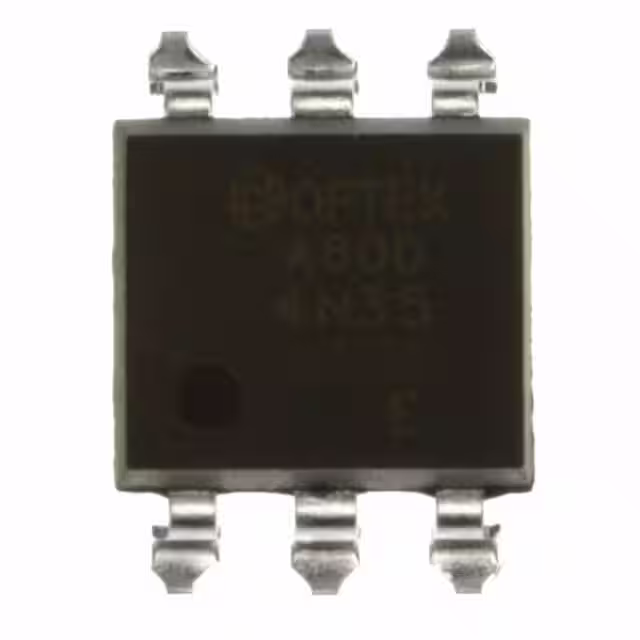

OPIA4N35ATUEOPTOISO 5KV TRANS W/BASE 6SMD |
4,042 | 0.00 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Obsolete | 1 | 5000Vrms | 60% @ 2mA | 600% @ 2mA | - | 5µs, 4µs | DC | Transistor with Base | 60V | 50mA | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Surface Mount | 6-SMD |
|

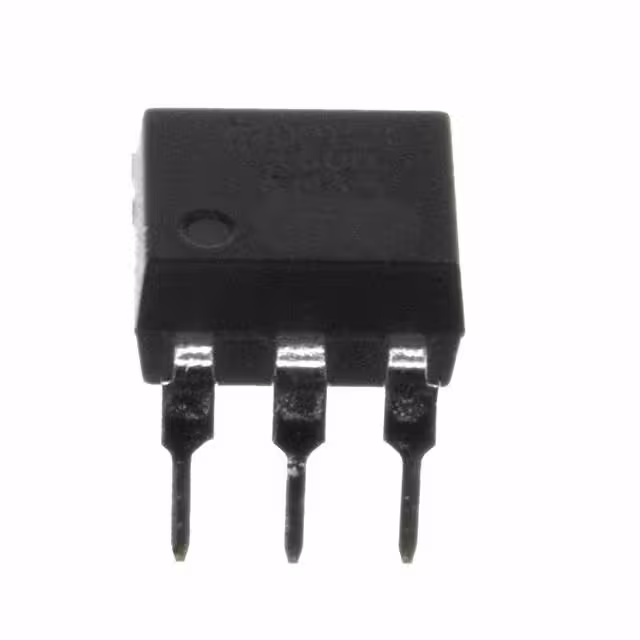

OPIA4N35DTUEOPTOISO 5KV TRANS W/BASE 6DIP |
2,718 | 0.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 60% @ 2mA | 600% @ 2mA | - | 5µs, 4µs | DC | Transistor with Base | 60V | 50mA | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Through Hole | 6-DIP |
|
4N25XOPTOISO 5.3KV TRANS W/BASE 6DIP |
4,463 | 0.19 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
4N27XOPTOISO 5.3KV TRANS W/BASE 6DIP |
1,164 | 0.56 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 10% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
4N28XOPTOISO 5.3KV TRANS W/BASE 6DIP |
3,431 | 0.56 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 10% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
CNY17-2XOPTOISO 5.3KV TRANS W/BASE 6DIP |
4,663 | 0.56 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
CNY17F-2XOPTOISO 5.3KV TRANSISTOR 6DIP |
4,021 | 0.56 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11A4XOPTOISO 5.3KV TRANS W/BASE 6DIP |
1,116 | 0.19 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 10% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11AV3XOPTOISO 5.3KV TRANS W/BASE 6DIP |
4,519 | 0.56 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11AV26PIN TRANSISTOR DETECTOR, SINGLE |
2,248 | 0.00 |
|
Datasheet |
H11AV | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 50% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11AV36PIN TRANSISTOR DETECTOR, SINGLE |
4,685 | 0.00 |
|
Datasheet |
H11AV | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
SFH628A-24PIN AC INPUT, SINGLE OPTOCOUPLE |
3,679 | 1.25 |
|
- |
SFH628A-2 | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 63% @ 1mA | 200% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 55V | 50mA | 1.5V (Max) | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
SFH620A-1X4PIN AC INPUT, SINGLE OPTOCOUPLE |
3,343 | 0.00 |
|
Datasheet |
SFH620A-1 | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 40% @ 10mA | 125% @ 10mA | - | 4µs, 3µs | AC, DC | Transistor | 70V | 50mA | 1.65V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
TLP6204PIN AC INPUT, SINGLE OPTOCOUPLE |
4,678 | 0.00 |
|
- |
TLP620 | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
SFH620A-14PIN AC INPUT, SINGLE OPTOCOUPLE |
4,360 | 0.94 |
|
- |
SFH620A-1 | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 40% @ 10mA | 125% @ 10mA | - | 4µs, 3µs | AC, DC | Transistor | 70V | 50mA | 1.65V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
SFH628A-34PIN AC INPUT, SINGLE OPTOCOUPLE |
2,769 | 1.25 |
|
Datasheet |
SFH628A-3 | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 100% @ 1mA | 320% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 55V | 50mA | 1.5V (Max) | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
|
TIL194B4PIN AC INPUT, SINGLE OPTOCOUPLE |
3,764 | 0.00 |
|
- |
TIL194 | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 100% @ 5mA | - | - | 4µs, 3µs | AC, DC | Transistor | 35V | - | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Through Hole | 4-DIP |
|
|
IS281J4PIN TRANSISTOR, HALF PITCH COMP |
1,515 | 0.00 |
|
Datasheet |
IS281 | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 60 mA | 200mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
