Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS2506-2OPTOISOLATOR 5KV 2CH DARL 8DIP |
3,584 | 0.00 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5000Vrms | 200% @ 1mA | - | - | 100µs, 100µs | AC, DC | Darlington | 40V | 160mA | 1.17V | 80 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|

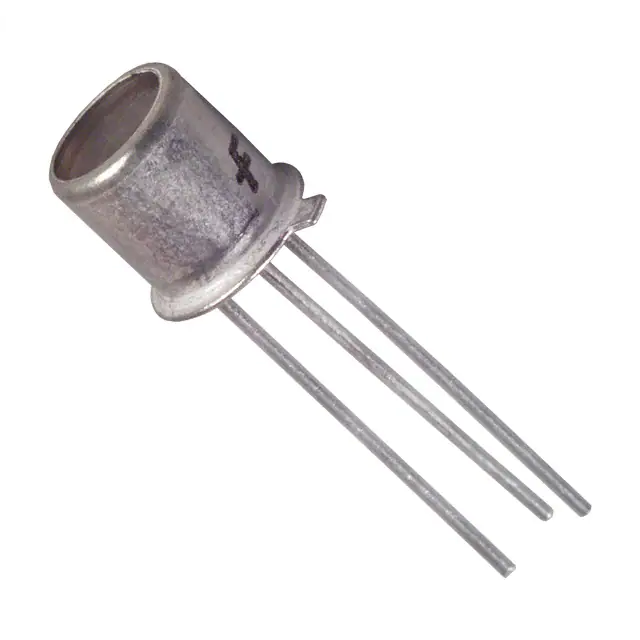

MCT4ROPTOISO 1KV TRANSISTOR TO206AA |
4,661 | 0.00 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 1 | 1000VDC | 15% @ 10mA | - | - | - | DC | Transistor | 30V | - | 1.3V | 40 mA | 500mV | - | - | -55°C ~ 125°C | Through Hole | TO-18 |
|
|
MCT4OPTOISO 1KV TRANSISTOR TO206AA |
3,550 | 0.00 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 1 | 1000VDC | 15% @ 10mA | - | - | - | DC | Transistor | 30V | - | 1.3V | 40 mA | 500mV | - | - | -55°C ~ 125°C | Through Hole | TO-18 |
|
MCT210OPTOISO 5.3KV TRANS W/BASE 6DIP |
2,769 | 0.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 150% @ 10mA | - | 1µs, 50µs | 1µs, 11µs | DC | Transistor with Base | 30V | 50mA | 1.33V | 100 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
CNY171300OPTOISO 5.3KV TRANS W/BASE 6DIP |
2,197 | 0.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 40% @ 10mA | 80% @ 10mA | 2µs, 3µs | 1µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.35V | 100 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
CNY172300OPTOISO 5.3KV TRANS W/BASE 6DIP |
1,676 | 1.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 2µs, 3µs | 1µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.35V | 100 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
CNY173300OPTOISO 5.3KV TRANS W/BASE 6DIP |
4,792 | 1.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 2µs, 3µs | 1µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.35V | 100 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
CNY173OPTOISO 5.3KV TRANS W/BASE 6DIP |
1,932 | 1.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 2µs, 3µs | 1µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.35V | 100 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
CNY174300OPTOISO 5.3KV TRANS W/BASE 6DIP |
2,285 | 0.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 2µs, 3µs | 1µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.35V | 100 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11A1300OPTOISO 5.3KV TRANS W/BASE 6DIP |
4,627 | 0.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 50% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 100 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11D1300OPTOISO 5.3KV TRANS W/BASE 6DIP |
3,281 | 0.33 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 20% @ 10mA | - | 5µs, 5µs | - | DC | Transistor with Base | 300V | 100mA | 1.15V | 80 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11D2300OPTOISO 5.3KV TRANS W/BASE 6DIP |
1,524 | 0.18 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 20% @ 10mA | - | 5µs, 5µs | - | DC | Transistor with Base | 300V | 100mA | 1.15V | 80 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
MCT5200OPTOISO 5.3KV TRANS W/BASE 6DIP |
4,780 | 0.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 75% @ 10mA | - | 1.6µs, 18µs | 1.3µs, 16µs | DC | Transistor with Base | 30V | 150mA | 1.25V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
MCT5201OPTOISO 5.3KV TRANS W/BASE 6DIP |
2,326 | 1.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 120% @ 5mA | - | 3µs, 12µs | 2.5µs, 16µs | DC | Transistor with Base | 30V | 150mA | 1.25V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
MCT5210OPTOISO 5.3KV TRANS W/BASE 6DIP |
4,293 | 0.34 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 70% @ 3mA | - | 10µs, 400ns | - | DC | Transistor with Base | 30V | 150mA | 1.25V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
MCT5211OPTOISO 5.3KV TRANS W/BASE 6DIP |
1,486 | 0.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 150% @ 1.6mA | - | 14µs, 2.5µs | - | DC | Transistor with Base | 30V | 150mA | 1.25V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
MCT271OPTOISO 5.3KV TRANS W/BASE 6DIP |
1,553 | 0.00 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 45% @ 10mA | 90% @ 10mA | 1µs, 48µs | - | DC | Transistor with Base | 30V | 50mA | 1.25V | 100 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
4N25OPTOISO 5.3KV TRANS W/BASE 6DIP |
2,306 | 0.46 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 100 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
4N26XOPTOISO 5.3KV TRANS W/BASE 6DIP |
1,870 | 0.56 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 100 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
4N27OPTOISO 5.3KV TRANS W/BASE 6DIP |
1,433 | 0.69 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 10% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 100 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
