AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC3809D-1IC OFFLINE SWITCH MULT TOP 8SOIC |
142 | 3.01 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | No | - | Boost, Buck, Flyback, Forward | 15 V | 8V ~ 19V | 70% | 1MHz | - | - | Frequency Control, Soft Start | -55°C ~ 150°C (TJ) | - | - | 8-SOIC | Surface Mount |
|
NCP11184A065PGIC OFFLINE SWITCH 7DIP |
5,273 | 2.21 |
|
Datasheet |
mWSaver™ | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | No | 800V | Flyback | 2.1 V | 7.8V ~ 16V | 80% | 65kHz | 45 W | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | EN | -40°C ~ 150°C (TJ) | - | - | 7-PDIP | Through Hole |
|
UCC2894DIC OFFLINE SW MULT TOP 16SOIC |
3,359 | 3.98 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | No | - | Flyback, Forward | 12.7 V | 8.5V ~ 16V | 70% | 1MHz | - | Current Limiting | Soft Start, Sync | -40°C ~ 105°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
TOP224PNIC OFFLINE SWITCH MULT TOP 8DIP |
1,057 | 3.10 |
|
Datasheet |
TOPSwitch®-II | 8-DIP (0.300", 7.62mm) | Tube | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 30 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | - | - | 8-PDIP | Through Hole |
|
TOP245R-TLIC OFFLINE SWITCH FLYBACK TO263 |
1,607 | 3.08 |
|
Datasheet |
TOPSwitch®-GX | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tape & Reel (TR) | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 57 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) | - | - | TO-263-7C | Surface Mount |
|
NCP1077BBP100GIC OFFLINE SWITCH FLYBACK 8DIP |
900 | 2.12 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 700V | Flyback | 8.4 V | 6.5V ~ 20V | 68% | 100kHz | 19 W | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | 8-PDIP | Through Hole |
|
|
UCC2809DTR-1IC OFFLINE SWITCH MULT TOP 8SOIC |
6,361 | 3.26 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Boost, Flyback, Forward | 10 V | 8V ~ 19V | 70% | 1MHz | - | - | Frequency Control, Soft Start | -55°C ~ 150°C (TJ) | - | - | 8-SOIC | Surface Mount |
|

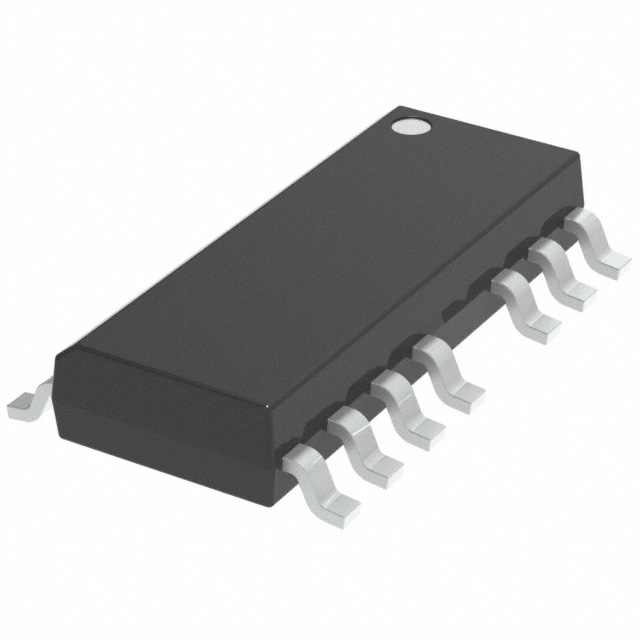

NCV1397ADR2GIC OFFLINE SW HALF-BRDG 16SOIC |
2,435 | 2.21 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 15 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 10.5 V | 9.5V ~ 20V | 50% | 60kHz ~ 500kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Frequency Control | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | 16-SOIC | Surface Mount |
|

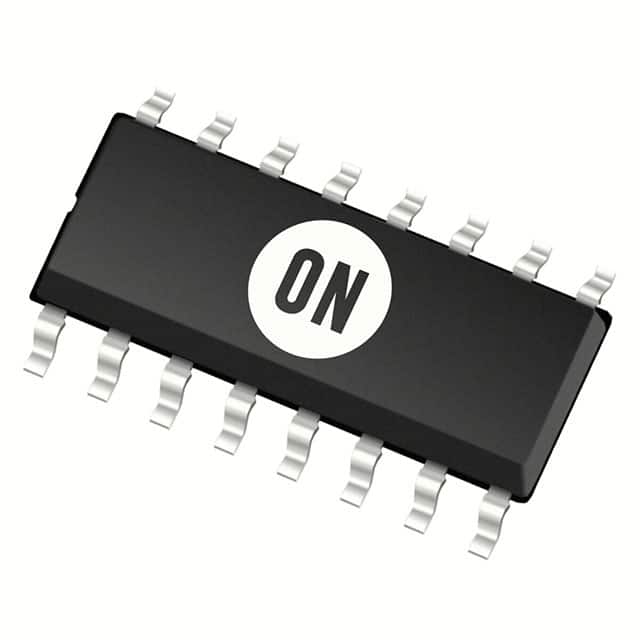

NCP1399AIDR2GIC OFFLINE SW HALF-BRDG 16SOIC |
1,490 | 1.00 |
|
Datasheet |
NCP1399 | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 15.8 V | 9.5V ~ 20V | 50% | 20kHz ~ 750kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
TOP261EGIC OFFLINE SWITCH FLYBACK 7ESIP |
923 | 3.26 |
|
Datasheet |
TOPSwitch®-HX | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads | Tube | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 333 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | eSIP-7C | Through Hole |
|
TOP271VGIC OFFLINE SWITCH FLYBACK 12EDIP |
680 | 3.26 |
|
Datasheet |
TOPSwitch®-JX | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad | Tube | Active | Isolated | Yes | 725V | Flyback | - | - | 78% | 66kHz, 132kHz | 59 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Frequency Control | -40°C ~ 150°C (TJ) | - | - | eDIP-12 | Through Hole |
|
|
NCP13994AADR2GCURRENT MODE RESONANT CONTROLLER |
999 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | 700V | Half-Bridge | 16 V | 9V ~ 30V | - | 20kHz ~ 750kHz | - | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO | Frequency Control, Soft Start | -50°C ~ 150°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
|
NCP13992ACDR2GIC OFFLINE SW HALF-BRDG 16SOIC |
4,433 | 2.29 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 9 V | 7.5V ~ 10V | 50% | 20kHz ~ 750kHz | - | Over Current, Over/Under Voltage, Short Circuit | EN, Frequency Control, Soft Start, Sync | -50°C ~ 150°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
|
NCP13992AFDR2GIC OFFLINE SW HALF-BRDG 16SOIC |
4,400 | 2.32 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 9 V | 9.5V ~ 20V | 50% | 20kHz ~ 750kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit | EN, Frequency Control, Soft Start, Sync | -50°C ~ 150°C (TJ) | - | - | 16-SOIC | Surface Mount |
|
|
TOP246R-TLIC OFFLINE SWITCH FLYBACK TO263 |
1,669 | 3.35 |
|
Datasheet |
TOPSwitch®-GX | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tape & Reel (TR) | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 64 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) | - | - | TO-263-7C | Surface Mount |
|
L6591IC OFFLINE SW HALF-BRIDGE 16SO |
818 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | No | - | Half-Bridge | 14 V | 8.7V ~ 22V | 50% | Up to 500kHz | - | Current Limiting, Over Load | Frequency Control, Soft Start | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
L6591TRIC OFFLINE SW HALF-BRIDGE 16SO |
7,500 | 4.05 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Half-Bridge | 14 V | 8.7V ~ 22V | 50% | Up to 500kHz | - | Current Limiting, Over Load | Frequency Control, Soft Start | -40°C ~ 150°C (TJ) | - | - | 16-SO | Surface Mount |
|
|
TOP247R-TLIC OFFLINE SWITCH FLYBACK TO263 |
3,366 | 3.60 |
|
Datasheet |
TOPSwitch®-GX | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tape & Reel (TR) | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 70 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) | - | - | TO-263-7C | Surface Mount |
|
|
UCC2809D-1IC OFFLINE SWITCH MULT TOP 8SOIC |
105 | 3.76 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Isolated | No | - | Boost, Flyback, Forward | 10 V | 8V ~ 19V | 70% | 1MHz | - | - | Frequency Control, Soft Start | -55°C ~ 150°C (TJ) | - | - | 8-SOIC | Surface Mount |
|
BD7682FJ-LBE2IC OFFLINE SWITCH FLYBACK 8SOPJ |
5,022 | 2.70 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 19.5 V | 15V ~ 27.5V | - | 120kHz | - | Current Limiting, Over Load, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 8-SOP-J | Surface Mount |
