Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

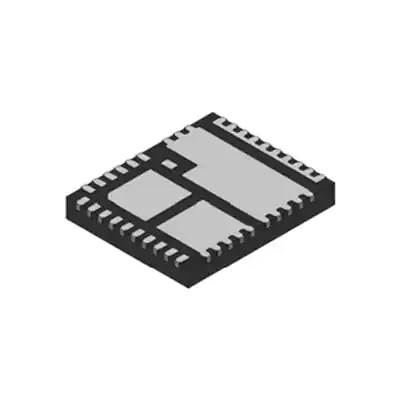

FDMF3170IC HALF BRIDGE DRIVER 55A 39QFN |
12,649 | 3.51 |
|
Datasheet |
- | 39-PowerVFQFN | Tape & Reel (TR) | Active | Half Bridge (2) | General Purpose | Logic, PWM | Inductive | Power MOSFET | - | 55A | 70A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | - | Current Limiting, Over Temperature, UVLO | Surface Mount | 39-PQFN (5x6) |
|
CSD95492QVMIC HALF BRIDGE DRIVER 20A 18VSON |
5,675 | 3.54 |
|
Datasheet |
NexFET™ | 18-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 20A | 30A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 18-VSON (5x4) |
|
FAN8841MPXIC HALF BRIDGE DRIVER 24MLP |
2,937 | 1.00 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | DC-DC Converters | Logic | Inductive | Power MOSFET | - | - | - | 2.7V ~ 5.5V | 13V ~ 60V | -55°C ~ 150°C (TJ) | - | - | - | ESD, Over Voltage, UVLO | Surface Mount | 24-MLP (4x4) |
|
FDMF3180IC HALF BRIDGE DRIVER 70A 39QFN |
2,865 | 3.65 |
|
Datasheet |
- | 39-PowerVFQFN | Tape & Reel (TR) | Not For New Designs | Half Bridge (2) | General Purpose | Logic, PWM | Inductive, Capacitive | Power MOSFET | - | 70A | - | - | - | -40°C ~ 125°C (TA) | - | - | - | Current Limiting, Over Temperature, UVLO | Surface Mount | 39-PQFN (5x6) |
|

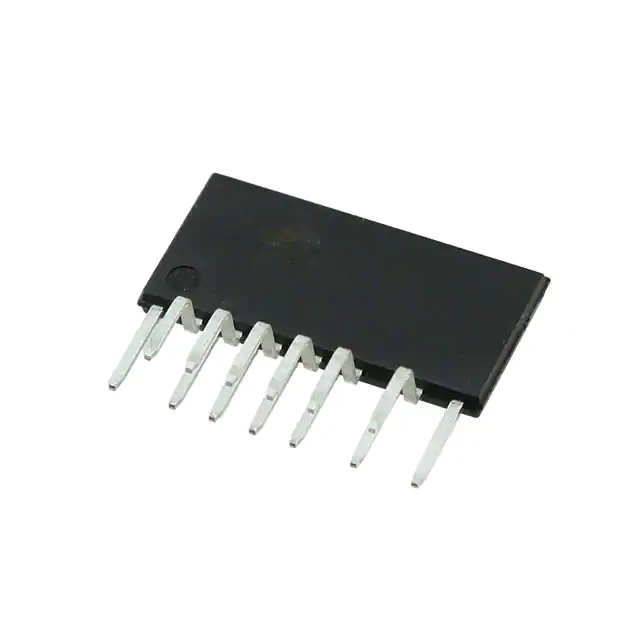

LCS701HGIC HALF BRIDGE DRIVER ESIP16J |
530 | 4.89 |
|
Datasheet |
HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 1Ohm | - | 7.7A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16J |
|
|
TDA21462AUMA1IC GATE DRVR C_IFX POWERSTAGE |
4,940 | 5.82 |
|
Datasheet |
- | 39-PowerVFQFN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | 4.25V ~ 16V | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | - | - | Surface Mount | PG-IQFN-39-2 |
|
|
IR35401MTRPBFMP - POWIRSTAGE |
3,000 | 4.58 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DRV8910QPWPRQ1IC HALF BRIDGE DRVR 6A 24HTSSOP |
1,172 | 5.56 |
|
Datasheet |
- | 24-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (10) | DC Motors, General Purpose | Logic, PWM, SPI | Inductive, Capacitive, Resistive | MOSFET (Metal Oxide) | 750mOhm LS, 750mOhm HS | 6A | - | 3V ~ 5.5V | 4.5V ~ 32V | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Charge Pump, Slew Rate Controlled | Over Current, Over Voltage, UVLO | Surface Mount | 24-HTSSOP |
|
|
NCP303160MNTWGINTEGRATED DRIVER & MOSFFET |
2,733 | 3.96 |
|
Datasheet |
- | 39-PowerVFQFN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | 4.5V ~ 5.5V | - | -40°C ~ 125°C (TA) | - | - | - | - | Surface Mount | 39-PQFN (5x6) |
|
PWD5F60IC HALF BRIDGE DRV 3.5A 46VFQFPN |
999 | 6.69 |
|
Datasheet |
- | 46-PowerVQFN | Tray | Active | Half Bridge (2) | Industrial | Logic | Inductive | Power MOSFET | 1.38Ohm | 3.5A | 14A | 10V ~ 20V | - | -40°C ~ 125°C (TJ) | - | - | - | UVLO | Surface Mount | 46-VFQFPN (15x7) |
|
BD6222HFP-TRIC HALF BRIDGE DRIVER 2A HRP7 |
16,846 | 4.62 |
|
Datasheet |
- | HRP-7 (7 Leads + Tab) | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 1Ohm | 2A | - | 6V ~ 15V | 6V ~ 15V | -40°C ~ 85°C (TA) | - | - | - | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | HRP7 |
|
CSD95378BQ5MCTIC HALF BRIDGE DRIVER 60A 12VSON |
322 | 6.63 |
|
Datasheet |
NexFET™ | 12-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | 90A | 4.5V ~ 5.5V | 4.5V ~ 16V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Surface Mount | 12-VSON (5x6) |
|
|
CSD95372BQ5MCIC HALF BRIDGE DRIVER 60A 12VSON |
7,287 | 5.59 |
|
Datasheet |
NexFET™ | 12-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | 90A | 4.5V ~ 5.5V | 4.5V ~ 16V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Surface Mount | 12-VSON (5x6) |
|

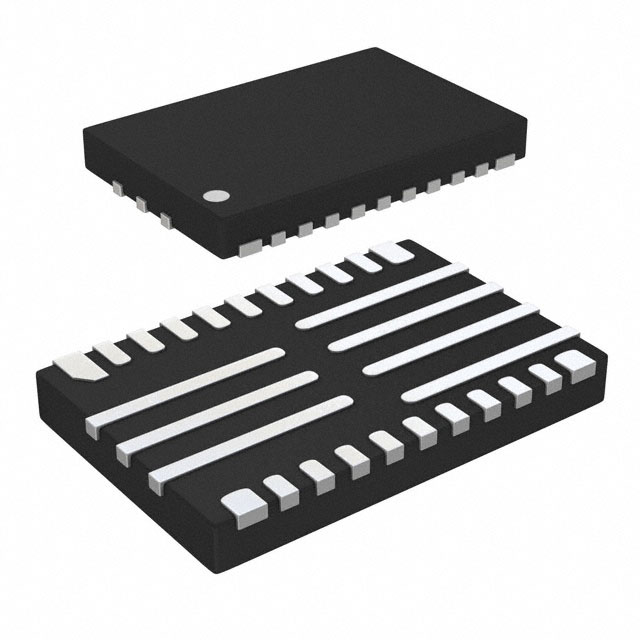

MP86885GQWT-ZIC HALF BRIDGE DRIVER 40A 29TQFN |
16,728 | 5.11 |
|
Datasheet |
- | 29-PowerWFQFN | Tape & Reel (TR) | Not For New Designs | Half Bridge | General Purpose | Logic | Inductive | Power MOSFET | - | 40A | - | 4.5V ~ 5.5V | 4.5V ~ 14V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature | Surface Mount | 29-FC-TQFN (4x6) |
|
PWD13F60TRIC HALF BRIDGE DRVR 8A 28VFQFPN |
2,440 | 7.39 |
|
Datasheet |
- | 28-PowerVQFN | Tape & Reel (TR) | Active | Half Bridge (2) | Industrial | Logic | Inductive | Power MOSFET | 320mOhm | 8A | 32A | 15V | - | -40°C ~ 125°C (TJ) | - | - | - | UVLO | Surface Mount | 28-VFQFPN (10x13) |
|
|
CSD95495QVMTIC HALF BRIDGE DRIVER 50A 18VSON |
6,038 | 5.55 |
|
Datasheet |
NexFET™ | 18-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 50A | 75A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 18-VSON (5x4) |
|
NCV7725DQBR2GIC HALF BRIDGE DRVR 500MA 24SSOP |
735 | 5.34 |
|
Datasheet |
- | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, General Purpose | Logic, PWM, SPI | Capacitive and Resistive | NMOS | 800mOhm LS, 800mOhm HS | 500mA | 1.1A | 3.15V ~ 5.25V | 3.15V ~ 5.25V | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over Current, Over Temperature | Surface Mount | 24-SSOP-EP |
|
L6206D013TRIC HALF BRIDGE DRIVER 2.8A 24SO |
2,844 | 7.64 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | BCDMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | 24-SO |
|
|
L6206DIC HALF BRIDGE DRIVER 2.8A 24SO |
685 | 7.64 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | BCDMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | 24-SO |
|
CSD95480RWJIC HALF BRIDGE DRIVER 70A 41VQFN |
6,823 | 5.71 |
|
Datasheet |
NexFET™ | 41-PowerTFQFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 70A | 90A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 41-VQFN-CLIP (5x6) |
