Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LV8068V-TLM-HSINGLE-PHASE FULL-WAVE FAN MOTOR |
760 | 0.78 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
_4040208^C.jpg)
|
UC2950TUC2950 HALF-BRIDGE BIPOLAR SWITC |
3,161 | 10.88 |
|
Datasheet |
- | TO-220-5 | Bulk | Active | Half Bridge | General Purpose | On/Off | Inductive, Capacitive | Bipolar | - | 2A | 4A | 8V ~ 35V | 8V ~ 35V | -20°C ~ 100°C (TJ) | - | - | 5V Regulated Output | Over Temperature | Through Hole | TO-220-5 |
|
IRSM505-065DA2IC HALF BRIDGE DRIVER 2.6A 23DIP |
2,323 | 7.85 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Bulk | Active | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1Ohm | 2.6A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
TDA21470AUMA1IC INTEG PWR STAGES IQFN-39 |
3,756 | 5.64 |
|
Datasheet |
- | 39-PowerVFQFN | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PG-IQFN-39 |
|
|
TDA21472AUMA1IC GATE DRVR C_IFX POWERSTAGE |
1,396 | 3.59 |
|
Datasheet |
OptiMOS™ Powerstage | 39-PowerVFQFN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | 4.25V ~ 16V | - | -40°C ~ 125°C | - | - | - | - | Surface Mount | PG-IQFN-39-2 |
|
|
EPC23104ENGRTIC GAN EPOWER STAGE 100V 10A |
2,716 | 0.00 |
|
Datasheet |
ePower™ | 13-PowerWFQFN | Tape & Reel (TR) | Active | Half Bridge | DC Motors, DC-DC Converters | Logic | Capacitive and Resistive | Gallium Nitride (GaN) FETs | 7.6mOhm LS + HS | 15A | 78A | 10V ~ 80V | 10V ~ 80V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Slew Rate Controlled | ESD, Over Voltage, Short Circuit | Surface Mount, Wettable Flank | 13-WQFN-HR (3.5x5) |
|
EPC23102ENGRTIC HALF BRIDGE DRIVER 35A 13WQFN |
4,389 | 9.08 |
|
Datasheet |
ePower™ | 13-PowerWFQFN | Tape & Reel (TR) | Active | Half Bridge | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic, PWM | Inductive, Capacitive, Resistive | Gallium Nitride (GaN) FETs | 5.2mOhm LS, 5.2mOhm HS | 35A | - | 4.5V ~ 5.5V | 10V ~ 80V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, ESD, Over Voltage, UVLO | Surface Mount, Wettable Flank | 13-WQFN-HR (3.5x5) |
|
HIP4020IBZIC HALF BRIDGE DRVR 500MA 20SOIC |
4,797 | 7.92 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Half Bridge (2) | DC Motors, Relays, Solenoids, Stepper Motors | Logic | Inductive | Power MOSFET | - | 500mA | - | 3V ~ 12V | 2.5V ~ 15V | -40°C ~ 125°C (TJ) | - | - | Status Flag | Current Limiting, Over Temperature | Surface Mount | 20-SOIC |
|
DRV8332HDDVIC HALF BRIDGE DRVR 5A 44HTSSOP |
1,820 | 0.00 |
|
Datasheet |
- | 44-PowerTSSOP (0.244", 6.20mm Width) | Tube | Active | Half Bridge (3) | DC Motors, General Purpose | PWM | Inductive | Power MOSFET | 260mOhm LS, 260mOhm HS | 5A | 7A | 10.8V ~ 13.2V | 0V ~ 52.5V | -55°C ~ 175°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 44-HTSSOP |
|
MP6536DU-LF-ZIC HALF BRIDGE DRIVER 5.5A 40QFN |
1,708 | 3.15 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, General Purpose | Logic, PWM | Capacitive | Power MOSFET | 140mOhm LS + HS | 5.5A | 5.5A | 5V ~ 26V | 5V ~ 26V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 40-QFN (5x5) |
|
CSD95485RWJIC HALF BRIDGE DRIVER 75A 41VQFN |
2,081 | 3.34 |
|
Datasheet |
NexFET™ | 41-PowerTFQFN | Tape & Reel (TR) | Active | Half Bridge | DC-DC Converters, Synchronous Buck Converter | Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | - | 75A | 105A | 4.5V ~ 5.5V | 5.5V (Max) | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through | Surface Mount | 41-VQFN-CLIP (5x6) |
|
|
TDA21535AUMA1IFX POWERSTAGE/DRIVER |
4,282 | 4.42 |
|
Datasheet |
- | 25-PowerTFQFN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | 4.25V ~ 16V | - | -40°C ~ 125°C (TJ) | - | - | - | - | Surface Mount | PG-IQFN-25-1 |
|
TLE94112ESRPIHATTOBO1IC HALF BRIDGE DRIVER 24TSDSO |
4,040 | 37.50 |
|
Datasheet |
- | 24-TSSOP (0.154", 3.90mm Width) Exposed Pad | Bulk | Active | Half Bridge (12) | DC Motors, General Purpose | Logic, PWM, SPI | Inductive, Capacitive, Resistive | - | 1.3Ohm LS, 1.3Ohm HS | - | - | 3V ~ 5.5V | 3V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | Charge Pump | Current Limiting, Over Current, Over Temperature, Short Circuit | Surface Mount | PG-TSDSO-24 |
|

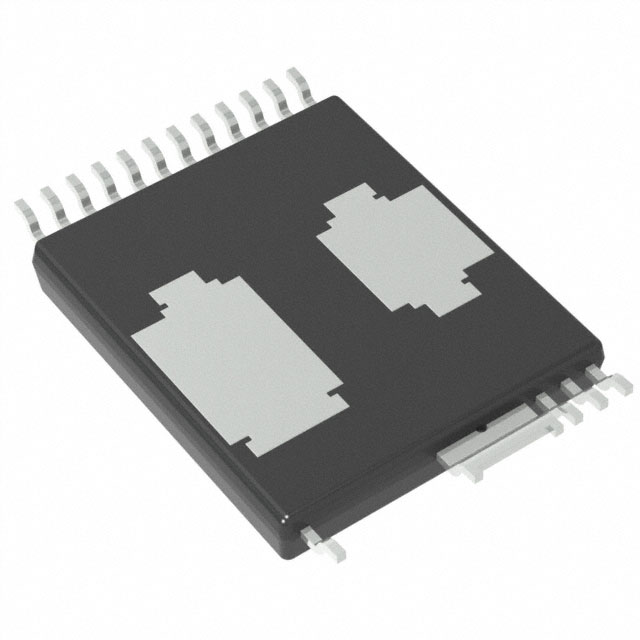

BRD1160C-TLIC HALF BRIDGE DRVR 1A INSOP24C |
2,168 | 1.61 |
|
Datasheet |
BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Power MOSFET | 6.84Ohm LS, 6.84Ohm HS | 1A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Over Voltage | Surface Mount | InSOP-24C |
|
BRD1260C-TLIC HALF BRIDGE DRVR 1A INSOP24C |
4,993 | 1.71 |
|
Datasheet |
BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Power MOSFET | 6.84Ohm LS, 6.84Ohm HS | 1A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Over Voltage | Surface Mount | InSOP-24C |
|
|
BRD1161C-TLIC HALF BRIDGE DRV 1.7A INSOP24C |
1,460 | 1.78 |
|
Datasheet |
BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Power MOSFET | 2.95Ohm LS, 2.95Ohm HS | 1.7A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Over Voltage | Surface Mount | InSOP-24C |
|
|
BRD1261C-TLIC HALF BRIDGE DRV 1.7A INSOP24C |
3,325 | 1.84 |
|
Datasheet |
BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Power MOSFET | 2.95Ohm LS, 2.95Ohm HS | 1.7A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Over Voltage | Surface Mount | InSOP-24C |
|
|
BRD1163C-TLIC HALF BRIDGE DRVR 3A INSOP24C |
3,243 | 1.97 |
|
Datasheet |
BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Power MOSFET | 1.53Ohm LS, 1.53Ohm HS | 3A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Over Voltage | Surface Mount | InSOP-24C |
|
|
BRD1165C-TLIC HALF BRIDGE DRV 5.5A INSOP24C |
1,243 | 2.66 |
|
Datasheet |
BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Power MOSFET | 830mOhm LS, 830mOhm HS | 5.5A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Over Voltage | Surface Mount | InSOP-24C |
|
|
BRD1265C-TLIC HALF BRIDGE DRV 5.5A INSOP24C |
3,486 | 2.69 |
|
Datasheet |
BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Power MOSFET | 830mOhm LS, 830mOhm HS | 5.5A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Over Voltage | Surface Mount | InSOP-24C |
