Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L298NIC HALF BRIDGE DRVR 15MULTIWATT |
13,146 | 7.05 |
|
Datasheet |
- | Multiwatt-15 (Vertical, Bent and Staggered Leads) | Tube | Active | Half Bridge (4) | DC Motors, Relays, Solenoids, Stepper Motors | Logic | Inductive | Bipolar | - | - | 2A | 4.5V ~ 7V | 4.8V ~ 46V | -25°C ~ 130°C (TJ) | - | - | - | Current Limiting, Over Temperature | Through Hole | 15-Multiwatt |
|

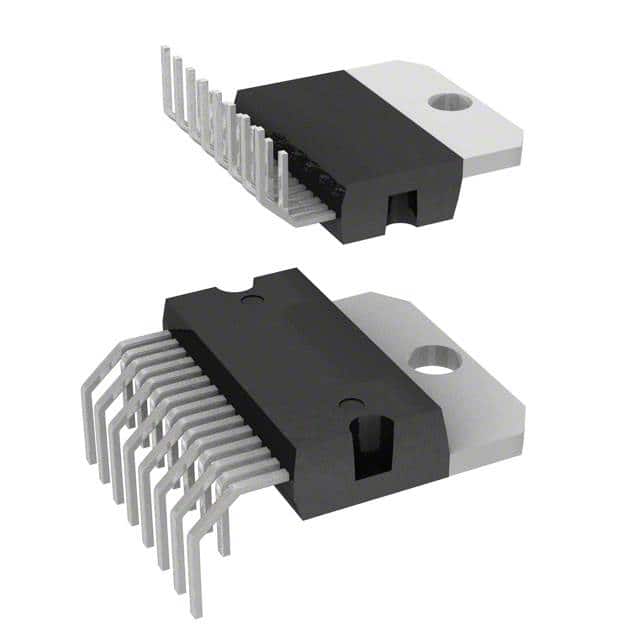

L298HNIC HALF BRIDGE DRVR 15MULTIWATT |
418 | 7.55 |
|
Datasheet |
- | Multiwatt-15 (Horizontal, Bent and Staggered Leads) | Tube | Active | Half Bridge (4) | DC Motors, Relays, Solenoids, Stepper Motors | Logic | Inductive | Bipolar | - | - | 2A | 4.5V ~ 7V | 4.8V ~ 46V | -25°C ~ 130°C (TJ) | - | - | - | Current Limiting, Over Temperature | Through Hole | 15-Multiwatt |
|

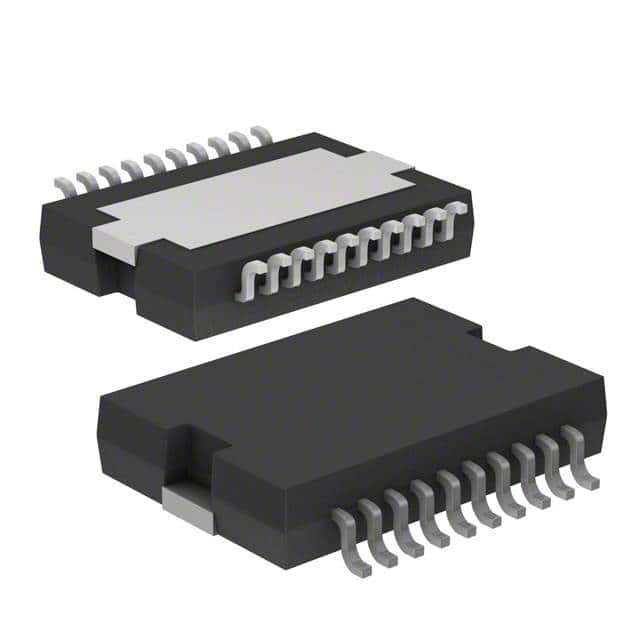

L298P013TRIC HALF BRIDGE DRIVER POWERSO-20 |
7,334 | 8.22 |
|
Datasheet |
- | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Relays, Solenoids, Stepper Motors | Logic | Inductive | Bipolar | - | - | 2A | 4.5V ~ 7V | 4.8V ~ 46V | -25°C ~ 130°C (TJ) | - | - | - | Current Limiting, Over Temperature | Surface Mount | PowerSO-20 |
|

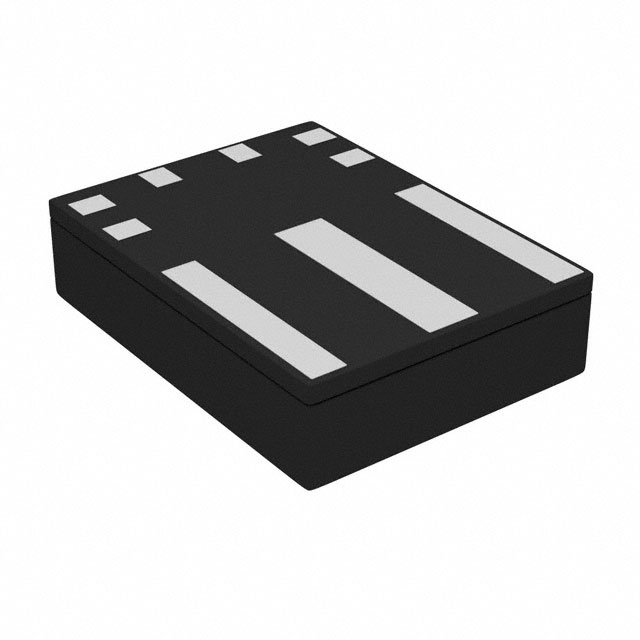

LMG5200MOFRIC HALF BRIDGE DRIVER 10A 9QFN |
1,272 | 12.73 |
|
Datasheet |
- | 9-QFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | Logic | Inductive | Gallium Nitride (GaN) FETs | 15mOhm LS, 15mOhm HS | 10A | - | 4.75V ~ 5.25V | 80V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 9-QFN (8x6) |
|
|
L298PIC HALF BRIDGE DRIVER POWERSO-20 |
613 | 9.63 |
|
Datasheet |
- | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Tube | Active | Half Bridge (4) | DC Motors, Relays, Solenoids, Stepper Motors | Logic | Inductive | Bipolar | - | - | 2A | 4.5V ~ 7V | 4.8V ~ 46V | -25°C ~ 130°C (TJ) | - | - | - | Current Limiting, Over Temperature | Surface Mount | PowerSO-20 |
|
MAX256ASA+IC HALF BRIDGE DRIVER 1A 8SOIC |
710 | 9.95 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Half Bridge (2) | Transformers | Logic | Inductive | Power MOSFET | 500mOhm LS + HS | 1A | - | 3V ~ 5.5V | 3V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | Internal Oscillator, Watchdog Timer | ESD, Over Temperature, UVLO | Surface Mount | 8-SOIC-EP |
|

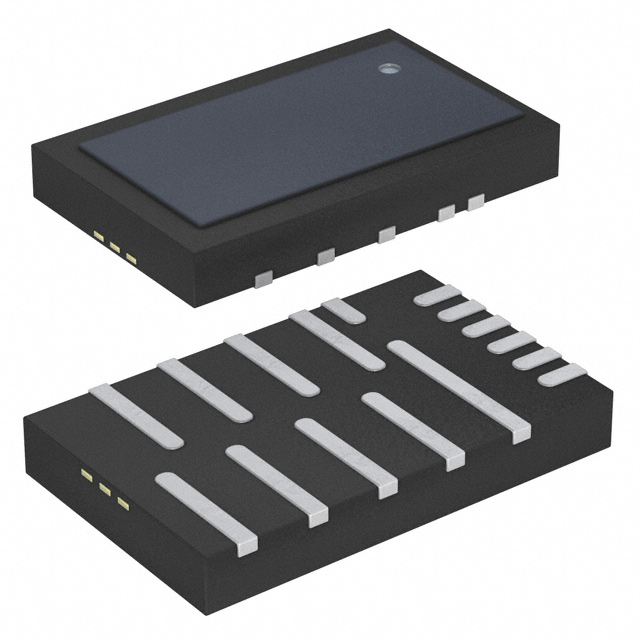

VT1697SBFQXIC HALF BRIDGE DRIVER 16QFN |
2,111 | 10.85 |
|
Datasheet |
- | 16-VFQFN | Tape & Reel (TR) | Active | Half Bridge | General Purpose | PWM | Inductive | Power MOSFET | - | - | 55A | 1.71V ~ 1.98V | 8.5V ~ 14V | -40°C ~ 125°C (TJ) | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 16-FCQFN (6x3.75) |
|
|
LMG5200MOFTIC HALF BRIDGE DRIVER 10A 9QFN |
596 | 15.28 |
|
Datasheet |
- | 9-QFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | Logic | Inductive | Gallium Nitride (GaN) FETs | 15mOhm LS, 15mOhm HS | 10A | - | 4.75V ~ 5.25V | 80V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 9-QFN (8x6) |
|
UC3717ANIC HALF BRIDGE DRIVER 1A 16DIP |
350 | 15.84 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | Half Bridge (2) | General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 1A | - | 4.75V ~ 5.25V | 10V ~ 46V | 0°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature | Through Hole | 16-PDIP |
|
TPM8837C-SO1RMOTOR DRIVER NMOS PWM 8-SOP |
2,114 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, Relays, Solenoids, Stepper Motors | PWM | Inductive | MOSFET (Metal Oxide) | 850mOhm LS + HS | 1A | - | 2.5V ~ 17V | 2.5V ~ 17V | -40°C ~ 125°C (TA) | - | - | - | Current Limiting, ESD, Over Temperature, Short Circuit, UVLO | Surface Mount | 8-SOP |
|
|
LM2105DR105-V 0.5-A/0.8-A HALF-BRIDGE GA |
5,313 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Logic | Capacitive | NMOS | - | 500mA | 800mA | 5V ~ 18V | - | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 8-SOIC |
|
|
LM2105DSGR105-V 0.5-A/0.8-A HALF-BRIDGE GA |
1,698 | 0.00 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Logic | Capacitive | NMOS | - | 500mA | 800mA | 5V ~ 18V | - | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 8-WSON (2x2) |
|
IRS2007STRPBFIC HALF BRIDGE DRVR 600MA 8SOIC |
3,811 | 1.38 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | Battery Powered | Logic | - | Power MOSFET | - | 600mA | - | 10V ~ 20V | 200V | -40°C ~ 125°C (TA) | - | - | - | - | Surface Mount | 8-SOIC |
|
AOZ5311NQI_220V/55A DRMOS SMOD EN CONTROL TH |
16,500 | 1.82 |
|
Datasheet |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 55A | 120A | 4.5V ~ 5.5V | 2.5V ~ 20V | -40°C ~ 125°C (TA) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 31-QFN (5x5) |
|
|
UCC27288DRIC HALF BRIDGE DRIVER 8SOIC |
4,235 | 2.17 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Logic, PWM, SPI | Inductive, Capacitive | Power MOSFET | - | - | 3.5A, 2.5A | 8V ~ 16V | 8V ~ 16V | -40°C ~ 140°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Short Circuit, UVLO | Surface Mount | 8-SOIC |
|
|
UCC27289DRIC HALF BRIDGE DRIVER 8SOIC |
1,310 | 2.17 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge | General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Bipolar, NMOS, Power MOSFET | - | - | 2.5A | 8V ~ 16V | 8V ~ 16V | -40°C ~ 125°C | - | - | - | Current Limiting, Over Voltage, Short Circuit, UVLO | Surface Mount | 8-SOIC |
|

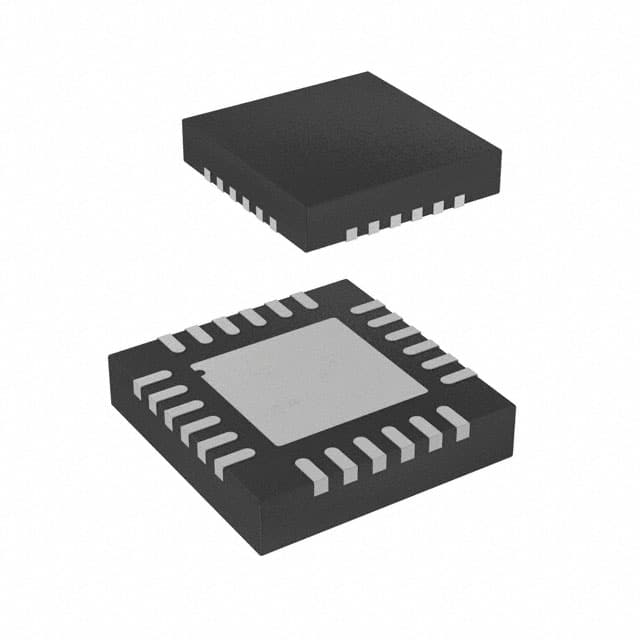

STDRIVE101IC HALF BRIDGE DRIVER 24VFQFPN |
3,553 | 2.84 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tray | Active | Half Bridge (3) | DC Motors, General Purpose | Analog, Logic | Capacitive and Resistive | Power MOSFET, IGBT | 35Ohm | - | 430mA | 9V ~ 20V | - | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Current, Over Temperature, UVLO | Surface Mount | 24-VFQFPN (4x4) |
|
|
AOZ5332QIPOWER IC DRMOS |
11,867 | 2.57 |
|
Datasheet |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 50A | 120A | 4.5V ~ 5.5V | 2.5V ~ 25V | -40°C ~ 125°C (TA) | - | - | Bootstrap Circuit, Diode Emulation | Over Temperature, Shoot-Through, UVLO | Surface Mount | 31-QFN (5x5) |
|

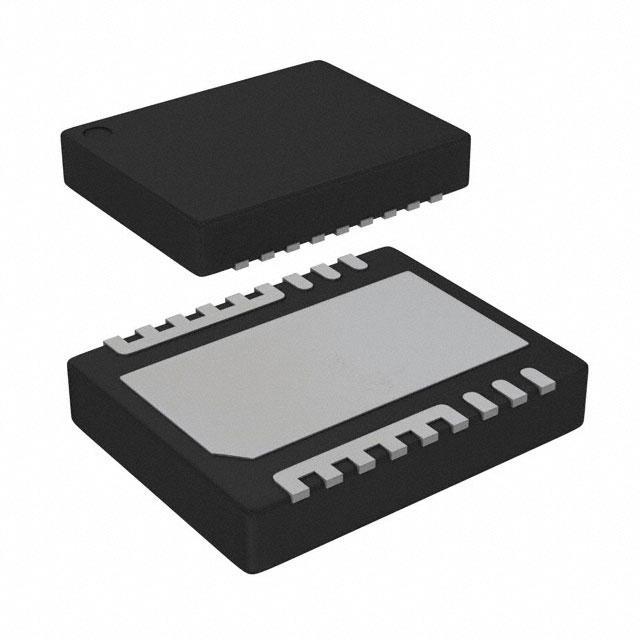

CSD97376Q4MIC HALF BRIDGE DRIVER 20A 8VSON |
4,173 | 2.17 |
|
Datasheet |
NexFET™ | 8-PowerVFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 20A | 45A | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 8-VSON (3.5x4.5) |
|
|
CSD97395Q4MIC HALF BRIDGE DRIVER 25A 8VSON |
10,333 | 2.23 |
|
Datasheet |
NexFET™ | 8-PowerVFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 25A | 60A | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 8-VSON (3.5x4.5) |
