Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

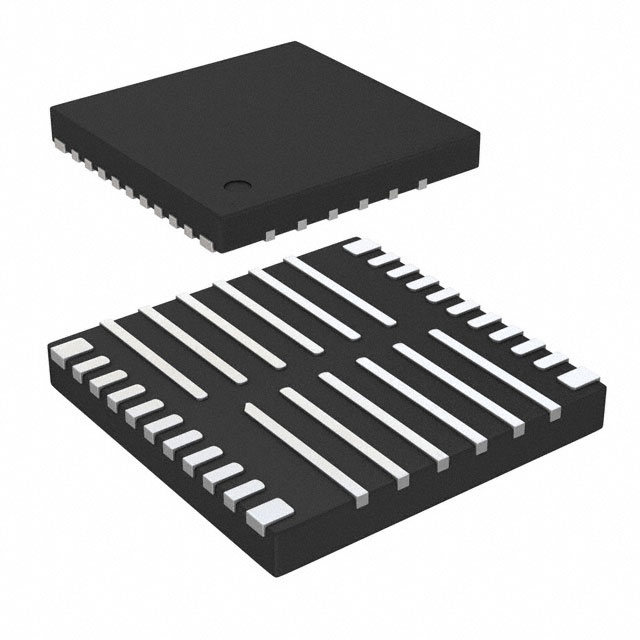

MP86883GQKT-ZIC HALF BRIDGE DRIVER 55A 34TQFN |
1,761 | 3.68 |
|
Datasheet |
Intelli-Phase™ | 34-PowerWFQFN | Tape & Reel (TR) | Not For New Designs | Half Bridge | General Purpose | Logic | Inductive | Power MOSFET | - | 55A | - | 4.5V ~ 5.5V | 4.5V ~ 14V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature | Surface Mount | 34-TQFN (6x6) |
|
BA5916FP-YE2IC HALF BRIDGE DRIVER 25HSOP |
1,651 | 0.00 |
|
Datasheet |
- | 25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | - | - | 4.3V ~ 6.6V | 4.3V ~ 6.6V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 25-HSOP |
|
VN772K13TRIC HALF BRIDGE DRIVER 9A 28SO |
1,972 | 0.00 |
|
Datasheet |
OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 120mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|

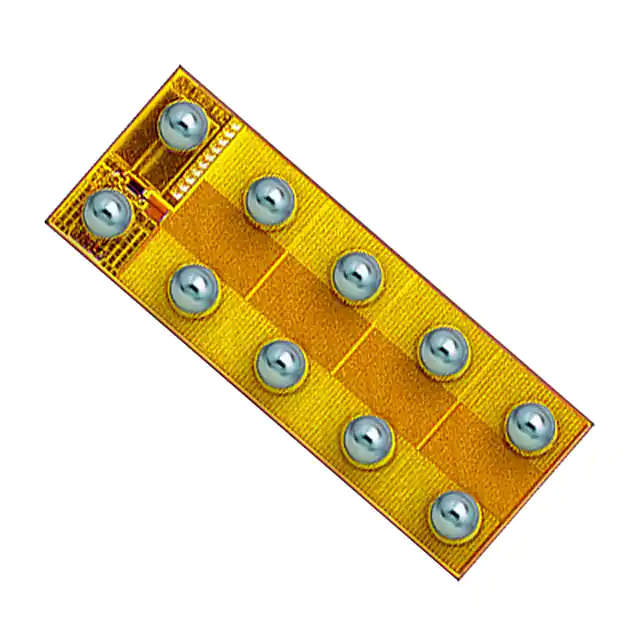

EPC2112ENGRTIC LOW SIDE DRIVER 10A 10BGA |
3,907 | 0.00 |
|
- |
- | 10-VFBGA | Tape & Reel (TR) | Obsolete | Low Side | DC-DC Converters | On/Off | Inductive | Gallium Nitride (GaN) FETs | 32mOhm | 10A | 40A | 4.5V ~ 5.5V | 160V (Max) | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 10-BGA (2.9x1.1) |
|
L9959S-TR-DIC HALF BRIDGE DRVR 3A PWRSSO-24 |
4,620 | 3.98 |
|
Datasheet |
- | 24-PowerBSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | General Purpose | SPI | Inductive, Capacitive, Resistive | PMOS | - | 3A | - | 4.5V ~ 5.5V | 5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Short Circuit | Surface Mount | PowerSSO-24 |
|
CSD96416RWJTPROTOTYPE |
2,379 | 0.00 |
|
- |
NexFET™ | 41-PowerTFQFN | Bulk | Active | - | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 30A | 50A | 16V | 25V | -55°C ~ 150°C | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 41-VQFN-CLIP (5x6) |
|
L6206NIC HALF BRIDG DRV 2.8A 24PWRDIP |
1,038 | 0.00 |
|
Datasheet |
- | 24-PowerDIP (0.300", 7.62mm) | Tube | Obsolete | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | BCDMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Through Hole | 24-PowerDIP |
|
|
BH5510KVT-E2IC MOTOR DRIVER PAR 48TQFP |
1,052 | 0.00 |
|
Datasheet |
- | 48-TQFP | Tape & Reel (TR) | Not For New Designs | Half Bridge (13) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | - | 3A | - | 4V ~ 5.5V | 3V ~ 5.5V | -40°C ~ 85°C (TA) | - | - | - | Current Limiting, Over Temperature | Surface Mount | 48-TQFP (7x7) |
|
|
MP86905GR-PIC HALF BRIDGE DRIVER 50A 23QFN |
1,146 | 0.00 |
|
Datasheet |
MP | 23-PowerVFQFN | Tape & Reel (TR) | Active | Half Bridge | Buck Converters | On/Off, PWM | Inductive | Power MOSFET | - | 50A | 90A | 3V ~ 3.6V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Current Limiting, Over Temperature, UVLO | Surface Mount | 23-QFN (4x4) |
|
|
VN772KIC HALF BRIDGE DRIVER 9A 28SO |
1,576 | 0.00 |
|
Datasheet |
OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 120mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
|
SIC820AED-T1-GE3IC PWR STAGE 80 A CURRENT MONITO |
3,443 | 3.98 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX22208AUU+TDUAL H-BRIDGE FOR STEPPER AND BR |
3,485 | 0.00 |
|
Datasheet |
- | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Solenoids | PWM | Inductive | NMOS | 150mOhm LS, 150mOhm HS | 2A | 3.8A | 4.5V ~ 65V | 4.5V ~ 65V | -40°C ~ 125°C | - | - | Charge Pump | Current Limiting, Over Temperature, UVLO | Surface Mount | 38-TSSOP-EP |
|
SIC531CD-T1-GE3IC HALF BRIDGE DRV 30A PPAK MLP4 |
2,099 | 2.48 |
|
Datasheet |
VRPower® | PowerPAK® MLP4535-22L | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 30A | 35A | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | UVLO | Surface Mount | POWERPAK® MLP4535-22L |
|

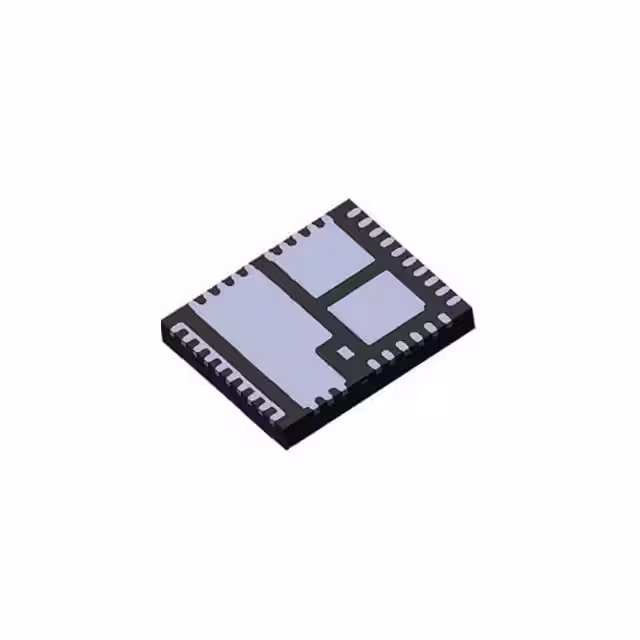

SIC830AED-T1-GE3IC PWR STAGE 80 A CURRENT MONITO |
3,041 | 4.08 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VN772KTR-EIC HALF BRIDGE DRIVER 9A 28SO |
3,908 | 0.00 |
|
Datasheet |
OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 120mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|
|
VN771KTR-EIC HALF BRIDGE DRIVER 9A 28SO |
1,417 | 0.00 |
|
Datasheet |
OMNIFET II™, VIPower™ | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose, Relays | Logic | Inductive | Power MOSFET | 95mOhm (Max) | 9A | - | 5.5V ~ 36V | 5.5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 28-SO |
|

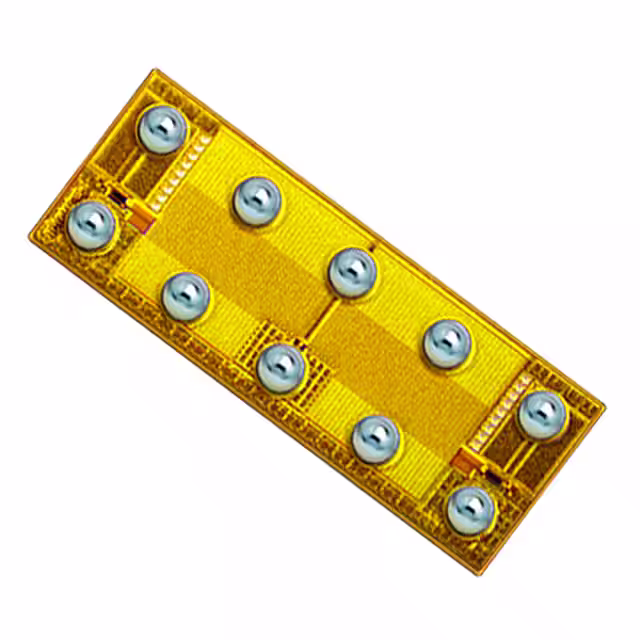

EPC2115ENGRTIC LOW SIDE DRIVER 5A 10BGA |
2,362 | 0.00 |
|
- |
- | 10-VFBGA | Tape & Reel (TR) | Obsolete | Low Side | DC-DC Converters | On/Off | Inductive | Gallium Nitride (GaN) FETs | 70mOhm | 5A | 18A | 4.5V ~ 5.5V | 120V (Max) | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 10-BGA (2.9x1.1) |
|
SIC642ACD-T1-GE3IC HALF BRIDGE DRIVER 50A PPAK |
2,558 | 3.47 |
|
- |
VRPower® | PowerPAK® MLP55-31L | Tape & Reel (TR) | Active | Half Bridge | General Purpose | Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | - | 50A | 100A | 4.5V ~ 5.5V | 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Over Current, Over Temperature, Shoot-Through, UVLO | Surface Mount | PowerPAK® MLP55-31L |
|
|
SIC642CD-T1-GE3IC HALF BRIDGE DRIVER 50A PPAK |
4,703 | 2.16 |
|
- |
VRPower® | PowerPAK® MLP55-31L | Tape & Reel (TR) | Active | Half Bridge | General Purpose | Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | - | 50A | 100A | 4.5V ~ 5.5V | 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Over Current, Over Temperature, Shoot-Through, UVLO | Surface Mount | PowerPAK® MLP55-31L |
|
BH3515FV-E2IC BRIDGE DRIVER PAR 28SSOPB |
2,844 | 4.03 |
|
- |
- | 28-LSSOP (0.220", 5.60mm Width) | Tape & Reel (TR) | Obsolete | - | General Purpose | Logic | Inductive | - | - | - | - | 3V ~ 5.5V | 3V ~ 5.5V | -40°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 28-SSOP-B |
