Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
BTM7810KAUMA1IC HALF BRIDGE DRIVER TO263-15 |
3,290 | 0.00 |
|
Datasheet |
TrilithIC™ | TO-263-18 (15 Leads + 3 Tabs) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 14mOhm LS, 26mOhm HS | - | 42A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 110°C (TJ) | - | - | Status Flag | Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-15-1 |
|
ISL99380FRZ-TR5935MOD SMART POWER STAGE SPS |
2,254 | 6.16 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BTM7811KAUMA1IC HALF BRIDGE DRIVER TO263-15 |
4,403 | 0.00 |
|
Datasheet |
TrilithIC™ | TO-263-18 (15 Leads + 3 Tabs) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 14mOhm LS, 26mOhm HS | - | 42A | 1.8V ~ 42V | 1.8V ~ 42V | -40°C ~ 110°C (TJ) | - | - | Status Flag | Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TO263-15-1 |
|
E-L6207D013TRIC HALF BRIDGE DRIVER 2.8A 24SO |
2,250 | 0.00 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | DMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | 24-SO |
|

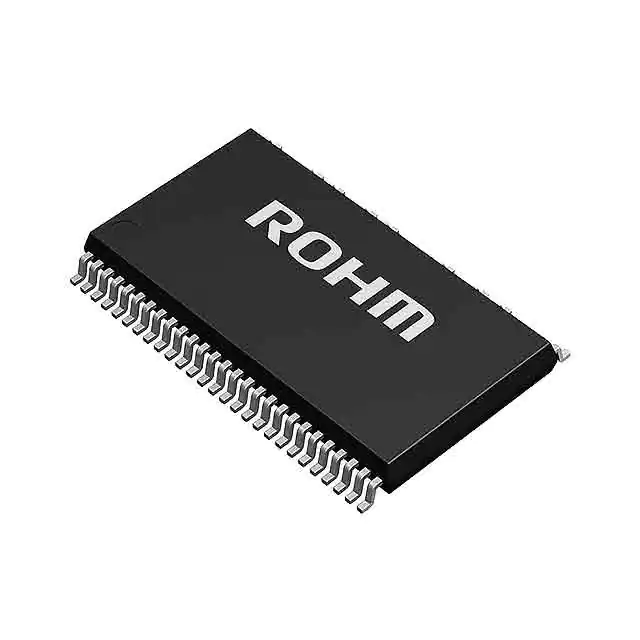

BM6208FS-E2IC HALF BRIDGE DRVR 1.5A 54SSOP |
1,042 | 11.42 |
|
Datasheet |
- | 54-SOP (0.449", 11.40mm Width), 36 Leads | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | Power MOSFET | 2.7Ohm | 1.5A | 2.5A | 13.5V ~ 16.5V | 400V (Max) | -20°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, UVLO | Surface Mount | SSOP-A54_36 |
|
STK534U342C-EIC HALF BRIDGE DRIVER 5A 29SIP |
1,462 | 16.37 |
|
- |
- | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 5A | 10A | 12.5V ~ 17.5V | 450V (Max) | -20°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 29-SIP |
|

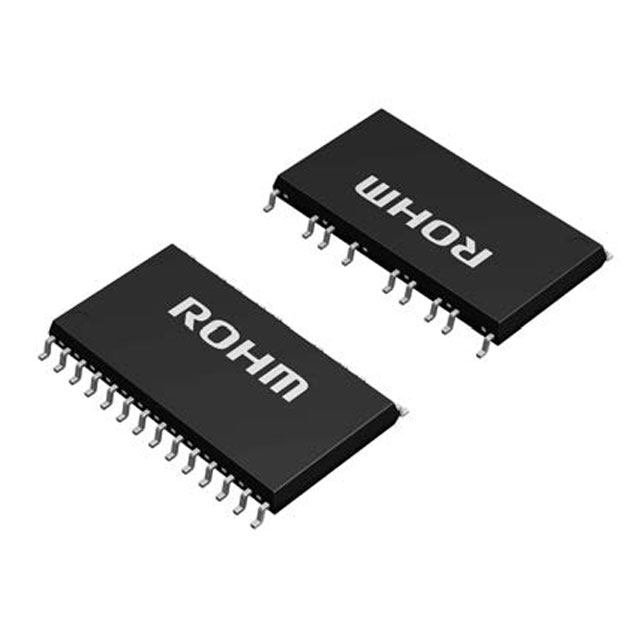

BM6203FS-E2IC HALF BRIDGE DRVR 2.5A 54SSOP |
3,183 | 8.28 |
|
Datasheet |
- | 54-SOP (0.449", 11.40mm Width), 23 Leads | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | Power MOSFET | 1.7Ohm | 2.5A | 4A | 13.5V ~ 16.5V | 400V (Max) | -20°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, UVLO | Surface Mount | SSOP-A54_23 |
|
|
STK984-091B-EMOD INVERTER 3PHASE AUTO |
2,531 | 0.00 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DRV8432DKDRIC BRIDGE DRIVER PAR 36HSSOP |
2,104 | 15.32 |
|
Datasheet |
- | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | Tape & Reel (TR) | Last Time Buy | Half Bridge (4) | DC Motors, Stepper Motors | PWM | Inductive | Power MOSFET | 110mOhm LS, 110mOhm HS | 7A | 12A | 10.8V ~ 13.2V | 0V ~ 52.5V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 36-HSSOP |
|
|
MAX14900SPM+IC DVR LOW/HIGH SIDE OCTAL QFN |
1,930 | 0.00 |
|
- |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IRSM505-065PATRIC HALF BRIDGE DRIVER 2.6A 23SOP |
2,338 | 10.98 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1Ohm | 2.6A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
SN0048HBXRADIATION-HARDENED, QMLV 200-V H |
4,901 | 0.00 |
|
Datasheet |
TPS7H60x3-SP | 48-CFlatpack | Bulk | Active | Half Bridge (2) | General Purpose | Logic, PWM | Inductive, Capacitive | NMOS, PMOS | - | 1.3A | 2.5A | 10V ~ 14V | - | -55°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 48-CFP |
|
L6202IC HALF BRIDG DRV 1.5A 18PWRDIP |
4,491 | 9.88 |
|
Datasheet |
- | 18-DIP (0.300", 7.62mm) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | BCDMOS | 300mOhm | 1.5A | - | 12V ~ 48V | 12V ~ 48V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature | Through Hole | 18-PowerDIP |
|
NJW4301DIC HALF BRIDGE DRIVER 16DIP |
2,752 | 0.00 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Bi-CMOS | - | - | - | 4V ~ 12V | 4V ~ 12V | -40°C ~ 85°C (TA) | - | - | - | Over Temperature | Through Hole | 16-DIP |
|

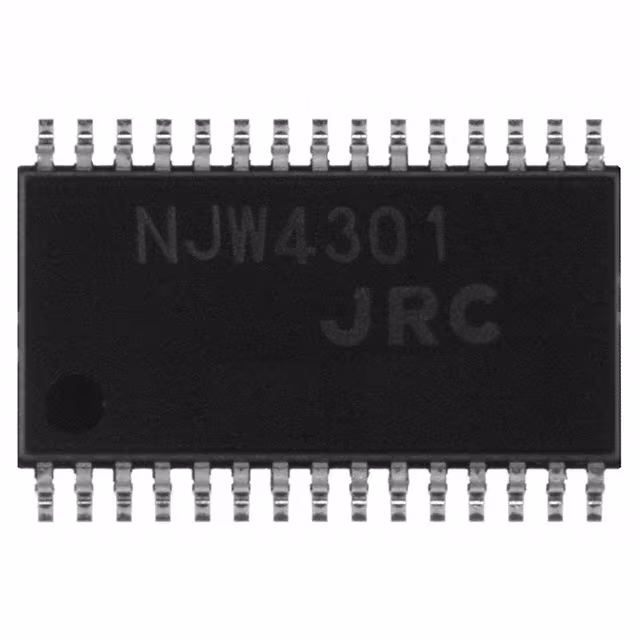

NJW4301MIC HALF BRIDGE DRIVER 30SDMP |
3,288 | 0.00 |
|
Datasheet |
- | 30-SDMP | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Bi-CMOS | - | - | - | 4V ~ 12V | 4V ~ 12V | -40°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 30-SDMP |
|
|
VS5-24VIC HALF BRIDGE DRVR 24V |
3,186 | 0.00 |
|
Datasheet |
- | Module | - | Obsolete | Half Bridge | Relays | Logic | Inductive | Bipolar | - | - | - | 4V ~ 30V | - | -20°C ~ 80°C (TA) | - | - | - | - | Through Hole | - |
|
BA5984FP-E2IC HALF BRIDGE DRIVER 1A 28HSOP |
1,065 | 3.47 |
|
Datasheet |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (10) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 4.3V ~ 13.2V | 6V | -40°C ~ 85°C (TA) | - | - | - | Over Temperature, UVLO | Surface Mount | 28-HSOP-M |
|

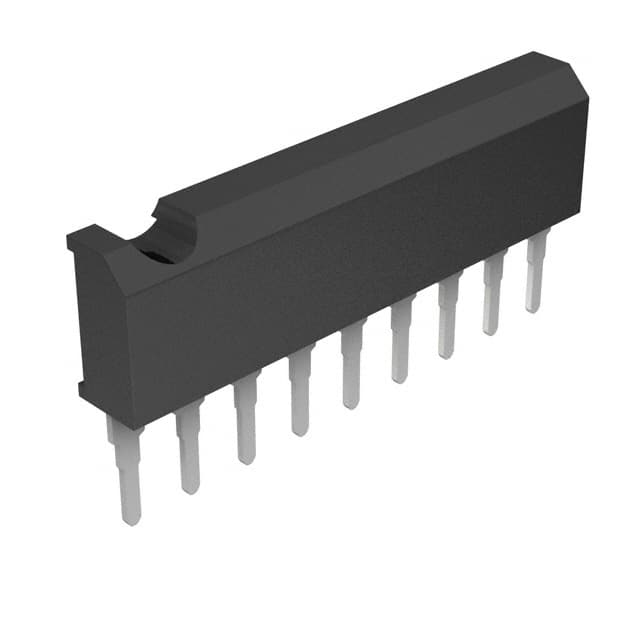

BA6208IC HALF BRIDGE DRIVER 500MA 9SIP |
2,767 | 0.00 |
|
Datasheet |
- | 9-SIP | Tube | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 500mA | - | 4.5V ~ 15V | 4.5V ~ 15V | -20°C ~ 60°C (TA) | - | - | - | - | Through Hole | 9-SIP |
|
BA6208F-E2IC HALF BRIDGE DRIVER 500MA 8SOP |
1,641 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 500mA | - | 4.5V ~ 15V | 4.5V ~ 15V | -20°C ~ 60°C (TA) | - | - | - | - | Surface Mount | 8-SOP |
|
|
BA6218IC HALF BRIDGE DRIVER 700MA 9SIP |
2,905 | 0.00 |
|
Datasheet |
- | 9-SIP | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 700mA | - | 4.5V ~ 15V | 4.5V ~ 15V | -20°C ~ 60°C (TA) | - | - | - | - | Through Hole | 9-SIP |
