Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC33153DR2IC GATE DRVR LOW-SIDE 8SOIC |
4,139 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 11V ~ 20V | 1.2V, 3.2V | 1A, 2A | Inverting | - | 17ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
PDRV83053QPHPRQ1IC GATE DRVR HALF-BRIDGE 48HTQFP |
1,799 | 0.00 |
|
Datasheet |
- | 48-PowerTQFP | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | N-Channel MOSFET | 4.4V ~ 45V | 0.8V, 2V | 1A, 1A | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 48-HTQFP (7x7) |
|
|
PDRV8305NEPHPRQ1IC GATE DRVR HALF-BRIDGE 48HTQFP |
3,578 | 0.00 |
|
Datasheet |
- | 48-PowerTQFP | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | N-Channel MOSFET | 4.4V ~ 45V | 0.8V, 2V | 1A, 1A | Non-Inverting | - | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 48-HTQFP (7x7) |
|
|
PDRV8305NQPHPRQ1IC GATE DRVR HALF-BRIDGE 48HTQFP |
3,495 | 0.00 |
|
Datasheet |
- | 48-PowerTQFP | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | N-Channel MOSFET | 4.4V ~ 45V | 0.8V, 2V | 1A, 1A | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 48-HTQFP (7x7) |
|
DGD2106S8-13IC GATE DRVR HALF-BRIDGE 8SO |
1,741 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.6V, 2.5V | 290mA, 600mA | Non-Inverting | 600 V | 100ns, 35ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|

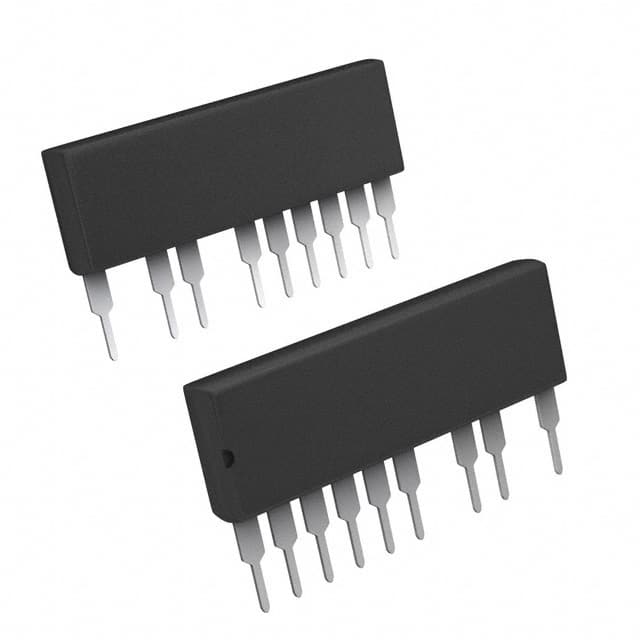

IR3103IC GATE DRVR HALF-BRIDGE 11SIP |
1,219 | 0.00 |
|
Datasheet |
iMOTION™ | 11-SIP, 9 Leads | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | - | Non-Inverting | 500 V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | 11-SIP |
|
ISL6609IRZIC GATE DRVR HALF-BRIDGE 8QFN |
3,973 | 2.35 |
|
Datasheet |
- | 8-VQFN Exposed Pad | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 1V, 2V | -, 4A | Non-Inverting | 36 V | 8ns, 8ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-QFN (3x3) |
|
TC4431EPAIC GATE DRVR HI/LOW SIDE 8DIP |
3,872 | 3.17 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 25ns, 33ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
TC4405EPAIC GATE DRVR LOW-SIDE 8DIP |
2,704 | 3.17 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 40ns, 40ns (Max) | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
AMT49101KJPTR-B-5IC GATE DRVR HALF-BRIDGE 48LQFP |
4,905 | 0.00 |
|
Datasheet |
- | 48-LQFP Exposed Pad | Bulk | Active | - | Half-Bridge | 3-Phase | 6 | N-Channel MOSFET | 5V ~ 80V | 1.5V, 3.5V | 2.4A, 4.2A | Non-Inverting | - | - | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 48-LQFP-EP (7x7) |
|
|
SI8235BC-AS1RIC GATE DRVR HI/LOW SIDE 16SOIC |
3,415 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | High-Side or Low-Side | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 16-SOIC |
|
MAX628CSA+TIC GATE DRVR LOW-SIDE 8SOIC |
1,359 | 3.06 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 2A, 2A | Inverting, Non-Inverting | - | 25ns, 20ns | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX4420CSA+TIC GATE DRVR LOW-SIDE 8SOIC |
3,552 | 2.63 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Non-Inverting | - | 25ns, 25ns | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
DGD2110S16-13IC GATE DRVR HALF-BRIDGE 16SO |
4,681 | 1.15 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 2.5A, 2.5A | Non-Inverting | 500 V | 15ns, 13ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SO |
|
|
STDRIVEG600WIC GATE DRVR HALF-BRIDGE DIE |
3,749 | 0.00 |
|
- |
- | Die | Bulk | Active | - | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.75V ~ 20V | 1.45V, 2V | 5.5A, 6A | Non-Inverting | 620 V | 7ns, 5ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Wafer |
|
|
FAN7191MX-F085-1IC GATE DRVR HALF-BRIDGE 8SOIC |
3,706 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | - | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 22V | 1.2V, 2.5V | 4.5A, 4.5A | Non-Inverting | 600 V | 25ns, 25ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
LM5100BMAXIC GATE DRVR HALF-BRIDGE 8SOIC |
2,280 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 2.3V, - | 2A, 2A | Non-Inverting | 118 V | 570ns, 430ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IR2110-1IC GATE DRVR HALF-BRIDGE 14DIP |
3,286 | 0.00 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm), 13 Leads | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 500 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-PDIP |
|
IRS2113SPBFIC GATE DRVR HALF-BRIDGE 16SOIC |
4,587 | 3.22 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 2.5A, 2.5A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
TC4431VPAIC GATE DRVR HI/LOW SIDE 8DIP |
4,079 | 3.26 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 25ns, 33ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
