Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC5014BNIC GATE DRVR HI/LOW SIDE 8DIP |
1,382 | 1.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel MOSFET | 2.75V ~ 30V | 0.8V, 2V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
MIC5018BM4 TRIC GATE DRVR HIGH-SIDE SOT143 |
3,795 | 0.00 |
|
Datasheet |
IttyBitty® | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 2.7V ~ 9V | 0.8V, 2.4V | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-143 |
|
|
MIC5021BNIC GATE DRVR HIGH-SIDE 8DIP |
1,828 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 36V | 0.8V, 2V | - | Non-Inverting | - | 400ns, 400ns | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
98-0334PBFIC GATE DRVR HALF-BRIDGE 44PLCC |
4,757 | 0.00 |
|
Datasheet |
- | 44-LCC (J-Lead), 32 Leads | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 44-PLCC, 32 Leads (16.58x16.58) |
|

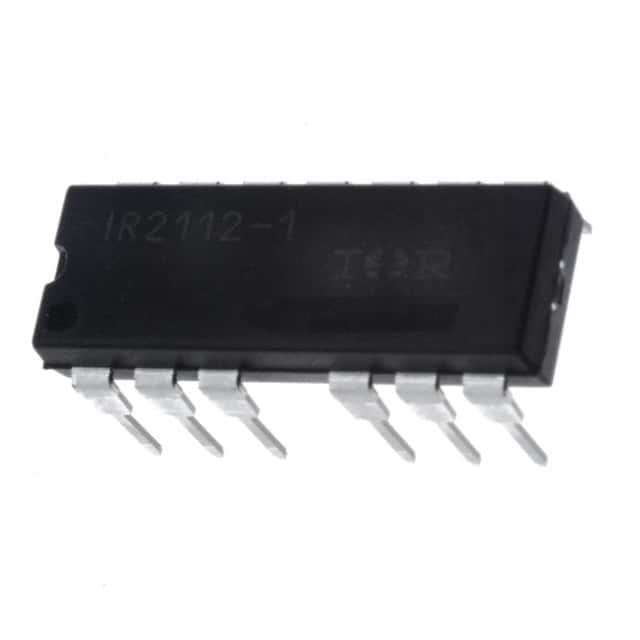

IR2112-1PBFIC GATE DRVR HI/LOW SIDE 14DIP |
1,300 | 0.00 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm), 13 Leads | Tube | Obsolete | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA | Non-Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-PDIP |
|
98-0119PBFIC GATE DRVR HALF-BRIDGE 16DIP |
3,232 | 0.00 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm), 14 Leads | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 16-PDIP |
|

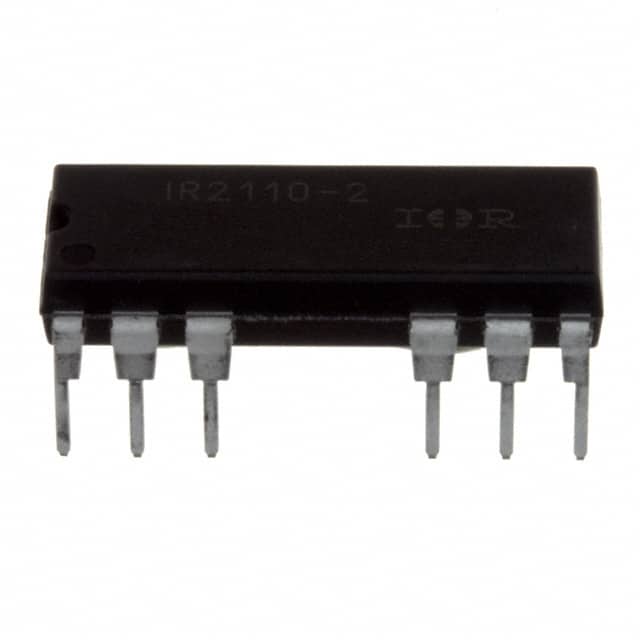

IR2110-2PBFIC GATE DRVR HALF-BRIDGE 16DIP |
3,259 | 0.00 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm), 14 Leads | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 500 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 16-PDIP |
|
IR21362STRPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
1,601 | 0.00 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 3V | 200mA, 350mA | Inverting, Non-Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
IR2135STRPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
1,228 | 5.71 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 90ns, 40ns | 125°C (TJ) | - | - | Surface Mount | 28-SOIC |
|

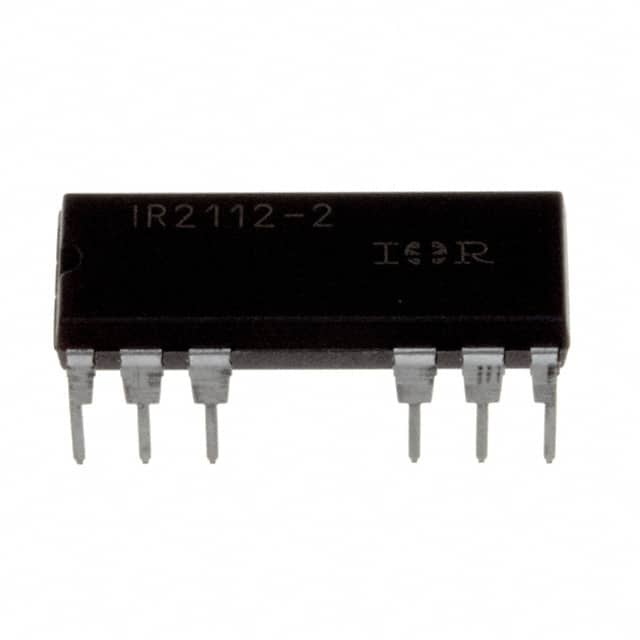

IR2112-2PBFIC GATE DRVR HI/LOW SIDE 16DIP |
4,337 | 0.00 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm), 14 Leads | Tube | Obsolete | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA | Non-Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 16-PDIP |
|

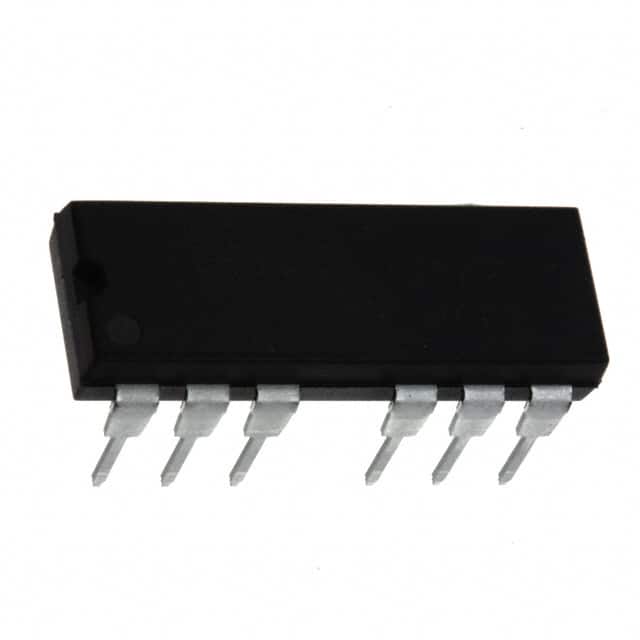

IR2113-1PBFIC GATE DRVR HALF-BRIDGE 14DIP |
1,000 | 0.00 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm), 13 Leads | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-PDIP |
|
ISL6207CBZIC GATE DRVR HALF-BRIDGE 8SOIC |
2,989 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 1V, 2V | 2A, 2A | Non-Inverting | 36 V | 8ns, 8ns | -10°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ISL6605CBZIC GATE DRVR HALF-BRIDGE 8SOIC |
2,946 | 612.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 1V, 2V | 2A, 2A | Non-Inverting | 33 V | 8ns, 8ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ISL6605IBZIC GATE DRVR HALF-BRIDGE 8SOIC |
4,763 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 1V, 2V | 2A, 2A | Non-Inverting | 33 V | 8ns, 8ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ISL6612BCBZIC GATE DRVR HALF-BRIDGE 8SOIC |
1,976 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 7V ~ 13.2V | - | 1.25A, 2A | Non-Inverting | 36 V | 26ns, 18ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ISL6612CBZIC GATE DRVR HALF-BRIDGE 8SOIC |
2,594 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10.8V ~ 13.2V | - | 1.25A, 2A | Non-Inverting | 36 V | 26ns, 18ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ISL6614CRZIC GATE DRVR HALF-BRIDGE 16QFN |
2,043 | 6.66 |
|
Datasheet |
- | 16-VQFN Exposed Pad | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 4 | N-Channel MOSFET | 10.8V ~ 13.2V | - | 1.25A, 2A | Non-Inverting | 36 V | 26ns, 18ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (4x4) |
|
|
IR2133JPBFIC GATE DRVR HALF-BRIDGE 44PLCC |
1,435 | 6.92 |
|
Datasheet |
- | 44-LCC (J-Lead), 32 Leads | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 90ns, 40ns | 125°C (TJ) | - | - | Surface Mount | 44-PLCC, 32 Leads (16.58x16.58) |
|
IR2136JPBFIC GATE DRVR HALF-BRIDGE 44PLCC |
4,043 | 2.88 |
|
Datasheet |
- | 44-LCC (J-Lead), 32 Leads | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 44-PLCC, 32 Leads (16.58x16.58) |
|
IX6R11S6IC GATE DRVR HALF-BRIDGE 18SOIC |
2,913 | 0.00 |
|
- |
- | 18-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 35V | 6V, 9.6V | 6A, 6A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 18-SOIC |
