Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL6615CRZ-TIC GATE DRVR HALF-BRIDGE 10DFN |
2,244 | 0.00 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 6.8V ~ 13.2V | - | 2.5A, 4A | Non-Inverting | 36 V | 13ns, 10ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL6615AIRZ-TIC GATE DRVR HALF-BRIDGE 10DFN |
3,682 | 2.74 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 6.8V ~ 13.2V | - | 2.5A, 4A | Non-Inverting | 36 V | 13ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|
ISL89411IPZIC GATE DRVR LOW-SIDE 8DIP |
2,680 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 2A, 2A | Inverting | - | 7.5ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Through Hole | 8-PDIP |
|
ISL89410IPIC GATE DRVR LOW-SIDE 8DIP |
1,356 | 1.19 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 2A, 2A | Non-Inverting | - | 7.5ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Through Hole | 8-PDIP |
|
ISL89401ABZ-TIC GATE DRVR HALF-BRIDGE 8SOIC |
1,737 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 1.4V, 2.2V | 1.25A, 1.25A | Non-Inverting | 100 V | 16ns, 16ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ISL89400ABZIC GATE DRVR HALF-BRIDGE 8SOIC |
3,618 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 3.7V, 7.4V | 1.25A, 1.25A | Non-Inverting | 100 V | 16ns, 16ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ISL89401ABZIC GATE DRVR HALF-BRIDGE 8SOIC |
3,880 | 708.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 1.4V, 2.2V | 1.25A, 1.25A | Non-Inverting | 100 V | 16ns, 16ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IRS2330JTRPBFIC GATE DRVR HALF-BRIDGE 44PLCC |
3,546 | 3.70 |
|
Datasheet |
- | 44-LCC (J-Lead), 32 Leads | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 80ns, 35ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 44-PLCC, 32 Leads (16.58x16.58) |
|
IRS2332JTRPBFIC GATE DRVR HALF-BRIDGE 44PLCC |
1,092 | 0.00 |
|
Datasheet |
- | 44-LCC (J-Lead), 32 Leads | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 80ns, 35ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 44-PLCC, 32 Leads (16.58x16.58) |
|
|
IRS2609DSPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
1,824 | 1.19 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

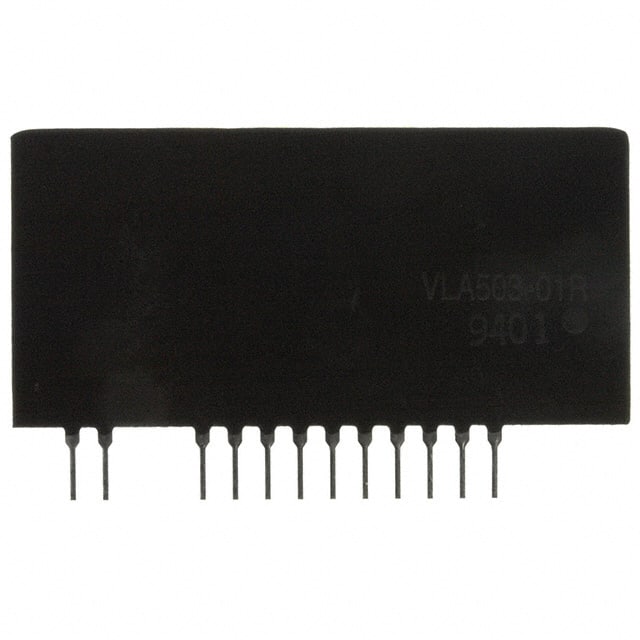

VLA503-01IC GATE DRVR LOW-SIDE MODULE |
4,842 | 0.00 |
|
Datasheet |
- | 12-SIP | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 5A, 5A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|

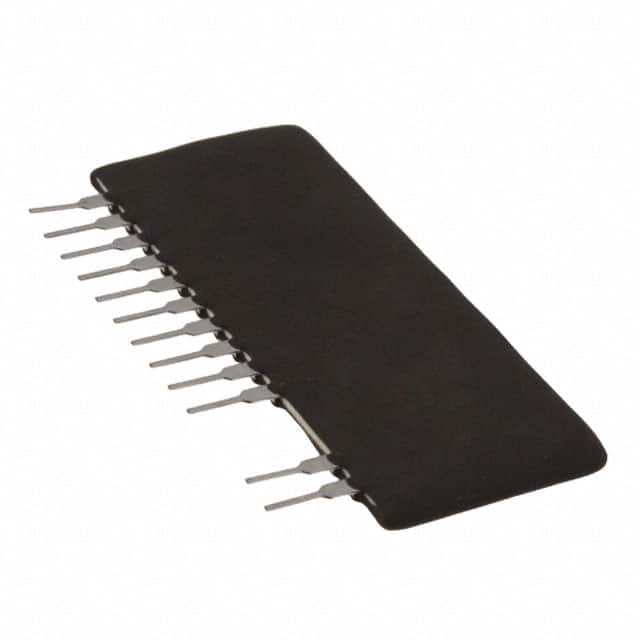

M57160AL-01IC GATE DRVR LOW-SIDE MODULE |
1,738 | 0.00 |
|
Datasheet |
- | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 5A, 5A | Non-Inverting | - | 500ns, 400ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
M57161L-01IC GATE DRVR LOW-SIDE MODULE |
1,165 | 0.00 |
|
Datasheet |
- | 28-SIP, 15 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14.3V ~ 15.7V | - | 7A, 7A | Non-Inverting | - | 400ns, 400ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
M57959LIC GATE DRVR LOW-SIDE MODULE |
3,614 | 0.00 |
|
Datasheet |
- | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 2A, 2A | Non-Inverting | - | 500ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
M57962CL-01IC GATE DRVR LOW-SIDE MODULE |
1,572 | 0.00 |
|
Datasheet |
- | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 5A, 5A | Non-Inverting | - | 600ns, 400ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
VLA504-01IC GATE DRVR HI/LOW SIDE MODULE |
4,019 | 0.00 |
|
Datasheet |
- | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 3A, 3A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
ADP3611JRMZ-REELIC GATE DRVR HALF-BRIDGE 10MSOP |
2,382 | 0.00 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.6V ~ 5.5V | 0.8V, 2V | - | Inverting, Non-Inverting | - | 20ns, 15ns | -10°C ~ 150°C (TJ) | - | - | Surface Mount | 10-MSOP |
|
FAN7080CM_F085IC GATE DRVR HALF-BRIDGE 8SOIC |
2,852 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 5.5V ~ 20V | 0.8V, 2.7V | 300mA, 600mA | Non-Inverting | 600 V | 40ns, 25ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
FAN7081CM_F085IC GATE DRVR HIGH-SIDE 8SOIC |
2,117 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 250mA, 500mA | Inverting | 600 V | 15ns, 10ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
FAN7083CM_F085IC GATE DRVR HIGH-SIDE 8SOIC |
1,026 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 200mA, 400mA | Non-Inverting | 600 V | 200ns, 25ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
