Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5109AMAX/NOPBLM5109A HIGH VOLTAGE 1A PEAK HAL |
4,305 | 1.58 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 14V | 0.8V, 2.2V | 1A, 1A | Non-Inverting | 108 V | 15ns, 15ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
EL7242CSZ-T7AND GATE BASED MOSFET DRIVER |
4,037 | 2.78 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 16V | 0.8V, 2.4V | 2A, 2A | Inverting, Non-Inverting | - | 10ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

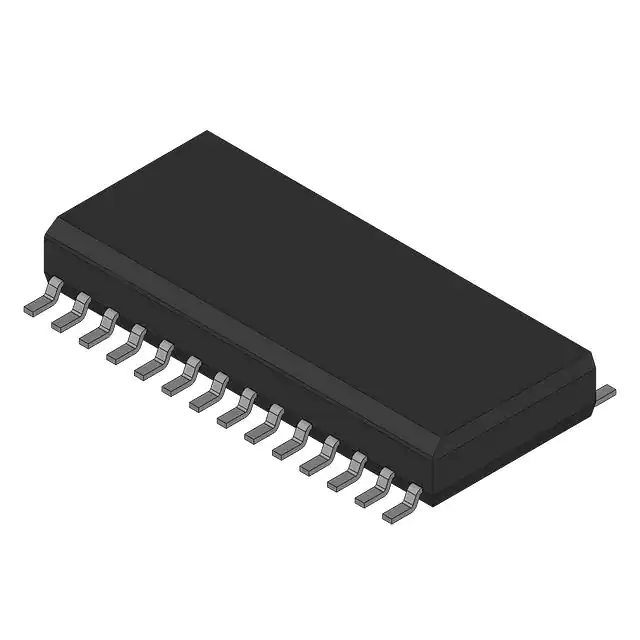

IR2135STRPBFIR2135S - GATE DRIVER |
2,272 | 5.71 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Bulk | Active | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 90ns, 40ns | 125°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
IR25607STRPBFIR25607 - GATE DRIVER |
2,251 | 2.55 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Bulk | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 2.5A, 2.5A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
D5CYDT08CME-EIC GATE DRVR |
3,437 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D3CYD08CME-EIC GATE DRVR |
1,435 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZL1505ALNFT6S2568IC GATE DRVR HALF-BRIDGE 10DFN |
3,862 | 0.00 |
|
- |
- | 10-VFDFN Exposed Pad | Bulk | Obsolete | Not Verified | Half-Bridge | - | - | - | - | - | - | - | - | - | - | - | - | - | 10-DFN (3x3) |
|
|
ZL1505ALNFT1S2568IC GATE DRVR HALF-BRIDGE 10DFN |
2,008 | 0.00 |
|
- |
- | 10-VFDFN Exposed Pad | Bulk | Obsolete | Not Verified | Half-Bridge | - | - | - | - | - | - | - | - | - | - | - | - | - | 10-DFN (3x3) |
|
|
TDA88240AUMA1IC GATE DRVR PG-IQFN-30 |
1,455 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCP81078MNTBGIC GATE DRVR HALF-BRIDGE 8VFDFN |
4,252 | 0.00 |
|
- |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 5.5V ~ 20V | 0.8V, 2V | 1A, 900mA | Non-Inverting | 180 V | 19ns, 17ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|
MAX17603ATA+IC GATE DRVR LOW-SIDE 8TDFN |
3,893 | 0.00 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Strip | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4V ~ 14V | 2V, 4.25V | 4A, 4A | Inverting | - | 6ns, 6ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
FAN3224TMNTXGIC GATE DRVR LOW-SIDE 8SOIC |
1,711 | 1.05 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | - | 2.8A, 4.3A | Non-Inverting | - | 12ns, 9ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCV303150MTWIC GATE DRVR HI/LOW SIDE 39WQFNW |
3,874 | 3.47 |
|
Datasheet |
- | 39-PowerWFQFN | Tape & Reel (TR) | Obsolete | Not Verified | High-Side and Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.85V, 2.3V | 80A, 80A | Non-Inverting | - | 17ns, 26ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 39-WQFNW (5x6) |
|
|
NCP81071DDR2GIC GATE DRVR LOW-SIDE 8SOIC |
1,240 | 0.66 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLE9180C21QKXUMA1IC GATE DRVR 64LQFP |
1,576 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLE918020QKXUMA1IC GATE DRVR 64LQFP |
3,163 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLE918021QKXUMA1IC GATE DRVR 64LQFP |
2,085 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISL6622AIRZ-TS2705IC GATE DRVR HALF-BRIDGE 10DFN |
3,937 | 0.00 |
|
- |
- | 10-VFDFN Exposed Pad | Tray | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 6.8V ~ 13.2V | - | 1.25A, 2A | Non-Inverting | 36 V | 26ns, 18ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|

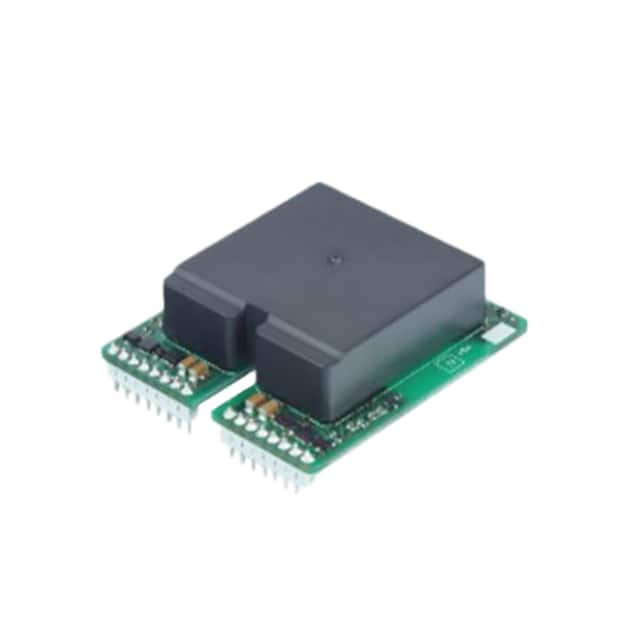

2CG010DBC12NIC GATE DRVR HALF-BRIDGE MODULE |
4,432 | 73.27 |
|
Datasheet |
- | Module | Tray | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | IGBT, SiC MOSFET | 13V ~ 28V | 1.65V, 3.85V | 43A, 43A | Non-Inverting | - | 500ns, 500ns | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|

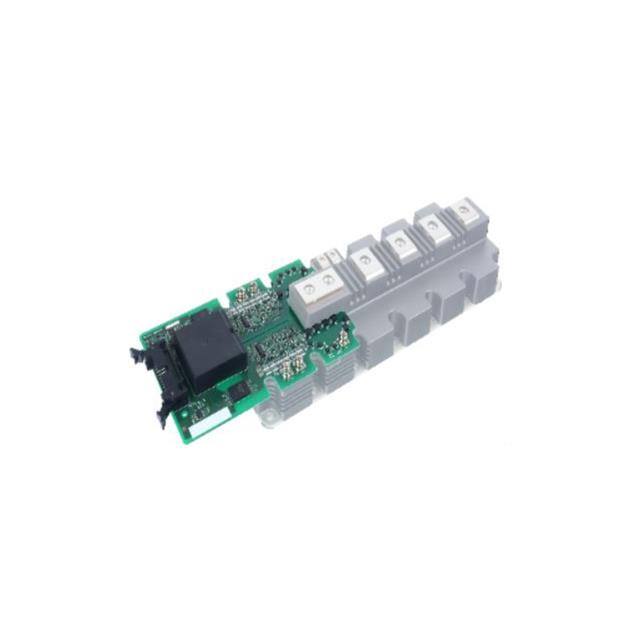

2PG010DCC11NIC GATE DRVR HALF-BRIDGE MODULE |
1,351 | 150.52 |
|
Datasheet |
- | Module | Tray | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | IGBT | 13V ~ 28V | 0.5V, 3.3V | 43A, 43A | Non-Inverting | - | 500ns, 500ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
