Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP3624ARHZ-RLIC GATE DRVR LOW-SIDE 8MSOP |
14,615 | 3.46 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 4A, 4A | Non-Inverting | - | 10ns, 10ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
|
ADP3625ARHZ-RLIC GATE DRVR LOW-SIDE 8MSOP |
601 | 3.46 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 4A, 4A | Inverting, Non-Inverting | - | 10ns, 10ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
|
ADP3623ARHZ-RLIC GATE DRVR LOW-SIDE 8MSOP |
422 | 3.46 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 4A, 4A | Inverting | - | 10ns, 10ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
IXDI614SIIC GATE DRVR LOW-SIDE 8SOIC |
3,876 | 4.93 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 14A, 14A | Inverting | - | 25ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
FAN73893MXIC GATE DRVR HALF-BRIDGE 28SOIC |
1,653 | 3.75 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 350mA, 650mA | Inverting | 600 V | 50ns, 30ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|

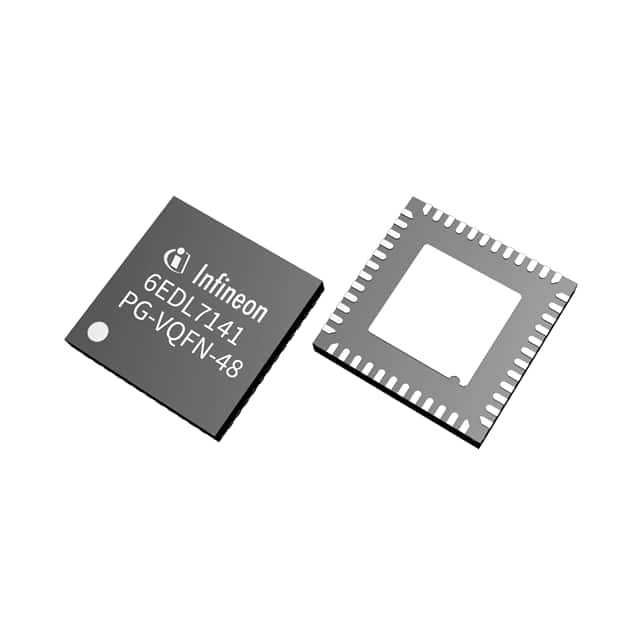

6EDL7141XUMA1IC GATE DRVR HALF-BRIDGE 48VFQFN |
695 | 6.84 |
|
Datasheet |
- | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | 3-Phase | 3 | N-Channel MOSFET | 5.5V ~ 60V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-VQFN-48-78 |
|

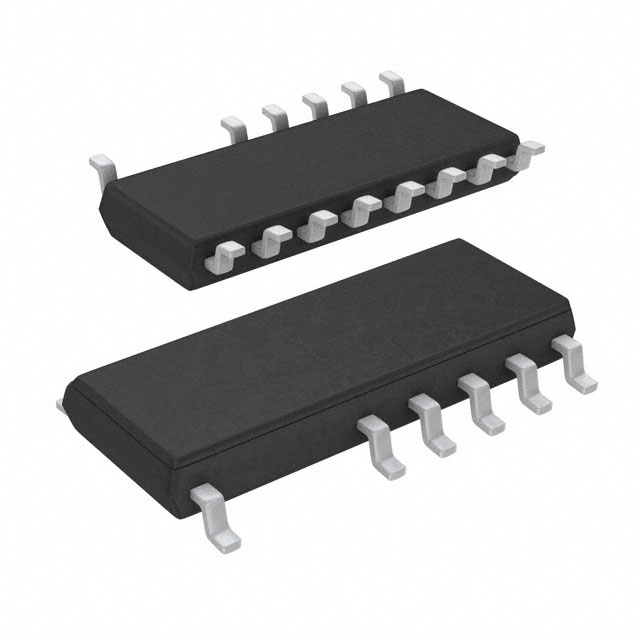

HV9901NG-GIC GATE DRVR LOW-SIDE 16SOIC |
257 | 4.91 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width), 14 Leads | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 10V ~ 450V | - | - | Non-Inverting | - | 30ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|

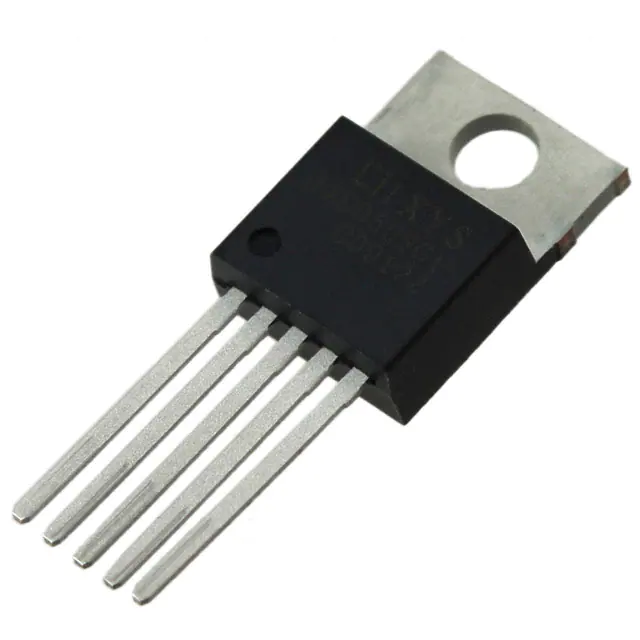

IXDD609CIIC GATE DRVR LOW-SIDE TO220-5 |
1,065 | 3.94 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 9A, 9A | Non-Inverting | - | 22ns, 15ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
|
IXDI609CIIC GATE DRVR LOW-SIDE TO220-5 |
786 | 3.94 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 9A, 9A | Inverting | - | 22ns, 15ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
IXDN609CIIC GATE DRVR LOW-SIDE TO220-5 |
761 | 3.94 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 9A, 9A | Non-Inverting | - | 22ns, 15ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
TC4421CATIC GATE DRVR LOW-SIDE TO220-5 |
190 | 5.02 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 9A, 9A | Inverting | - | 60ns, 60ns | 0°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
|
TC4422CATIC GATE DRVR LOW-SIDE TO220-5 |
131 | 5.02 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 9A, 9A | Non-Inverting | - | 60ns, 60ns | 0°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
MIC4469YWM-TRIC GATE DRVR LOW-SIDE 16SOIC |
1,698 | 5.10 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Inverting, Non-Inverting | - | 14ns, 13ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MIC4467YWMIC GATE DRVR LOW-SIDE 16SOIC |
145 | 5.10 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Inverting | - | 14ns, 13ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MPQ6531GV-AEC1-ZIC GATE DRVR HIGH-SIDE 28QFN |
8,903 | 4.13 |
|
Datasheet |
- | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | 3-Phase | 6 | N-Channel MOSFET | 5V ~ 60V | 0.8V, 2V | 800mA, 1A | Non-Inverting | 1.4 V | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-QFN (4x5) |
|
NCV51705MNTWGIC GATE DRVR LOW-SIDE 24QFN |
5,638 | 4.32 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | SiC MOSFET | 10V ~ 22V | 1.2V, 1.6V | 6A, 6A | Inverting, Non-Inverting | - | 8ns, 8ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 24-QFNW (4x4) |
|
LTC1981ES5#TRPBFIC GATE DRVR HIGH-SIDE TSOT23-5 |
6,473 | 4.24 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 1.8V ~ 5.5V | 0.6V, 1.4V | - | Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|
DRV8714SQPHPRQ1IC GATE DRVR HALF-BRIDGE 48HTQFP |
995 | 5.70 |
|
Datasheet |
- | 48-PowerTQFP | Tape & Reel (TR) | Active | - | Half-Bridge | - | - | - | 4.9V ~ 37V | - | - | - | - | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 48-HTQFP (7x7) |
|
MIC4467ZNIC GATE DRVR LOW-SIDE 14DIP |
189 | 5.34 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Inverting | - | 14ns, 13ns | 0°C ~ 70°C (TA) | - | - | Through Hole | 14-DIP |
|
|
MIC4469YNIC GATE DRVR LOW-SIDE 14DIP |
153 | 5.34 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Inverting, Non-Inverting | - | 14ns, 13ns | -40°C ~ 85°C (TA) | - | - | Through Hole | 14-DIP |
