Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

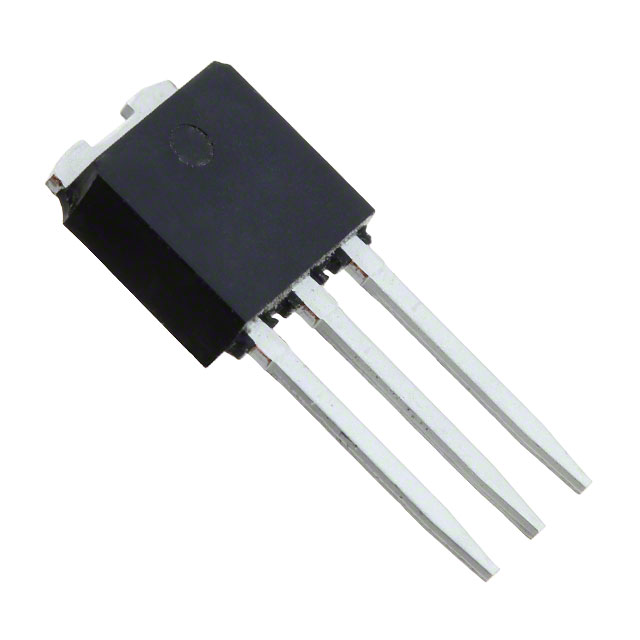

VND3NV04-1-EIC PWR DRIVER N-CHANNEL 1:1 IPAK |
4,751 | 0.00 |
|
Datasheet |
TO-251-3 Short Leads, IPAK, TO-251AA | OMNIFET II™, VIPower™ | Tube | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 3.5A | 120mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
VND5004ASP30-EIC PWR DRVR N-CH 1:1 MULTIPWRSO |
2,848 | 0.00 |
|
Datasheet |
30-PowerSOP (0.630", 16.00mm Width) | VIPower™ | Tube | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 27V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | MultiPowerSO-30 |
|
VND600PEP-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 |
2,989 | 0.00 |
|
Datasheet |
24-PowerBSOP (0.295", 7.50mm Width) | - | Tube | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 25A | 30mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
|
VND600PEPTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 |
1,400 | 0.00 |
|
Datasheet |
24-PowerBSOP (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 25A | 30mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
|
VND7N04-1-EIC PWR DRIVER N-CHANNEL 1:1 IPAK |
1,033 | 0.00 |
|
Datasheet |
TO-251-3 Short Leads, IPAK, TO-251AA | OMNIFET II™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 31V (Max) | Not Required | 4A | 140mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
VND7NV04-1-EIC PWR DRIVER N-CHANNEL 1:1 IPAK |
3,968 | 0.96 |
|
Datasheet |
TO-251-3 Short Leads, IPAK, TO-251AA | OMNIFET II™, VIPower™ | Tube | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 6A | 60mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
|
VND830PEP-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 |
3,741 | 0.00 |
|
Datasheet |
24-PowerBSOP (0.295", 7.50mm Width) | VIPower™ | Tube | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
|
VND830PEPTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 |
1,800 | 0.00 |
|
Datasheet |
24-PowerBSOP (0.295", 7.50mm Width) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
VNP14N04-EIC PWR DRIVER N-CHAN 1:1 TO220AB |
4,779 | 0.00 |
|
Datasheet |
TO-220-3 | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 10A | 70mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-220 |
|
VNQ05XSP16IC PWR DRIVER N-CHAN 1:1 PWRSO16 |
1,494 | 0.00 |
|
Datasheet |
16-PowerBSOP (0.370", 9.40mm Width) | - | Tube | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 5A | 110mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-16™ |
|
|
VNQ810PEPTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 |
4,136 | 0.00 |
|
Datasheet |
24-PowerBSOP (0.295", 7.50mm Width) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 5A | 160mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
|
VNQ830PEPTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 |
3,198 | 0.00 |
|
Datasheet |
24-PowerBSOP (0.295", 7.50mm Width) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 14A | 60mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
VNV20N0713TRIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
2,584 | 0.00 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 14A | 50mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | 10-PowerSO |
|
|
VNV35N0713TRIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
2,323 | 0.00 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 25A | 28mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | 10-PowerSO |
|
|
VNV49N0413TRIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
2,867 | 0.00 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 33V (Max) | Not Required | 28A | 40mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
FPF2214IC PWR SWITCH P-CH 1:1 6MICROFET |
2,364 | 0.00 |
|
Datasheet |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 250mA | 250mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
FPF2215IC PWR SWITCH P-CH 1:1 6MICROFET |
2,219 | 1.00 |
|
- |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 250mA | 250mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
|
FPF2223IC PWR SWITCH P-CH 1:1 6MICROFET |
3,006 | 1.45 |
|
- |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 625mA | 140mOhm | Non-Inverting | Auto Restart, Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
FPF2224IC PWR SWITCH P-CH 1:1 6MICROFET |
3,371 | 0.00 |
|
- |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 625mA | 140mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
LM3543MX-H/NOPBIC PWR SWITCH N-CHAN 1:3 16SOIC |
2,837 | 0.00 |
|
- |
16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 3 | 1:3 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SOIC |
