Voltage Reference
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE2425CPSRIC VREF GND REF 0.8% 8SO |
4,842 | 1.14 |
|
Datasheet |
8-SOIC (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Obsolete | Ground Reference (Virtual) | Fixed | 2.5V | - | 20 mA | ±0.8% | 20ppm/°C Typical | - | 100µVrms | 4V ~ 40V | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
LM431AIM3IC VREF SHUNT ADJ 2.2% SOT23-3 |
8,277 | 1.72 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 37 V | 100 mA | ±2.2% | 50ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TLE2425MDIC VREF GND REF 0.8% 8SOIC |
4,884 | 1.39 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | Ground Reference (Virtual) | Fixed | 2.5V | - | 20 mA | ±0.8% | 20ppm/°C Typical | - | 100µVrms | 4V ~ 40V | - | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
,TO-226_straightlead.jpg)
|
LM385BZ-2.5GIC VREF SHUNT 1.5% TO92-3 |
133 | 0.82 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Tube | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 80ppm/°C Typical | - | 120µVrms | - | - | 30 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
|
LM336LP-2-5IC VREF SHUNT 4% TO92-3 |
4,896 | 1.59 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Active | Shunt | Fixed | 2.49V | - | 10 mA | ±4% | - | - | - | - | - | 400 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
LM4040BIM3-2.5-TPRECISION MICROPOWER SHUNT VREF |
17,282 | 1.19 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±0.2% | 100ppm/°C | - | 35µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4041CIM3-ADJIC VREF SHUNT ADJ 0.5% SOT23-3 |
3,253 | 1.61 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 1.233V | 10 V | 12 mA | ±0.5% | 100ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
MAX6103EURVOLTAGE REFERENCE |
3,137 | 1.19 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Series | Fixed | 3V | - | 5 mA | ±0.4% | 75ppm/°C | 35µVp-p | 40µVrms | 3.2V ~ 12.6V | 125µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|

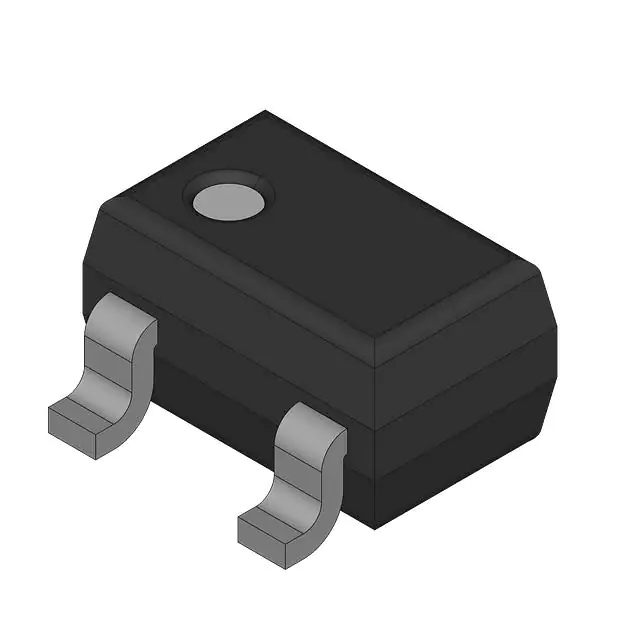

LM4040BEX3-4.1+LM4040 IMPROVED PRECISION MICROP |
2,687 | 1.19 |
|
Datasheet |
SC-70, SOT-323 | - | Bulk | Active | Shunt | Fixed | 4.096V | - | 15 mA | ±0.2% | 100ppm/°C | - | 64µVrms | - | - | 73 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-3 |
|
LM4040BEX3-5.0PRECISION MICROPOWER SHUNT VREF |
2,332 | 1.19 |
|
Datasheet |
SC-70, SOT-323 | - | Bulk | Active | Shunt | Fixed | 5V | - | 15 mA | ±0.2% | 100ppm/°C | - | 80µVrms | - | - | 80 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-70-3 |
|
|
MAX6102EURVOLTAGE REFERENCE |
1,976 | 1.19 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Series | Fixed | 2.5V | - | 5 mA | ±0.4% | 75ppm/°C | 27µVp-p | 30µVrms | 2.7V ~ 12.6V | 125µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM336LPE3-2-5IC VREF SHUNT 4% TO92-3 |
4,828 | 1.59 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Obsolete | Shunt | Fixed | 2.49V | - | 10 mA | ±4% | - | - | - | - | - | 400 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
LM385BXMX-1.2VOLTAGE REFERENCE |
516 | 1.19 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 30ppm/°C | - | 60µVrms | - | - | 15 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LM385BXM-1.2IC VREF SHUNT 2% 8SOIC |
474 | 1.19 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±2% | 150ppm/°C | - | 60µVrms | - | - | 15 µA | 0°C ~ 70°C | - | - | Surface Mount | 8-SOIC |
|
|
LM4040BEX3-2.5PRECISION MICROPOWER SHUNT VREF |
423 | 1.19 |
|
Datasheet |
SC-70, SOT-323 | - | Bulk | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±0.2% | 100ppm/°C | - | 35µVrms | - | - | 65 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-70-3 |
|
LMV431AIM5IC VREF SHUNT ADJ 1% SOT23-5 |
28,669 | 1.25 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 1.24V | 30 V | 15 mA | ±1% | - | - | - | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
LM4040AIM3-2.1-TPRECISION MICROPOWER SHUNT VREF |
19,000 | 1.20 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 2.048V | - | 15 mA | ±0.1% | 100ppm/°C | - | 28µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
ADR525BKS-REEL7IC VREF SHUNT PREC 2.5V SC-70-3 |
11,277 | 1.20 |
|
Datasheet |
SC-70, SOT-323 | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SC-70-3 |
|
|
ADR540BKS-REEL7IC VREF SHUNT PREC 4.096V SC70-3 |
9,796 | 1.20 |
|
Datasheet |
SC-70, SOT-323 | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SC-70-3 |
|
|
ADR01CRZIC VREF SERIES 0.1% 8SOIC |
4,450 | 1.20 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 10V | - | 10 mA | ±0.1% | 40ppm/°C | 20µVp-p | - | 12V ~ 36V | 1mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
