Voltage Reference
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

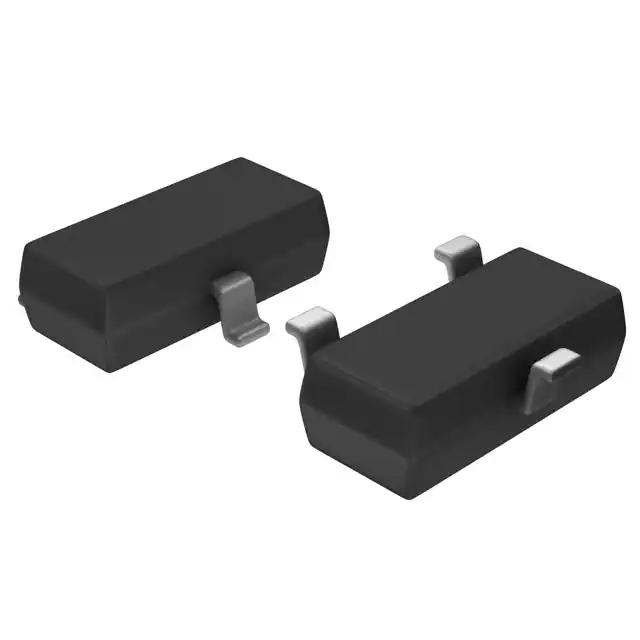

MP8200DT-LF-PIC VREF SHUNT 1% SOT23-3 |
1,160 | 0.93 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Not For New Designs | Shunt | Fixed | 1V | - | 10 mA | ±1% | 85ppm/°C Typical | 4µVp-p | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
MP8201DT-LF-PIC VREF SHUNT ADJ 0.5% SOT23-3 |
1,066 | 0.93 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.2V | 10 V | 20 mA | ±0.5% | 85ppm/°C Typical | 4µVp-p | - | - | - | 60 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM431ACMXIC VREF SHUNT ADJ 2% 8SOIC |
4,848 | 0.15 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±2% | 50ppm/°C Typical | - | - | - | - | 1 mA | -25°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
,TO-226_straightlead.jpg)
|
TS4041CIZ-1.2IC VREF SHUNT 0.5% TO92-3 |
4,044 | 0.00 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Obsolete | Shunt | Fixed | 1.225V | - | 12 mA | ±0.5% | 120ppm/°C | - | - | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
LM336DIC VREF SHUNT 4.02% 8SO |
4,676 | 0.00 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Fixed | 2.49V | - | 10 mA | ±4.02% | - | - | - | - | - | 400 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
SC431CSK-.5TRTIC VREF SHUNT ADJ 0.5% SOT23-3 |
2,250 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 30 V | 130 µA | ±0.5% | - | - | - | - | - | 150 mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TSM101CDTIC VREF SERIES 1.24V 8SO |
4,220 | 0.00 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 1.24V | - | 10 mA | - | - | - | - | 4.5V ~ 32V | 2mA | - | -20°C ~ 80°C (TA) | - | - | Surface Mount | 8-SOIC |
|
ZTL431ACSTZIC VREF SHUNT ADJ 1% TO92 |
1,351 | 0.00 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Cut Tape (CT) | Obsolete | Shunt | Adjustable | 2.5V | 20 V | 100 mA | ±1% | - | - | - | - | - | 600 µA | -40°C ~ 125°C (TA) | - | - | Through Hole | TO-92 |
|

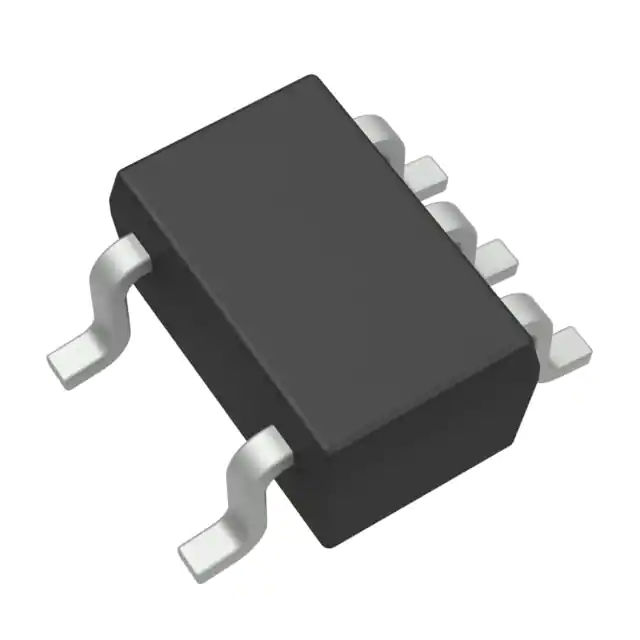

LM4041CIM7-1.2IC VREF SHUNT 0.5% SC70-5 |
1,095 | 1.00 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 1.225V | - | 12 mA | ±0.5% | 100ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
,TO-226_bentlead.jpg)
|
LM336LPRE3-2-5IC VREF SHUNT 4% TO92-3 |
4,425 | 0.00 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 2.49V | - | 10 mA | ±4% | - | - | - | - | - | 400 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
TSM1014IDIC VREF SERIES 1% 8SO |
1,838 | 0.00 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 1.25V | - | 2.5 mA | ±1% | - | - | - | 4.5V ~ 28V | 50mA | - | -40°C ~ 105°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LT1009CDRG4IC VREF SHUNT 0.4% 8SOIC |
2,917 | 0.00 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 2.5V | - | 10 mA | ±0.4% | 25ppm/°C | - | - | - | - | 400 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LT1009IDRG4IC VREF SHUNT 0.4% 8SOIC |
4,072 | 0.00 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 2.5V | - | 10 mA | ±0.4% | 35ppm/°C | - | - | - | - | 400 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
TLVH431CDBZTG4IC VREF SHUNT ADJ 1.5% SOT23-3 |
2,608 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Adjustable | 1.24V | 18 V | 70 mA | ±1.5% | - | - | - | - | - | 100 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TLVH431QDBZTG4IC VREF SHUNT ADJ 1.5% SOT23-3 |
3,826 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Adjustable | 1.24V | 18 V | 70 mA | ±1.5% | - | - | - | - | - | 100 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
ZXRE1004FRIC VREF SHUNT 3% TO92 |
2,305 | 0.00 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Obsolete | Shunt | Fixed | 1.22V | - | 20 mA | ±3% | 75ppm/°C | - | 60µVrms | - | - | 8 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
ZXRE1004FRSTOAIC VREF SHUNT 3% E-LINE |
3,047 | 0.00 |
|
Datasheet |
E-Line-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 1.22V | - | 20 mA | ±3% | 75ppm/°C | - | 60µVrms | - | - | 8 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
|
ZXRE1004FRSTOBIC VREF SHUNT 3% E-LINE |
3,323 | 0.00 |
|
Datasheet |
E-Line-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 1.22V | - | 20 mA | ±3% | 75ppm/°C | - | 60µVrms | - | - | 8 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
|
ZXRE1004FRSTZIC VREF SHUNT 3% E-LINE |
2,473 | 0.00 |
|
Datasheet |
E-Line-3 | - | Tape & Box (TB) | Obsolete | Shunt | Fixed | 1.22V | - | 20 mA | ±3% | 75ppm/°C | - | 60µVrms | - | - | 8 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
|
REF3030AIDBZTG4IC VREF SERIES 0.2% SOT23-3 |
1,398 | 0.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 3V | - | 25 mA | ±0.2% | 75ppm/°C | 33µVp-p | 94µVrms | 3.05V ~ 5.5V | 50µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
