Voltage Reference
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL431BQDBZTIC VREF SHUNT ADJ 0.5% SOT23-3 |
3,014 | 1.23 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±0.5% | - | - | - | - | - | 700 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040CEM3-2.5/NOPBIC VREF SHUNT 0.5% SOT23-3 |
11,413 | 0.93 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±0.5% | 100ppm/°C | - | 35µVrms | - | - | 68 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|

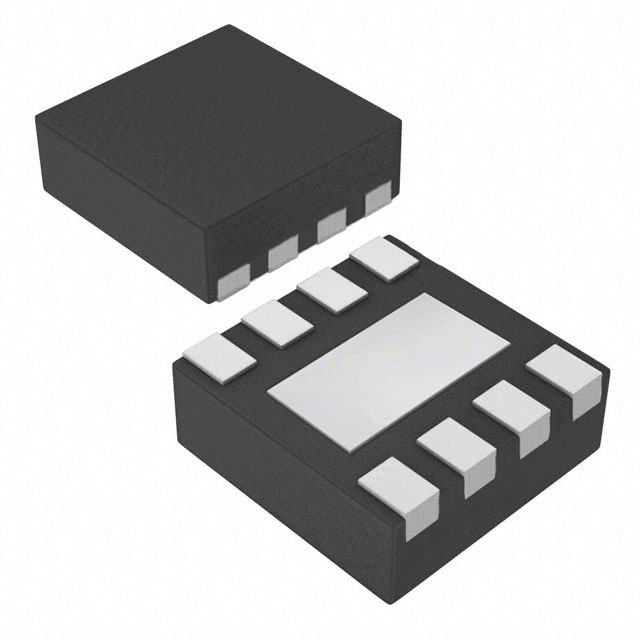

MCP1501T-25E/RWIC VREF SERIES 0.1% 8WDFN |
6,001 | 1.06 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 20 mA | ±0.1% | 50ppm/°C | - | - | 2.7V ~ 5.5V | 550µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-WDFN (2x2) |
|
LT1004IDR-1-2IC VREF SHUNT 0.32% 8SOIC |
5,421 | 1.47 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±0.32% | 20ppm/°C Typical | - | 60µVrms | - | - | 10 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LM4040D50QDBZRIC VREF SHUNT 1% SOT23-3 |
4,118 | 1.39 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 5V | - | 15 mA | ±1% | 150ppm/°C | - | 80µVrms | - | - | 95 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4041CEM3-ADJ/NOPBIC VREF SHUNT ADJ 0.5% SOT23-3 |
3,412 | 1.40 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.233V | 10 V | 12 mA | ±0.5% | 100ppm/°C | - | 20µVrms | - | - | 68 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
MCP1501T-10E/RWIC VREF SERIES 0.1% 8WDFN |
3,292 | 1.06 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 1.024V | - | 20 mA | ±0.1% | 50ppm/°C | 14µVrms | 27µVrms | 1.65V ~ 5.5V | 550µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-WDFN (2x2) |
|
|
LM4041CEM3X-1.2/NOPBIC VREF SHUNT 0.5% SOT23-3 |
3,093 | 1.00 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±0.5% | 100ppm/°C | - | 20µVrms | - | - | 68 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4041CEM3-1.2/NOPBIC VREF SHUNT 0.5% SOT23-3 |
2,999 | 1.40 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±0.5% | 100ppm/°C | - | 20µVrms | - | - | 68 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
MCP1501T-18E/RWIC VREF SERIES 0.1% 8WDFN |
2,832 | 1.06 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 1.8V | - | 20 mA | ±0.1% | 50ppm/°C | - | - | 2V ~ 5.5V | 550µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-WDFN (2x2) |
|
|
LT1004CDR-1-2IC VREF SHUNT 0.32% 8SOIC |
2,302 | 1.47 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±0.32% | 20ppm/°C Typical | - | 60µVrms | - | - | 10 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MCP1501T-33E/RWIC VREF SERIES 0.1% 8WDFN |
1,494 | 1.06 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 20 mA | ±0.1% | 50ppm/°C | - | - | 3.5V ~ 5.5V | 550µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-WDFN (2x2) |
,TO-226_straightlead.jpg)
|
TL431ILPIC VREF SHUNT ADJ 2.2% TO92-3 |
3,107 | 1.05 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | - | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
TS4061AILT-1.25IC VREF SHUNT 0.1% SOT23-3 |
6,043 | 1.05 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.25V | - | 15 mA | ±0.1% | 35ppm/°C | 10µVp-p | 95µVrms | - | - | 12 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TS4061AILT-1.225IC VREF SHUNT 0.1% SOT23-3 |
5,444 | 1.05 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 15 mA | ±0.1% | 35ppm/°C | 10µVp-p | 95µVrms | - | - | 12 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
TL431LIBQDBZRQ1IC VREF SHUNT ADJ 0.5% SOT23-3 |
39,782 | 0.80 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 15 mA | ±0.5% | - | - | - | - | - | 600 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
TL431LIBEDBZRQ1IC VREF SHUNT ADJ 0.5% SOT23-3 |
27,732 | 1.03 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 15 mA | ±0.5% | - | - | - | - | - | 600 µA | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
LM336M-2.5/NOPBIC VREF SHUNT 4% 8SOIC |
3,177 | 1.28 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Shunt | Fixed | 2.49V | - | 10 mA | ±4% | - | - | - | - | - | 400 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TL1431CLPIC VREF SHUNT ADJ 0.4% TO92-3 |
1,302 | 1.16 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | - | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
TL431BVDR2GIC VREF SHUNT ADJ 0.4% 8SOIC |
6,442 | 0.63 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±0.4% | 50ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
