Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC94355-GYCS-TRIC REG LINEAR 1.8V 500MA 6WLCSP |
3,253 | 0.00 |
|
Datasheet |
Ripple Blocker™ | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.84x1.32) |
|
|
MIC94345-4YCS TRIC REG LINEAR 1.2V 500MA 6WLCSP |
2,166 | 0.00 |
|
Datasheet |
Ripple Blocker™ | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.2V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.84x1.32) |
|
|
MIC94345-GYCS TRIC REG LINEAR 1.8V 500MA 6WLCSP |
4,070 | 0.00 |
|
Datasheet |
Ripple Blocker™ | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.84x1.32) |
|
|
MIC94345-SYCS TRIC REG LINEAR 3.3V 500MA 6WLCSP |
4,853 | 0.00 |
|
Datasheet |
Ripple Blocker™ | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 3.3V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.84x1.32) |
|
LD49100PU25RYIC REG LINEAR 2.5V 1A 6DFN |
3,054 | 1.59 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.4V @ 1A | 1A | 50 µA | 300 µA | 65dB ~ 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-DFN (3x3) |
|
FAN1581T25IC REG LINEAR 2.5V 5A TO220-5 |
3,714 | 0.00 |
|
Datasheet |
- | TO-220-5 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.18V @ 5A | 5A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|

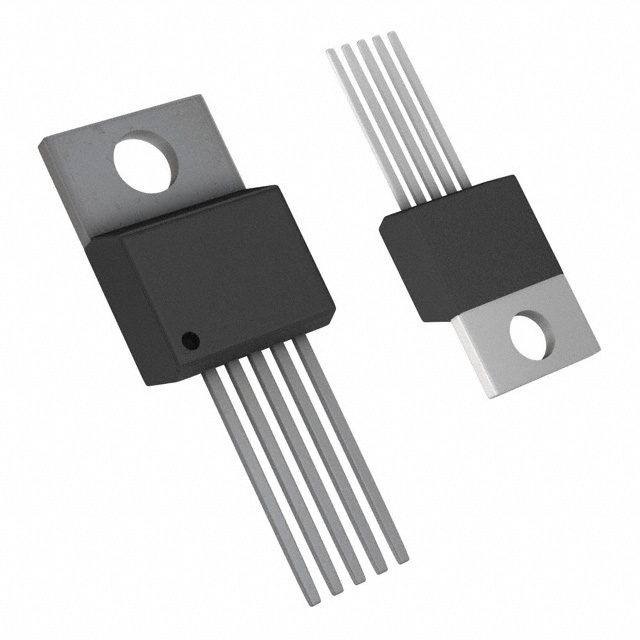

FAN1582TIC REG LINEAR POS ADJ 3A TO220-5 |
4,407 | 0.00 |
|
Datasheet |
- | TO-220-5 | Tube | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.7V | 1.18V @ 3A | 3A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -65°C ~ 150°C | - | - | Through Hole | TO-220-5 |
|
|
FAN1582T15IC REG LINEAR 1.5V 3A TO220-5 |
1,893 | 0.00 |
|
Datasheet |
- | TO-220-5 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | 1.18V @ 3A | 3A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -65°C ~ 150°C | - | - | Through Hole | TO-220-5 |
|
|
FAN1582T25IC REG LINEAR 2.5V 3A TO220-5 |
3,246 | 0.00 |
|
Datasheet |
- | TO-220-5 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.18V @ 3A | 3A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -65°C ~ 150°C | - | - | Through Hole | TO-220-5 |
|
LP38855T-0.8IC REG LINEAR 0.8V 1.5A TO220-5 |
1,552 | 0.00 |
|
Datasheet |
- | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 0.8V | - | 0.180V @ 1.5A | 1.5A | 300 µA | 15 mA | 80dB ~ 58dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP38855T-1.2IC REG LINEAR 1.2V 1.5A TO220-5 |
1,022 | 0.00 |
|
Datasheet |
- | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.18V @ 1.5A | 1.5A | 300 µA | 15 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP38858T-1.2IC REG LINEAR 1.2V 1.5A TO220-5 |
3,452 | 0.00 |
|
Datasheet |
- | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.18V @ 1.5A | 1.5A | 8.5 mA | 15 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
BA03CC0WTIC REG LINEAR 3V 1A TO220-5 |
1,197 | 1.83 |
|
Datasheet |
- | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 3V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA07CC0WTIC REG LINEAR 7V 1A TO220-5 |
2,629 | 1.83 |
|
Datasheet |
- | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 7V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA08CC0WTIC REG LINEAR 8V 1A TO220-5 |
4,556 | 1.83 |
|
Datasheet |
- | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 8V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
BAJ0CC0WTIC REG LINEAR 10V 1A TO220-5 |
1,892 | 0.00 |
|
Datasheet |
- | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 10V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA05CC0WT-V5IC REG LINEAR 5V 1A TO220-5 |
2,792 | 1.83 |
|
Datasheet |
- | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 5V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
BA08CC0WT-V5IC REG LINEAR 8V 1A TO220FP-3 |
3,286 | 1.83 |
|
- |
- | TO-220-3 Full Pack | Bulk | Active | Positive | Fixed | 1 | 25V | 8V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP |
|
|
BAJ2CC0WT-V5IC REG LINEAR 12V 1A TO220-5 |
3,052 | 1.83 |
|
Datasheet |
- | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 12V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
LP2989AIMM-2.5IC REG LINEAR 2.5V 500MA 8VSSOP |
4,403 | 0.90 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 2.5V | - | 0.65V @ 500mA | 500mA | 175 µA | 9 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
