Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ05RD08IC REG LINEAR 5V 800MA TO220-4 |
4,497 | 0.00 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.5V @ 500mA | 800mA | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
|
PQ05RD11IC REG LINEAR 5V 1A TO220-4 |
4,883 | 0.00 |
|
- |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
|
PQ05RD21IC REG LINEAR 5V 2A TO220-4 |
1,925 | 0.00 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.5V @ 2A | 2A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
|
PQ05RR1IC REG LINEAR 5V 1A TO220-4 |
1,974 | 0.00 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 1A | 10 mA | - | 55dB (120Hz) | Reset | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
|
PQ05RR11IC REG LINEAR 5V 1A TO220-4 |
3,095 | 0.00 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 1A | 10 mA | - | 55dB (120Hz) | Reset | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
|
PQ05RR13IC REG LINEAR 5V 1A TO220-4 |
4,553 | 0.00 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | - | 1A | 10 mA | - | 55dB (120Hz) | Reset | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
|
PQ09RD21IC REG LINEAR 9V 2A TO220-4 |
4,481 | 0.00 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 9V | - | 0.5V @ 2A | 2A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|

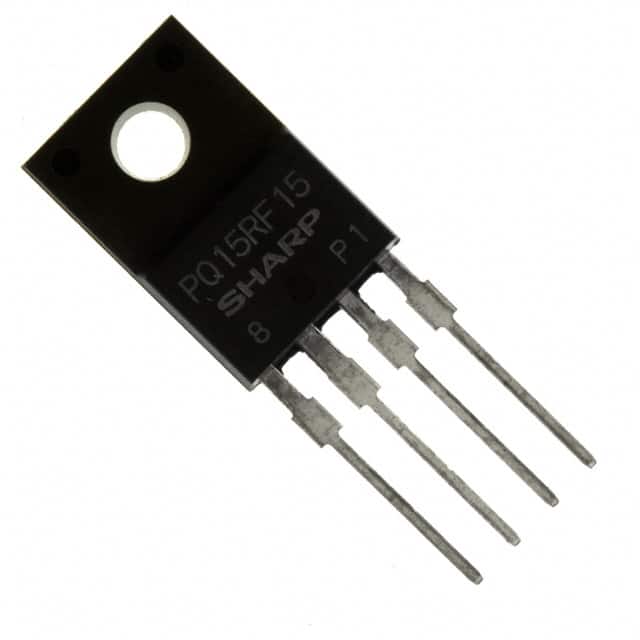

PQ15RF15IC REG LINEAR 15.7V 1A TO220-4 |
3,745 | 0.00 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 15.7V | - | 0.5A @ 500mA | 1A | 20 µA | - | 65dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|

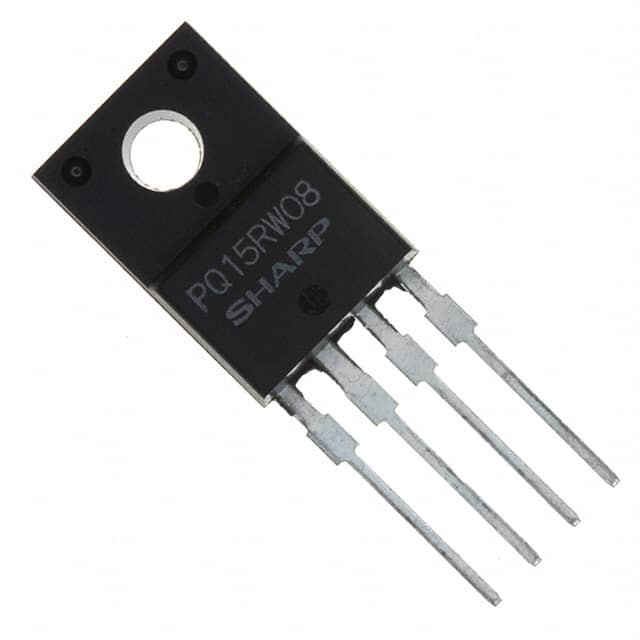

PQ15RW08IC REG LIN POS ADJ 800MA TO220-4 |
4,285 | 0.00 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 3V | 15V | 0.5A @ 500mA | 800mA | 8 mA | - | 55dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
|
PQ3RD13IC REG LINEAR 3.3V 1A TO220-4 |
1,190 | 0.00 |
|
- |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
FAN1086M25IC REG LINEAR 2.5V 1.5A TO263-3 |
4,093 | 1.00 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 7.5V | 2.5V | - | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | TO-263-3 |
|
LM337TIC REG LIN NEG ADJ 1.5A TO220-3 |
3,898 | 3.05 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | - | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM350TIC REG LINEAR POS ADJ 3A TO220-3 |
2,210 | 2.97 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 35V | 1.2V | 33V | - | 3A | - | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LM7805CTIC REG LINEAR 5V 1A TO220-3 |
2,355 | 1.78 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 73dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LM78L05ACZIC REG LINEAR 5V 100MA TO92-3 |
4,148 | 1.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 5.5 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
|
LM78M05CTIC REG LINEAR 5V 500MA TO220-3 |
4,676 | 2.13 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM7905CTIC REG LINEAR -5V 1A TO220-3 |
1,938 | 1.12 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
MC7805CTIC REG LINEAR 5V 1A TO220AB |
2,659 | 0.00 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1A | 6.5 mA | - | 83dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
MC7808CTIC REG LINEAR 8V 1A TO220AB |
2,483 | 0.14 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
MC7812CTIC REG LINEAR 12V 1A TO220AB |
3,440 | 0.00 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A (Typ) | 1A | 6.5 mA | - | 60dB (1kHz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
