AC DC Converters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Applications | Features | Operating Temperature | Efficiency | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMEOFL5-24S277HALPZ5W AC/DC 85~305Vin |
1,121 | 0.00 |
|
Datasheet |
AMEOFL5-277HALPZ (5W) | 6-SIP Module | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 210mA | 5 W | Household Appliances, ITE (Commercial) | DC Input Capable, Universal Input | -40°C ~ 85°C | 80% | Through Hole | 1.04" L x 0.43" W x 0.58" H (26.4mm x 11.0mm x 14.7mm) | CE | 60335-1; 61558-1; 62368-1 |
.jpg)
|
LD10-23B09R2AC/DC CONVERTER 9V 10W |
1,224 | 5.09 |
|
Datasheet |
305RAC / LD-R2 | 6-DIP Module, 4 Leads | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | 1.1A | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | Through Hole | 1.57" L x 1.00" W x 0.83" H (40.0mm x 25.4mm x 21.0mm) | CB, CE, cURus | 60335-1; 62368-1 |
|
|
LH05-23B15R2ENCLOSED AC DC CONVERTER 4.95W 1 |
2,633 | 0.00 |
|
Datasheet |
LH05-23BxxR2 (5W) | 5-DIP Module | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | 330mA | 4.95 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 1.91" L x 1.42" W x 0.81" H (48.5mm x 36.0mm x 20.5mm) | - | 62368-1 |
|
|
LH05-23B12R2ENCLOSED AC DC CONVERTER 5.04W 1 |
3,525 | 0.00 |
|
Datasheet |
LH05-23BxxR2 (5W) | 5-DIP Module | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 420mA | 5.04 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 1.91" L x 1.42" W x 0.81" H (48.5mm x 36.0mm x 20.5mm) | - | 62368-1 |
|
|
LH05-23B05R2ENCLOSED AC DC CONVERTER 5W 1 OU |
2,801 | 0.00 |
|
Datasheet |
LH05-23BxxR2 (5W) | 5-DIP Module | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 1A | 5 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 77% | Through Hole | 1.91" L x 1.42" W x 0.81" H (48.5mm x 36.0mm x 20.5mm) | - | 62368-1 |
|
|
LS01-15B12SSOPEN FRAME AC DC CONVERTER 1 OUT |
2,719 | 0.00 |
|
- |
LS01-15BxxSS (1W) | 12-SIP Module, 6 Leads | Tray | Obsolete | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 12V | - | - | - | 83mA | 996 mW | ITE (Commercial) | - | -40°C ~ 85°C | 70% | Through Hole | 1.38" L x 0.43" W x 0.71" H (35.0mm x 11.0mm x 18.0mm) | CB, CE, cURus, UL | 60950-1; 62368-1 |
|
LS15-23B12DR3OPEN FRAME AC DC CONVERTERS 1 OU |
4,926 | 5.62 |
|
Datasheet |
LS15-23BxxDR3 (15W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 1.25A | 15 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | Through Hole | 1.31" L x 0.38" W x 0.85" H (33.4mm x 9.7mm x 21.5mm) | CE | 60335-1; 62368-1 |
|
|
LS15-23B24DR3OPEN FRAME AC DC CONVERTERS 1 OU |
3,472 | 5.62 |
|
Datasheet |
LS15-23BxxDR3 (15W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 625mA | 15 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | Through Hole | 1.31" L x 0.38" W x 0.85" H (33.4mm x 9.7mm x 21.5mm) | CE | 60335-1; 62368-1 |
|
|
LS15-23B05DR3ENCLOSED AC DC CONVERTER 1 OUT |
1,582 | 5.62 |
|
Datasheet |
LS15-23BxxDR3 (15W) | 6-SIP Module | Bulk | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 3A | 15 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | Through Hole | 1.31" L x 0.38" W x 0.85" H (33.4mm x 9.7mm x 21.5mm) | CE | 60335-1; 62368-1 |
.jpg)
|

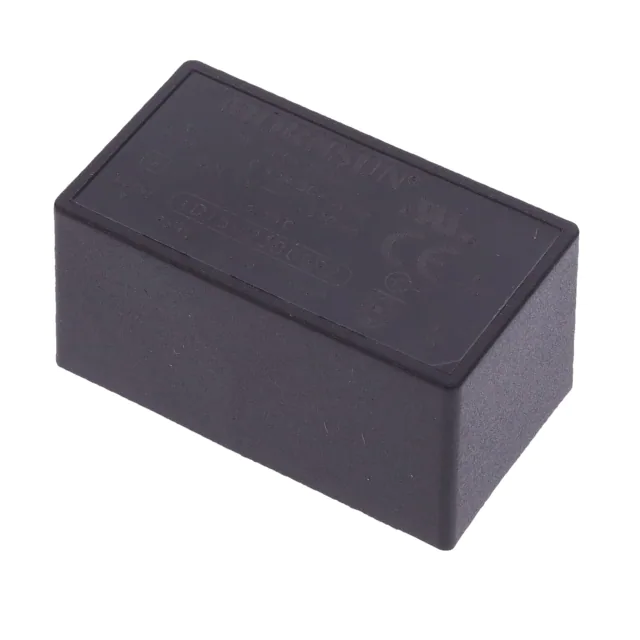

LD15-23B09R2AC/DC CONVERTER 9V 15W |
2,713 | 5.67 |
|
Datasheet |
305RAC / LD-R2 | 5-DIP Module, 4 Leads | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | 1.67A | 15 W | Household Appliances, ITE (Commercial), Medical | - | -40°C ~ 85°C (With Derating) | 84% | Through Hole | 1.87" L x 1.06" W x 0.93" H (47.6mm x 26.8mm x 23.5mm) | CB, CE, cURus | 60335-1; 62368-1 |
|
|
AMEOFL5-9S277HALPZ5W AC/DC 85~305Vin |
2,960 | 0.00 |
|
Datasheet |
AMEOFL5-277HALPZ (5W) | 6-SIP Module | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | 560mA | 5 W | Household Appliances, ITE (Commercial) | DC Input Capable, Universal Input | -40°C ~ 85°C | 76% | Through Hole | 1.04" L x 0.43" W x 0.58" H (26.4mm x 11.0mm x 14.7mm) | CE | 60335-1; 61558-1; 62368-1 |
|
|
AMEOFL3-12S277HALPZ3W AC/DC 85~305VAC 12V |
4,259 | 0.00 |
|
Datasheet |
- | 6-SIP Module | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | 3 W | Household Appliances, ITE (Commercial) | Adjustable Output, DC Input Capable, Universal Input | -40°C ~ 85°C | 78% | Through Hole | 1.04" L x 0.43" W x 0.58" H (26.4mm x 11.0mm x 14.7mm) | CE | 60335-1; 61558-1; 62368-1 |
|
BP5062-5AC/DC CONVERTER -5V 3W |
4,497 | 0.00 |
|
Datasheet |
BP5062 | 12-SIP Module, 7 Leads | Tray | Obsolete | Enclosed | 1 | 80 ~ 120 VAC | -5V | - | - | - | 500mA | 3 W | ITE (Commercial) | - | -20°C ~ 80°C (With Derating) | 71% | Through Hole | 1.36" L x 0.39" W x 0.85" H (34.5mm x 9.9mm x 21.5mm) | - | - |
|
|
LS05-15B12SSOPEN FRAME AC DC CONVERTER 1 OUT |
4,737 | 0.00 |
|
- |
LS05-15BxxSS (5W) | 14-SIP Module, 6 Leads | Tray | Obsolete | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 420mA | 5.04 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 76% | Through Hole | 1.57" L x 0.50" W x 0.79" H (40.0mm x 12.8mm x 20.0mm) | CB, CE, cURus | 62368-1 |
|

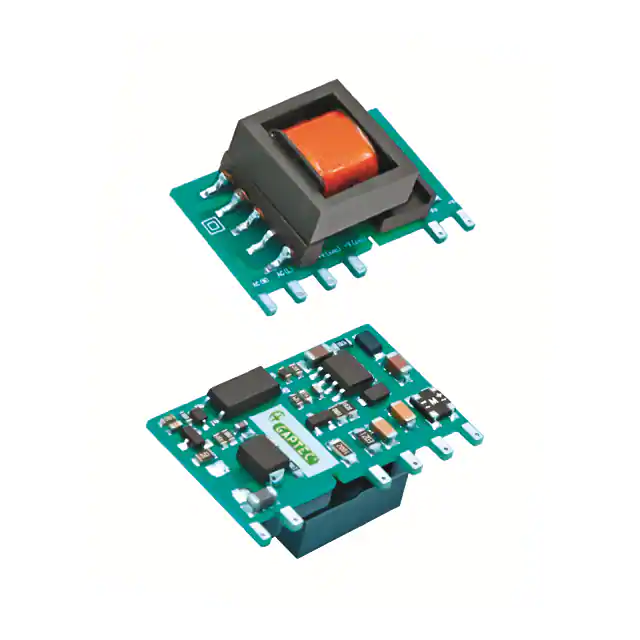

10ACFEW_12S3OPEN FRAME AC DC CONVERTERS 1 OU |
1,195 | 4.91 |
|
Datasheet |
10ACFEW_3 (10W) | 6-SIP Module | Retail Package | Obsolete | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | 830mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 1.26" L x 0.59" W x 0.68" H (32.0mm x 15.1mm x 17.2mm) | CE, cURus, UL | 60335-1; 62368-1 |
|
|
10ACFEW_15S3OPEN FRAME AC DC CONVERTERS 1 OU |
2,763 | 4.91 |
|
Datasheet |
10ACFEW_3 (10W) | 6-SIP Module | Retail Package | Obsolete | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | 670mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 1.26" L x 0.59" W x 0.68" H (32.0mm x 15.1mm x 17.2mm) | CE, cURus, UL | 60335-1; 62368-1 |
|
|
10ACFEW_05S3OPEN FRAME AC DC CONVERTERS 1 OU |
1,230 | 4.91 |
|
Datasheet |
10ACFEW_3 (10W) | 6-SIP Module | Retail Package | Obsolete | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | 2A | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 77% | Through Hole | 1.26" L x 0.59" W x 0.68" H (32.0mm x 15.1mm x 17.2mm) | CE, cURus, UL | 60335-1; 62368-1 |
|
|
10ACFEW_24S3OPEN FRAME AC DC CONVERTERS 1 OU |
4,862 | 4.91 |
|
Datasheet |
10ACFEW_3 (10W) | 6-SIP Module | Retail Package | Obsolete | Open Frame | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | 420mA | 10 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 1.26" L x 0.59" W x 0.68" H (32.0mm x 15.1mm x 17.2mm) | CE, cURus, UL | 60335-1; 62368-1 |
|
AMEM3-15S277HAVZAC/DC CONVERTER 15V 3W |
4,267 | 10.41 |
|
Datasheet |
AMEM3-277HAVZ (3W) | 5-DIP Module, 4 Leads | Box | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | 200mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | CE, UL | 60335-1; 62368-1 |
|
|
AMEM3-9S277HAVZAC/DC CONVERTER 9V 3W |
2,535 | 10.41 |
|
Datasheet |
AMEM3-277HAVZ (3W) | 5-DIP Module, 4 Leads | Box | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | 333mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | Through Hole | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | CE, UL | 60335-1; 62368-1 |
