AC DC Converters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Applications | Features | Operating Temperature | Efficiency | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASB160PS36AC-DC POWER SUPPLY WITH BUILT-IN |
4,467 | 0.00 |
|
Datasheet |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | 4.44A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 93% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS54AC-DC POWER SUPPLY WITH BUILT-IN |
3,967 | 0.00 |
|
Datasheet |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 54V | - | - | - | 2.96A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 91% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS15-HKAC-DC POWER SUPPLY WITH BUILT-IN |
4,960 | 0.00 |
|
Datasheet |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | 10.66A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 93% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS36-HKAC-DC POWER SUPPLY WITH BUILT-IN |
2,153 | 0.00 |
|
Datasheet |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | 4.44A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 93% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS54-HKAC-DC POWER SUPPLY WITH BUILT-IN |
3,826 | 0.00 |
|
Datasheet |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 54V | - | - | - | 2.96A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 91% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS48-HKAC-DC POWER SUPPLY WITH BUILT-IN |
3,673 | 0.00 |
|
Datasheet |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | 3.33A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 93% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|
|
ASB160PS12-HKAC-DC POWER SUPPLY WITH BUILT-IN |
2,607 | 0.00 |
|
Datasheet |
ASB160 (160W) | Full Brick | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | 13.3A | 160 W | ITE (Commercial) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | -40°C ~ 90°C (With Derating) | 92% | Through Hole | 4.60" L x 2.40" W x 0.78" H (116.8mm x 61.0mm x 19.7mm) | CB, CE, TUV, UKCA, UL | 62368-1 |
|

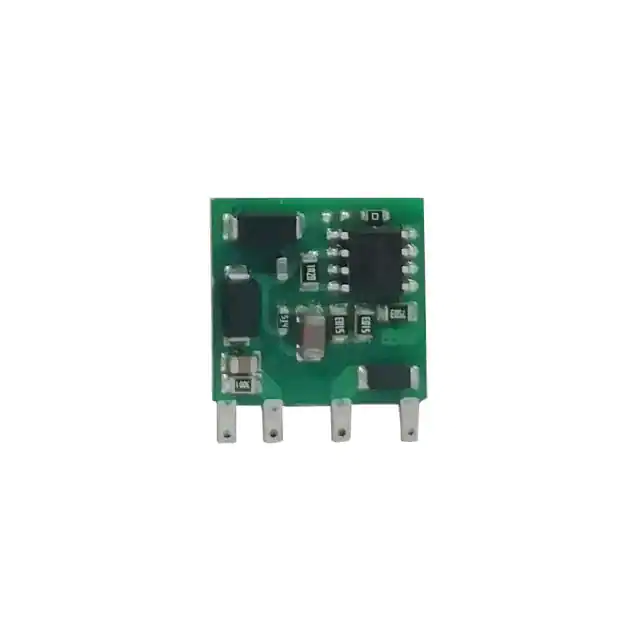

LS01-K3B05SSAC/DC CONVERTER 5V 1W |
705 | 1.51 |
|
Datasheet |
LS-K (1W) | 4-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 5V | - | - | - | 200mA | 1 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 57% | Through Hole | 0.64" L x 0.37" W x 0.59" H (16.1mm x 9.5mm x 15.1mm) | CE | - |
|

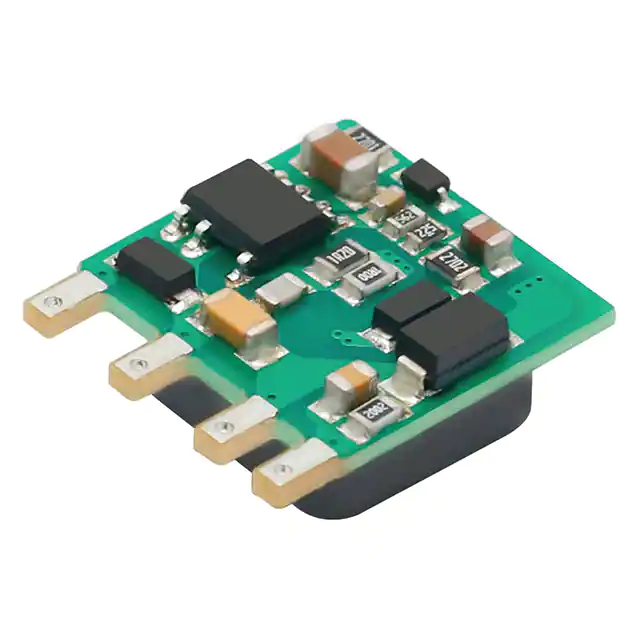

LS05-K3B12SSAC/DC CONVERTER 12V 4W |
442 | 2.12 |
|
Datasheet |
LS-K (5W) | 4-SIP Module | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 12V | - | - | - | 330mA | 4 W | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 75% | Through Hole | 0.64" L x 0.37" W x 0.72" H (16.1mm x 9.5mm x 18.2mm) | CE | 62368-1 |
|
|
LS05-K3B18SSAC/DC CONVERTER 18V 5W |
213 | 1.84 |
|
Datasheet |
LS-K (5W) | 4-SIP Module | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 18V | - | - | - | 280mA | 5 W | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 77% | Through Hole | 0.64" L x 0.37" W x 0.72" H (16.1mm x 9.5mm x 18.2mm) | CE | 62368-1 |
|
|
LS05-K3B15SSAC/DC CONVERTER 15V 5W |
144 | 1.84 |
|
Datasheet |
LS-K (5W) | 4-SIP Module | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 15V | - | - | - | 330mA | 5 W | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 76% | Through Hole | 0.64" L x 0.37" W x 0.72" H (16.1mm x 9.5mm x 18.2mm) | CE | 62368-1 |
|
|
LS08-15B24R3POPEN FRAME AC DC CONVERTER 8W 1 |
208 | 0.00 |
|
Datasheet |
LS08-15BxxR3P (8W) | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 176 ~ 418 VAC, 250 ~ 590 VDC | 24V | - | - | - | 330mA | 7.92 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 1.17" L x 0.55" W x 0.79" H (29.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
LS08-15B15R3POPEN FRAME AC DC CONVERTER 8W 1 |
208 | 0.00 |
|
Datasheet |
LS08-15BxxR3P (8W) | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 176 ~ 418 VAC, 250 ~ 590 VDC | 15V | - | - | - | 530mA | 7.95 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 1.17" L x 0.55" W x 0.79" H (29.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
LS08-15B03R3POPEN FRAME AC DC CONVERTER 5.28W |
198 | 0.00 |
|
Datasheet |
LS08-15BxxR3P (8W) | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 176 ~ 418 VAC, 250 ~ 590 VDC | 3.3V | - | - | - | 1.6A | 5.28 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | Through Hole | 1.17" L x 0.55" W x 0.79" H (29.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
LS08-15B09R3POPEN FRAME AC DC CONVERTER 8W 1 |
195 | 0.00 |
|
Datasheet |
LS08-15BxxR3P (8W) | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 176 ~ 418 VAC, 250 ~ 590 VDC | 9V | - | - | - | 880mA | 7.92 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | Through Hole | 1.17" L x 0.55" W x 0.79" H (29.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
LS08-15B05R3POPEN FRAME AC DC CONVERTER 8W 1 |
180 | 0.00 |
|
Datasheet |
LS08-15BxxR3P (8W) | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 176 ~ 418 VAC, 250 ~ 590 VDC | 5V | - | - | - | 1.6A | 8 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | Through Hole | 1.17" L x 0.55" W x 0.79" H (29.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
|
LS08-15B12R3POPEN FRAME AC DC CONVERTER 8W 1 |
179 | 0.00 |
|
Datasheet |
LS08-15BxxR3P (8W) | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 176 ~ 418 VAC, 250 ~ 590 VDC | 12V | - | - | - | 670mA | 8.04 W | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 1.17" L x 0.55" W x 0.79" H (29.8mm x 14.1mm x 20.0mm) | - | 62368-1 |
|
LS03-13B12R3AC/DC CONVERTER 12V 3W |
2,509 | 2.32 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 12V | - | - | - | 250mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 77% | Through Hole | 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus | - |
|
|
LS03-13B05R3AC/DC CONVERTER 5V 3W |
2,356 | 2.32 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 5V | - | - | - | 600mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | Through Hole | 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus | - |
|
|
LS03-13B09R3AC/DC CONVERTER 9V 3W |
612 | 2.32 |
|
Datasheet |
305RAC / LS-R3 | 6-SIP Module | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 9V | - | - | - | 333mA | 3 W | Household Appliances, ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 76% | Through Hole | 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm) | CB, CE, cURus | - |
