Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
_iNRCORE_Product-Image.jpg)
|
R8303NLPWR XFMR PLANAR 140W SMD |
2,897 | 5.20 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 140W | Surface Mount | Solder, Quick Connect | 23.37mm L x 21.59mm W | 8.60mm | 1750VDC | - |
|
CTX01-15364PWR XFMR CONT MD FLY 285UH |
3,565 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R8303NLTPWR XFMR PLANAR 140W SMD |
4,137 | 5.33 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 140W | Surface Mount | Solder, Quick Connect | 23.37mm L x 21.59mm W | 8.60mm | 1750VDC | - |
|
PC-56-20PWR XFMR LAMINATED 1.2VA TH |
4,987 | 6.55 |
|
Datasheet |
PC | Bulk | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Single | Dual | No | 1.2VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.15mm | 1500Vrms | 0.188 lb (85.28 g) |
|
|
CTX01-16299PWR XFMR DIS FLY 870UH .35A |
3,528 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F10-110PWR XFMR LAMINATED 1.1VA TH |
1,678 | 8.26 |
|
Datasheet |
Split Pack™ | Box | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 220mA, Series 110mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
DPC-20-60PWR XFMR LAMINATED 1.2VA TH |
4,806 | 7.37 |
|
Datasheet |
DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 120mA, Series 60mA | Dual | Dual | No | 1.2VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.15mm | 1500Vrms | 0.188 lb (85.28 g) |
|
|
DPC-28-40PWR XFMR LAMINATED 1.2VA TH |
1,997 | 7.37 |
|
Datasheet |
DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Dual | Dual | No | 1.2VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.15mm | 1500Vrms | 0.188 lb (85.28 g) |
|
|
DPC-40-30PWR XFMR LAMINATED 1.2VA TH |
2,569 | 7.37 |
|
Datasheet |
DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 60mA, Series 30mA | Dual | Dual | No | 1.2VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 30.15mm | 1500Vrms | 0.188 lb (85.28 g) |
|
ST-4-10PWR XFMR LAMINATED 6VA TH |
1,855 | 7.46 |
|
Datasheet |
ST | Bulk | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 1.2A, Series 600mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.30mm L x 33.30mm W | 33.30mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
ST-4-48PWR XFMR LAMINATED 6VA TH |
4,566 | 7.46 |
|
Datasheet |
ST | Bulk | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 250mA, Series 125mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.30mm L x 33.30mm W | 33.30mm | 2500Vrms | 0.44 lb (199.58 g) |
|
3FS-548PWR XFMR LAMINATED 12VA TH |
4,265 | 7.12 |
|
Datasheet |
3FS-5xx | Tube | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms | - |
|
|
3FS-556PWR XFMR LAMINATED 12VA TH |
2,628 | 7.12 |
|
Datasheet |
3FS-5xx | Tube | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 200mA, Series 100mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms | - |
|

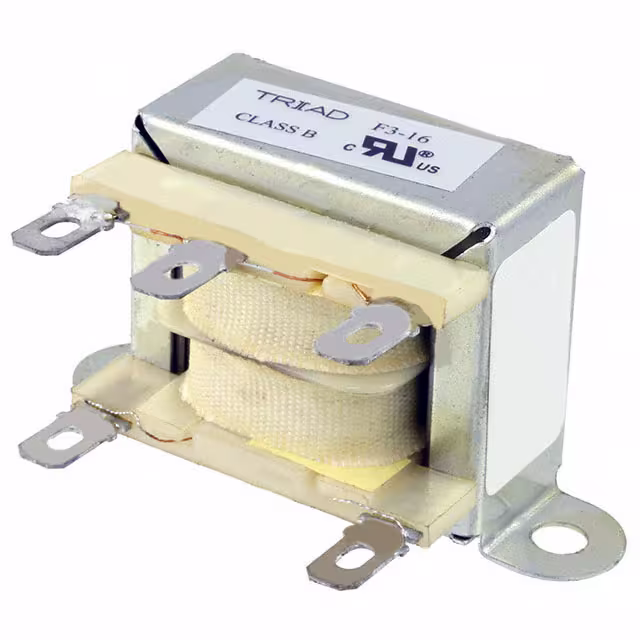

F3-16PWR XFMR LAMINATED 2.4VA CHAS MT |
3,347 | 8.57 |
|
Datasheet |
Quick Pack | Bulk | Active | Laminated Core | 115V | 16V | 150mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|

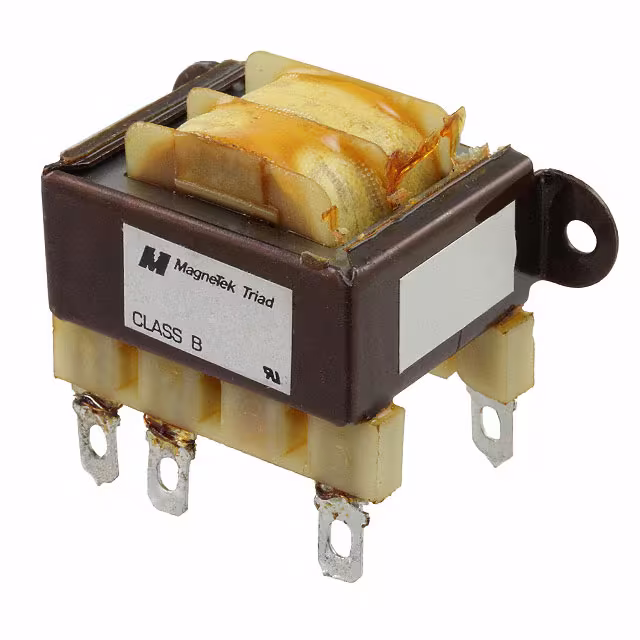

F3-20PWR XFMR LAMINATED 2.4VA CHAS MT |
3,852 | 8.57 |
|
Datasheet |
Quick Pack | Bulk | Active | Laminated Core | 115V | 20V | 112mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|
F3-28PWR XFMR LAMINATED 2.4VA CHAS MT |
4,218 | 8.57 |
|
Datasheet |
Quick Pack | Bulk | Active | Laminated Core | 115V | 28V | 85mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|
|
F3-48PWR XFMR LAMINATED 2.4VA CHAS MT |
4,533 | 8.57 |
|
Datasheet |
Quick Pack | Bulk | Active | Laminated Core | 115V | 48V | 50mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|
|
F3-56PWR XFMR LAMINATED 2.4VA CHAS MT |
1,014 | 8.57 |
|
Datasheet |
Quick Pack | Bulk | Active | Laminated Core | 115V | 56V | 20mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|
|
PL3445TPOWER |
2,471 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F-131PPWR XFMR LAMINATED 1.5VA TH |
4,314 | 8.66 |
|
Datasheet |
Single Primary | Box | Active | Laminated Core | 115V | Parallel 4V, Series 8V | Parallel 376mA, Series 188mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 39.67mm L x 35.31mm W | 30.15mm | 1500Vrms | 0.219 lb (99.34 g) |
