Power Transformers

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Voltage - Primary	Voltage - Secondary (Full Load)	Current - Output (Max)	Primary Winding(s)	Secondary Winding(s)	Center Tap	Power - Max	Mounting Type	Termination Style	Size / Dimension	Height - Seated (Max)	Voltage - Isolation	Weight

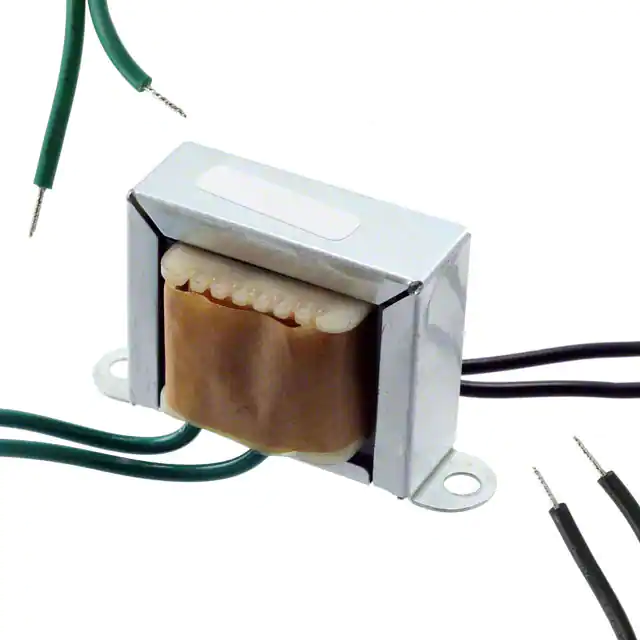

F-13X PWR XFMR LAMINATED 3.78VA CHAS Triad Magnetics	156	10.13	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	6.3V	680mA	Single	Single	No	3.78VA	Chassis Mount	Wire Leads	60.32mm L x 34.93mm W	34.93mm	1500Vrms	0.37 lb (167.83 g)
FS20-600 PWR XFMR LAMINATED 12VA TH Triad Magnetics	756	12.89	RFQ	Datasheet	Split Pack™	Box	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 1.2A, Series 600mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms	0.7 lb (317.51 g)
241-5-24 PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	170	14.44	RFQ	Datasheet	Two-4-One™	Box	Active	Laminated Core	115V	24V	500mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 36.30mm W	42.80mm	2500Vrms	0.7 lb (317.51 g)

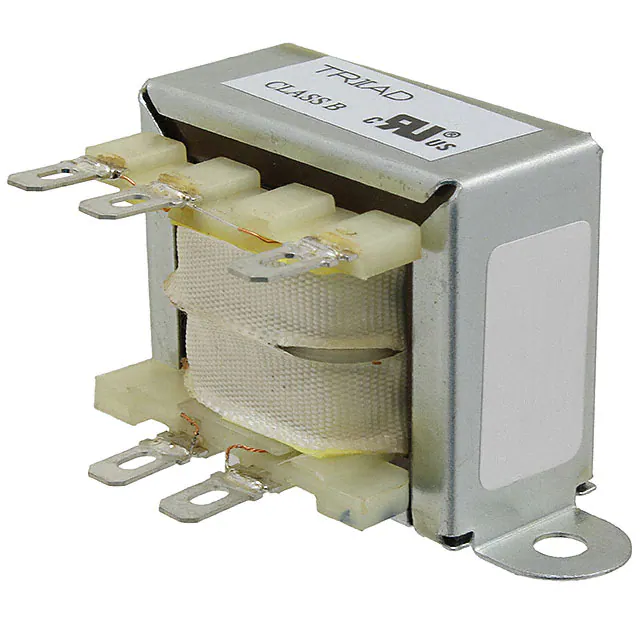

F4-24 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	132	10.59	RFQ	Datasheet	Quick Pack	Bulk	Active	Laminated Core	115V	24V	250mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC	0.44 lb (199.58 g)
FS10-250 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	1,409	10.66	RFQ	Datasheet	Split Pack™	Box	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	30.15mm	2500Vrms	0.25 lb (113.4 g)
FS20-120 PWR XFMR LAMINATED 2.4VA TH Triad Magnetics	129	10.66	RFQ	Datasheet	Split Pack™	Box	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 240mA, Series 120mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms	0.25 lb (113.4 g)

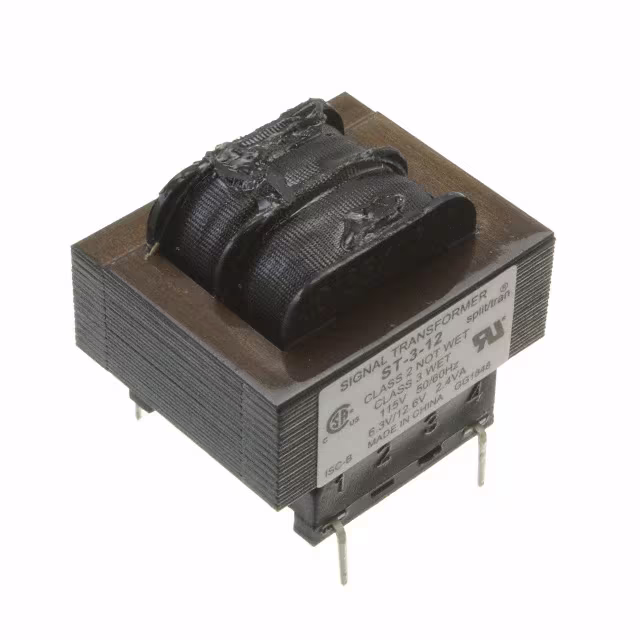

ST-3-12 PWR XFMR LAMINATED 2.4VA TH Signal Transformer	388	10.65	RFQ	Datasheet	ST	Box	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 400mA, Series 200mA	Single	Dual	No	2.4VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.80mm	2500Vrms	0.25 lb (113.4 g)
DST-4-12 PWR XFMR LAMINATED 6VA TH Signal Transformer	3,489	13.32	RFQ	Datasheet	DST	Box	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 1A, Series 500mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms	0.44 lb (199.58 g)
241-5-12 PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	362	13.49	RFQ	Datasheet	Two-4-One™	Box	Active	Laminated Core	115V	12.6V	1A	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 36.30mm W	42.80mm	2500Vrms	0.7 lb (317.51 g)
VPP10-1000 PWR XFMR LAMINATED 10VA TH Triad Magnetics	3,501	11.73	RFQ	Datasheet	PC Mount: World Series™	Box	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2A, Series 1A	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms	0.53 lb (240.4 g)
VPP36-280 PWR XFMR LAMINATED 10VA TH Triad Magnetics	423	11.73	RFQ	Datasheet	PC Mount: World Series™	Box	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 560mA, Series 280mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms	0.53 lb (240.4 g)
DP-241-4-24 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	769	14.53	RFQ	Datasheet	Two-4-One™	Box	Active	Laminated Core	115V, 230V	24V	250mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms	0.44 lb (199.58 g)

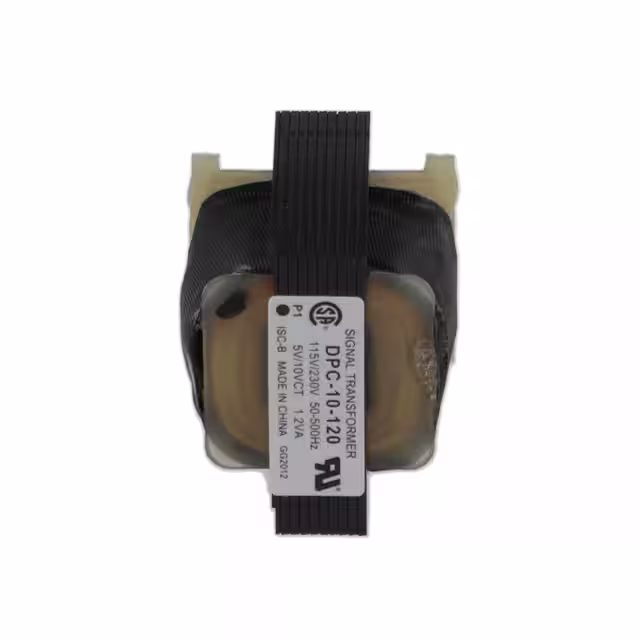

DPC-10-120 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	364	11.50	RFQ	Datasheet	DPC	Bulk	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 240mA, Series 120mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms	0.188 lb (85.28 g)

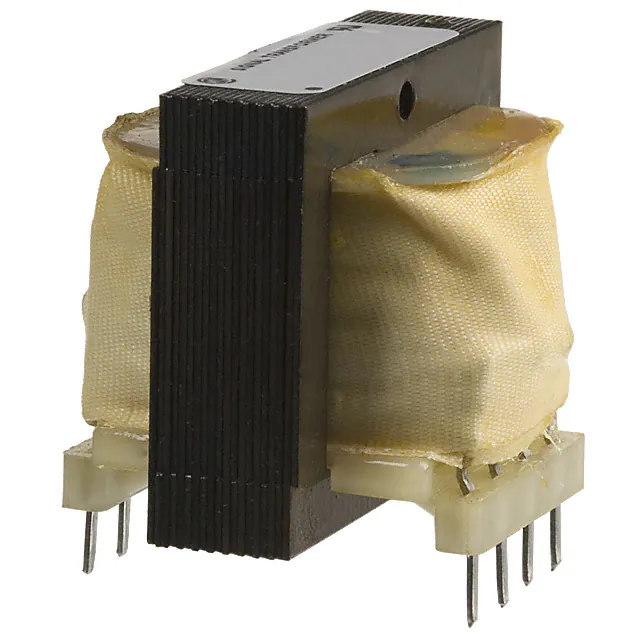

DPC-12-100 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	7,267	11.50	RFQ	Datasheet	DPC	Box	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 200mA, Series 100mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms	0.188 lb (85.28 g)
ST-4-36 PWR XFMR LAMINATED 6VA TH Signal Transformer	506	11.64	RFQ	Datasheet	ST	Box	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 340mA, Series 170mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms	0.44 lb (199.58 g)
ST-4-16 PWR XFMR LAMINATED 6VA TH Signal Transformer	227	11.64	RFQ	Datasheet	ST	Box	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 800mA, Series 400mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms	0.44 lb (199.58 g)
14A-2.5R-20 PWR XFMR LAMINATED 2.5VA TH Signal Transformer	3,683	11.70	RFQ	Datasheet	One-4-All™	Box	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 240mA, Series 120mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.30mm L x 36.50mm W	28.60mm	4000Vrms	0.25 lb (113.4 g)

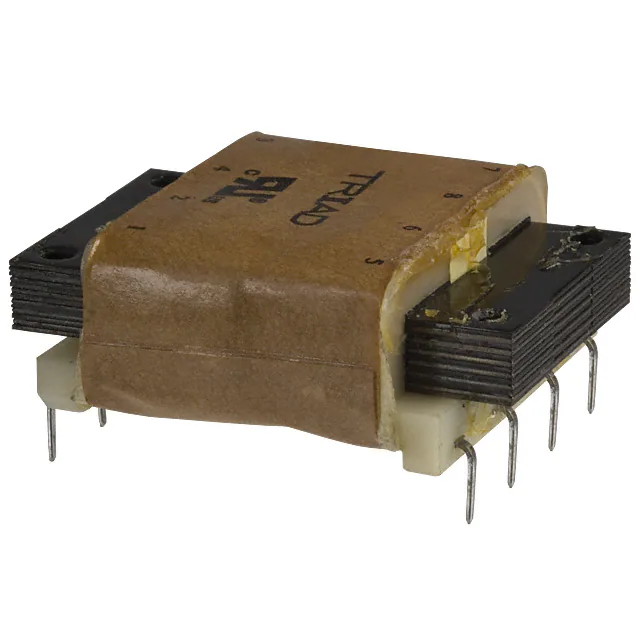

FP24-100 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	1,859	11.71	RFQ	Datasheet	Flat Pack™	Box	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 200mA, Series 100mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms	0.313 lb (141.97 g)
14A-2.5R-10 PWR XFMR LAMINATED 2.5VA TH Signal Transformer	1,109	11.70	RFQ	Datasheet	One-4-All™	Bulk	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.30mm L x 36.50mm W	28.60mm	4000Vrms	0.25 lb (113.4 g)
14A-2.5R-24 PWR XFMR LAMINATED 2.5VA TH Signal Transformer	148	11.70	RFQ	Datasheet	One-4-All™	Box	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 200mA, Series 100mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.30mm L x 36.50mm W	34.90mm	4000Vrms	0.25 lb (113.4 g)

Total 6862 Record«Prev 1... 5 6 7 8910 11 12...344 Next»
