Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4525DO-SS3BS015DPBoard Mount Pressure Sensors |
3,714 | 0.00 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
78151-00000080-01PRESSURE SWITCHES-TRANS PRESSURE |
2,357 | 31.09 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1210A-030A-3LSENSOR 30PSIA 0.13" 0.1V |
1,393 | 42.84 |
|
Datasheet |
- | 8-DIP Module | Tray | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | - | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
76054-B00000800-01SWITCH 90PSI SPST-NO 1/8"NPT |
2,895 | 28.96 |
|
- |
5000 | Cylinder, Threaded | Bulk | Obsolete | - | Switch | 51PSI ~ 90PSI (351.63kPa ~ 620.53kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
|
CPC150DFCSENSOR 0.16" .09V 4SIP |
1,298 | 32.22 |
|
Datasheet |
CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | - | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16" (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

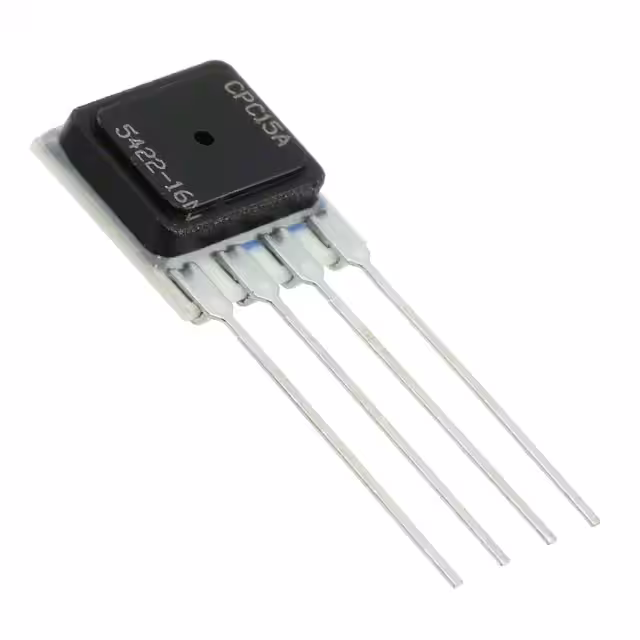

CPC15ACSENSOR 15PSIA .09V |
4,802 | 32.22 |
|
Datasheet |
CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | - | No Port | Temperature Compensated | - | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
HSCMNNN015PA2A5SENSOR 15PSIA 12BIT 8SMD |
3,164 | 43.05 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

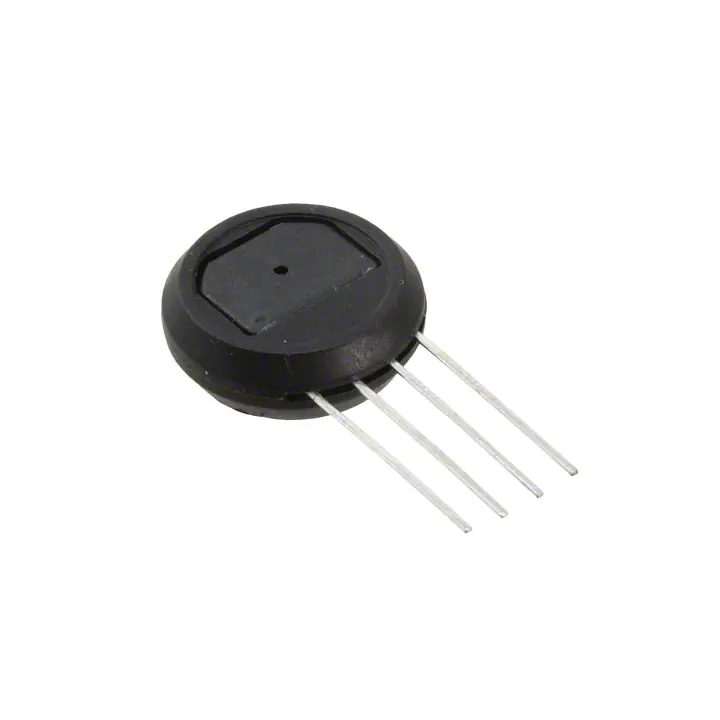

SSCSMNN010KGAF5SENSOR 1.45PSIG 4.7V 4SIP |
1,198 | 43.22 |
|
Datasheet |
TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSMNN030PGAA3SENSOR 30PSIG 2.97V 4SIP |
2,701 | 43.97 |
|
Datasheet |
TruStability® SSC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSANN001BAAA3SENSOR 14.5PSIA 0.19" 2.97V 4SIP |
3,119 | 32.66 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 14.5PSI (100kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSLNN100MG2A3SENSOR 1.45PSIG 0.1" 12BIT 4SIP |
4,188 | 32.66 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 1.45PSI (10kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCDRNN100PGAA5SENSOR 100PSIG 0.08" |
2,583 | 32.66 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Discontinued at Digi-Key | Board Mount | Gauge | 100PSI (689.48kPa) | Analog Voltage | - | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
HSCDLNN015PGSA3SENSOR 15PSIG 0.1" 12BIT 8DIP |
3,352 | 0.00 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

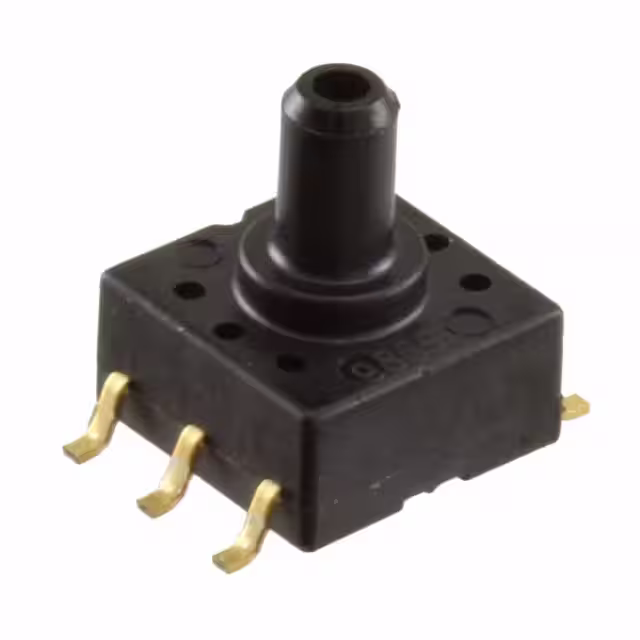

ADP4933SENSOR 142.24PSIG 0.1" .065V |
1,514 | 26.32 |
|
Datasheet |
PS | 6-SMD Module | Tray | Last Time Buy | Board Mount | Vented Gauge | 142.24PSI (980.7kPa) | Wheatstone Bridge | 0 mV ~ 65 mV | ±1% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | Gull Wing | 213.36PSI (1471.05kPa) | -20°C ~ 100°C | - | - | Surface Mount | - |
|
NPC-1210-100G-3-SSENSOR 100PSIG 0.13" 0.1V |
1,943 | 50.89 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
SSCMNNN001PG2A3SENSOR 1PSIG 12BIT 8SMT |
2,147 | 0.00 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 1PSI (6.89kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
SSCMNNN015PGSA3SENSOR 15PSIG 12BIT 8SMT |
4,010 | 33.60 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|

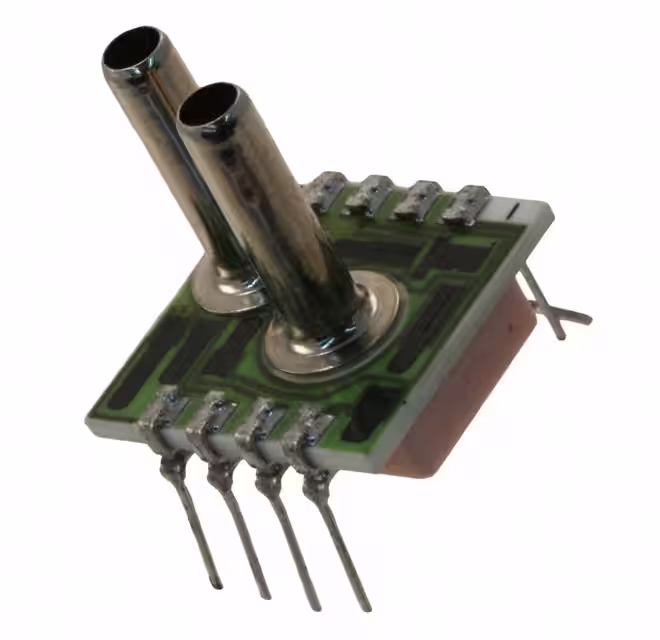

1230-030D-3LSENSOR 30PSID 0.13" 0.1V |
4,994 | 47.52 |
|
Datasheet |
1230 | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
AMS 6915-0100-D-B-H-3BOARD-MOUNT PRESSURE SENSOR, PRE |
100 | 0.00 |
|
Datasheet |
AMS 6915 | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tray | Active | Board Mount | Differential, Gauge | -1.45PSI ~ 1.45PSI (-10kPa ~ 10kPa) | I2C | 14 b | ±1% | 3.3V | Male - 0.09" (2.4mm) Tube, Dual | Barbed | Digital Output, Temperature Compensated | PC Pins | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
AMS 6915-0025-D-B-H-3BOARD-MOUNT PRESSURE SENSOR, PRE |
2,117 | 0.00 |
|
Datasheet |
AMS 6915 | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tray | Active | Board Mount | Differential, Gauge | ±0.36PSI (±2.5kPa) | I2C | 14 b | ±1% | 3.3V | Male - 0.09" (2.4mm) Tube, Dual | Barbed | Digital Output, Temperature Compensated | PC Pins | 7.5PSI (51.71kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
