Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLVR-L01D-E1NJ-C-NI3FSENSOR 0.04PSID 0.08" 14BIT 8SMD |
289 | 45.90 |
|
Datasheet |
DLVR | 8-SMD Module | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 14 b | ±1% | 3.3V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

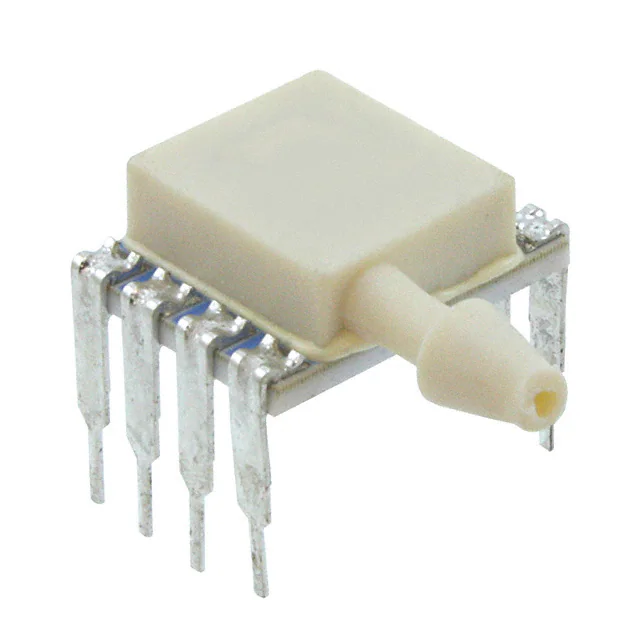

4525DO-SS5AI100GPSENSOR 100PSIG 0.14" 14BIT |
207 | 82.74 |
|
Datasheet |
MS4525DO | 8-DIP Module | Tray | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | I2C | 14 b | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube | Barbed | Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
SSCDANT030PG2A3SENSOR 30PSIG 0.19" 12BIT 8DIP |
333 | 67.65 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDANT150PGAA5SENSOR 150PSIG 0.19" 4.5V 8DIP |
104 | 46.22 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
24PCEFA6DSENSOR 0.5PSID 0.2" .035V |
149 | 42.19 |
|
Datasheet |
24PC | 4-SIP Module | Tray | Active | Board Mount | Differential | ±0.5PSI (±3.45kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube, Dual | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
HSCSANN015PAAA5SENSOR 15PSIA 0.19" 4.5V 4SIP |
116 | 62.60 |
|
Datasheet |
TruStability® HSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCDANT001PGSA3SENSOR 1PSIG 0.19" 12BIT 8DIP |
101 | 73.38 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

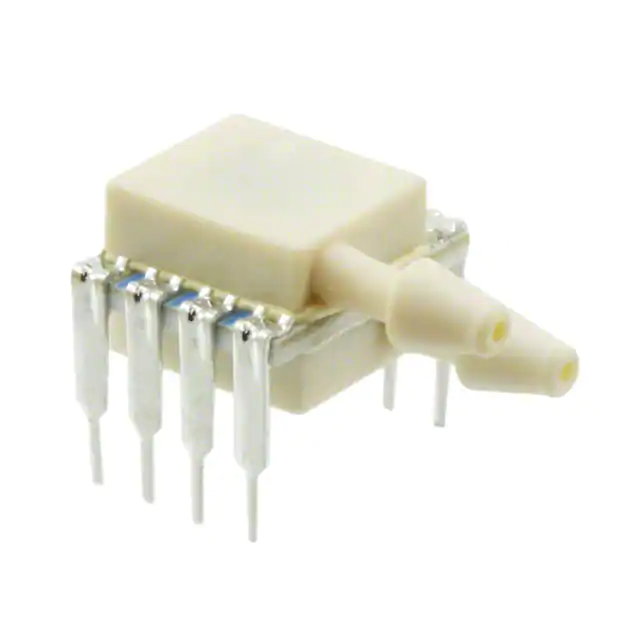

4515DO-DS3BK002DPLSENSOR 0.07PSID 0.14" 14BIT |
593 | 82.74 |
|
Datasheet |
- | 8-DIP Module | Tray | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | I2C | 14 b | ±0.25% | 3.3V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|
4525-SS5A030GPSENSOR 30PSIG 0.14" 4.5V |
555 | 75.97 |
|
Datasheet |
MS4525 | 8-DIP Module | Tray | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -25°C ~ 105°C | - | - | Through Hole | - |
|
SSCSNBN030PDAC5SENSOR 30PSID 0.19" 4.25V 4SIP |
327 | 64.37 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±120PSI (±827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
BPS130-HA300P-1SGSENSOR 300PSIA 0.122" 4.95V |
713 | 58.03 |
|
Datasheet |
BPS130 | - | Tape & Reel (TR) | Active | Board Mount | Absolute | 300PSI (2068.43kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | Solder Pad | 600PSI (4136.85kPa) | -40°C ~ 150°C | - | - | - | - |
|

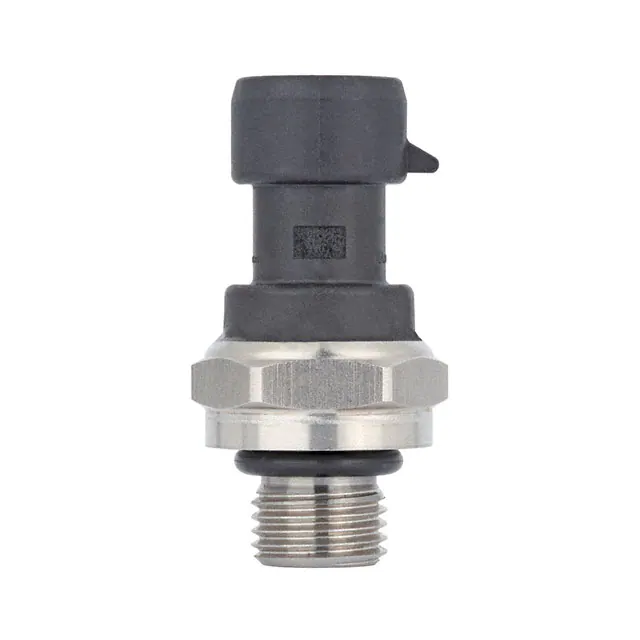

MIPAG1XX050BSAAXSENSOR 725.19PSIS 1/4" 4.5V |
4,760 | 57.36 |
|
Datasheet |
MIP | Cylinder, Threaded | Bulk | Active | - | Sealed Gauge | 725.19PSI (5000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.15% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) BSPP | Threaded | Temperature Compensated | Connector | 1740.45PSI (12000kPa) | -40°C ~ 125°C | - | - | - | - |
|

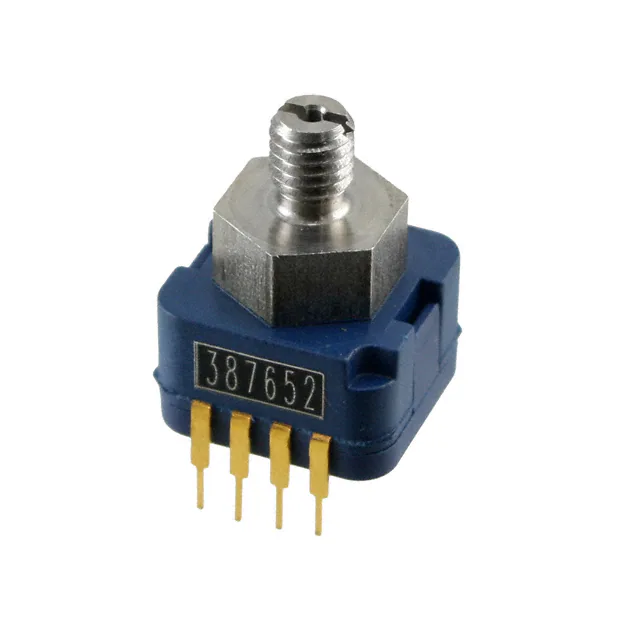

B58611K1500A016SENSOR 362.59PSIG M5 .12V |
3,287 | 65.75 |
|
Datasheet |
AK2 | 8-DIP Module | Tray | Active | Board Mount | Vented Gauge | 362.59PSI (2500kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 10V | Male - M5 | Threaded | - | PC Pin | 543.89PSI (3750kPa) | -30°C ~ 85°C | - | - | Through Hole | - |
|

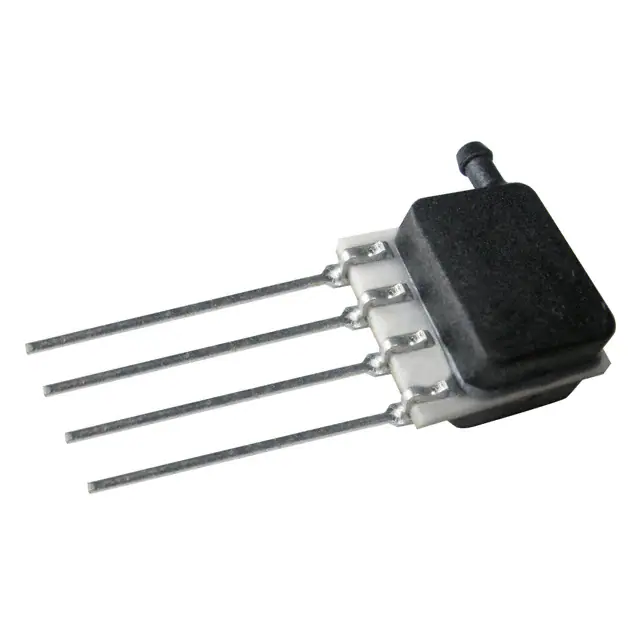

SSCSRNN1.6BA7A3SENSOR 23.21PSIA 0.08" 12BIT SIP |
1,410 | 61.61 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Tube | Active | Board Mount | Absolute | 23.21PSI (160kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.92mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
26PCFFG5GSENSOR 100PSIC 0.14" 0.1V 4SIP |
139 | 72.51 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 0.14" (3.56mm) Tube | Barbed | Temperature Compensated | - | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCMRNN015PAAA5SENSOR 15PSIA 0.08" 4.5V 8SMD |
304 | 64.11 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Side Port | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCDRRN002NDAA3SENSOR 0.07PSID 0.08" 2.97V 8DIP |
2,397 | 109.01 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±0.07PSI (±0.5kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.27kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

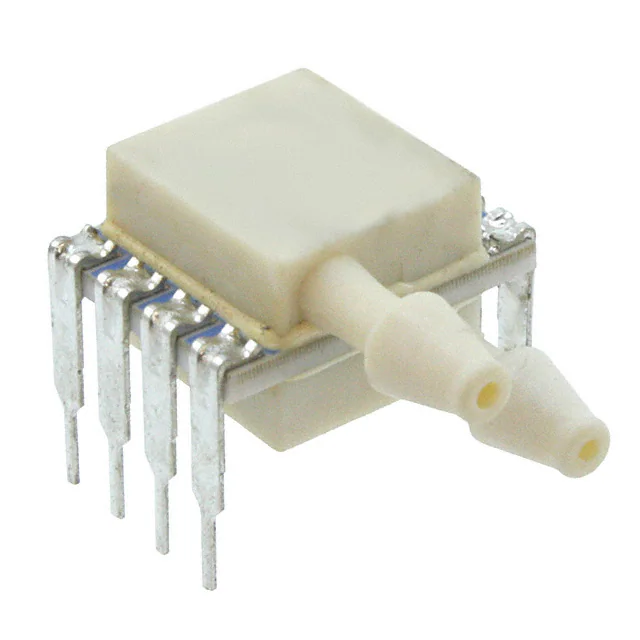

4515-DS5B002DPSENSOR 0.07PSID 0.14" 4.75V |
1,134 | 82.74 |
|
Datasheet |
- | 8-DIP Module | Tray | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|
|
HSCDRRN010MD2A3SENSOR 0.15PSID 0.08" 12BIT 8DIP |
3,626 | 109.01 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±0.15PSI (±1kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.88PSI (±75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN010NDAA3SENSOR 0.36PSID 0.08" 2.97V 8DIP |
301 | 93.32 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.65PSI (±87.21kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
