Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
982127-1PRESS SENSOR SWITCH |
4,315 | 14.00 |
|
- |
- | - | Bulk | Active | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABPLLND600MG0S3SENSOR 8.7PSIG 0.11" 12BIT 6SMD |
1,784 | 0.00 |
|
Datasheet |
ABP | 6-SMD Module, No Lead | Bulk | Obsolete | Medical Ventilation | Gauge | 8.7PSI (60kPa) | I2C | 12 b | ±0.25% | 3.3V | Male - 0.11" (2.67mm) Tube | Barbless | Amplified Output, Temperature Compensated | - | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|

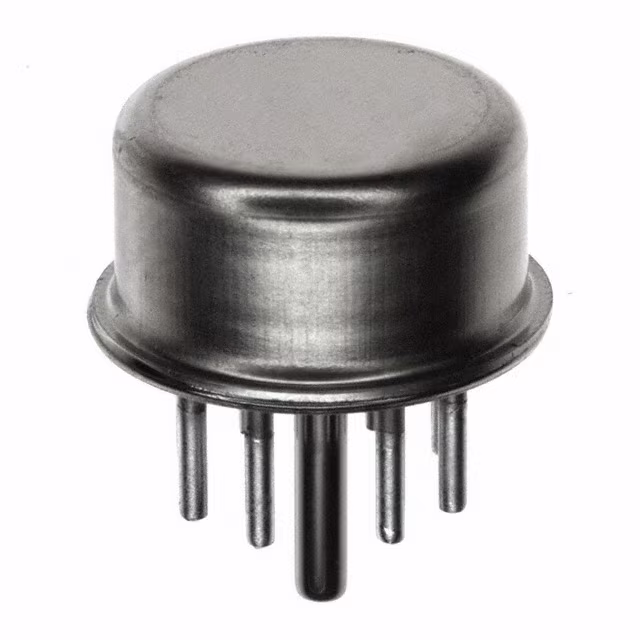

BMD040-3MPSENS 435.11PSIA .059" .0005A TO8 |
2,973 | 0.00 |
|
Datasheet |
- | TO-233AA, TO-8-3 Metal Can | Tray | Obsolete | Board Mount | Absolute | 7.25PSI ~ 435.11PSI (50kPa ~ 3000kPa) | Analog Current | -1 mA ~ 0.5 mA | ±2% | 4.75V ~ 5.25V | Male - 0.059" (1.5mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 652.67PSI (4500kPa) | -30°C ~ 100°C | - | - | Through Hole | TO-8 |
|

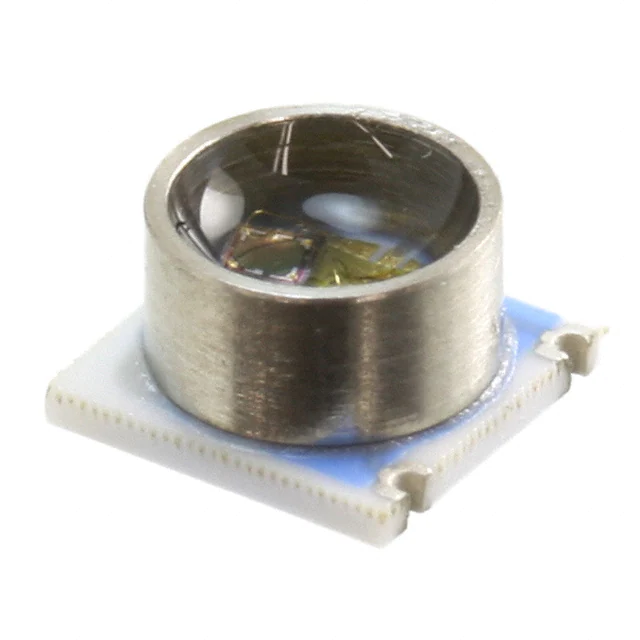

B58620S3300B360SENSOR 17.4PSIA 0.15" 4.5V |
4,514 | 0.00 |
|
Datasheet |
ASB | 4-SMD Module | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 2.9PSI ~ 17.4PSI (20kPa ~ 120kPa) | Analog Voltage | 0.5V ~ 4.5V | ±3% | 2.7V ~ 5.5V | Male - 0.15" (3.8mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 5.8PSI ~ 34.81PSI (40kPa ~ 240kPa) | -45°C ~ 85°C | - | - | Surface Mount | - |
|
MPX10GSSENSOR 1.45PSIG 0.19" .035V |
4,654 | 0.00 |
|
Datasheet |
MPX10 | 4-SIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (3V) | - | 3V ~ 6V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
NBPLPNN001PGUNVSENSOR 1PSIG .0325V |
4,727 | 8.56 |
|
Datasheet |
NBP | 6-SMD, No Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 32.5 mV (5V) | ±0.25% | 1.8V ~ 12V | - | No Port | - | SMD (SMT) Tab | 10PSI (68.95kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
TSCDANN030PGUCVSENSOR 30PSIG 0.19" .02625V 8DIP |
4,673 | 39.48 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 115PSI (792.9kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
TSCDANN060PGUCVSENSOR 60PSIG 0.19" .03V 8DIP |
4,185 | 39.48 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 145PSI (999.74kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
4059SENSOR 15.95PSIA 16BIT |
1,908 | 0.00 |
|
Datasheet |
- | - | Bulk | Obsolete | Board Mount | Absolute | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) | I2C, SPI | 16b | ±0.015PSI (±0.1kPa) | 1.71V ~ 3.6V | - | No Port | Standby Mode | - | 290.08PSI (2000kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
MLX90824GXP-DAC-300-RE0.1 TO 1.15BAR ABSOLUTE PRESSURE |
3,984 | 0.00 |
|
Datasheet |
- | 4-SIP Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 1.45PSI ~ 16.68PSI (10kPa ~ 115kPa) | SENT | - | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 145PSI (999.74kPa) | -40°C ~ 160°C | Automotive | AEC-Q100 | Through Hole | SMP-4 |
|
|
MLX90822GXP-BAA-304-RE0.1 TO 1.15BAR ABSOLUTE PRESSURE |
1,198 | 0.00 |
|
Datasheet |
- | 4-SIP Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 1.45PSI ~ 16.68PSI (10kPa ~ 115kPa) | Analog Voltage | 0.4 V ~ 4.65 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 145PSI (999.74kPa) | -40°C ~ 160°C | Automotive | AEC-Q100 | Through Hole | SMP-4 |
|
|
MLX90822GXP-BAB-301-RE0.1 TO?3BAR?ABSOLUTE PRESSURE / |
1,040 | 0.00 |
|
Datasheet |
- | 4-SIP Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 1.45PSI ~ 43.51PSI (10kPa ~ 300kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 145PSI (999.74kPa) | -40°C ~ 160°C | Automotive | AEC-Q100 | Through Hole | SMP-4 |
|
|
MLX90824GXP-DAD-302-RE0.1 TO?4BAR?ABSOLUTE PRESSURE / |
4,603 | 0.00 |
|
Datasheet |
- | 4-SIP Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 1.45PSI ~ 58.02PSI (10kPa ~ 400kPa) | SENT | - | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 145PSI (999.74kPa) | -40°C ~ 160°C | Automotive | AEC-Q100 | Through Hole | SMP-4 |
|
|
MLX90822GXP-BAA-300-RE0.1 TO 1.15BAR ABSOLUTE PRESSURE |
2,896 | 0.00 |
|
Datasheet |
- | 4-SIP Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 1.45PSI ~ 16.68PSI (10kPa ~ 115kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 145PSI (999.74kPa) | -40°C ~ 160°C | Automotive | AEC-Q100 | Through Hole | SMP-4 |
|
|
MLX90824GXP-DAD-301-RE0.1 TO?3BAR?ABSOLUTE PRESSURE / |
3,671 | 0.00 |
|
Datasheet |
- | 4-SIP Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 1.45PSI ~ 43.51PSI (10kPa ~ 300kPa) | SENT | - | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 145PSI (999.74kPa) | -40°C ~ 160°C | Automotive | AEC-Q100 | Through Hole | SMP-4 |
|
|
MLX90822GXP-BAB-302-RE0.1 TO?4BAR?ABSOLUTE PRESSURE / |
4,666 | 0.00 |
|
Datasheet |
- | 4-SIP Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 1.45PSI ~ 58.02PSI (10kPa ~ 400kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 145PSI (999.74kPa) | -40°C ~ 160°C | Automotive | AEC-Q100 | Through Hole | SMP-4 |
|
BPS340-HA500P-4LSENSOR 500PSIA 0.059" .175V 4SMD |
3,320 | 13.04 |
|
Datasheet |
BPS340 | 4-SMD Module | Tray | Active | - | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0 mV ~ 175 mV (5V) | ±0.2% | 1.5V ~ 15V | Male - 0.059" (1.5mm) Tube | Barbless | - | SMD (SMT) Tab | 1000PSI (6894.76kPa) | -40°C ~ 85°C | - | - | Surface Mount | 4-SMD |
|
|
BPS340-HG100P-4LSENSOR 100PSIG 0.059" .15V 4SMD |
1,601 | 13.04 |
|
Datasheet |
BPS340 | 4-SMD Module | Tray | Active | Board Mount | Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.2% | 1.5V ~ 15V | Male - 0.059" (1.5mm) Tube | Barbless | - | SMD (SMT) Tab | 200PSI (1378.95kPa) | -40°C ~ 85°C | - | - | Surface Mount | 4-SMD |
|
MPXV2102DPSENSOR 14.5PSID 0.19" .04V 8SOP |
1,047 | 0.00 |
|
Datasheet |
MPXV2102 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Obsolete | Board Mount | Differential | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPXV6115V6T1SENSOR 16.68PSI 4.6V 8SOP |
3,432 | 1.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Board Mount | Vacuum | -16.68PSI (-115kPa) | Analog Voltage | 0.2 V ~ 4.6 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | - | -58.02PSI (-400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
