Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS781-07G0L10~200KPA, GAUGE, COMPENSATED, 19 |
1,877 | 0.00 |
|
- |
PS781 | Cylinder | Bag | Active | Industrial Automation | Gauge | 29.01PSI (200kPa) | Analog Voltage | - | - | 10V | - | No Port | Temperature Compensated | PC Pin | 43.51PSI (300kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
PS781-10G0L10~1000KPA, GAUGE, COMPENSATED, 1 |
1,459 | 0.00 |
|
- |
PS781 | Cylinder | Bag | Active | Industrial Automation | Gauge | 145.04PSI (1000kPa) | Analog Voltage | - | - | 10V | - | No Port | Temperature Compensated | PC Pin | 217.56PSI (1500kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

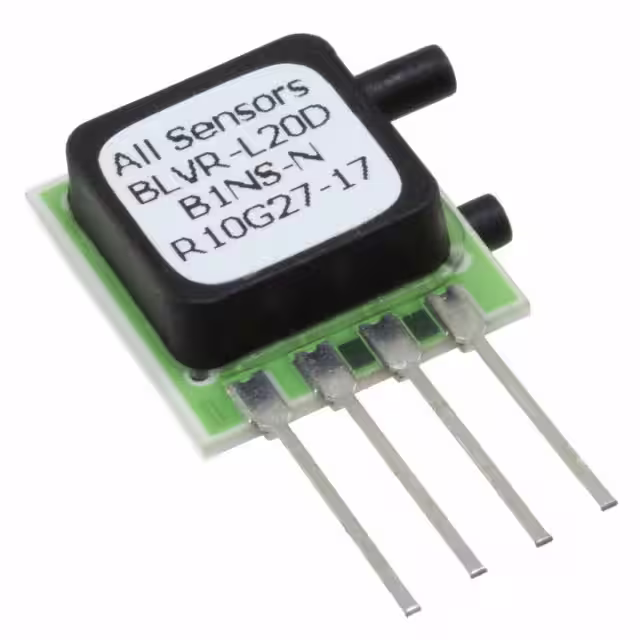

BLVR-L20D-B1NS-NSENSOR 0.72PSID 0.08" .038V 4SIP |
4,664 | 24.51 |
|
Datasheet |
BLVR | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.72PSI (±4.96kPa) | Wheatstone Bridge | 0 mV ~ 38 mV (3.3V) | ±2% | 6V | Male - 0.08" (2.04mm) Tube, Dual | Barbless | - | PC Pin | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
BLVR-L30D-B1NS-NSENSOR 1.08PSID 0.08" .042V 4SIP |
1,945 | 24.51 |
|
Datasheet |
BLVR | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1.08PSI (±7.48kPa) | Wheatstone Bridge | 0 mV ~ 42 mV (3.3V) | ±2% | 6V | Male - 0.08" (2.04mm) Tube, Dual | Barbless | - | PC Pin | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCMLNN030PASA3SENSOR 30PSIA 0.1" 12BIT 8SMT |
2,733 | 33.60 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Discontinued at Digi-Key | Board Mount | Absolute | 30PSI (206.84kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|

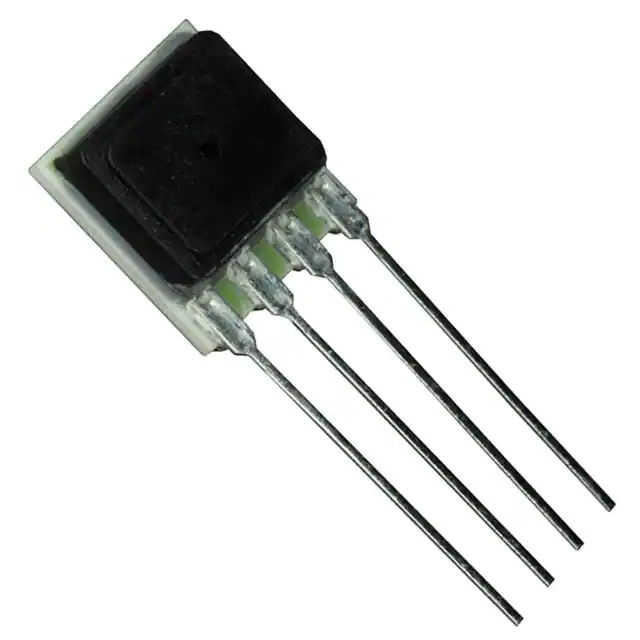

CPX100GSENSOR 100PSIG .295V |
2,831 | 0.00 |
|
Datasheet |
CPX | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 295 mV (5V) | ±2% | 3V ~ 12V | - | No Port | - | PC Pin | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
SDP31-500PA-TR-250PCSSENSOR 0.07PSID 0.08" 16BIT 1SMD |
4,954 | 33.88 |
|
Datasheet |
SDP3x | 16-SMD Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | I2C | 16 b | ±3% | 3.3V | Male - 0.08" (2.00mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 14.5PSI (100kPa) | -40°C ~ 85°C | - | - | Surface Mount | 16-SMD |
|
|
LER00400TBPNKAAA15SENSOR 40PSIG SPST-NO 1/8"NPT |
3,280 | 0.00 |
|
Datasheet |
LE | Cylinder, Threaded | Bulk | Obsolete | - | Gauge | 40PSI (275.79kPa) | SPST-NO | - | - | 28V | Male - 1/8" (3.18mm) NPT | Threaded | - | Quick Connect - 0.250" (6.3mm) | 500PSI (3447.38kPa) | -40°C ~ 120°C | - | - | - | - |
|
|
HV210-SM02-TSENSOR 0.36PSID 0.08" 16BIT |
4,538 | 39.38 |
|
Datasheet |
HV | 11-SMD, No Lead, Top Port | Tray | Active | Board Mount | Differential | ±0.004PSI ~ ±0.36PSI (±0.02kPa ~ ±2.5kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±1.45PSI (±9.97kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
ELVH-150A-HAND-I-NAB5SENSOR 149.97PSIA 0.19" |
3,852 | 46.20 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Absolute | 150PSI (1034.21kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 250.05PSI (1724kPa) | -20°C ~ 85°C | - | - | Through Hole | - |
|
|
26PCAFM6GSENSOR 1PSIC 1/4" .0167V |
4,647 | 0.00 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 1/4" (6.35mm) UNF | Threaded | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
26PCFFM6DSENSOR 100PSID 1/4" 0.1V |
2,677 | 0.00 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 1/4" (6.35mm) UNF | Threaded | Temperature Compensated | - | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
NPC-1210-001D-3-BSENSOR PRESSURE GAUGE |
2,445 | 0.00 |
|
- |
NPC-1210 | 8-DIP (0.600", 15.24mm), Top Port | Tray | Active | Board Mount | Differential | 1PSI (6.89kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbed | Temperature Compensated | PC Pins | 3PSI (20.68kPa) | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|
|
NPC-1210-015D-3-BSENSOR PRESSURE GAUGE |
3,194 | 0.00 |
|
- |
NPC-1210 | 8-DIP (0.600", 15.24mm), Top Port | Tray | Active | Board Mount | Differential | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbed | Temperature Compensated | PC Pins | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|
|
NPC-1210-100D-3-BSENSOR PRESSURE GAUGE |
3,636 | 0.00 |
|
- |
NPC-1210 | 8-DIP (0.600", 15.24mm), Top Port | Tray | Active | Board Mount | Differential | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbed | Temperature Compensated | PC Pins | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|
NPC-1210-005G-1-LSENSOR 5PSIG 0.13" 0.1V |
3,597 | 0.00 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-015G-1-LSENSOR 15PSIG 0.13" 0.1V |
2,077 | 0.00 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-030G-1-LSENSOR 30PSIG 0.13" 0.1V |
2,598 | 0.00 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-050G-1-LSENSOR 50PSIG 0.13" 0.1V |
1,756 | 0.00 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
NPC-1210-100G-1-LSENSOR 100PSIG 0.13" 0.1V |
3,988 | 0.00 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
