Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPC-1210-001G-3-NSENSOR 1PSIG 0.13" .075V |
2,690 | 0.00 |
|
Datasheet |
NPC-1210 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 75 mV | ±0.5% | - | Male - 0.13" (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
TSCSMNN250MDUCVTRUSTABILITY |
2,908 | 0.00 |
|
- |
TruStability® TSC | 4-SIP Module | Bulk | Active | Board Mount | Absolute | ±0.04PSI (±0.25kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.15% | 1.5V ~ 12V | - | Barbed | Temperature Compensated | PC Pins | 20.02PSI (138kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
B58610T4600A001SENSOR 23.21PSIA M5 .112V TO39 |
1,470 | 50.82 |
|
Datasheet |
AT2 | TO-205AD, TO-39-3 Metal Can | Tray | Active | Board Mount | Absolute | 23.21PSI (160kPa) | Wheatstone Bridge | 0 mV ~ 112 mV (5V) | ±2% | 10V | Male - M5 | Threaded | - | PC Pin | 58.02PSI (400kPa) | -30°C ~ 85°C | - | - | Through Hole | TO-39 |
|
SP210-SM02-CSENSOR 0.36PSID 0.08" 16BIT |
1,626 | 46.50 |
|
Datasheet |
SP | 11-SMD, No Lead, Top Port | Strip | Active | Board Mount | Differential | ±0.04PSI ~ ±0.36PSI (±0.25kPa ~ ±2.5kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±1.45PSI (±9.97kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
|
DLH-L10G-E1BD-C-NAV8SENSOR 0.36PSID 0.09" 16BIT 8DIP |
2,721 | 36.27 |
|
- |
DLH | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | ±0.36PSI (±2.5kPa) | I2C, SPI | 16b | ±1.5% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLH-L05G-E1BD-C-NAV8SENSOR 0.18PSID 0.09" 16BIT 8DIP |
3,726 | 36.27 |
|
- |
DLH | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | 0.18PSI (1.25kPa) | I2C, SPI | 16b | ±1.5% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
DLH-L30G-E1BD-C-NAV8SENSOR 1.08PSID 0.09" 16BIT 8DIP |
1,469 | 36.27 |
|
- |
DLH | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | 1.08PSI (7.48kPa) | I2C, SPI | 16b | ±1.5% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCMANT015PGSA5SENSOR 15PSIG 0.19" 12BIT 8SMD |
3,167 | 0.00 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

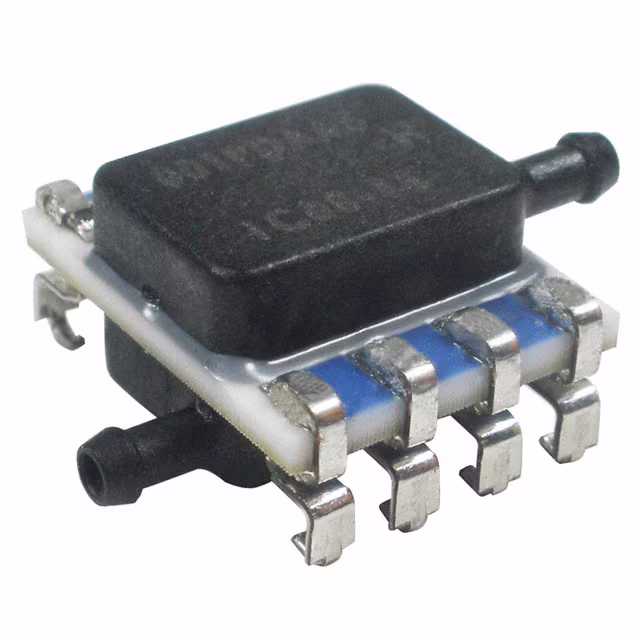

HSCMDRT060MDSA3SENSOR 0.87PSID 0.19" 12BIT 8SMD |
2,427 | 0.00 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±0.87PSI (±6kPa) | SPI | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±12.33PSI (±85kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMDRT100PGAA3SENSOR 100PSIG 0.19" 2.97V 8SMD |
1,636 | 0.00 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMRRT100PGSA3SENSOR 100PSIG 0.08" 12BIT 8SMD |
3,901 | 0.00 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
CPC15GFHSENSOR 15PSIA 0.15" .09V |
1,598 | 0.00 |
|
Datasheet |
CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | - | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
CPC60AHSENSOR 60PSIA .09V |
3,286 | 0.00 |
|
Datasheet |
CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 60PSI (413.69kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | - | No Port | Temperature Compensated | - | 180PSI (1241.06kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
HSCSAAD020ND2A3SENSOR 0.72PSID 0.19" 12BIT 4SIP |
2,637 | 0.00 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±0.72PSI (±4.96kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.65PSI (±87.21kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCDRRN010ND7A3SENSOR 0.36PSID 0.08" 12BIT 8DIP |
2,327 | 0.00 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.36PSI (±2.49kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.65PSI (±87.21kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCDRNN025MGAA5SENSOR 0.36PSIG 0.08" 4.5V 8DIP |
2,726 | 0.00 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10.88PSI (75kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
120 CMH2O-D1-4V-MINISENSOR 1.71PSID 0.08" 4.5V |
1,648 | 42.00 |
|
Datasheet |
MAMP | 4-SIP Module | Tube | Active | Board Mount | Differential | -0.14PSI ~ 1.71PSI (-0.98kPa ~ 11.77kPa) | Analog Voltage | 0.28 V ~ 4.5 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.08" (2.00mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 4.27PSI (29.42kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
1 PSI-G-CGRADE-MINISENSOR 1PSIG .018V |
3,063 | 42.00 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 16V | - | No Port | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
1 PSI-GF-CGRADE-MINISENSOR 1PSIG 0.18" .018V |
1,370 | 42.00 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
5 PSI-G-CGRADE-MINISENSOR 5PSIG .06V |
4,662 | 42.00 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±1% | 16V | - | No Port | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
