Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELVH-B005G-HKNJ-C-N2A4SENSOR 72.52PSIG 0.11" 14BIT |
2,134 | 39.74 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Top Port | Tray | Active | - | Gauge | 72.52PSI (500kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.11" (2.8mm) Tube | Needle | Temperature Compensated | J Lead | 116.03PSI (800kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
ELVH-015D-HRNJ-C-NSA4SENSOR 14.94PSID 0.06" 14BIT |
3,115 | 39.81 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Side Port | Tray | Active | - | Differential | -1.45PSI ~ 14.94PSI (-10kPa ~ 103kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | J Lead | 30.02PSI (207kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
ELVH-100G-HRND-C-NSA5SENSOR 100.08PSIG 0.06" 14BIT |
4,629 | 40.50 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Gauge | 100PSI (689.48kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | PC Pin | 200PSI (1379kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
ELVH-015A-HRND-C-NSA4SENSOR 14.94PSIA 0.06" 14BIT |
3,664 | 40.50 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Absolute | 15PSI (103.42kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
|
ELVH-015A-HRND-C-NSA5SENSOR 14.94PSIA 0.06" 14BIT |
2,929 | 40.50 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Absolute | 15PSI (103.42kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
ELVH-060G-HAND-C-NSA4SENSOR 60.05PSIG 0.19" 14BIT |
3,661 | 40.51 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | - | Gauge | 60PSI (413.69kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 119.95PSI (827kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|

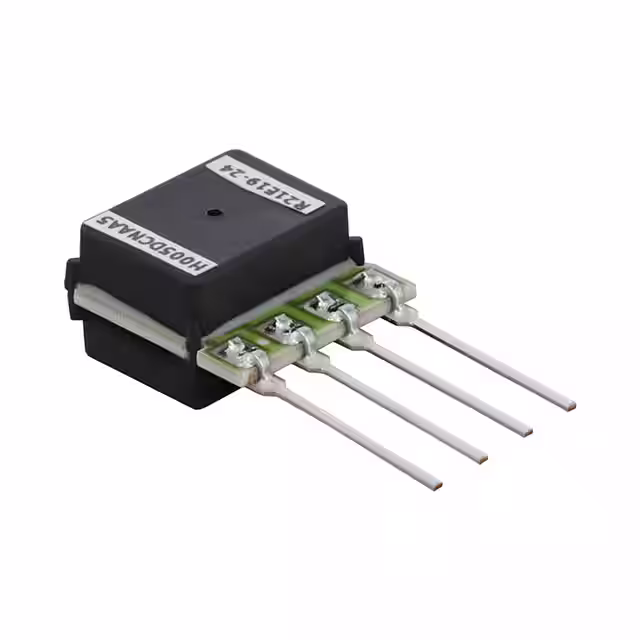

ELVH-005D-HNNH-C-NAA5SENSOR 4.93PSID |
1,372 | 40.88 |
|
Datasheet |
ELV | 4-SIP | Tray | Active | - | Differential | -0.44PSI ~ 4.93PSI (-3kPa ~ 34kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | - | No Port | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
SSCDRRN100PGAB5SENSOR 100PSIG 0.08" 4.75V 8DIP |
1,652 | 56.03 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NPA-730B-015GSENSOR 15PSIG 0.12" 14BIT 14SOIC |
4,673 | 38.26 |
|
Datasheet |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
ELVH-M160G-HKNJ-C-N5A4SENSOR 2.32PSIG 0.11" 14BIT |
1,983 | 42.06 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Top Port | Tray | Active | - | Gauge | 2.32PSI (16kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.11" (2.8mm) Tube | Needle | Temperature Compensated | J Lead | - | 0°C ~ 50°C | - | - | Surface Mount | - |
|

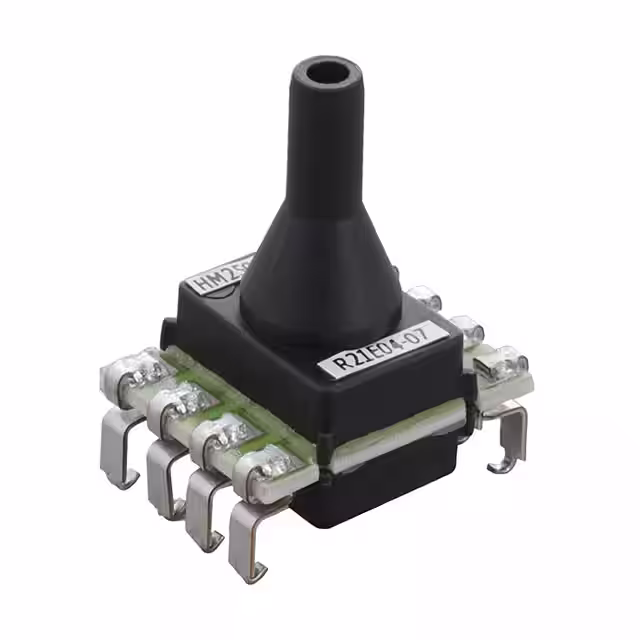

ELVH-M250G-HKNJ-C-N6A4SENSOR 3.63PSIG 0.11" 14BIT |
2,284 | 42.06 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Top Port | Tray | Active | - | Gauge | 3.63PSI (25kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.11" (2.8mm) Tube | Needle | Temperature Compensated | J Lead | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|

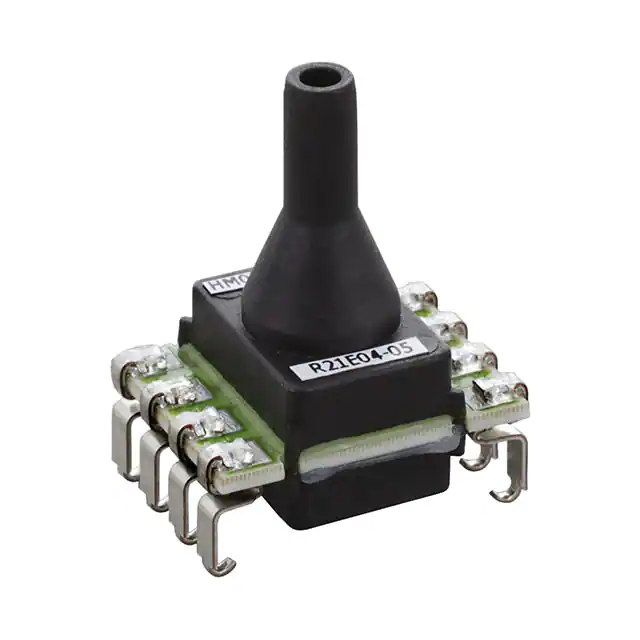

ELVH-M050D-HKNJ-C-N6A4SENSOR 0.73PSID 0.11" 14BIT |
1,947 | 42.06 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Top Port | Tray | Active | - | Differential | -0.73PSI ~ 0.73PSI (-5kPa ~ 5kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.11" (2.8mm) Tube | Needle | Temperature Compensated | J Lead | 12.33PSI (85kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
SSCMANN015PAAA5SENSOR 15PSIA 0.19" 4.5V 8SMT |
2,801 | 53.85 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
BPS120-AG0P15-2DGSENSOR 0.15PSIG 0.087" 13BIT SMD |
2,944 | 39.17 |
|
Datasheet |
BPS120 | 8-SMD, J-Lead, Dual Ports, Same Side | Tape & Reel (TR) | Active | Board Mount | Gauge | 0.15PSI (1kPa) | Digital - I2C | 13 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.087" (2.2mm) Tube, Dual | Barbed | - | J Lead | 0.75PSI (5.17kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
ELVH-M025D-HRRJ-C-N5A4SENSOR 0.36PSID 0.06" 14BIT |
1,009 | 42.51 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.29PSI ~ 0.36PSI (-2kPa ~ 2.5kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 12.33PSI (85kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
|
ELVH-L05D-HRRJ-C-N2A4SENSOR 0.17PSID 0.06" 14BIT |
4,948 | 42.51 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.15PSI ~ 0.17PSI (-1kPa ~ 1.2kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 10.88PSI (75kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
|
ELVH-005G-HAND-C-P2A4SENSOR 4.93PSIG 0.19" 14BIT |
1,182 | 42.69 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | - | Gauge | 5PSI (34.47kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
|
ELVH-005D-HRND-C-PSA5SENSOR 4.93PSID 0.06" 14BIT |
1,169 | 42.77 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Side Port | Tray | Active | - | Differential | -0.44PSI ~ 4.93PSI (-3kPa ~ 34kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube | Barbed | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
|
DLC-L10G-U2SENSOR 0.36PSIG 0.12" 16BIT |
4,675 | 35.73 |
|
Datasheet |
DLC | 6-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Gauge | ±0.36PSI (±2.5kPa) | I2C | 16 b | ±1.25% | 1.8V ~ 3.6V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 7.25PSI (50kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
ELVH-150G-HAND-C-PSA4SENSOR 149.97PSIG 0.19" 14BIT |
3,353 | 43.43 |
|
Datasheet |
ELV | 8-DIP (0.524", 13.30mm), Top Port | Tray | Active | - | Gauge | 150PSI (1034.21kPa) | SPI | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 250.05PSI (1724kPa) | 0°C ~ 50°C | - | - | Through Hole | - |
