Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

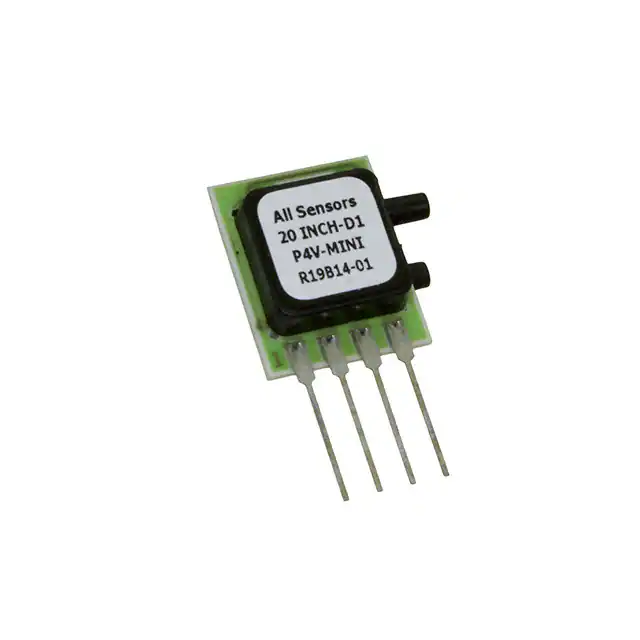

20 INCH-D1-P4V-MINISENSOR 0.72PSID 0.08" 4.25V |
4,593 | 52.70 |
|
Datasheet |
MAMP | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±0.72PSI (±4.96kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|

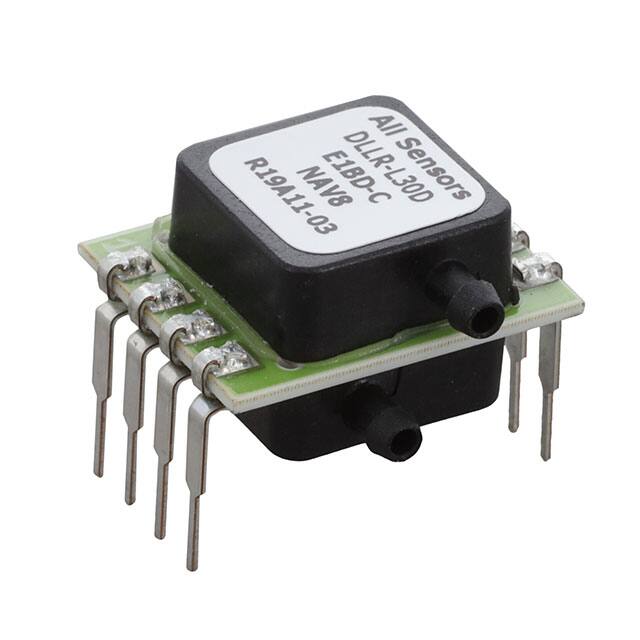

DLLR-L30D-E1BD-C-NAV7SENSOR 1.08PSID 0.09" 17BIT 8DIP |
4,166 | 68.06 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential | ±1.08PSI (±7.47kPa) | I2C, SPI | 17b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLLR-L30G-E1BD-C-NAV6SENSOR 1.08PSID 0.09" 16BIT 8DIP |
3,089 | 69.08 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential/Vented Gauge | 1.08PSI (7.48kPa) | I2C, SPI | 16b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
DLLR-L30G-E1BD-C-NAV8SENSOR 1.08PSID 0.09" 18BIT 8DIP |
4,360 | 69.08 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential/Vented Gauge | 1.08PSI (7.48kPa) | I2C, SPI | 18b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

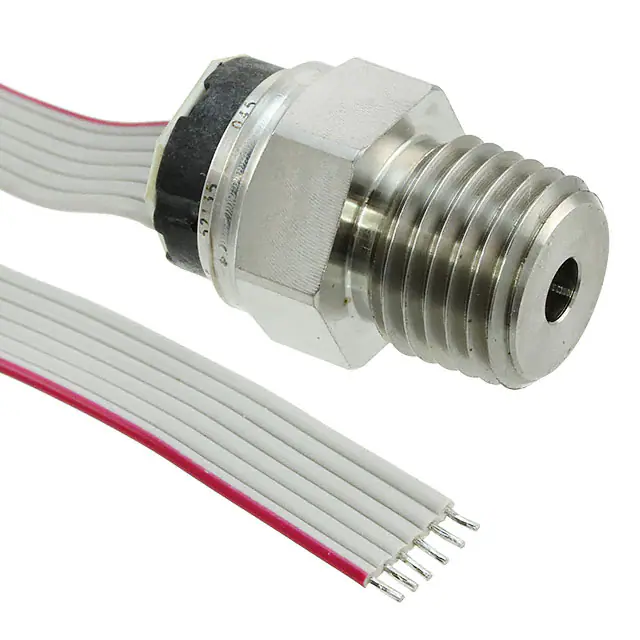

85-030G-4RSENSOR 30PSIG 0.1V |
3,016 | 112.68 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
DLHR-L10G-E1BD-C-NAV8SENSOR 0.36PSID 0.09" 18BIT 8DIP |
4,322 | 53.83 |
|
Datasheet |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | ±0.36PSI (±2.5kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLHR-L60G-E1BD-C-NAV8SENSOR 2.17PSID 0.09" 18BIT 8DIP |
1,585 | 53.83 |
|
Datasheet |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | 2.17PSI (15kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
85-030G-5RSENSOR 30PSIG 0.1V |
2,754 | 74.28 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|

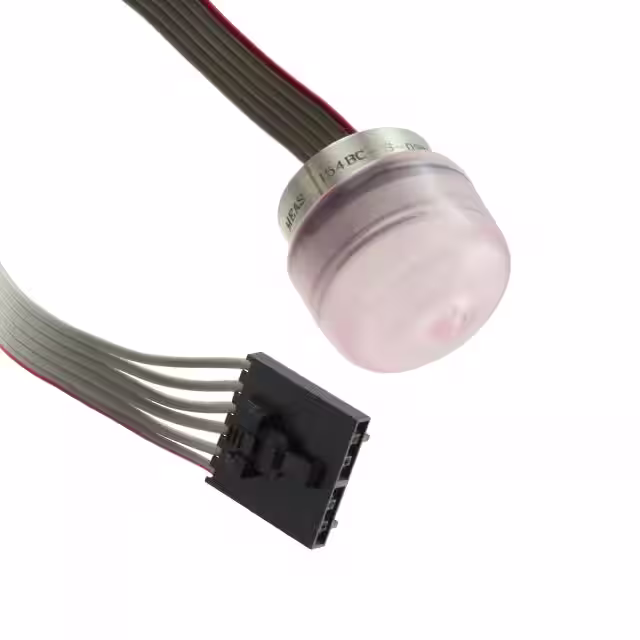

154BC-S-028BA-CSENSOR 406.11PSIA 0.1V |
4,363 | 74.28 |
|
Datasheet |
- | Module | Tube | Active | Board Mount | Absolute | 406.11PSI (2800kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | - | No Port | Temperature Compensated | Connector | 812.21PSI (5600kPa) | -40°C ~ 125°C | - | - | - | - |
|
4515DO-DS3BK004DPSENSOR 0.15PSID 0.14" 14BIT |
4,382 | 46.30 |
|
Datasheet |
- | 8-DIP Module | Tray | Active | Board Mount | Differential | 0.15PSI (1kPa) | I2C | 14 b | ±0.25% | 3.3V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|

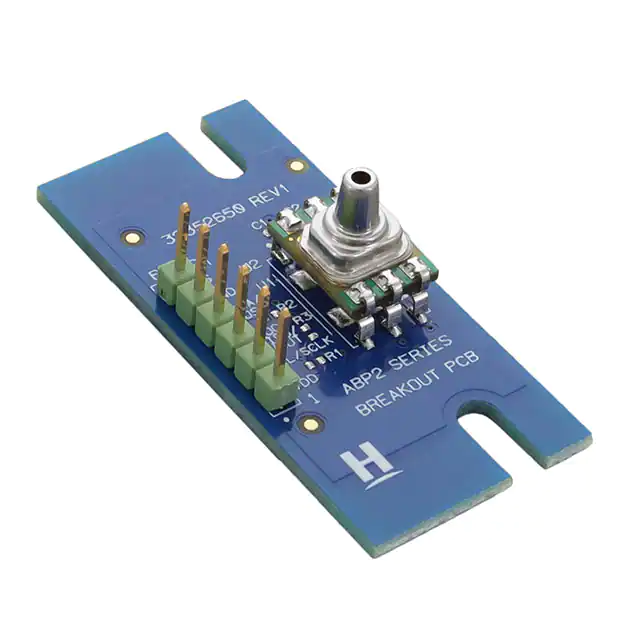

ABP2MVNT400MG2A3BBSENSOR 5.8PSIG 0.106" 14BIT 6SMD |
2,914 | 61.85 |
|
- |
ABP2 | 6-SMD, J-Lead, Top Port | Box | Active | Medical Ventilation | Gauge | 5.8PSI (40kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.106" (2.69mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | 29.01PSI (200kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
|
FMA-500-T1-40W-GVSENSOR 1.45PSI 1/8"NPT 4.5V |
2,908 | 102.44 |
|
Datasheet |
FMA | Module | Bulk | Active | Board Mount | Vacuum | 1.45PSI (10kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.5% | 4.75V ~ 5.25V | Female - 1/8" (3.18mm) NPT | Barbless | Amplified Output, Temperature Compensated | Connector | 2.89PSI (20kPa) | -40°C ~ 125°C | - | - | - | - |
|

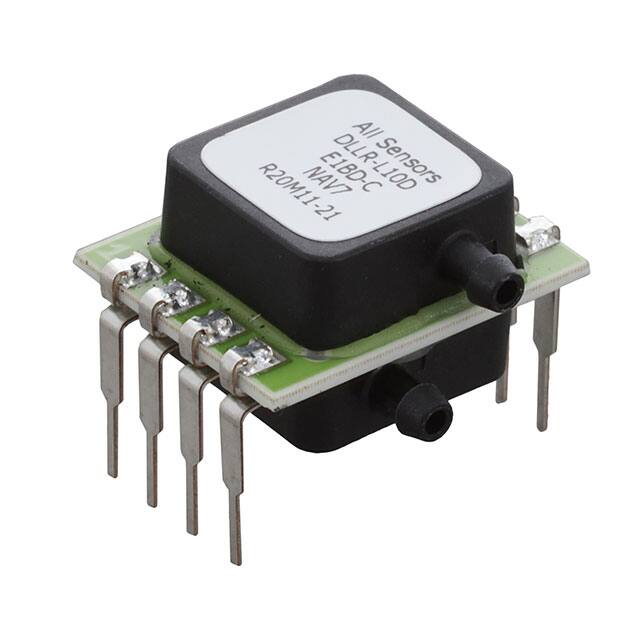

DLLR-L10D-E1BD-C-NAV7SENSOR 0.36PSID 0.09" 17BIT 8DIP |
2,288 | 77.34 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential | ±0.36PSI (±2.49kPa) | I2C, SPI | 17b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLLR-L30G-E1BD-C-NAV7SENSOR 1.08PSID 0.09" 17BIT 8DIP |
3,679 | 77.34 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential/Vented Gauge | 1.08PSI (7.48kPa) | I2C, SPI | 17b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

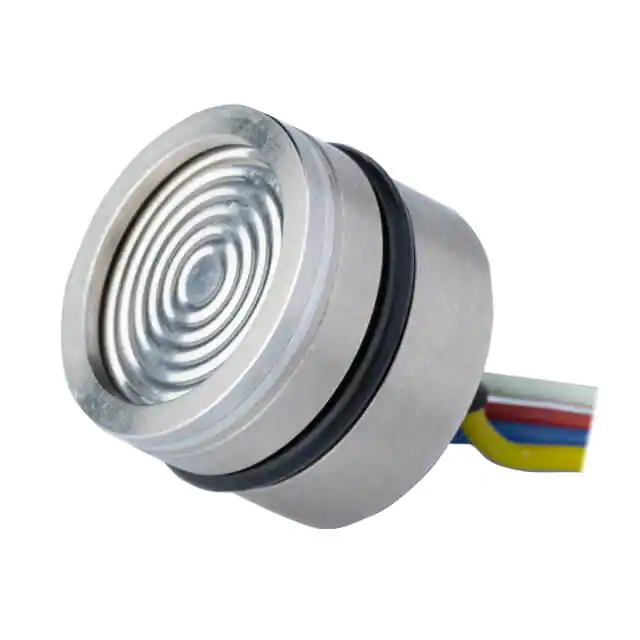

PS02-G250KP-4WSENSOR 36.26PSIG |
4,396 | 80.21 |
|
Datasheet |
PS02 | Module | Box | Active | - | Gauge | 36.26PSI (250kPa) | I2C | - | ±0.5% | 3.1V ~ 3.6V | - | No Port | Temperature Compensated | Wire Leads | 72.52PSI (500kPa) | -40°C ~ 105°C | - | - | - | - |
|
PS01-S160MP-3WSENSOR 232.06PSIS 4.5V |
1,178 | 80.21 |
|
Datasheet |
PS01 | Module | Box | Active | - | Sealed Gauge | 232.06PSI (1600kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 464.12PSI (3200kPa) | -40°C ~ 105°C | - | - | - | - |
|
|
PS01-G250MP-3WSENSOR 362.59PSIG 4.5V |
3,850 | 80.21 |
|
Datasheet |
PS01 | Module | Box | Active | - | Gauge | 362.59PSI (2500kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 725.19PSI (5000kPa) | -40°C ~ 105°C | - | - | - | - |
|
|
PS01-G250KP-3WSENSOR 36.26PSIG 4.5V |
1,162 | 80.21 |
|
Datasheet |
PS01 | Module | Box | Active | - | Gauge | 36.26PSI (250kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 72.52PSI (500kPa) | -40°C ~ 105°C | - | - | - | - |
|
|
PS01-S250MP-3WSENSOR 362.59PSIS 4.5V |
1,262 | 80.21 |
|
Datasheet |
PS01 | Module | Box | Active | - | Sealed Gauge | 362.59PSI (2500kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 725.19PSI (5000kPa) | -40°C ~ 105°C | - | - | - | - |
|
|
PS01-G160MP-3WSENSOR 232.06PSIG 4.5V |
2,748 | 80.21 |
|
Datasheet |
PS01 | Module | Box | Active | - | Gauge | 232.06PSI (1600kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 464.12PSI (3200kPa) | -40°C ~ 105°C | - | - | - | - |
